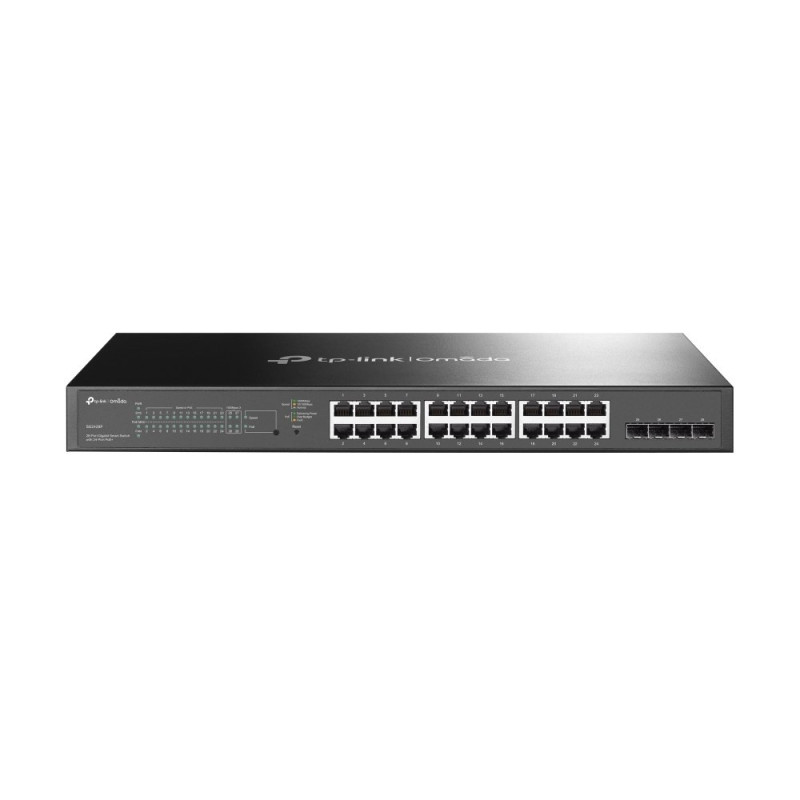

TP-Link Omada 28-Port Gigabit Smart Switch with 24-Port PoE+
Product reference:
6-TL-SG2428P
TP-Link Omada 28-Port Gigabit Smart Switch with 24-Port PoE+
TP-Link Omada 28-Port Gigabit Smart Switch with 24-Port PoE+
Product reference:
6-TL-SG2428P
TP-Link Omada 28-Port Gigabit Smart Switch with 24-Port PoE+
You have 3 products in compare list, please remove someone and try again
- Add to favorites products
- Added to favorites products
- Removed to favorites product
Guarantee
60 month
Delivery from Europe in
4 - 8
business days
| Product colour | Black |
| Form factor | 1U |
| Rack mounting | Yes |
| Number of fans | 2 fan(s) |
| AC input voltage | 100 - 240 V |
| Power source | AC |
| AC input frequency | 50/60 Hz |
| Power supply included | Yes |
| Power consumption (max) | 301.1 W |
| DHCP features | DHCP server, DHCP client, DHCP relay, DHCP snooping, DHCPv6 client |
| BPDU filtering/protection | Yes |
| Authentication type | RADIUS |
| Access Control List (ACL) | Yes |
| Queue scheduling algorithms | WRR+SP, Weighted Round Robin (WRR), SP |
| IP-MAC-Port binding | Yes |
| SSH/SSL support | Yes |
| IGMP snooping | Yes |
| Security algorithms | SSH, HTTPS, SSH-2, SNMPv3, SNMPv2, SSL/TLS, SNMP |
| Heat dissipation | 1052.94 BTU/h |
| Storage relative humidity (H-H) | 5 - 90% |
| Operating temperature (T-T) | 0 - 50 °C |
| Storage temperature (T-T) | -40 - 70 °C |
| Operating relative humidity (H-H) | 10 - 90% |
| Switch layer | L2/L2+ |
| System event log | Yes |
| MIB support | Y |
| Switch type | Managed |
| ARP inspection | Yes |
| Web-based management | Yes |
| Quality of Service (QoS) support | Yes |
| Depth | 220 mm |
| Height | 44 mm |
| Width | 440 mm |
| Number of VLANs | 4000 |
| Cable types supported | Cat3, Cat5, Cat5e, Cat4 |
| Rate limiting | Yes |
| Port mirroring | Yes |
| Flow control support | Yes |
| Link aggregation | Yes |
| Virtual LAN features | Voice VLAN, MAC address-based VLAN, Protocol-based VLAN |
| Broadcast storm control | Yes |
| Spanning tree protocol | Yes |
| Networking standards | IEEE 802.3ab, IEEE 802.1p, IEEE 802.1Q, IEEE 802.3x, IEEE 802.1x, IEEE 802.3af, IEEE 802.3az, IEEE 802.1D, IEEE 802.3z, IEEE 802.1w, IEEE 802.3i, IEEE 802.3u, IEEE 802.3at, IEEE 802.3ad, IEEE 802.1s |
| 10G support | No |
| VLAN support | Yes |
| Copper ethernet cabling technology | 10BASE-T, 1000BASE-T |
| Firmware upgradeable | Yes |
| Rack mount kit | Yes |
| User guide | Yes |
| Cables included | AC |
| Management protocols | SNMPv1/v2c/v3, SNTP |
| Gigabit Ethernet (copper) ports quantity | 24 |
| Basic switching RJ-45 Ethernet ports type | Gigabit Ethernet (10/100/1000) |
| Basic switching RJ-45 Ethernet ports quantity | 24 |
| SFP module slots quantity | 4 |
| Packet buffer memory | 4.1 MB |
| MAC address table | 8000 entries |
| Forwarding rate | 41.66 Mpps |
| Jumbo frames | 9000 |
| Number of queues | 8 |
| Switching capacity | 56 Gbit/s |
| Jumbo frames support | Yes |
| Power over Ethernet plus (PoE+) ports quantity | 24 |
| Power over Ethernet (PoE) | Yes |
| Total Power over Ethernet (PoE) budget | 250 W |
| Power over Ethernet (PoE) power per port | 30 W |
| Multicast support | Yes |
| Warnings | Do not open the case or try to repair it yourself., Ensure the unit is adequately ventilated during operation., The product is not suitable for disposal in the regular waste bin. Take your used electronic equipment to a recycling centre in accordance with local regulations. |
| Fiber ethernet cabling technology | 1000Base-X |
