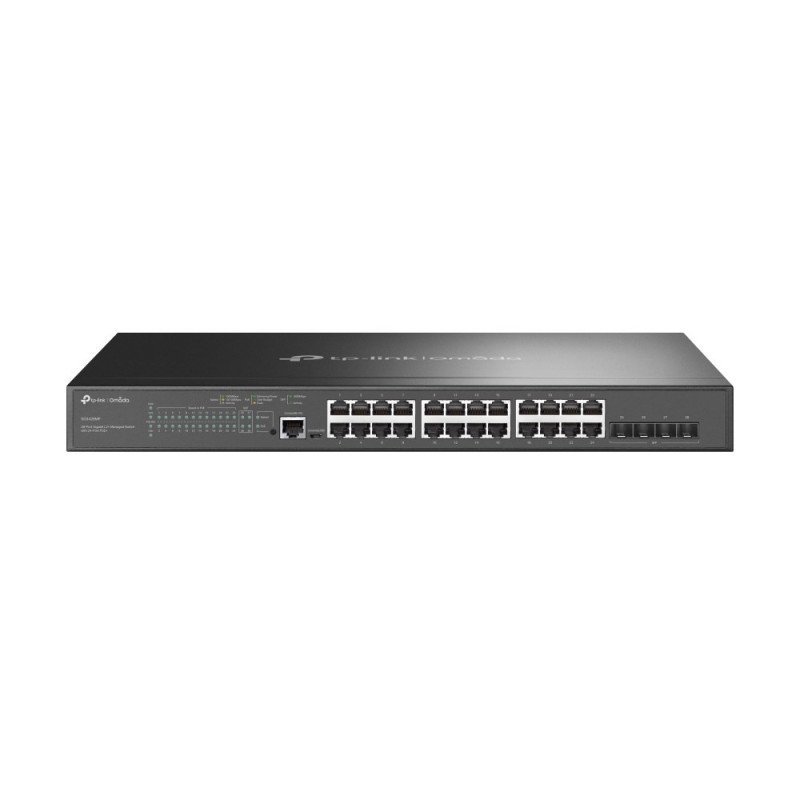

TP-Link Omada 28-Port Gigabit L2+ Managed Switch with 24-Port PoE+
Product reference:
6-TL-SG3428MP
TP-Link Omada 28-Port Gigabit L2+ Managed Switch with 24-Port PoE+
TP-Link Omada 28-Port Gigabit L2+ Managed Switch with 24-Port PoE+
Product reference:
6-TL-SG3428MP
TP-Link Omada 28-Port Gigabit L2+ Managed Switch with 24-Port PoE+
You have 3 products in compare list, please remove someone and try again
- Add to favorites products
- Added to favorites products
- Removed to favorites product
Guarantee
60 month
Delivery from Europe in
4 - 8
business days
| 10G support | No |
| AC input frequency | 50/60 Hz |
| AC input voltage | 100 - 240 V |
| Access Control List (ACL) | Yes |
| Active link detection | Yes |
| ARP inspection | Yes |
| Authentication | MAC-based authentication, Port-based authentication |
| Basic switching RJ-45 Ethernet ports quantity | 24 |
| Basic switching RJ-45 Ethernet ports type | Gigabit Ethernet (10/100/1000) |
| BPDU filtering/protection | Yes |
| Broadcast storm control | Yes |
| Cloud-managed | Yes |
| Configuring Location Settings (CLI) | Yes |
| Console port | RJ-45/micro-USB |
| Copper ethernet cabling technology | 10BASE-T, 1000BASE-T |
| Depth | 330 mm |
| DHCP features | DHCP client, DHCP relay, DHCP server, DHCP snooping, DHCPv6 client, DHCPv6 snooping |
| Ethernet LAN data rates | 10,100,1000 Mbit/s |
| Export Control Classification Number (ECCN) | EAR99 |
| Flow control support | Yes |
| Form factor | 1U |
| Forwarding rate | 41.66 Mpps |
| GARP VLAN Registration Protocol (GVRP) | Yes |
| Gigabit Ethernet (copper) ports quantity | 24 |
| Head-of-line (HOL) blocking | Yes |
| Heat dissipation | 1637.14 BTU/h |
| Height | 44 mm |
| IGMP snooping | Yes |
| IP routing | Yes |
| IP-MAC-Port binding | Yes |
| Jumbo frames | 9000 |
| Jumbo frames support | Yes |
| LED indicators | Yes |
| Link aggregation | Yes |
| Loop protection | Yes |
| MAC address filtering | Yes |
| MAC address table | 16000 entries |
| Management protocols | SNMPv1/v2c/v3, LLDP/LLDP-MED |
| Multicast support | Yes |
| Networking standards | IEEE 802.3ab, IEEE 802.3af, IEEE 802.3at, IEEE 802.3i, IEEE 802.3u, IEEE 802.3z |
| Number of fans | 2 fan(s) |
| Number of VLANs | 4000 |
| Operating relative humidity (H-H) | 10 - 90% |
| Operating temperature (T-T) | 0 - 45 °C |
| Packet buffer memory | 12 MB |
| Port mirroring | Yes |
| Power connector | AC-in jack |
| Power consumption (max) | 480.1 W |
| Power over Ethernet (PoE) | Yes |
| Power over Ethernet (PoE) power per port | 30 W |
| Power over Ethernet plus (PoE+) ports quantity | 24 |
| Power source | AC |
| Power supply included | Yes |
| Product colour | Black |
| Quality of Service (QoS) support | Yes |
| Quick start guide | Yes |
| Rack mounting | Yes |
| Rate limiting | Yes |
| Security algorithms | SSH, SSL/TLS |
| SFP module slots quantity | 4 |
| Spanning tree protocol | Yes |
| SSH/SSL support | Yes |
| Static port security | Yes |
| Storage relative humidity (H-H) | 5 - 90% |
| Storage temperature (T-T) | -40 - 70 °C |
| Store-and-forward | Yes |
| Switch layer | L2+ |
| Switch type | Managed |
| Switching capacity | 56 Gbit/s |
| System event log | Yes |
| Total Power over Ethernet (PoE) budget | 384 W |
| User guide | Yes |
| Virtual LAN features | MAC address-based VLAN, Port-based VLAN, Private VLAN, Tagged VLAN, Voice VLAN |
| VLAN support | Yes |
| Warnings | Do not open the case or try to repair it yourself., Ensure the unit is adequately ventilated during operation., The product is not suitable for disposal in the regular waste bin. Take your used electronic equipment to a recycling centre in accordance with local regulations. |
| Web-based management | Yes |
| Width | 440 mm |
