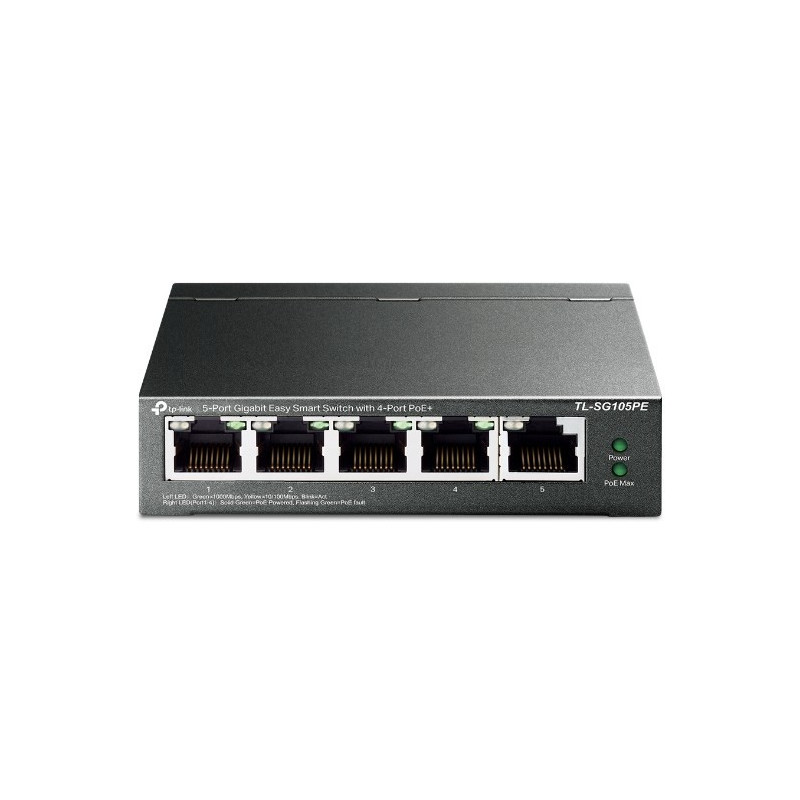

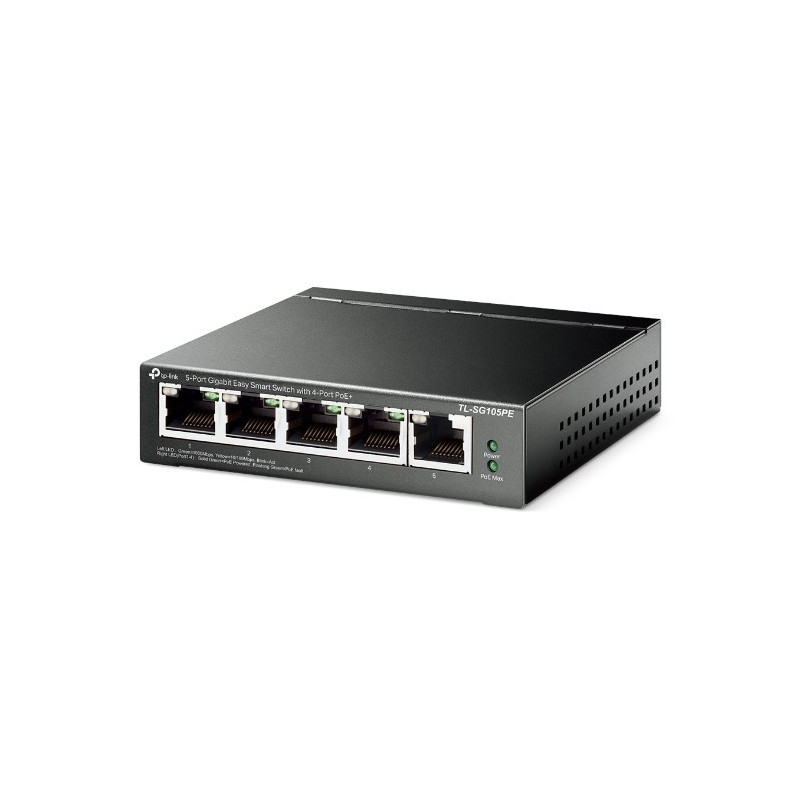

TP-Link 5-Port Gigabit Easy Smart PoE Switch with 4-Port PoE+
Product reference:
6-TL-SG105PE
TP-Link 5-Port Gigabit Easy Smart PoE Switch with 4-Port PoE+
TP-Link 5-Port Gigabit Easy Smart PoE Switch with 4-Port PoE+
Product reference:
6-TL-SG105PE
TP-Link 5-Port Gigabit Easy Smart PoE Switch with 4-Port PoE+
You have 3 products in compare list, please remove someone and try again
- Add to favorites products
- Added to favorites products
- Removed to favorites product
Guarantee
60 month
Delivery from Europe in
4 - 8
business days
| 10G support | No |
| Auto MDI/MDI-X | Yes |
| Auto-negotiation | Yes |
| Basic switching RJ-45 Ethernet ports quantity | 5 |
| Basic switching RJ-45 Ethernet ports type | Gigabit Ethernet (10/100/1000) |
| Broadcast storm control | Yes |
| Cable types supported | Cat3, Cat4, Cat5, Cat5e, Cat6 |
| Copper ethernet cabling technology | 10BASE-T, 100BASE-FX, 100BASE-TX, 1000BASE-T |
| Depth | 98 mm |
| Fanless | Yes |
| Flow control support | Yes |
| Forwarding rate | 7.44 Mpps |
| Gigabit Ethernet (copper) ports quantity | 5 |
| Harmonized System (HS) code | 85176990 |
| Heat dissipation | 256.3 BTU/h |
| Height | 25 mm |
| IGMP snooping | Yes |
| Input current | 1.31 A |
| Input voltage | 53.5 V |
| Jumbo frames | 16000 |
| Jumbo frames support | Yes |
| LED indicators | Activity, Link, PoE, Power, Speed, Status |
| Link aggregation | Yes |
| Loop protection | Yes |
| MAC address table | 2000 entries |
| Networking standards | IEEE 802.1p, IEEE 802.1Q, IEEE 802.3ab, IEEE 802.3af, IEEE 802.3at, IEEE 802.3i, IEEE 802.3u, IEEE 802.3x |
| Number of queues | 4 |
| Number of VLANs | 4000 |
| Operating relative humidity (H-H) | 10 - 90% |
| Operating temperature (T-T) | 0 - 40 °C |
| Packet buffer memory | 1 MB |
| Port mirroring | Yes |
| Power consumption (max) | 75.16 W |
| Power over Ethernet (PoE) | Yes |
| Power over Ethernet (PoE) power per port | 30 W |
| Power over Ethernet plus (PoE+) ports quantity | 4 |
| Power source | DC |
| Power supply included | Yes |
| Product colour | Black |
| Quality of Service (QoS) support | Yes |
| Rack mounting | No |
| Rate limiting | Yes |
| Storage relative humidity (H-H) | 5 - 95% |
| Storage temperature (T-T) | -40 - 70 °C |
| Store-and-forward | Yes |
| Switch layer | L2 |
| Switch type | Managed |
| Switching capacity | 10 Gbit/s |
| Total Power over Ethernet (PoE) budget | 65 W |
| User guide | Yes |
| Virtual LAN features | Port-based VLAN, Tagged VLAN |
| VLAN support | Yes |
| Web-based management | Yes |
| Width | 99.8 mm |
