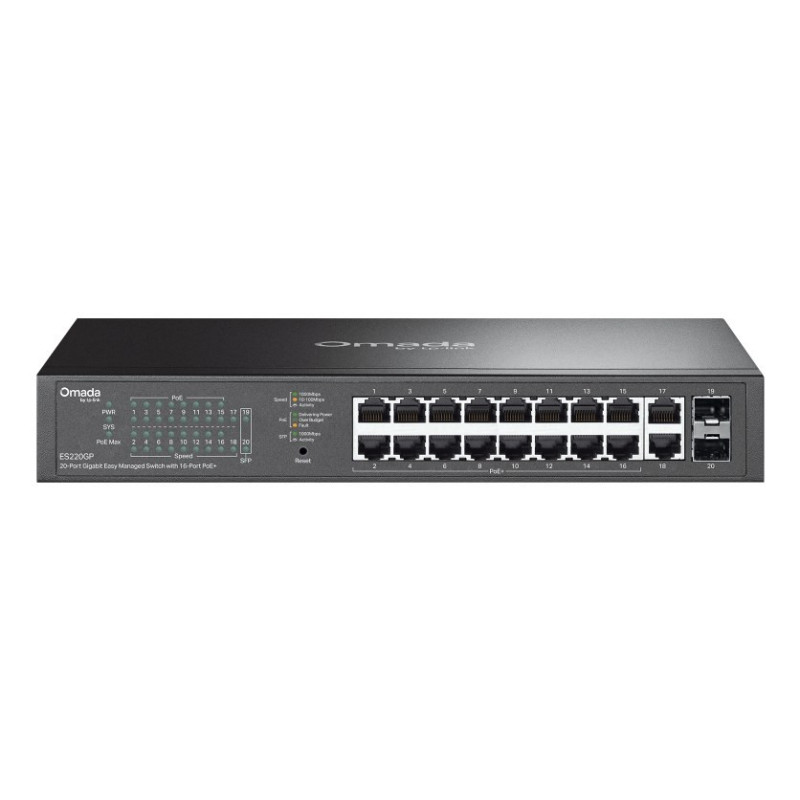

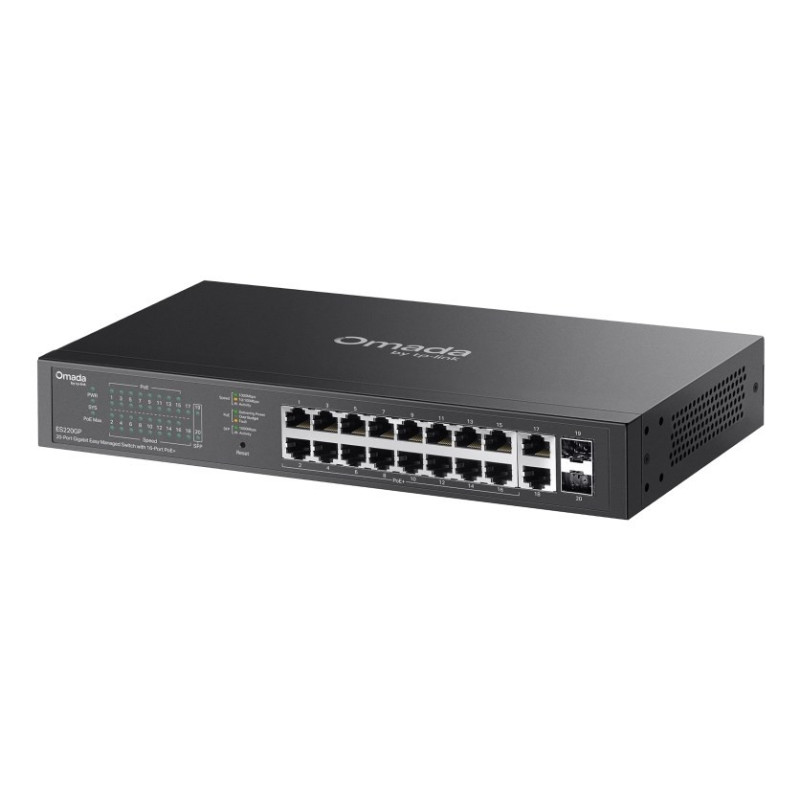

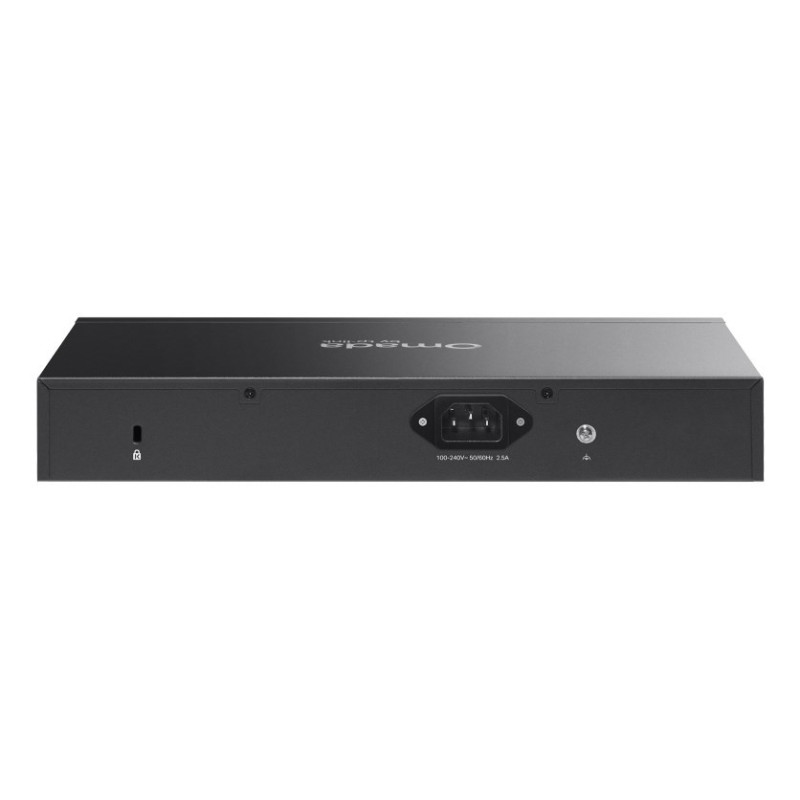

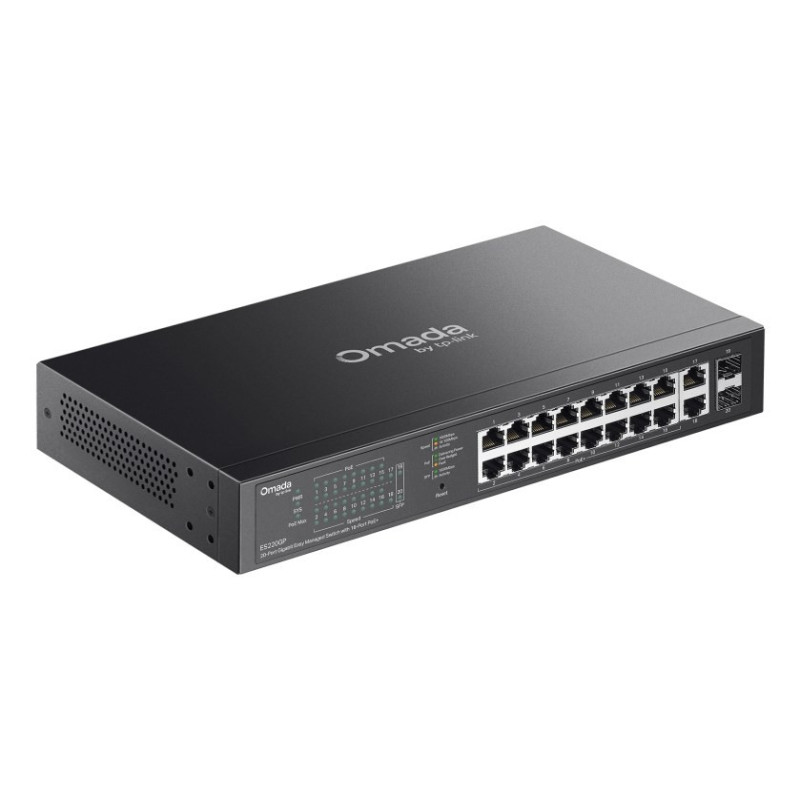

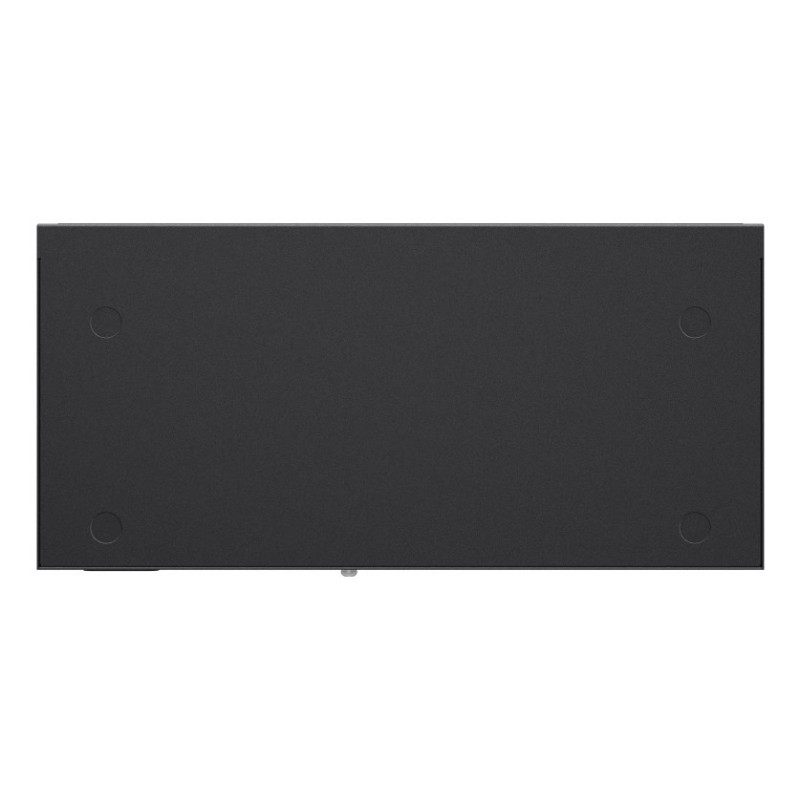

OMADA ES220GP network switch Managed Gigabit Ethernet (10 / 100 / 1000) Power over Ethernet (PoE) Black
Product reference:
6-ES220GP
OMADA ES220GP network switch Managed Gigabit Ethernet (10/100/1000) Power over Ethernet (PoE) Black
OMADA ES220GP network switch Managed Gigabit Ethernet (10 / 100 / 1000) Power over Ethernet (PoE) Black
Product reference:
6-ES220GP
OMADA ES220GP network switch Managed Gigabit Ethernet (10/100/1000) Power over Ethernet (PoE) Black
You have 3 products in compare list, please remove someone and try again
- Add to favorites products
- Added to favorites products
- Removed to favorites product
Guarantee
60 month
Delivery from Europe in
4 - 8
business days
| 10G support | No |
| AC input frequency | 50/60 Hz |
| AC input voltage | 100 - 240 V |
| Auto MDI/MDI-X | Yes |
| Auto-negotiation | Yes |
| Basic switching RJ-45 Ethernet ports quantity | 18 |
| Basic switching RJ-45 Ethernet ports type | Gigabit Ethernet (10/100/1000) |
| Broadcast storm control | Yes |
| Cables included | AC |
| Cloud-managed | Yes |
| Compliance certificates | CE, Federal Communications Commission (FCC), RoHS |
| Depth | 180 mm |
| DHCP features | DHCP client |
| Ethernet LAN data rates | 10,100,1000 Mbit/s |
| Fanless | Yes |
| Flow control support | Yes |
| Forwarding rate | 29.76 Mpps |
| Gigabit Ethernet (copper) ports quantity | 18 |
| Height | 44 mm |
| Housing material | Metal |
| IGMP snooping | Yes |
| Input current | 2.5 A |
| Jumbo frames support | Yes |
| Link aggregation | Yes |
| MAC address table | 8000 entries |
| Mean time between failures (MTBF) | 320156 h |
| Multicast support | Yes |
| Networking standards | IEEE 802.1ab, IEEE 802.1p, IEEE 802.1Q, IEEE 802.3af, IEEE 802.3at, IEEE 802.3x |
| Noise level | 20.1 dB |
| Number of queues | 8 |
| Number of VLANs | 32 |
| Operating relative humidity (H-H) | 10 - 90% |
| Operating temperature (T-T) | -5 - 40 °C |
| Packet buffer memory | 4 MB |
| Port mirroring | Yes |
| Power connector | AC-in jack |
| Power consumption (max) | 182.43 W |
| Power over Ethernet (PoE) | Yes |
| Power over Ethernet (PoE) power per port | 30 W |
| Power over Ethernet (PoE) type supported | PoE+ |
| Power over Ethernet plus (PoE+) ports quantity | 16 |
| Power source | AC |
| Product colour | Black |
| Quality of Service (QoS) support | Yes |
| Queue scheduling algorithms | Weighted Round Robin (WRR) |
| Rack mounting | Yes |
| SFP module slots quantity | 2 |
| Storage relative humidity (H-H) | 5 - 90% |
| Storage temperature (T-T) | -40 - 70 °C |
| Store-and-forward | Yes |
| Switch type | Managed |
| Switching capacity | 40 Gbit/s |
| Total Power over Ethernet (PoE) budget | 150 W |
| User guide | Yes |
| Virtual LAN features | MTU VLAN, Port-based VLAN, Tagged VLAN |
| VLAN support | Yes |
| Web-based management | Yes |
| Width | 294 mm |
