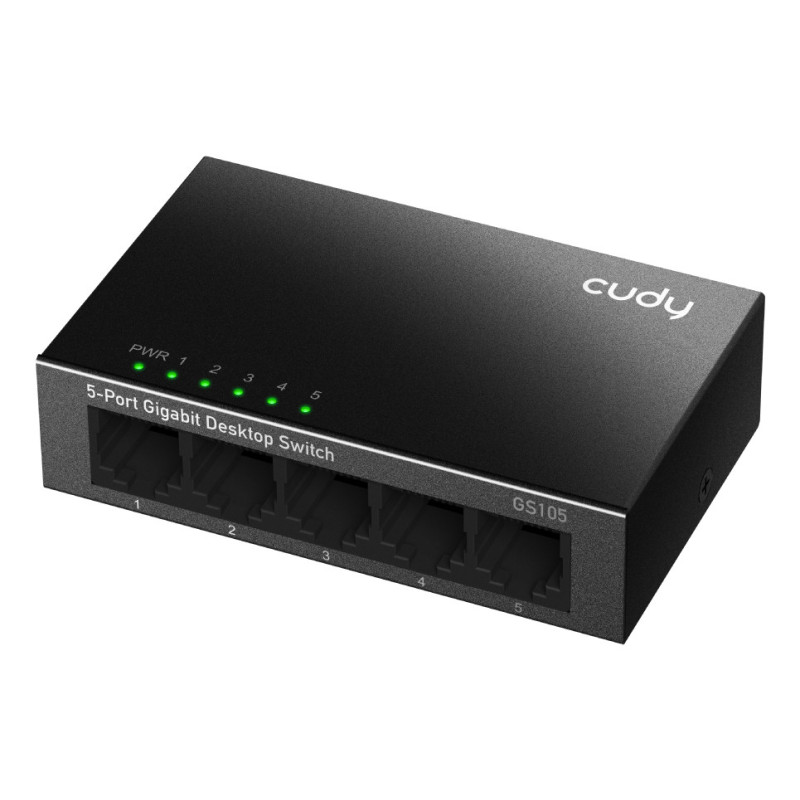

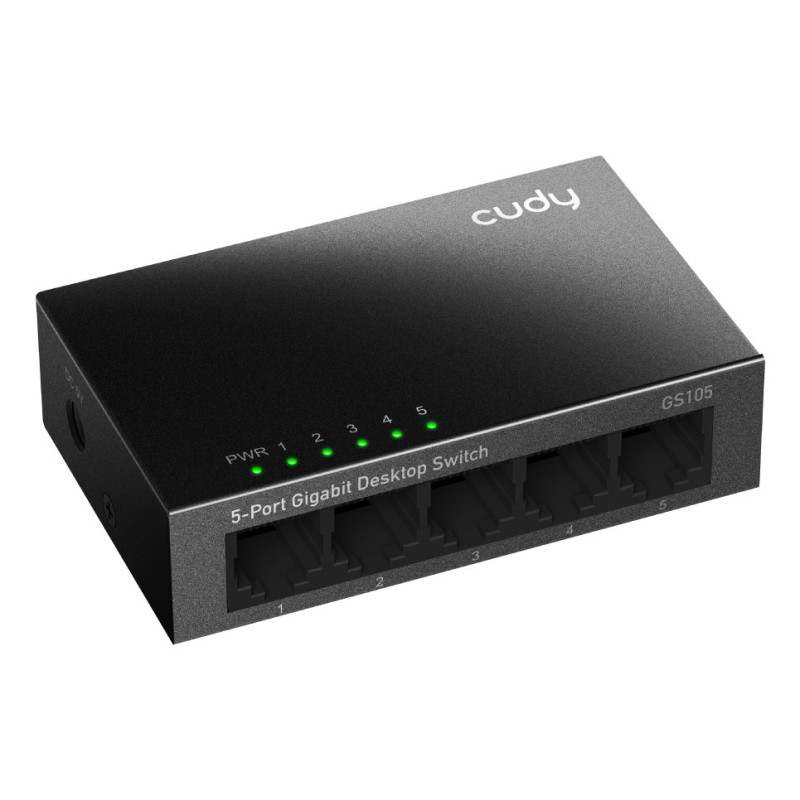

Cudy GS105 network switch Unmanaged Gigabit Ethernet (10 / 100 / 1000) Black
Product reference:
6-GS105
Cudy GS105 network switch Unmanaged Gigabit Ethernet (10/100/1000) Black
Cudy GS105 network switch Unmanaged Gigabit Ethernet (10 / 100 / 1000) Black
Product reference:
6-GS105
Cudy GS105 network switch Unmanaged Gigabit Ethernet (10/100/1000) Black
You have 3 products in compare list, please remove someone and try again
- Add to favorites products
- Added to favorites products
- Removed to favorites product
Guarantee
24 month
Delivery from Europe in
4 - 8
business days
Not available
| Basic switching RJ-45 Ethernet ports quantity | 5 |
| Basic switching RJ-45 Ethernet ports type | Gigabit Ethernet (10/100/1000) |
| Cable types supported | Cat3, Cat4, Cat5, Cat5e, Cat6, Cat6+, Cat6a, Cat6e, Cat7, Cat7e, Cat8, Cat8.1 |
| Cables included | DC |
| Copper ethernet cabling technology | 10BASE-T, 100BASE-TX, 1000BASE-T |
| DC input voltage | 5 V |
| Depth | 53 mm |
| Ethernet LAN data rates | 10,100,1000 Mbit/s |
| Flow control support | Yes |
| Forwarding rate | 7.44 Mpps |
| Full duplex | Yes |
| Half duplex | Yes |
| Height | 23 mm |
| Input current | 0.55 A |
| Jumbo frames | 9000 |
| Jumbo frames support | Yes |
| LED indicators | Link, Loop, Power |
| MAC address table | 2048 entries |
| Manual | Yes |
| Master (outer) case gross weight | 17 kg |
| Master (outer) case height | 400 mm |
| Master (outer) case length | 320 mm |
| Master (outer) case width | 505 mm |
| Mean time between failures (MTBF) | 100000 h |
| Networking standards | IEEE 802.3, IEEE 802.3ab, IEEE 802.3u, IEEE 802.3x |
| Operating altitude | 0 - 3048 m |
| Operating relative humidity (H-H) | 10 - 90% |
| Operating temperature (T-T) | 0 - 40 °C |
| Packet buffer memory | 0.125 MB |
| Power connector | DC-in jack |
| Power consumption (max) | 1.2 W |
| Power over Ethernet (PoE) | No |
| Power source | DC |

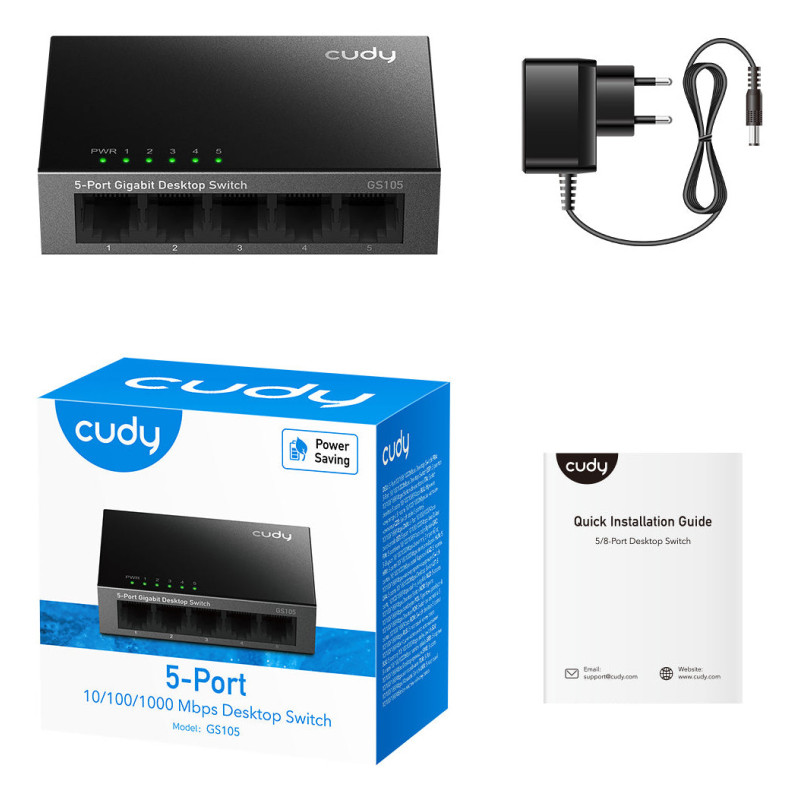

| Power supply included | Yes |
| Product colour | Black |
| Products per master (outer) case | 40 pc(s) |
| Rack mounting | No |
| Storage relative humidity (H-H) | 5 - 90% |
| Storage temperature (T-T) | -40 - 70 °C |
| Store-and-forward | Yes |
| Switch type | Unmanaged |
| Switching capacity | 10 Gbit/s |
| VLAN support | Yes |
| Warnings | Do not open the case or try to repair it yourself., Ensure the unit is adequately ventilated during operation., The product is not suitable for disposal in the regular waste bin. Take your used electronic equipment to a recycling centre in accordance with local regulations. |
| Weight | 115.1 g |
| Width | 86.5 mm |
