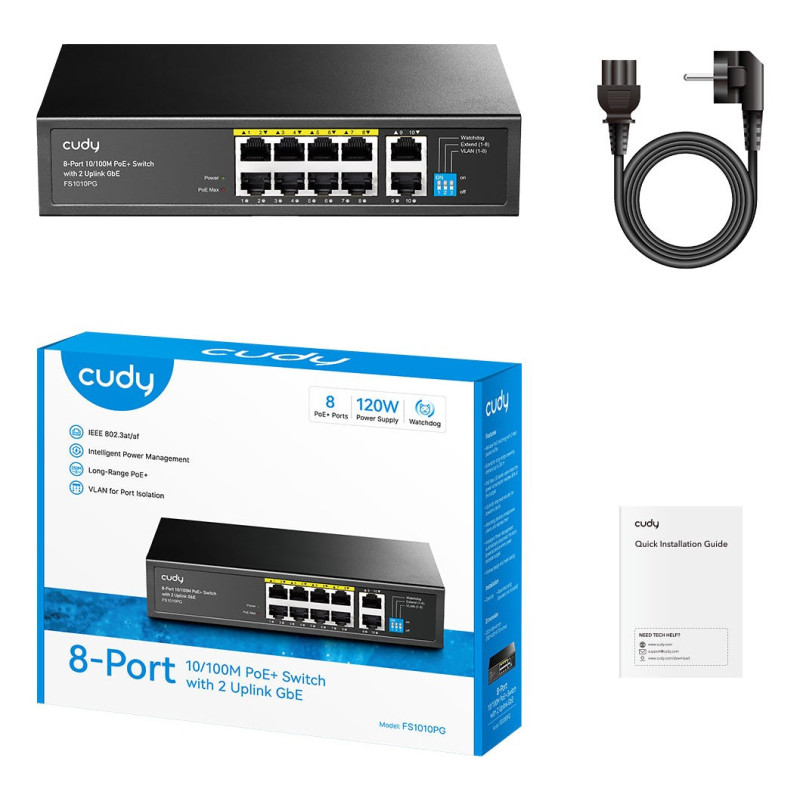

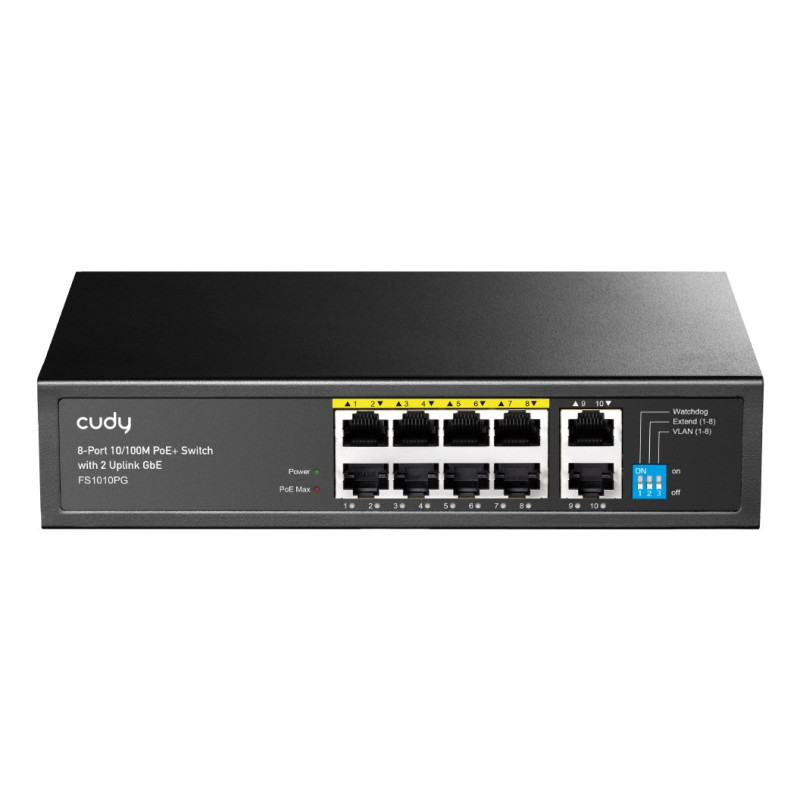

Cudy FS1010PG network switch Unmanaged Fast Ethernet (10 / 100) Power over Ethernet (PoE) Black
Product reference:
6-FS1010PG
Cudy FS1010PG network switch Unmanaged Fast Ethernet (10/100) Power over Ethernet (PoE) Black
Cudy FS1010PG network switch Unmanaged Fast Ethernet (10 / 100) Power over Ethernet (PoE) Black
Product reference:
6-FS1010PG
Cudy FS1010PG network switch Unmanaged Fast Ethernet (10/100) Power over Ethernet (PoE) Black
You have 3 products in compare list, please remove someone and try again
- Add to favorites products
- Added to favorites products
- Removed to favorites product
Guarantee
24 month
Delivery from Europe in
4 - 8
business days
| AC input frequency | 50/60 Hz |
| AC input voltage | 100 - 240 V |
| Basic switching RJ-45 Ethernet ports quantity | 8 |
| Basic switching RJ-45 Ethernet ports type | Fast Ethernet (10/100) |
| Cable types supported | Cat3, Cat4, Cat5, Cat5e |
| Cables included | AC |
| Copper ethernet cabling technology | 10BASE-T, 100BASE-TX, 1000BASE-T |
| Depth | 150 mm |
| Ethernet LAN data rates | 10,100 Mbit/s |
| Fanless | Yes |
| Flow control support | Yes |
| Forwarding rate | 4.166 Mpps |
| Full duplex | Yes |
| Gigabit Ethernet (copper) ports quantity | 2 |
| Half duplex | Yes |
| Height | 44 mm |
| Housing material | Metal |
| LED indicators | Activity, Link, PoE, Power |
| MAC address table | 2048 entries |
| Mean time between failures (MTBF) | 50000 h |
| Networking standards | IEEE 802.3ab, IEEE 802.3af, IEEE 802.3at, IEEE 802.3i, IEEE 802.3u, IEEE 802.3x, IEEE 802.3z |
| Operating relative humidity (H-H) | 10 - 90% |
| Operating temperature (T-T) | 0 - 40 °C |
| Packet buffer memory | 0.25 MB |
| Plug and Play | Yes |
| Power connector | AC-in jack |
| Power consumption (max) | 120 W |
| Power consumption (typical) | 5 W |
| Power over Ethernet (PoE) | Yes |
| Power over Ethernet (PoE) ports quantity | 8 |
| Power over Ethernet (PoE) power per port | 30 W |
| Power over Ethernet plus (PoE+) ports quantity | 1 |
| Power source | AC |
| Power supply included | Yes |
| Product colour | Black |
| Products per shipping (inner) case | 16 pc(s) |
| Storage relative humidity (H-H) | 5 - 90% |
| Storage temperature (T-T) | -40 - 70 °C |
| Store-and-forward | Yes |
| Surge protection | Yes |
| Surge protection voltage | 4 kV |
| Switch type | Unmanaged |
| Switching capacity | 5.6 Gbit/s |
| Total Power over Ethernet (PoE) budget | 120 W |
| Uplink ports quantity | 2 |
| VLAN support | Yes |
| Warnings | Do not open the case or try to repair it yourself., Ensure the unit is adequately ventilated during operation., The product is not suitable for disposal in the regular waste bin. Take your used electronic equipment to a recycling centre in accordance with local regulations. |
| Warranty period | 1 year(s) |
| Weight | 636 g |
| Width | 220 mm |
