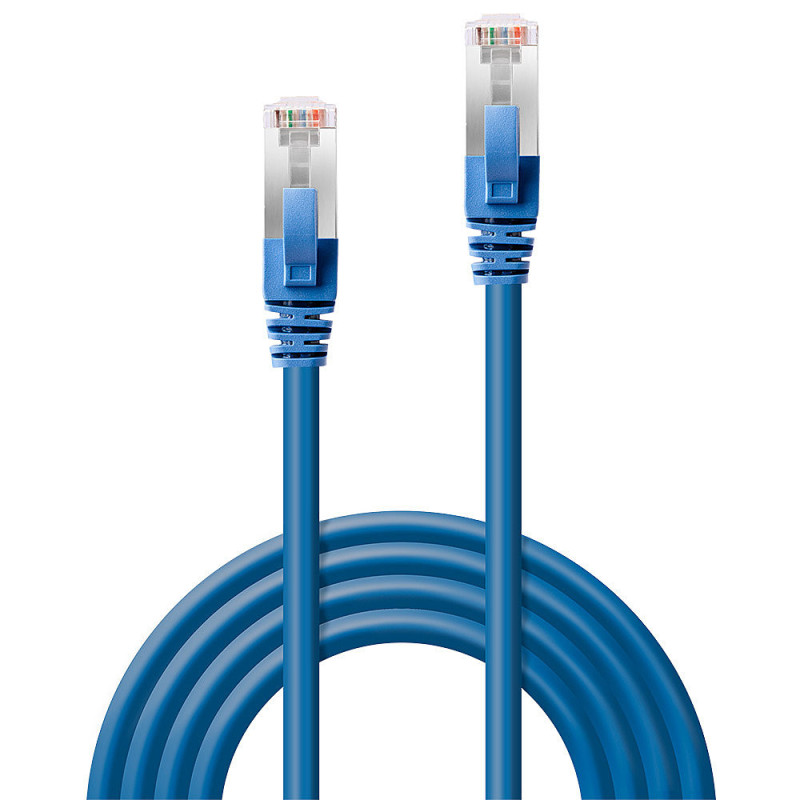

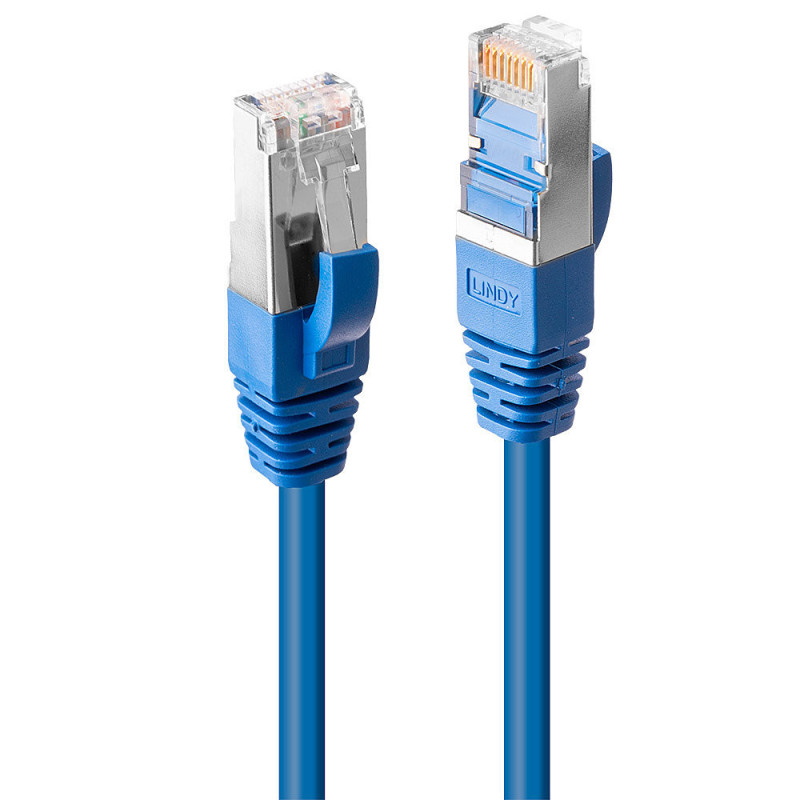

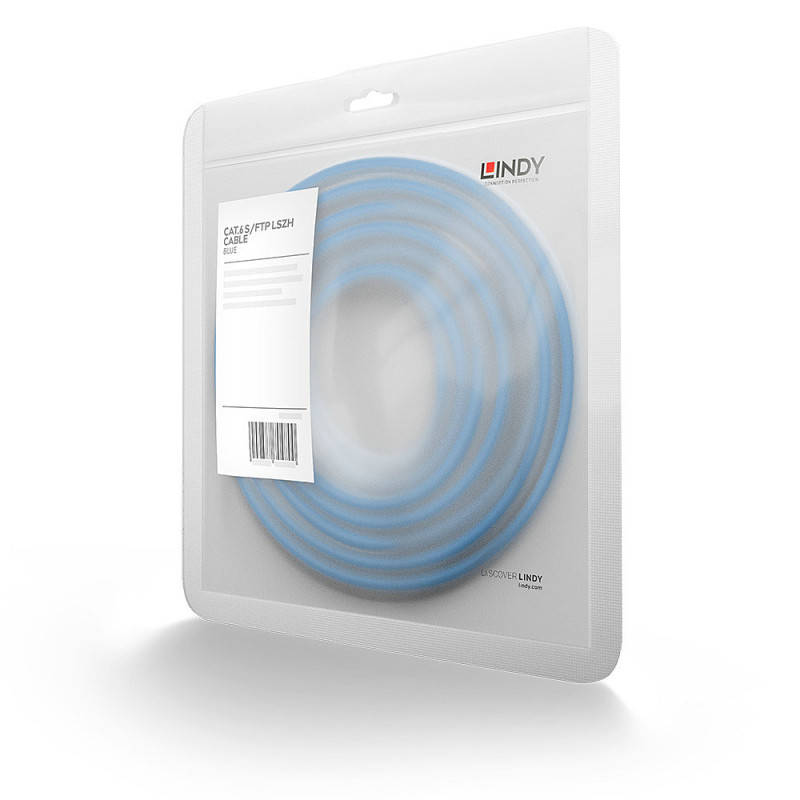

Network Cable - LINDY Cat.6 S / FTP LSZH Network Cable, RJ45, M / M, 250MHz, 26AWG, 20 m, Blue
Product reference:
14-4002888456494
The 20m Cat.6 S/FTP LSZH network cable supports 250MHz bandwidth, is made of copper with 26AWG conductor. It has RJ45 M/M connectors and complies with RoHS, REACH and UL standards.
Network Cable - LINDY Cat.6 S / FTP LSZH Network Cable, RJ45, M / M, 250MHz, 26AWG, 20 m, Blue
Product reference:
14-4002888456494
The 20m Cat.6 S/FTP LSZH network cable supports 250MHz bandwidth, is made of copper with 26AWG conductor. It has RJ45 M/M connectors and complies with RoHS, REACH and UL standards.
You have 3 products in compare list, please remove someone and try again
- Add to favorites products
- Added to favorites products
- Removed to favorites product
Guarantee
24 month
Delivery from Europe in
15 - 16
business days
LINDY Cat.6 S/FTP LSZH Network Cable, RJ45, M/M, 250MHz, 20 m, Blue
The 20m Cat.6 S/FTP LSZH network cable supports 250MHz bandwidth and is made of copper with 26AWG conductor thickness. It has RJ45 M/M connectors and complies with RoHS, REACH and UL standards.
- High-speed Cat.6 network cable with 250MHz bandwidth, ensuring reliable data transmission.
- Durable LSZH sheath for increased safety and reduced smoke emissions in the event of a fire.
- 20 m long, ideal for connecting devices over long distances without signal loss.
- Gold-plated connectors for better conductivity and corrosion resistance.
Features | |
|---|---|
| Product type | Network cable |
| Model | 20 m Cat.6 S/FTP LSZH network cable |
Specifications | |
| Length | 20 m (65.62 ft) |
| Color | Blue |
| Type | Cat.6 |
| Shell diameter | 6.2 mm (0.24 inch) |
| Shell material | LSZH |
| Conductor material | Copper |
| Conductor thickness | 26AWG |
| Protection | Aluminum / Polyester |
Technical data | |
| Supported bandwidth | 250MHz |
| Nominal attenuation | 38.3dB/100m @250MHz |
| Minimum bending radius | 18.6 mm (0.74 inch) |
| Working temperature | -25°C - 60°C (-43°F - 140°F) |
| Safety temperature | -25°C - 60°C (-43°F - 140°F) |
Connectors | |
| Connector A | RJ45 Male |
| Connector B | RJ45 Male |
| Housing material | Polycarbonate |
| Connector coating | Nickel |
| Pin construction | Brass |
| Pin coating | Gold plated |
| Dimensions (approximate) | 11.6x21.5x8.3 mm (0.46x0.85x0.33 inches) |
Compliance | |
| Product compliance | RoHS, REACH, UL |
