Network Cable - Dahua PFM920-5EU 305m Outdoor CAT5e UTP Cable RoHS Compliant
Product reference:
14-6923169700595
305m outdoor UTP CAT5e cable with 99.97% oxygen-free copper conductors supports Power over Ethernet. It has a customized MDPE outer jacket, RoHS compliant and ANSI/TIA 568-C.2 compliant.
Network Cable - Dahua PFM920-5EU 305m Outdoor CAT5e UTP Cable RoHS Compliant
Product reference:
14-6923169700595
305m outdoor UTP CAT5e cable with 99.97% oxygen-free copper conductors supports Power over Ethernet. It has a customized MDPE outer jacket, RoHS compliant and ANSI/TIA 568-C.2 compliant.
You have 3 products in compare list, please remove someone and try again
- Add to favorites products
- Added to favorites products
- Removed to favorites product
Guarantee
0 month
Delivery from Europe in
4 - 5
business days

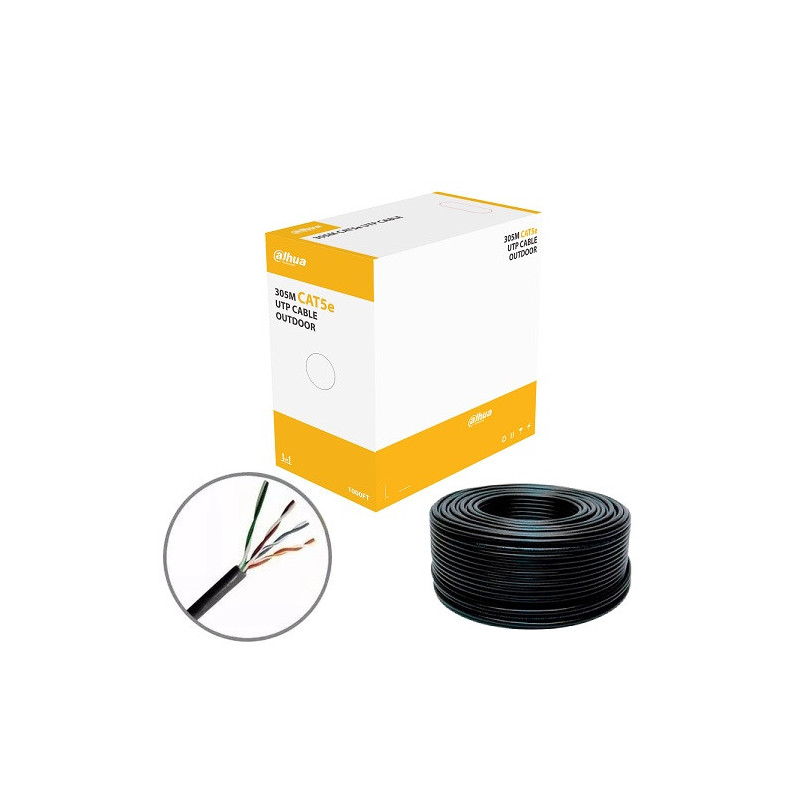

Dahua Outdoor Cat5 UTP Cable 1x305m PFM920-5EU
305m outdoor UTP CAT5e cable with 99.97% oxygen-free copper conductors supports Power over Ethernet. It has a customized MDPE outer jacket, meets RoHS requirements and ANSI/TIA 568-C.2 standards.
- 305m long outdoor UTP CAT5e cable for Power over Ethernet applications.
- Made from high purity (99.97%) oxygen-free copper for optimal performance.
- Eco-friendly materials that meet RoHS standards and ANSI/TIA 568-C.2 fire resistance certification.
- Durable MDPE outer sheath with excellent tensile strength and flexibility for a variety of installation environments.
Features | |
|---|---|
| Product type | network cable |
| Model | PFM920-5EU |
Specifications | |
| Cable material | Oxygen-free copper (99.97% purity) |
| Wire diameter | 0.50mm ± 0.01mm |
| AWG | 24 AWG |
| Insulation material | HDPE |
| Insulation thickness | 0.21 mm (min. average) |
| Shell material | MDPE |
| Shell thickness | 0.7 mm (min. average) |
| Maximum DC resistance | 9.5 Ohm/100m |
| Minimum insulation resistance | 5000 MOhm·km |
| Dielectric strength | No breakdown with 1KV DC for 1 min |
| Maximum attenuation | 22 dB/100m @ 100 MHz |
| Characteristic impedance | 100 ± 15 Ohms |
| Working temperature | -30°C to +60°C |
| Installation temperature | -5°C to +50°C |
| Storage temperature | -10°C to +40°C |
| Length | 305m ± 1.5m |
| Net weight | 8.5 kg (± 0.6 kg) |
| Packaging dimensions | 406mm × 404mm × 216mm |
| Standard in progress | ANSI/TIA 568-C.2 |
