Network Attached Storage - ASUSTOR Lockerstor 10 AS6510T Intel Atom C3538 8GB DDR4 Black
Product reference:
14-4710474831227
The Asustor Lockerstor 10 AS6510T NAS tower features an Intel Atom® C3538 processor with 4 cores and 8GB of DDR4 memory. It supports up to 10 storage drives, offers various RAID configurations, and has 4 Ethernet LAN ports for network connectivity.
Network Attached Storage - ASUSTOR Lockerstor 10 AS6510T Intel Atom C3538 8GB DDR4 Black
Product reference:
14-4710474831227
The Asustor Lockerstor 10 AS6510T NAS tower features an Intel Atom® C3538 processor with 4 cores and 8GB of DDR4 memory. It supports up to 10 storage drives, offers various RAID configurations, and has 4 Ethernet LAN ports for network connectivity.
You have 3 products in compare list, please remove someone and try again
- Add to favorites products
- Added to favorites products
- Removed to favorites product
Guarantee
24 month
Delivery from Europe in
8 - 9
business days

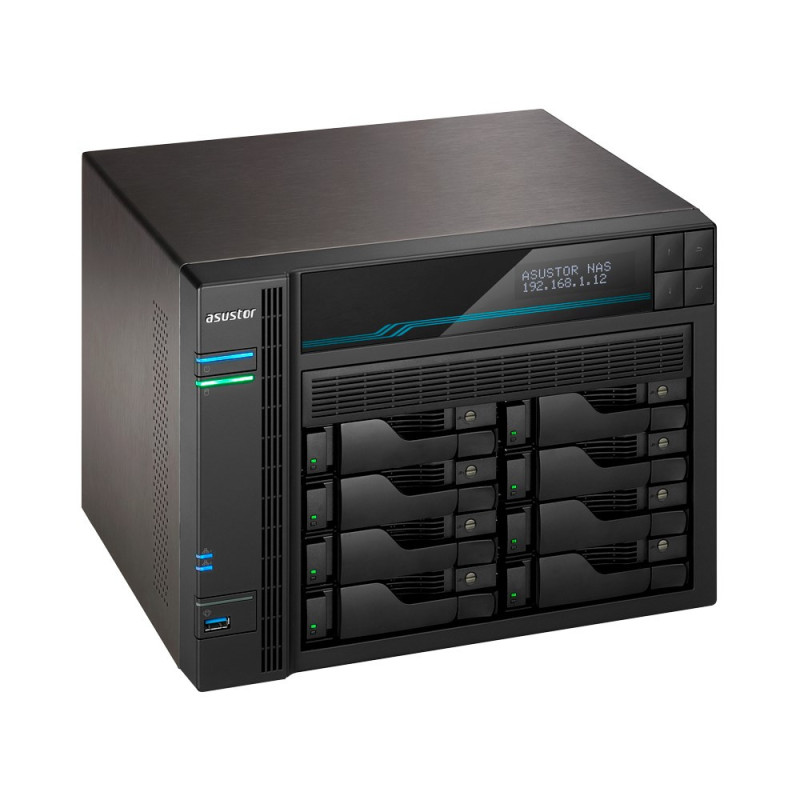

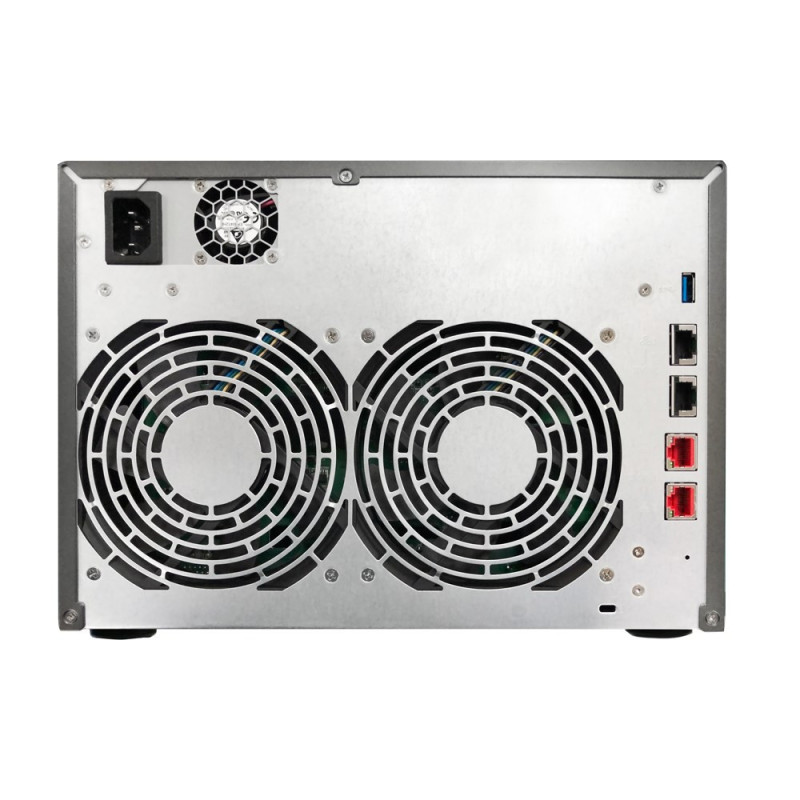

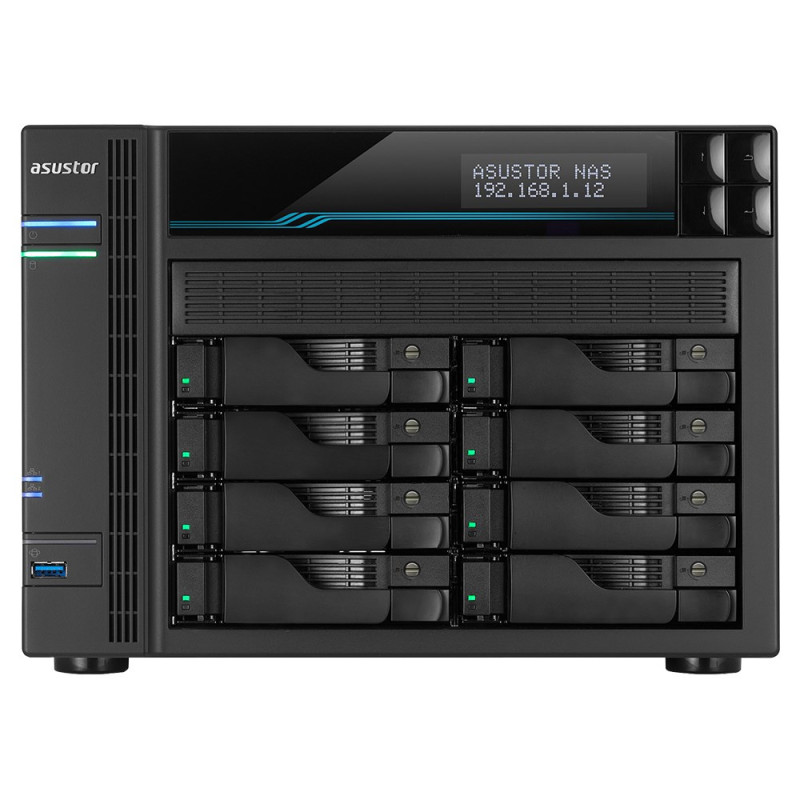

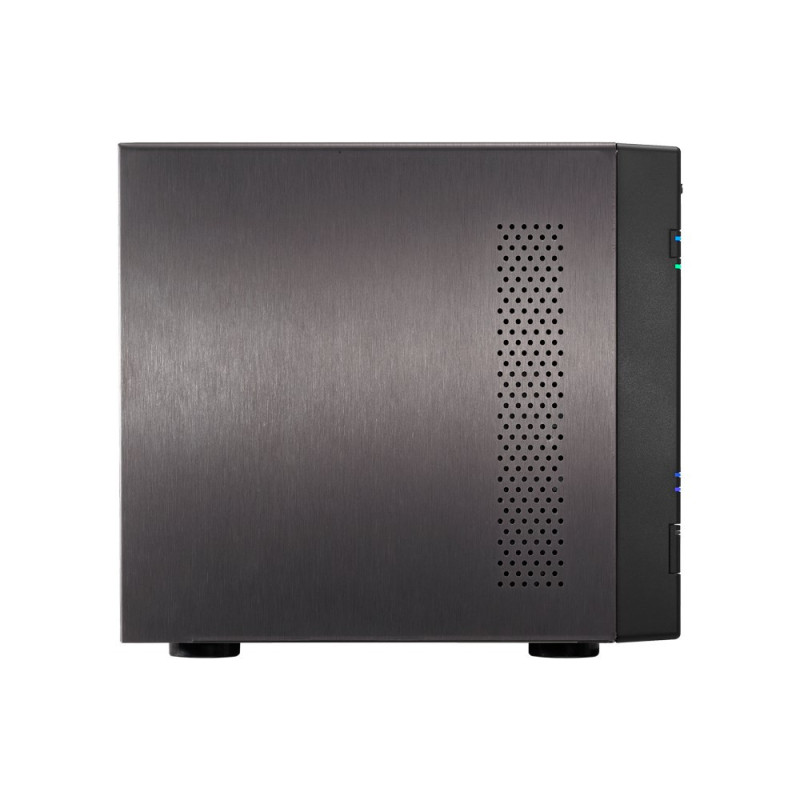

Asustor Lockerstor 10 AS6510T NAS Tower Black
The Asustor Lockerstor 10 AS6510T NAS tower features an Intel Atom® C3538 processor with 4 cores and 8GB of DDR4 memory. It supports up to 10 storage drives and offers various RAID configurations, as well as 4 Ethernet LAN ports for network connectivity.
- Powerful Intel Atom® C3538 processor with 4 cores and 2.1 GHz frequency for efficient multiprocessing.
- Supports up to 10 storage drives with RAID configurations for better data protection and performance.
- The integrated display and active cooling system ensure optimal performance and easy monitoring.
- Versatile connectivity options including 4 Ethernet ports and multiple USB 3.2 ports for seamless integration.
Processor | |
|---|---|
| CPU configuration (max) | 1 |
| Processor code | SR3L7 |
| Stepping | B1 |
| Processor name | Denverton |
| Processor frequency | 2.1 GHz |
| Processor family | Intel Atom® |
| Processor lithography | 14 nm |
| Processor package size | 34 x 28 mm |
| Processor cache type | Smart Cache |
| Processor threads | 4 |
| Processor operating modes | 64-bit |
| Processor model | C3538 |
| Processor cores | 4 |
| Tcase | 87 °C |
| Tjunction | 100°C |
| Processor cache | 8MB |
| Thermal Design Power (TDP) | 15W |
| Processor socket | BGA 1310 |
| Maximum internal memory support | 256GB |
Memory | |
| Memory form | SO-DIMM |
| Internal memory | 8GB |
| Memory slots | 2 |
| Maximum supported RAM | 64GB |
| Internal memory type | DDR4 |
| Memory clock frequency | 2133MHz |
Design | |
| Integrated display | Yes |
| Product color | Black |
| Screen type | LCD |
| Cooling type | Active |
| Fan diameter | 12 cm |
| Number of fans | 2 |
| Housing type | Tower |
Power | |
| AC input voltage | 100 - 240V |
| Power (HDD standby) | 41.1W |
| Power (typical) | 76.8W |
| Power source location | Integrated |
| Power supply unit (PSU) capacity | 250W |
| Number of power supplies | 1 |
Operating conditions | |
| Operating temperature (OT) | 0 - 40 °C |
| Operating relative humidity (HH) | 5 - 95% |
Weight and dimensions | |
| Weight | 6.4 kg |
| Depth | 230mm |
| Height | 215.5 mm |
| Width | 293 mm |
Network | |
| Ethernet LAN data transfer rates | 100, 10000 Mbit/s, 2500, 1000 |
| Wake-on-LAN ready | Yes |
| DHCP server | Yes |
| Link aggregation | Yes |
| Performance balancing system | Yes |
| Dynamic DNS (DDNS) | Yes |
| Jumbo frames | Yes |
| iSCSI support | Yes |
Performance | |
| Security algorithms | 256-bit AES, SSL/TLS, SSH, HTTPS |
| Reset button | Yes |
| Internet management | Yes |
| Noise level (standby mode) | 22 dB |
Storage | |
| RAID levels | 10, 6, JBOD, 5, 0, 1 |
| Supported storage drive interfaces | Serial ATA III |
| Supported storage drive types | HDDs and SSDs |
| Supported file systems | ext3, NTFS, ext4, HFS+, BTRFS, exFAT, FAT32 |
| Supported storage drive sizes | 2.5, 3.5', M.2 |
| Number of storage drives supported | 10 |
Ports and interfaces | |
| Ethernet LAN (RJ-45) ports | 4 |
| Number of USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports | 2 |
