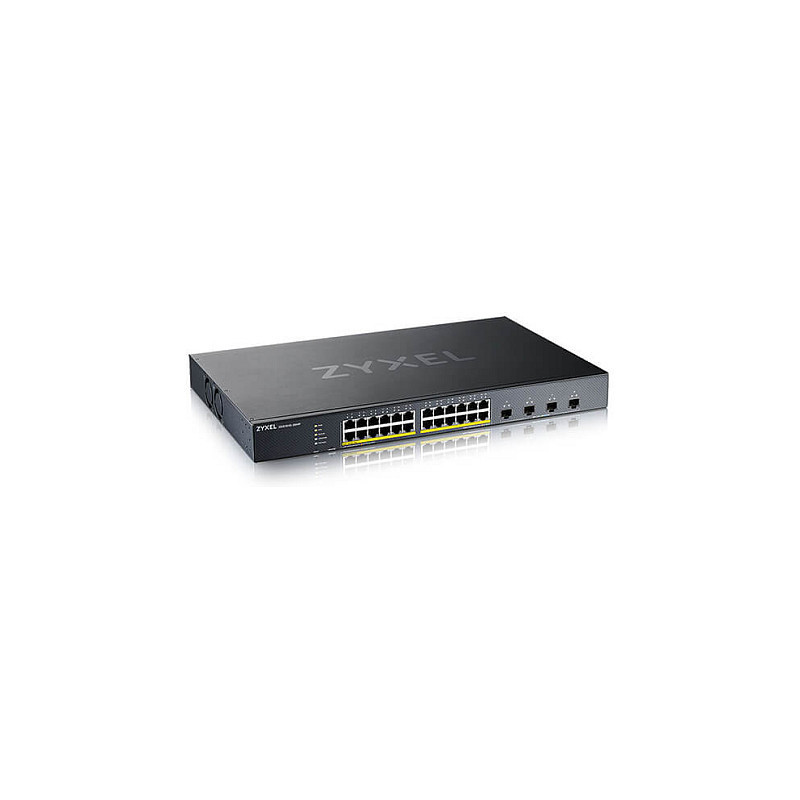

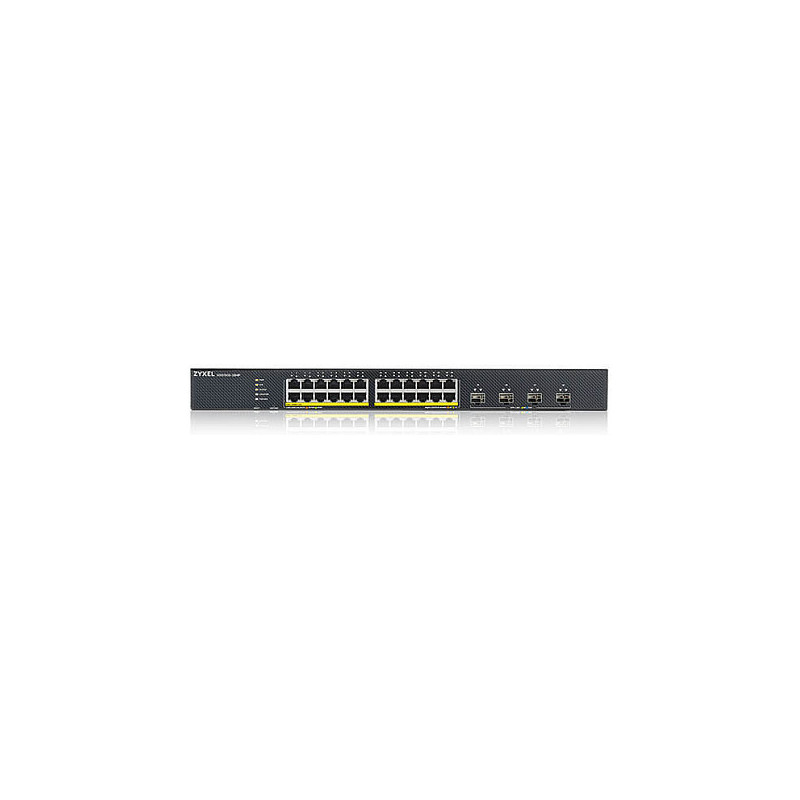

Zyxel XGS1935-28HP

Zyxel XGS1935-28HP. Switch type: Managed, Switch layer: L3. Basic switching RJ-45 Ethernet ports type: Gigabit Ethernet (10/100/1000), Basic switching RJ-45 Ethernet ports quantity: 24. MAC address table: 16000 entries, Switching capacity: 128 Gbit/s. Networking standards: IEEE 802.3at. Power over Ethernet (PoE). Rack mounting

XGS1935-28HP

The Zyxel XGS1935 Series is a family of Lite-L3 Smart Managed Switch that consists of four models, including 28- and 52-port, PoE and non-PoE options. The four models all come with four-addition 10GbE fiber connectivity cater to your business's increasing need for high network speeds. This Series supports NebulaFlex which provides extended flexibility for users to easily switch network management modes between standalone and our license-free Nebula cloud management platform.

Flexible 10GbE support - upgrade wired network at a reasonable price.

As SMBs generate more data from daily office applications, the XGS1935 Series, with Gigabit connectivity and four 10GbE uplinks, is an ideal option for those needing basic functions, easier management, and a cost-effective way to upgrade their networks.

Powering more devices intelligently.

The PoE models (XGS1935-28HP/52HP) feature compact designs and support PoE+, delivering 30W per port, ideal for dense PoE deployments. With a 375W power budget, they meet the demands of power-hungry devices. The power consumption mode enhances efficiency for better ROI, enabling more PD devices to connect within the system.

Manage it your way!

The XGS1935 Series offers free Nebula cloud management, enabling remote network control via web interface or mobile app, without extra costs for software or hardware controllers. The Nebula app allows quick status checks and remote configuration of key functions, like rebooting APs or cameras via PoE power cycling and blocking clients with unusual traffic. Standalone mode is also available for those who prefer it.

Web-managed with advanced features.

Advanced features like static routing, VLAN, QoS, IGMP Snooping, Link Aggregation, IPv6, and DoS prevention can be configured through an intuitive web-based interface in standalone mode. A step-by-step wizard simplifies setup, allowing quick configuration with just a few clicks.

Silent, and reliable operation.

This series includes both a fanless model (XGS1935-28 only) and models with a built-in smart fan. The smart fan automatically adjusts its speed based on the device's temperature, providing near-silent operation and a stable connection for your daily work.

Built with nature in mind.

The XGS1935 series is built with a more compact chassis, reducing packaging by up to 36% and weight by up to 22% compared to the previous XGS1930 series. These efforts have resulted in a 48% increase in units per pallet and a reduced carbon footprint.

Management features

Switch type: Managed
Switch layer: L3
Feature: Quality of Service (QoS) support
Feature: Web-based management
Feature: Cloud-managed
Feature: Traffic classification
Feature: Traffic shaping
Feature: ARP inspection
Feature: System event log

Ports & interfaces

Basic switching RJ-45 Ethernet ports quantity: 24
Basic switching RJ-45 Ethernet ports type: Gigabit Ethernet (10/100/1000)
Fiber ports quantity: 4
Fiber optic connector: SFP+

Network

Networking standards: IEEE 802.3at
Feature: VLAN support

Data transmission

Switching capacity: 128 Gbit/s
Forwarding rate: 95.2 Mpps
MAC address table: 16000 entries
Feature: Jumbo frames support
Jumbo frames: 9
Packet buffer memory: 1.5 MB

Design

Feature: Rack mounting

Performance

Internal memory: 512 MB
Flash memory: 32 MB
Noise level: 48.8 dB
Mean time between failures (MTBF): 786686 h

Power

Power source: AC
AC input voltage: 100 - 240 V
AC input frequency: 50/60 Hz
Power consumption (typical): 15.9 W
Power consumption (max): 452.6 W
Feature: Surge protection

Power over Ethernet (PoE)

Feature: Power over Ethernet (PoE)
Power over Ethernet (PoE) type supported: PoE+
Power over Ethernet (PoE) ports quantity: 24
Total Power over Ethernet (PoE) budget: 375 W

Operational conditions

Operating temperature (T-T): -20 - 50 °C
Storage temperature (T-T): -40 - 70 °C
Operating relative humidity (H-H): 10 - 95%
Storage relative humidity (H-H): 10 - 95%
Heat dissipation: 264.7 BTU/h

Weight & dimensions

Width: 440 mm
Depth: 270 mm
Height: 43 mm
Weight: 3.6 kg

Packaging content

Cables included: AC
Feature: Rack mount kit

Packaging data

Package width: 508 mm
Package depth: 394 mm
Package height: 90 mm
Package weight: 5.13 kg
