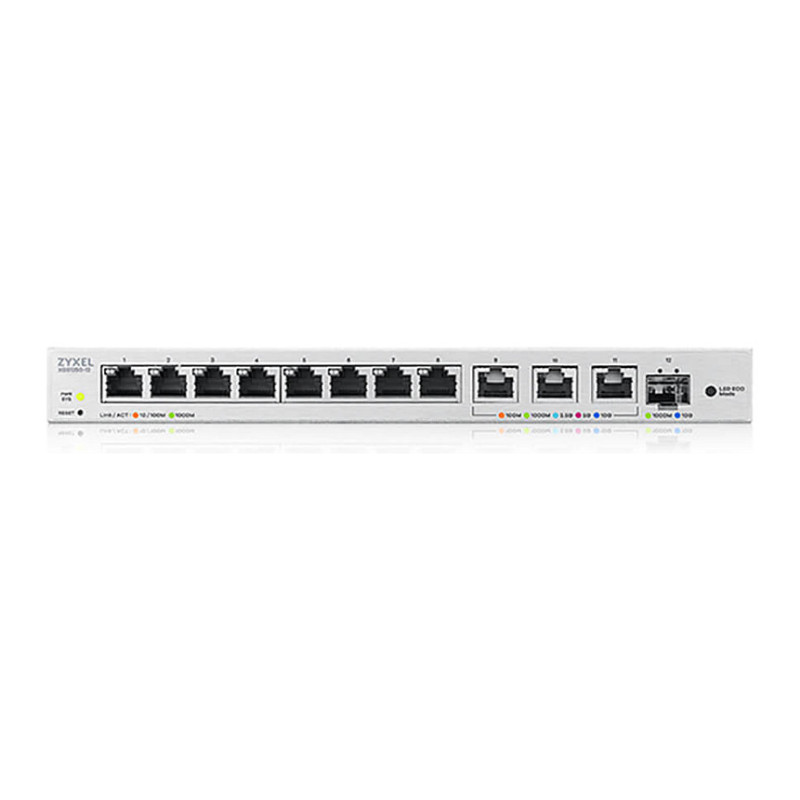

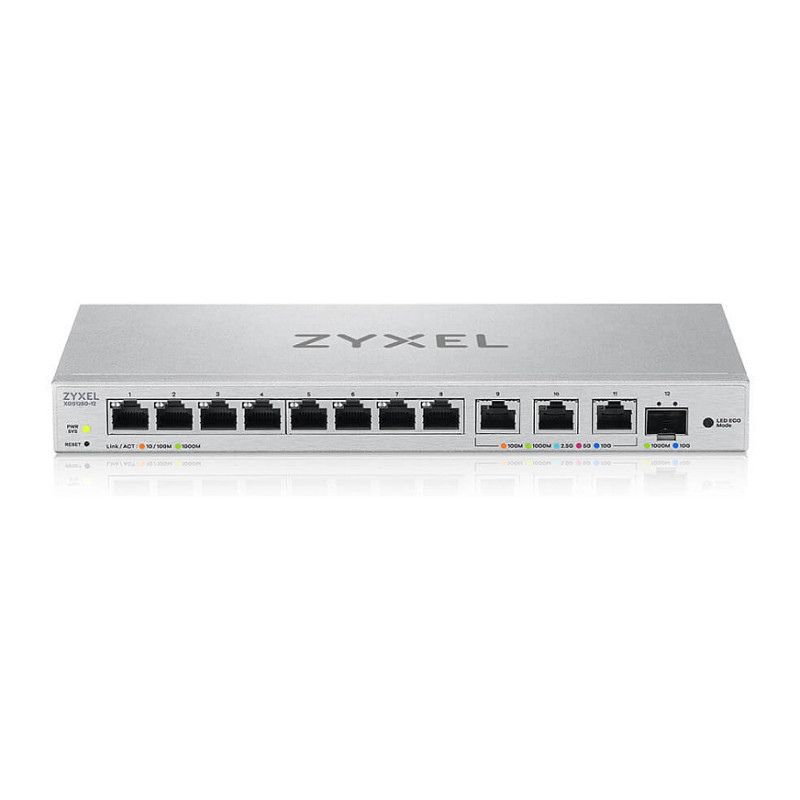

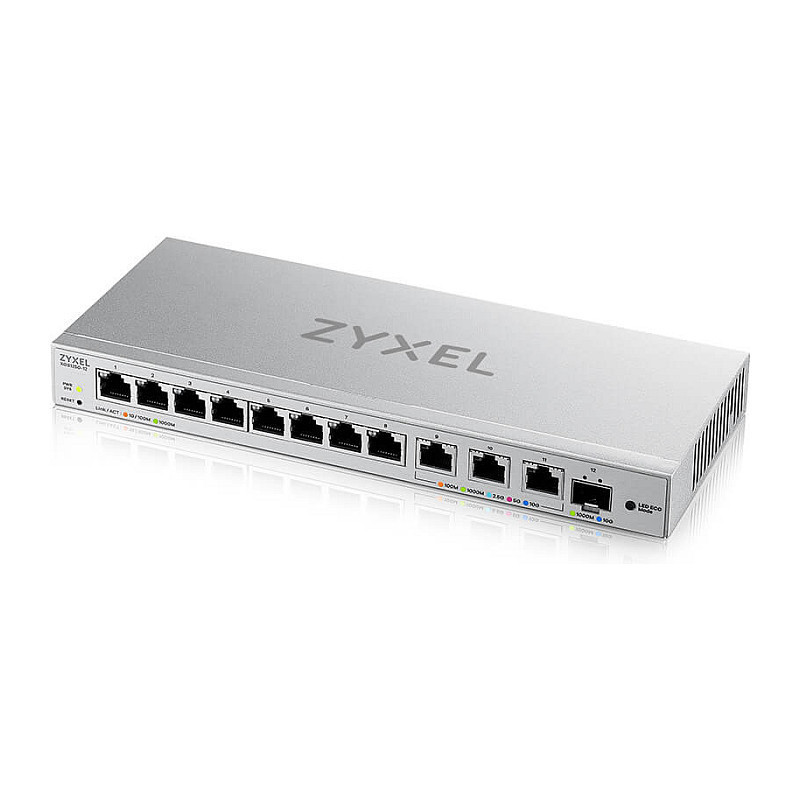

ZYXEL XGS1250-12

Zyxel XGS1250-12. Switch type: Managed, Switch layer: L2. Basic switching RJ-45 Ethernet ports type: 10G Ethernet (100/1000/10000), Basic switching RJ-45 Ethernet ports quantity: 11. Full duplex. MAC address table: 16000 entries, Switching capacity: 96 Gbit/s. Networking standards: IEEE 802.3, IEEE 802.3ab, IEEE 802.3ae, IEEE 802.3an, IEEE 802.3az, IEEE 802.3u, IEEE 802.3x. Power connector: DC-in jack. Wall mountable

Double the 10G Capability!
XS1250-12 features with three Multi-Gigabit ports supporting up to 10G and one additional 10G fiber port on top of the two 10G copper ports provided by the other vendors. With our additional fiber port and 10G connectivity boost the flexibility to adopt more 10G devices in your daily work.

Agile Network Applications
Featured with 1G ports, 10G Multi-Gigabit ports, as well as 10G fiber port, this port combination is capable of servicing a range of network devices such as iMac Pro, 10G NAS, servers, WiFi 6 APs, or new 2.5G motherboards. The unique 5-color LED on the front panel is designed for you to check the link speed instantly.

Why Multi-Gigabit?
Increasing new applications raise the demand for higher network speed requirement. The Multi-Gigabit RJ-45 ports provide more speed options for your network. Before upgrading the network, you should figure out network speed of motherboard, PC, or WiFi 6 AP, and you need to pick up the right network cable to achieve the maximum speed.

Using Your Current Cabling Is Fine!
The Multi-Gigabit support is able to leverage existing Cat 5e cable infrastructure to upgrade network speed up to 5 times for cost efficient network setup.

Whisper-silent, Energy-saving at Work
With the built-in smart fan which is designed to automatically adjust speeds based on the device temperature, you can barely hear the sound while the switch is in operation. Also, you can deactivate the Ethernet port LEDs for distraction-free operation by switching to LED ECO mode through the front panel button* or the web-based interface.

Management features

Switch type: Managed
Switch layer: L2
Feature: Quality of Service (QoS) support
Feature: Web-based management
MIB support: Y

Ports & interfaces

Basic switching RJ-45 Ethernet ports quantity: 11
Basic switching RJ-45 Ethernet ports type: 10G Ethernet (100/1000/10000)
SFP+ module slots quantity: 1
Power connector: DC-in jack

Network

Networking standards: IEEE 802.3, IEEE 802.3ab, IEEE 802.3ae, IEEE 802.3an, IEEE 802.3az, IEEE 802.3u, IEEE 802.3x
Feature: 10G support
Feature: Port mirroring
Feature: Full duplex
Feature: Flow control support
Feature: Link aggregation
Feature: Broadcast storm control
Feature: Auto MDI/MDI-X
Ethernet LAN data rates: 10,100,1000,2500,10000 Mbit/s
Feature: VLAN support

Data transmission

Switching capacity: 96 Gbit/s
Forwarding rate: 71.42 Mpps
MAC address table: 16000 entries
Feature: Jumbo frames support
Jumbo frames: 12000

Security

DHCP features: DHCP client
Feature: IGMP snooping

Multicast features

Feature: Multicast support

Design

Product colour: Grey
Housing material: Aluminium, Iron
Feature: Reset button
LED indicators: Yes
Feature: Redundant fans support
Feature: Wall mountable
Number of fans: 1 fan(s)

Power

Power source: AC
Feature: Power supply included
AC input voltage: 100 - 240 V
AC input frequency: 50/60 Hz
Power consumption (max): 20.06 W

Operational conditions

Operating temperature (T-T): 0 - 40 °C
Storage temperature (T-T): -40 - 70 °C
Operating relative humidity (H-H): 10 - 90%
Storage relative humidity (H-H): 10 - 90%

Weight & dimensions

Width: 250 mm
Depth: 104 mm
Height: 27 mm
Weight: 783 g

Logistics data

Harmonized System (HS) code: 85176990
