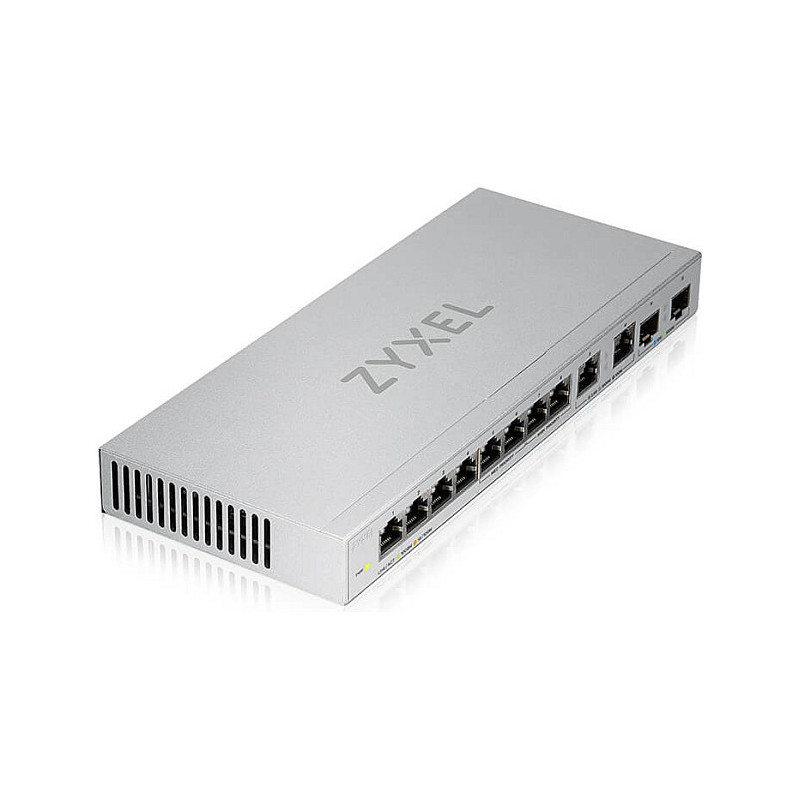

Zyxel XGS1010-12-ZZ0102F network switch

Zyxel XGS1010-12-ZZ0102F. Switch type: Unmanaged. Basic switching RJ-45 Ethernet ports type: Gigabit Ethernet (10/100/1000), Basic switching RJ-45 Ethernet ports quantity: 8. Full duplex. MAC address table: 16000 entries, Switching capacity: 66 Gbit/s. Networking standards: IEEE 802.3, IEEE 802.3ab, IEEE 802.3az, IEEE 802.3bz, IEEE 802.3u, IEEE 802.3x. DC input voltage: 12 V
12-Port 10G SFP+ Unmanaged Multi-Gigabit Switch provides high performance and simplified controls

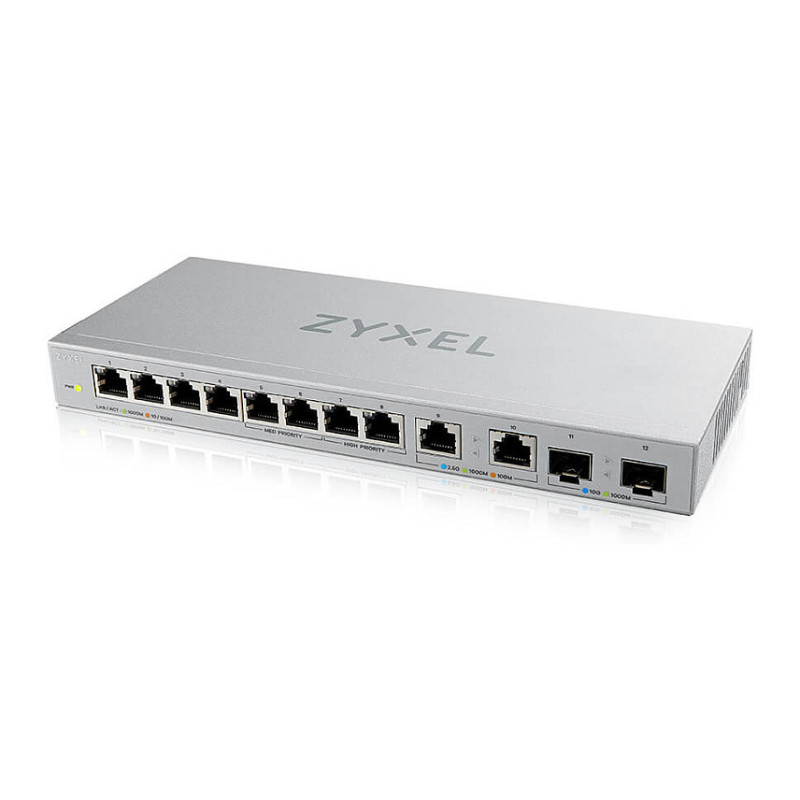

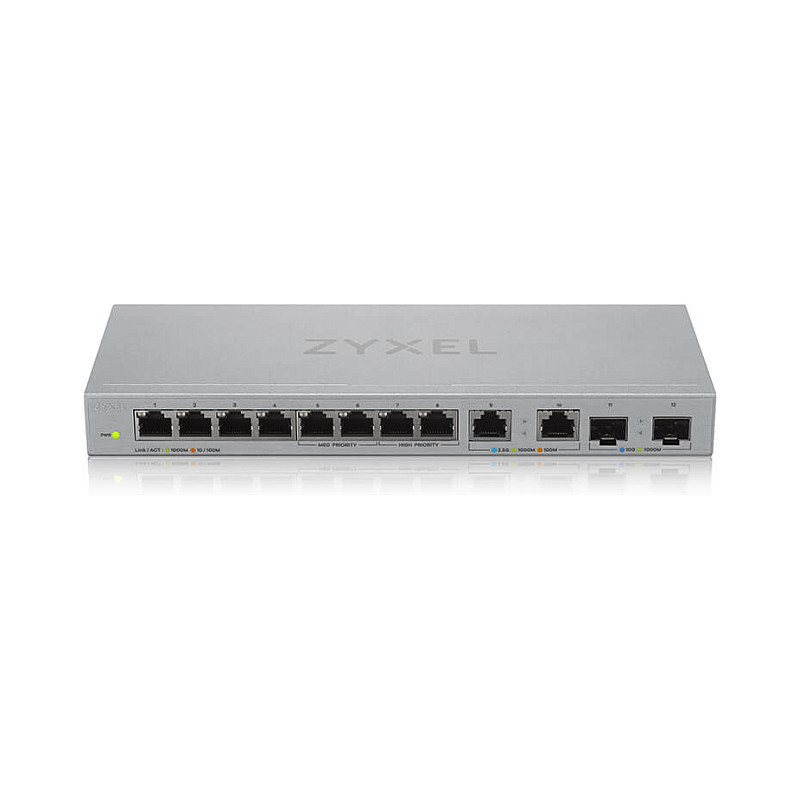

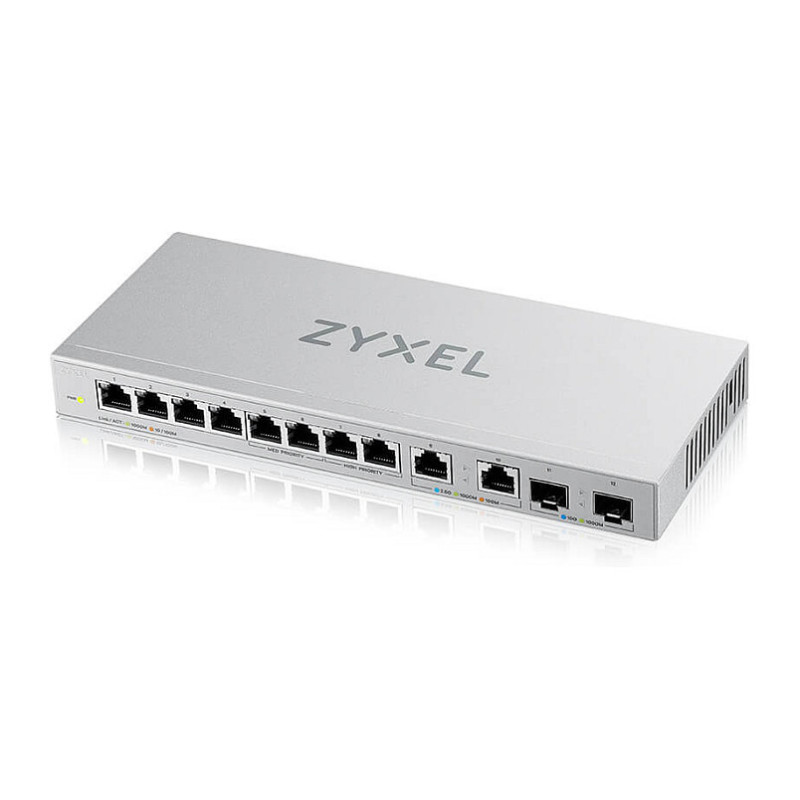

The Zyxel XGS1010-12 comes with two 10G SFP+ uplink ports, two 2.5G Multi-Gigabit ports, and eight Gigabit Ethernet ports with plug-and play design. It has been designed specifically for customers who require an affordable 10GbE network connectivity over a variety of mixed environments from the home to the office.
Maximums the flexibility for your network.

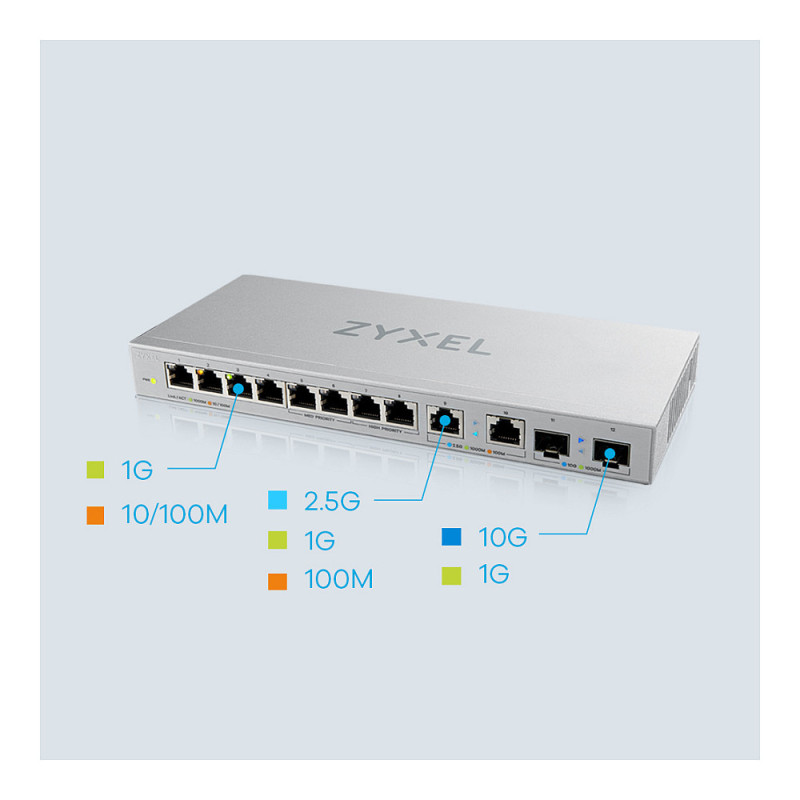

The XGS1010-12 features with 1G ports, 2.5G Multi-Gigabit ports, as well as 10G fiber ports. This port combination is capable of servicing a range of network devices such as gaming pc, NAS, workstation, or WiFi 6 AP.
Experience hyper-fast 2.5G networking!
Equipped with two 2.5G Multi-Gigabit ports, the switch gives your wired connection a boost, with speeds that are 2.5 times faster than standard Gigabit connections. It is the most ideal option to work with new motherboard for speedy file transfers, lag-free gaming, and high-res video streaming.
10G SFP+ Ultra Speed Uplink.
Provide two SFP+ ports compatible with 10GbE, which offers higher transmission speeds, instantly upgrade to a hybrid high-speed network environment at a cost-effective price.
QoS for Better Traffic Control.
The Zyxel XGS1010-12 comes with two high-priority and two medium p-priority ports, which provides enhanced download quality, all while giving you a better surfing, gaming, and streaming experience on other devices.
Easy to Use, No Setup Required.
Its easy plug-and-play design allows you to connect the XGS1010-12 to VoIP, media players, game consoles, set-top box, and any other web browsing devices to your home or studio network without any configuration.
Saving energy and space.

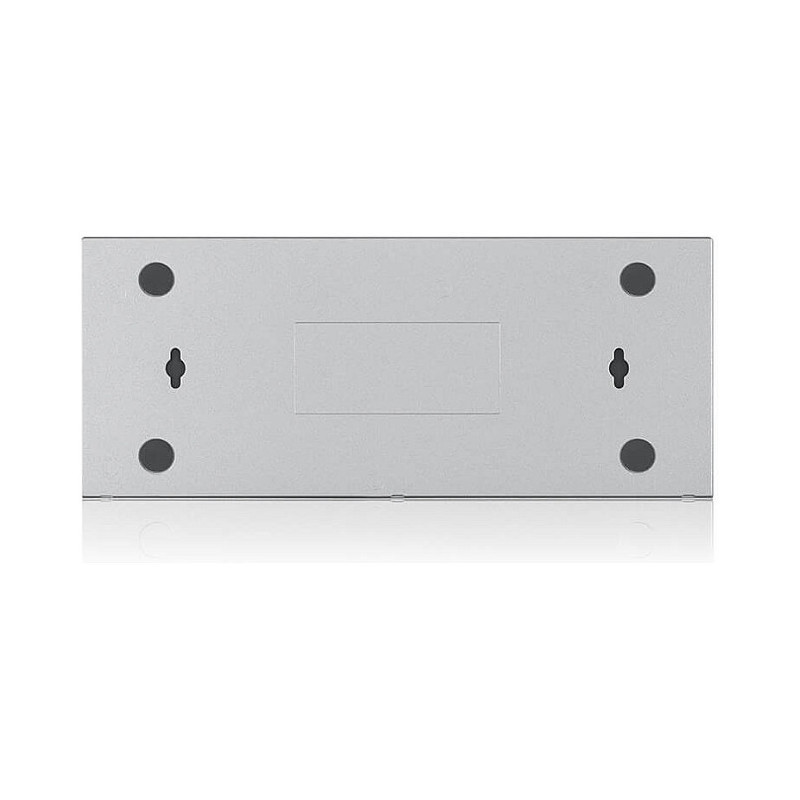

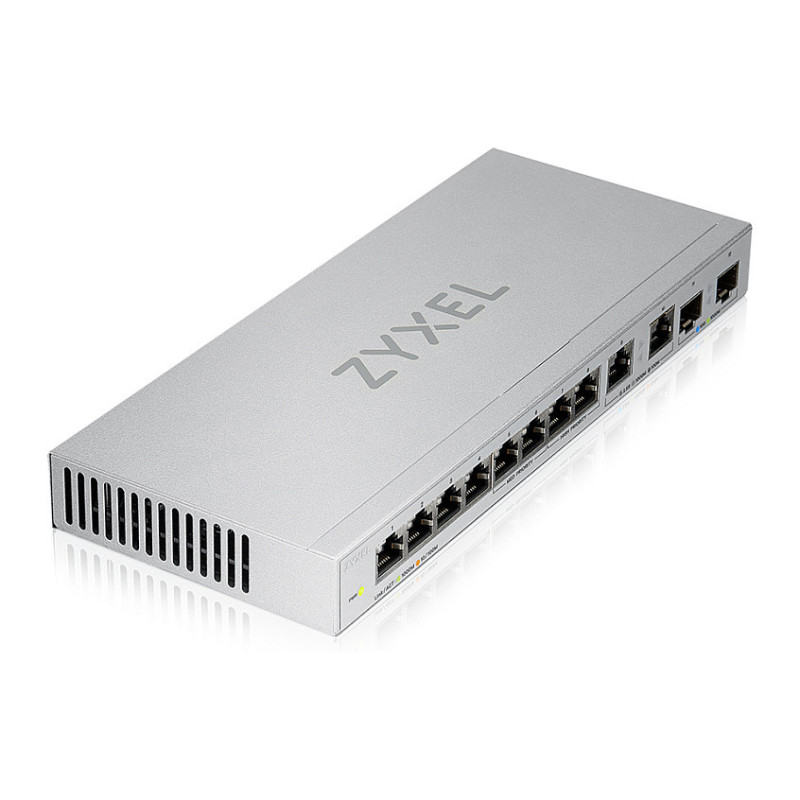

The fanless design ensures noiseless operation. Also, its built-in Energy Efficient Ethernet function automatically adjusts power consumption to dynamically reduce power usage during low link utilization. The wall-mount installation design provides more flexibility for wired home or office networks.

Management features

Switch type: Unmanaged
Feature: Quality of Service (QoS) support

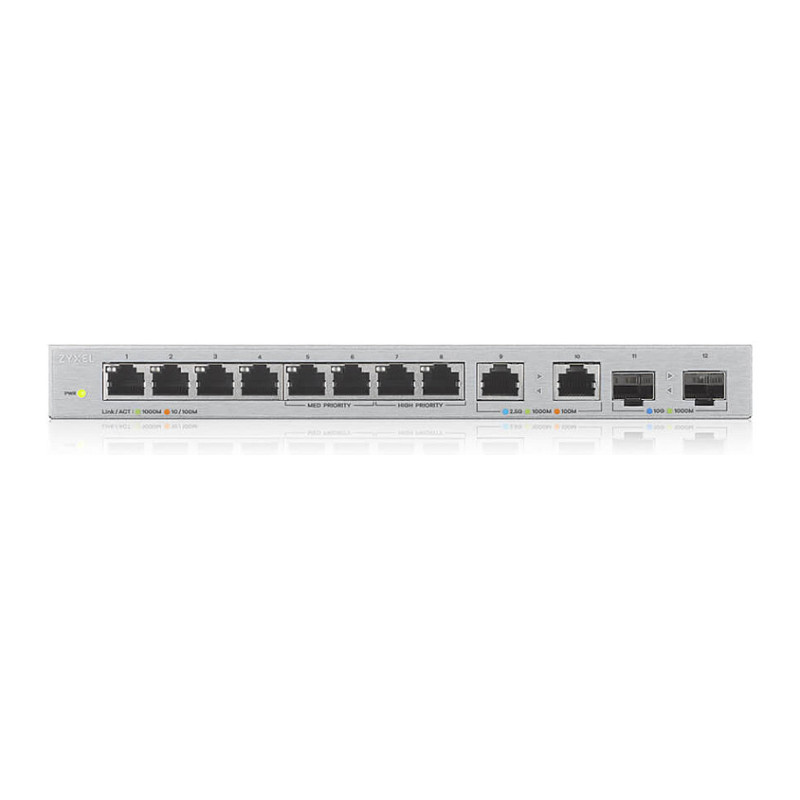

Ports interfaces

Basic switching RJ-45 Ethernet ports quantity: 8
Basic switching RJ-45 Ethernet ports type: Gigabit Ethernet (10/100/1000)
2.5G Ethernet (copper) ports quantity: 2
SFP+ module slots quantity: 2

Network

Networking standards: IEEE 802.3, IEEE 802.3ab, IEEE 802.3az, IEEE 802.3bz, IEEE 802.3u, IEEE 802.3x
Feature: Full duplex
Feature: Flow control support
Feature: Auto MDI/MDI-X
Ethernet LAN data rates: 10,100,1000 Mbit/s

Data transmission

Switching capacity: 66 Gbit/s
Forwarding rate: 49 Mpps
MAC address table: 16000 entries
Feature: Jumbo frames support
Jumbo frames: 12000
Packet buffer memory: 1.5 MB

Security

Feature: Access Control List (ACL)

Design

Product colour: Grey
Feature: Reset button
LED indicators: Yes

Power

Power source: AC/DC
Feature: Power supply included
AC input voltage: 100 - 240 V

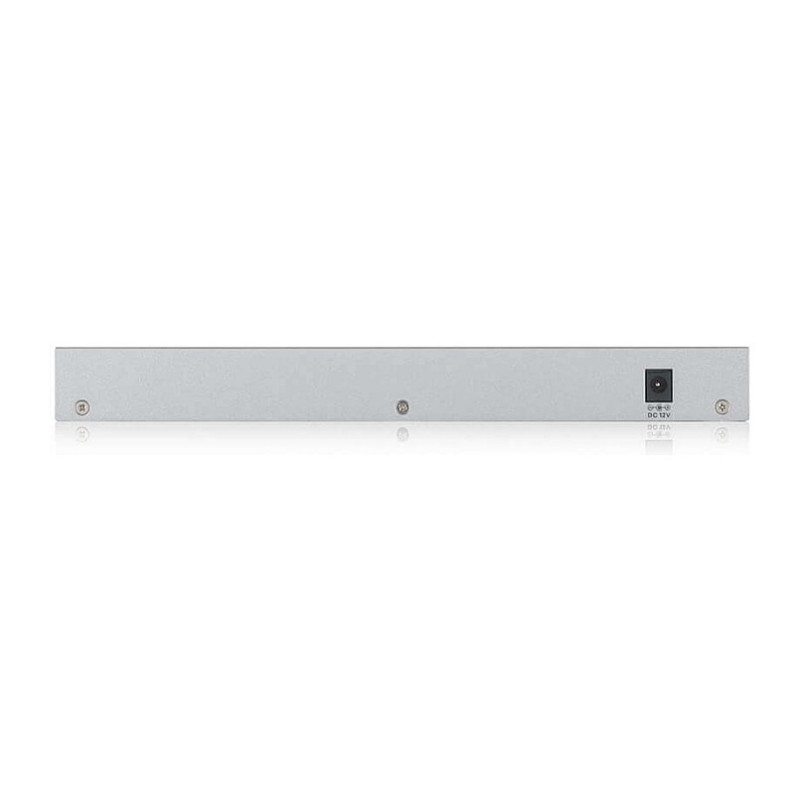

DC input voltage: 12 V
Input current: 1.5 A
Power consumption (max): 15.61 W

Operational conditions

Operating temperature (T-T): 0 - 40 °C
Storage temperature (T-T): -40 - 70 °C
Operating relative humidity (H-H): 10 - 90%
Storage relative humidity (H-H): 10 - 90%

Weight dimensions

Width: 250 mm
Depth: 104 mm
Height: 24 mm
Weight: 768 g

Packaging data

Package width: 306 mm
Package depth: 225 mm
Package height: 64 mm
Package weight: 1.22 kg

Logistics data

Harmonized System (HS) code: 85176990
