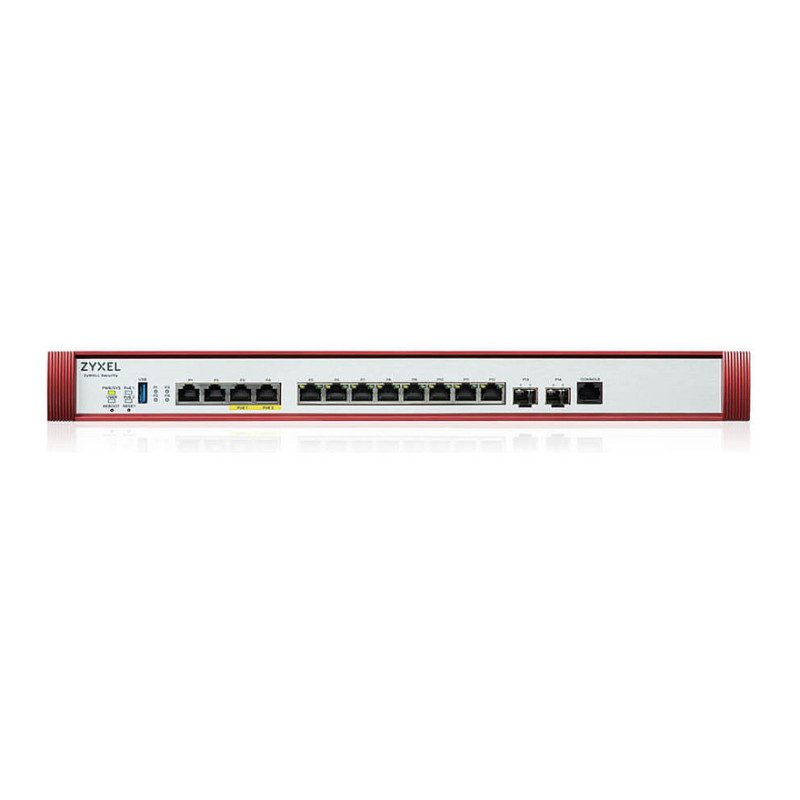

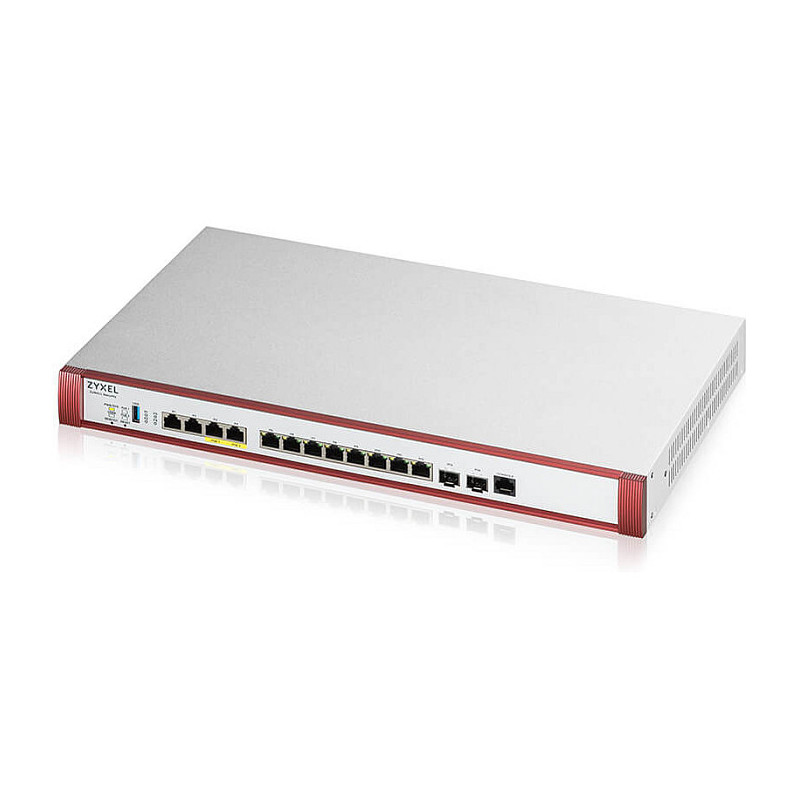

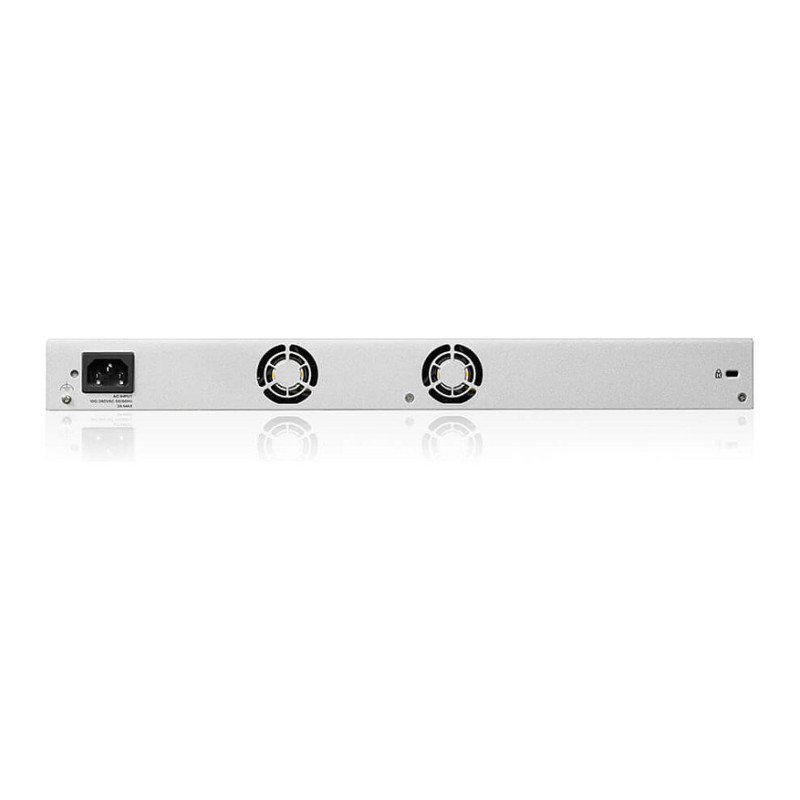

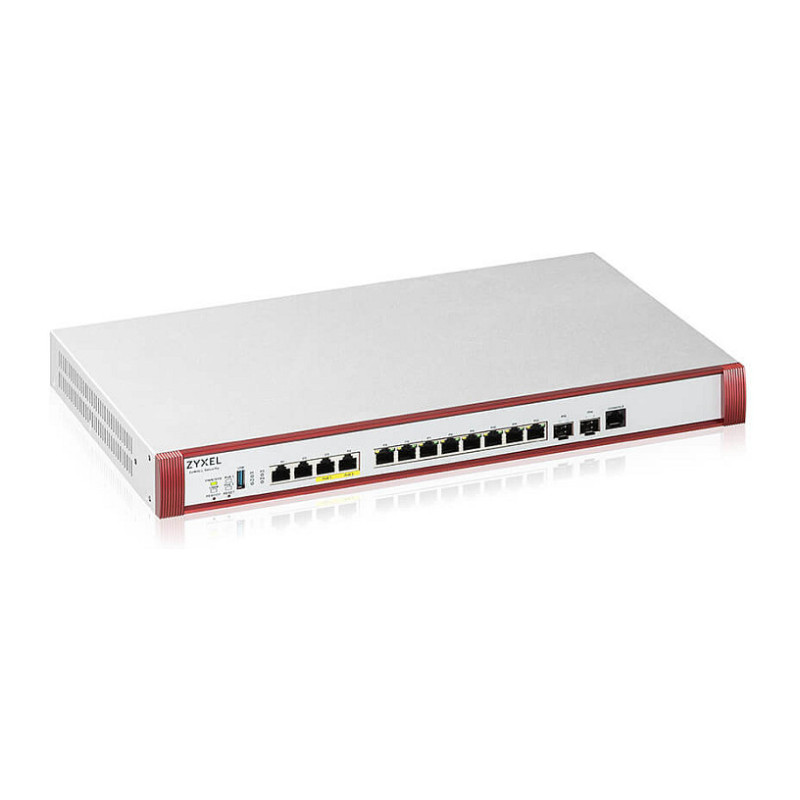

Zyxel USG FLEX 700H hardware firewall

Zyxel USG FLEX 700H. Firewall throughput: 15 Gbit/s, VPN throughput: 3 Gbit/s, IPS/IDS throughput: 6300 Mbit/s. Heat dissipation: 235 BTU/h. VPN support: IKEv2, IPSec, SSL. Connectivity technology: Wired, Ethernet LAN data rates: 10,100,1000,2500 Mbit/s, Console port: RJ-45. AC input voltage: 100-240 V, AC input frequency: 50/60 Hz, Input current: 2 A

USG FLEX H series provides secure, fast protection with ground-breaking high performance for Virtual Private Networks (VPN) and Unified Threat Management (UTM), a multi-layered approach to protecting the Firewall, the network infrastructure and connected users by leveraging Zyxel's high-performance hardware and state-of-the-art AI Security Cloud architecture.

Ultra High Performance
Ultra-high Performance powered by our next-generation multi-core hardware and Fastpath technology to create ultra-high efficiency. The USG FLEX H series can boost performance by up to 3x, optimizing utilization of its processors and allowing Zyxel to deliver superior performance to satisfy the needs required by demanding and high-speed networks.

Port Flexibility, Multi-G and PoE+
With 2.5 Gbps and 10 Gbps Port Speed options, The USG FLEX H also features software-defined ports, allowing you true flexibility in the configuration and tailoring of each USG FLEX H as required (WAN or LAN).

The USG FLEX H offers up to 2 x 30W PoE+ integrated ports* to help reduce complexity by simplifying installations and reduce install costs by allowing you to power devices like 5G Routers, latest WiFi, or appliances like VoIP Phones directly from the USG FLEX H itself.

Hassle free network management with nebula.
Utilizing nebula, Zyxel's centralised cloud management platform you can configure and deploy network and security devices centrally.

You can manage multiple devices and bring the information from them together, combining it to create a more effective defensive ring around the network.

AI-powered cloud cybersecurity.
Network security constantly evolves to meet the demands of an ever-changing working environment. Block malicious threats and restrict inappropriate user behaviours. The USG FLEX H series leverages AI-powered cloud intelligence to operate multi-layered protection such as sandboxing, anti-malware, DNS/IP/URL filtering, IPS, and application patrol over your premises.

Our new Fast and Powerful uOS.
The USG FLEX H series introduces our latest powerful uOS (Operating System). It is designed to increase security, minimize system response time, apply configuration changes instantly and optimize configuration and security policy management with its new intuitive UX (User Experience) design.

Data transmission

Firewall throughput: 15 Gbit/s
VPN throughput: 3 Gbit/s
IPS/IDS throughput: 6300 Mbit/s

Performance

Heat dissipation: 235 BTU/h

Network

Number of VLANs: 128

Security

VPN support: IKEv2, IPSec, SSL

Ports & interfaces

Connectivity technology: Wired
Ethernet LAN (RJ-45) ports: 12
Ethernet LAN data rates: 10,100,1000,2500 Mbit/s
Console port: RJ-45
SFP+ module slots quantity: 2

Design

Feature: Rack mounting

Power

AC input voltage: 100-240 V
AC input frequency: 50/60 Hz
Input current: 2 A
Power consumption (max): 86.7 W

Certificates

Compliance certificates: BSMI, CE, Federal Communications Commission (FCC), Low Voltage Directive (LVD)

Operational conditions

Operating temperature (T-T): 0 - 40 °C
Storage temperature (T-T): -30 - 70 °C
Operating relative humidity (H-H): 10 - 90%
Storage relative humidity (H-H): 10 - 90%

Weight & dimensions

Width: 430 mm
Depth: 250 mm
Height: 43.5 mm
Weight: 3.14 kg

Packaging data

Package width: 512 mm
Package height: 395 mm
Package depth: 162 mm
Package weight: 4.9 kg

Packaging content

Cables included: Power

Other features

Firewall throughput: 15000 Mbit/s
VPN throughput: 3000 Mbit/s
