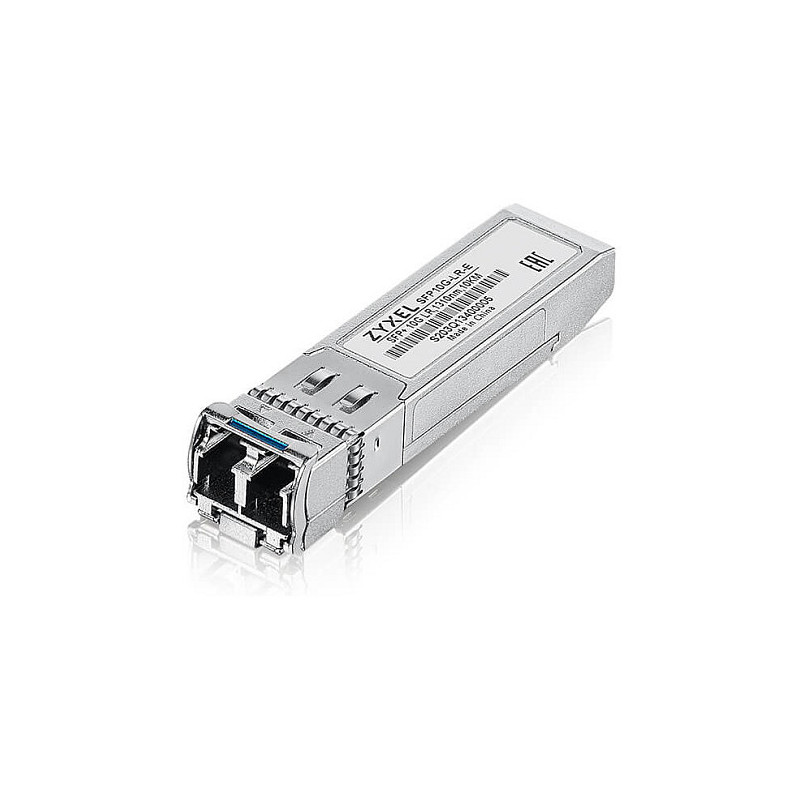

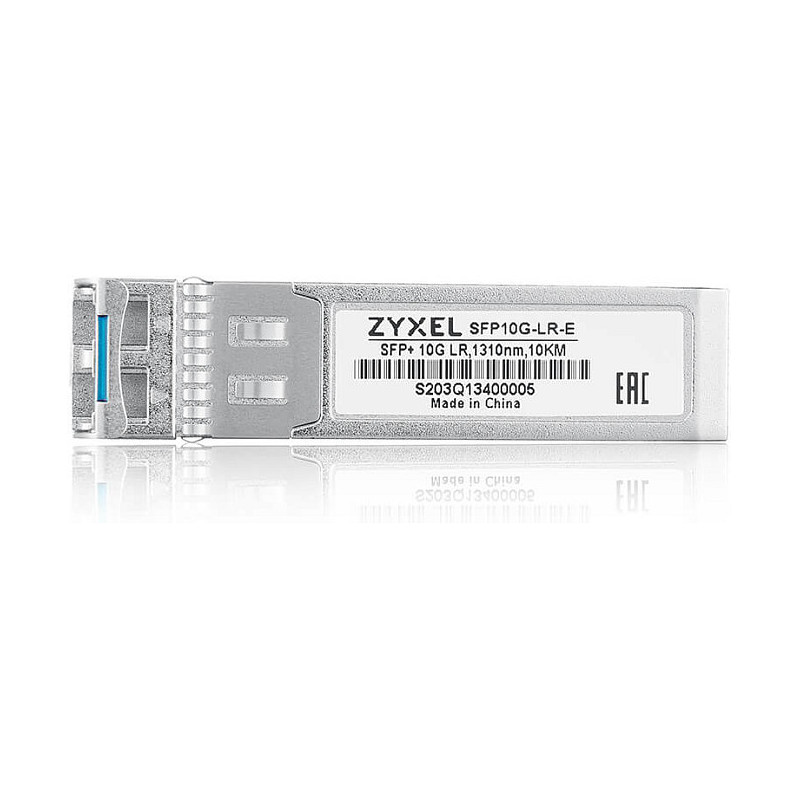

Zyxel SFP10G-LR-E network transceiver module

Zyxel SFP10G-LR-E. SFP transceiver type: Fiber optic, Maximum data transfer rate: 10000 Mbit/s, Interface type: SFP+. Product colour: Steel, Brand compatibility: Zyxel. Input voltage: 3.14-3.46 V, Maximum current: 0.3 A. Width: 14.8 mm, Depth: 56.5 mm, Height: 11.8 mm. Country of origin: China

Hot-pluggable with maximum flexibility
Independent transceiver design provides the highest network maintenance flexibility. Transceivers can be freely added when required, and infrastructure upgrades or transceiver repairs can be done easily by just replacing the transceiver instead of the whole device.

No extra cabling cost to upgrade the fiber plant
Traditional fiber optic networking requires two strands of fiber for sending and receiving signals to accomplish communications.
The bi-directional, dual-wavelength transceivers can establish communications over just one strand of fiber. Transmission capacity can be expanded immediately without additional cost laying new fiber.

Supports digital diagnostics monitoring interface (DDMI)
DDMI enables the switch to access operating parameters within the fiber link. This includes digital features such as soft control and monitoring of SFP I/O signals. In addition, the DDMI functionality enables the capability to implement digital alarms and warnings.

Complete fiber accessory portfolio
We provide multiple options including 1G SFP, 10G SFP+ and 10G DAC cables for different installation requirements.

Performance

SFP transceiver type: Fiber optic
Maximum data transfer rate: 10000 Mbit/s
Interface type: SFP+
Feature: Single-mode fiber (SMF) supported
Fiber optic connector: LC
Maximum transfer distance: 10000 m
Wavelength: 1310 nm
Tx power (min): 0.5 dBmW
Tx power (max): -8 dBmW
Rx power (min): 1 dBmW
Rx power (max): -14.4 dBmW

Features

Product colour: Steel
Brand compatibility: Zyxel

Power

Input voltage: 3.14-3.46 V
Maximum current: 0.3 A

Weight & dimensions

Width: 14.8 mm
Depth: 56.5 mm
Height: 11.8 mm
Weight: 20 g

Logistics data

Harmonized System (HS) code: 85369010
Country of origin: China
