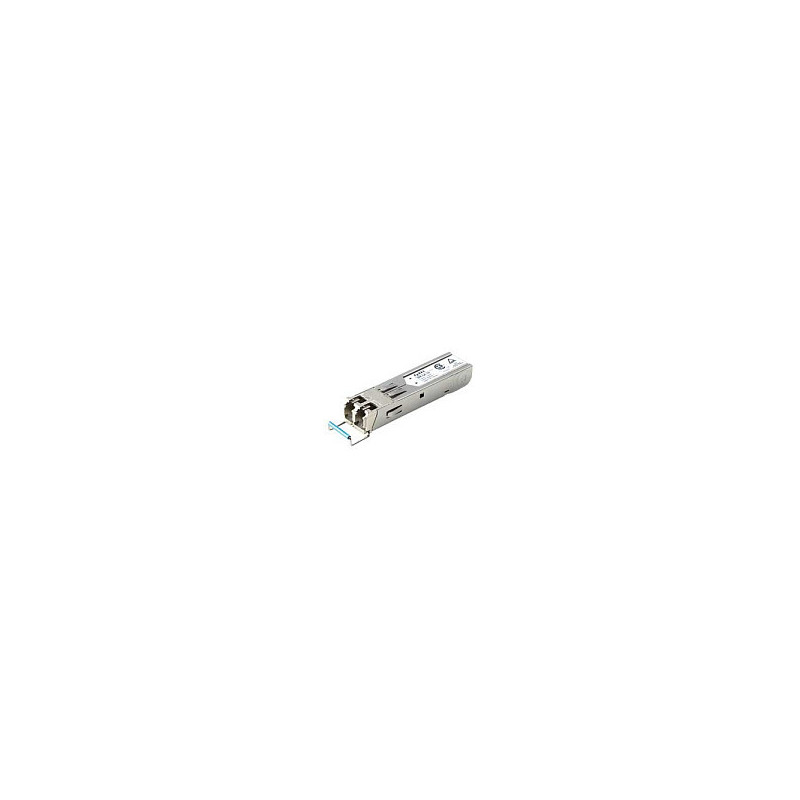

Zyxel SFP-LX-10-D network transceiver module

Zyxel SFP-LX-10-D. Maximum data transfer rate: 1000 Mbit/s, Maximum transfer distance: 10000 m, Wavelength: 1310 nm. Certification: Class 1 Laser 21 CFR 1040.10 & 1040.11 CSA TUV. Width: 56 mm, Depth: 13.4 mm, Height: 12.5 mm. Dimensions (WxDxH): 56 x 13.4 x 12.46 mm

Gigabit Speed and Flexibility
ZyXEL's Small Form-factor Pluggable (SFP) transceiver family provides performance and flexibility with full duplex Gigabit speeds and hot-pluggable into Gigabit Ethernet port.

Small Size and High Port Density
ZyXEL's SFP transceiver's compact design provides high port density. For example, ZyXEL GS-3012F switch can connect up to 12 fiber links - all at an affordable price.

Industry Standards-based Compliance
ZyXEL's SFP transceiver family is compliant with IEEE 802.3z and SFP MSA allowing easy interoperability with all standard compliance devices from different vendors.

Performance

Maximum data transfer rate: 1000 Mbit/s
Maximum transfer distance: 10000 m
Wavelength: 1310 nm

Features

Feature: Hot-swap

Certificates

Certification: Class 1 Laser 21 CFR 1040.10 & 1040.11 CSA TUV

Operational conditions

Operating temperature (T-T): 0 - 70 °C
Storage temperature (T-T): -40 - 85 °C
Operating relative humidity (H-H): 5 - 95%

Weight & dimensions

Width: 56 mm
Depth: 13.4 mm
Height: 12.5 mm

Other features

Dimensions (WxDxH): 56 x 13.4 x 12.46 mm

Logistics data

Harmonized System (HS) code: 85369010
