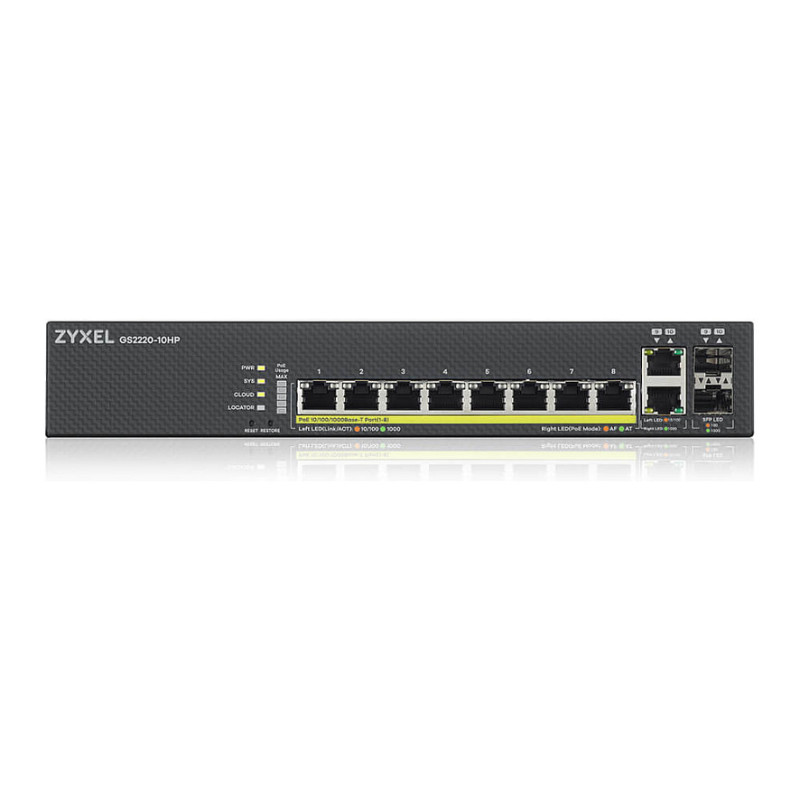

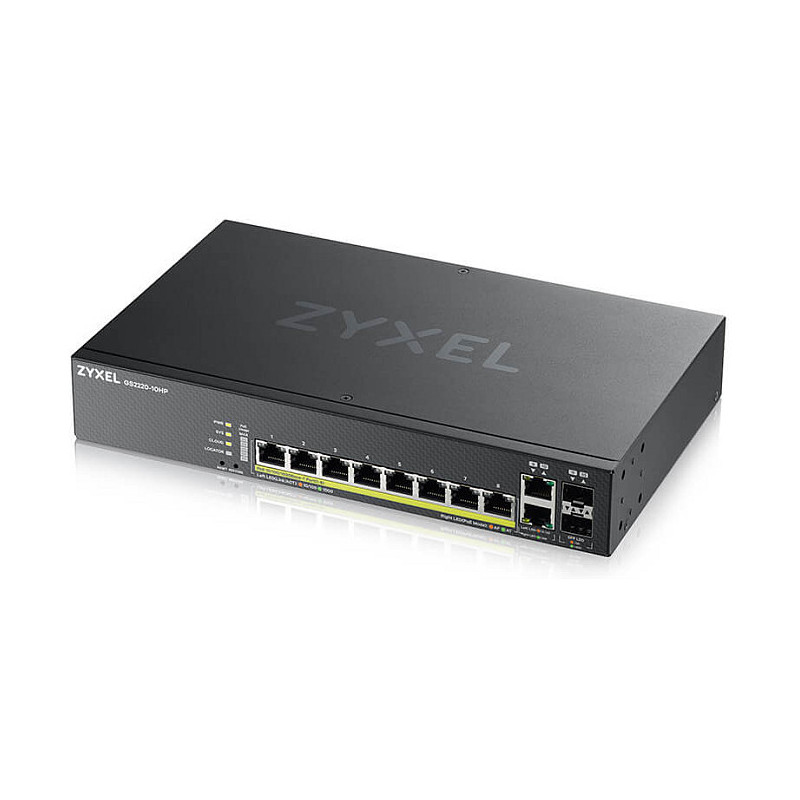

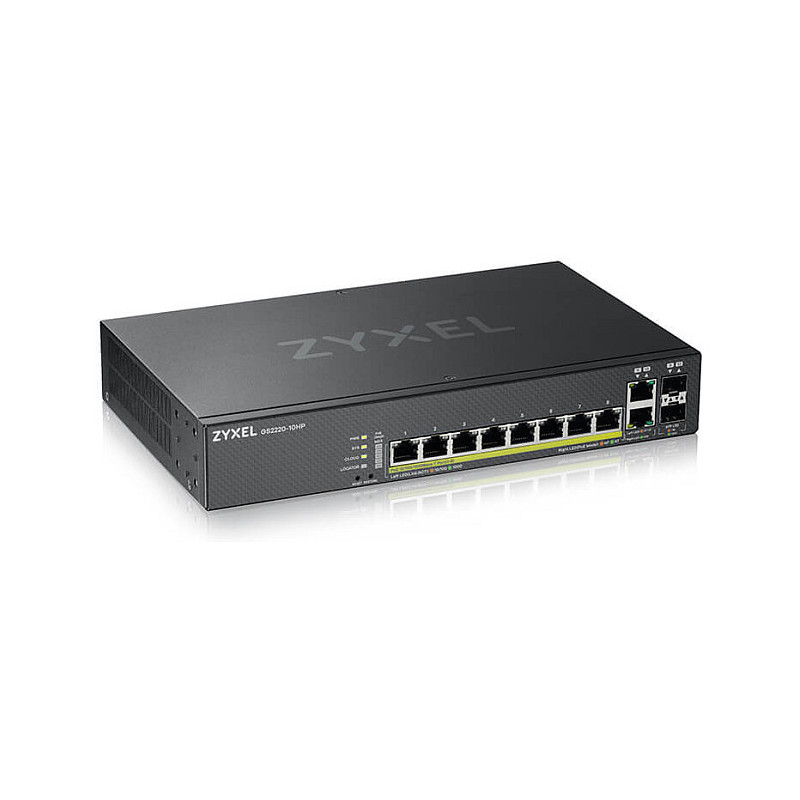

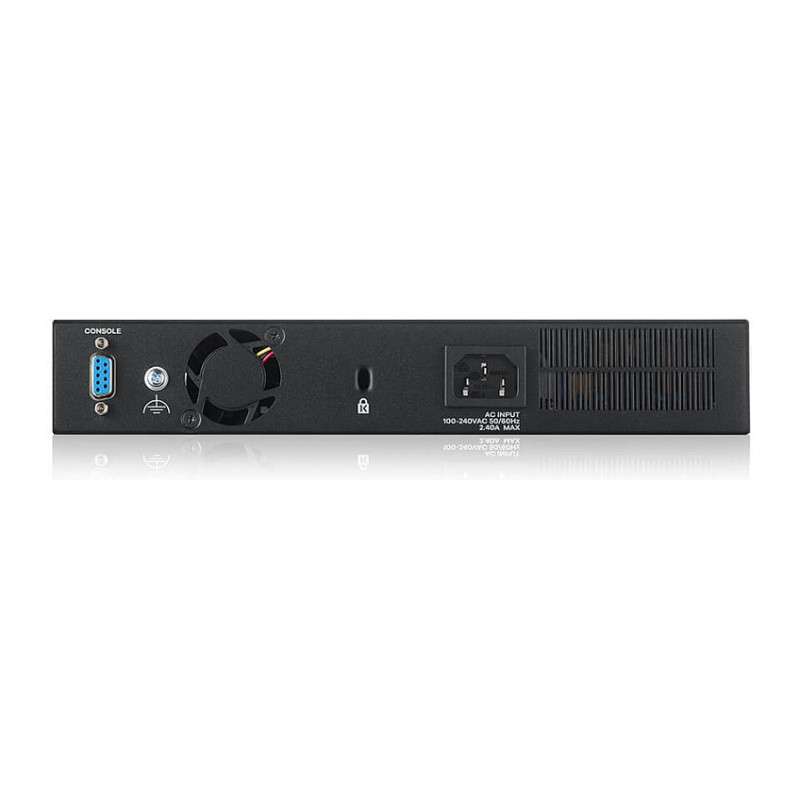

Zyxel GS2220-10HP-EU0101F network switch

Zyxel GS2220-10HP-EU0101F. Switch type: Managed, Switch layer: L2. Basic switching RJ-45 Ethernet ports type: Gigabit Ethernet (10/100/1000), Basic switching RJ-45 Ethernet ports quantity: 10. MAC address table: 16000 entries, Switching capacity: 20 Gbit/s. Networking standards: IEEE 802.1D, IEEE 802.1Q, IEEE 802.1ab, IEEE 802.1p, IEEE 802.1s, IEEE 802.1w, IEEE 802.1x, IEEE.... Power over Ethernet (PoE). Rack mounting

Designed for converged networks
GS2220 Series
Zyxel's new generation of Layer 2 Managed Switch GS2220 Series are fully featured Layer 2 Gigabit access switches designed to meet converged data, video and voice networking needs. This latest series' eye-catching new look comes in 10-, 28-, and 50-port models with a combination of PoE and non-PoE. On top of the fully manageable L2 features set comes with the state-ofart Zyxel NebulaFlex Pro technology for cloud manageability.

Industry first tri-mode switch.
The GS2220 Series is the first managed hybrid switch with Nebula Cloud management, Standalone management, and SNMP.

Powerful L2 features.
The GS2220 Series has a rich Layer 2 feature set that can shape the traffic for diverse VoIP, video conference and IPTV deployments. Advanced traffic control features of the GS2220 Series such as L2 multicast, IGMP snooping, MVR provide businesses greater agility and more effective traffic management for the converged applications of today.

Manage it your way!
The support of Zyxel NebulaFlex Pro allows you to easily switch standalone management and intuitive Nebula cloud management platform with 1-YEAR Pro Pack bundled anytime with just a few simple clicks.

Intelligent PoE+ powers more devices.
The intelligent consumption mode delivers only the actual power required by your networked devices, reserves the rest and optimizes its power budget. That means a single switch can power more APs, IP cameras and VoIP phones, ensuring a better ROI for your business. The switch supports the IEEE 802.3at providing a maximum of 30W per port and 180W total budget.

Experience whisper-silent operations.
This Series includes both fan-less and built-in smart fan models. The smart fan is designed to automatically adjust speed based on device temperature. You can barely hear the sound while the switch is operating.

Flexible port combination.
The GS2220 Series includes copper ports and combo ports, 50 and 50HP models even come with additional dedicated SFP ports for uplinks. This flexible port combination can fit in every Layer 2 switching applications easily.

Management features

Switch type: Managed
Switch layer: L2
Feature: Quality of Service (QoS) support
Feature: Web-based management
Feature: Configuring Location Settings (CLI)
Feature: System event log

Ports & interfaces

Basic switching RJ-45 Ethernet ports quantity: 10
Basic switching RJ-45 Ethernet ports type: Gigabit Ethernet (10/100/1000)
Combo SFP ports quantity: 2

Network

Copper ethernet cabling technology: 10BASE-TX, 1000BASE-T
Feature: Flow control support
Feature: Link aggregation
Feature: Broadcast storm control
Feature: Rate limiting
Feature: Spanning tree protocol
Feature: VLAN support
Virtual LAN features: Port-based VLAN, Private VLAN, Protocol-based VLAN, Voice VLAN

Data transmission

Switching capacity: 20 Gbit/s
Forwarding rate: 15 Mpps
MAC address table: 16000 entries
Packet buffer memory: 1.5 MB

Security

DHCP features: DHCP client, DHCP relay, DHCP snooping, DHCPv6 client, DHCPv6 relay
Feature: Access Control List (ACL)
Feature: IGMP snooping
Security algorithms: SNMP, SNMPv2, SNMPv3, SSH-2, SSL/TLS
Feature: MAC address filtering
Authentication: Guest VLAN, MAC-based authentication
Authentication type: IEEE 802.1x, RADIUS

Multicast features

Feature: Multicast support

Design

Feature: Rack mounting
Product colour: Black

Performance

Internal memory: 256 MB
Flash memory: 32 MB
Noise level: 41 dB
Feature: Firmware upgradeable
Mean time between failures (MTBF): 587477 h

Power

AC input voltage: 100 - 240 V
AC input frequency: 50 - 60 Hz
Power consumption (max): 210.8 W

Power over Ethernet (PoE)

Feature: Power over Ethernet (PoE)
Power over Ethernet (PoE) ports quantity: 8
Total Power over Ethernet (PoE) budget: 180 W

Operational conditions

Operating temperature (T-T): 0 - 50 °C
Storage temperature (T-T): -40 - 70 °C
Operating relative humidity (H-H): 10 - 95%
Storage relative humidity (H-H): 10 - 95%
Heat dissipation: 718.828 BTU/h

Weight & dimensions

Width: 267 mm
Depth: 162 mm
Height: 44 mm
Weight: 1.8 kg

Packaging content

Cables included: AC

Packaging data

Package width: 375 mm
Package depth: 235 mm
Package height: 61 mm
Package weight: 2.7 kg

Certificates

Certification: LVD, BSMIFCC 15 A, CE EMC A, BSMI ENCRoHS A

Logistics data

Harmonized System (HS) code: 85176990
