Zyxel GS1200-5V3

Zyxel GS1200-5V3. Switch type: Managed, Switch layer: L2. Basic switching RJ-45 Ethernet ports type: Gigabit Ethernet (10/100/1000), Basic switching RJ-45 Ethernet ports quantity: 5. Full duplex. MAC address table: 4000 entries, Switching capacity: 10 Gbit/s. Networking standards: IEEE 802.1Q, IEEE 802.1p, IEEE 802.3, IEEE 802.3ab, IEEE 802.3ad, IEEE 802.3az, IEEE 802.3u, IEEE.... Power connector: DC-in jack. Form factor: Desktop

Speedy Gigabit Performance and Diversified Options
There are five models for GS1200v3 series, coming with non-PoE (GS1200-5/8) to connect to devices including PCs, NAS, and print servers, PoE capable (GS1200-5HP/8HP) to provide power to IP CAM, wall mounted AP and PoE standard devices, and fiber uplink (GS1200-10) for easily deployment in hallways to connect network devices on the same floor and link them back to the core network.

Easy Web Management
This Series of switch comes with a user-friendly web-based set-up interface that walks you through setup, configuration and management—including configuration backups and firmware upgrades—quickly and easily. Some advanced features such as Link aggregation, VLAN, IGMP Snooping can be configured just with a few simple clicks.

Smart PoE+ 802.3at Support
PoE models support the IEEE 802.3at PoE+ standard, providing a maximum of 30 watts per port (with a max total power budget of 68 watts) to supply power to PoE network devices like wireless APs, IP cameras and VoIP phones. Web GUI management enables you to monitor the power status on each port and/or reboot the network devices, as needed.

Silent and Light-Off Design
The fanless design ensures all-time silent operation to blend into noise-free working environments. Also, you can deactivate turn off the Ethernet port LEDs for distraction-free operation by switching to LED ECO mode.

Blend Seamlessly into Your Workspace
Place the compact GS1200v3 switch wherever it fits best—on your desk, mounted on the wall, or neatly under the table—without taking up valuable space. Its built-in IEEE 802.3az Energy Efficient Ethernet (EEE) technology automatically detects network traffic and dynamically adjusts power consumption to save energy during low activity periods.

Management features

Switch type: Managed
Switch layer: L2
Feature: Quality of Service (QoS) support
Feature: Web-based management

Ports & interfaces

Basic switching RJ-45 Ethernet ports quantity: 5
Basic switching RJ-45 Ethernet ports type: Gigabit Ethernet (10/100/1000)

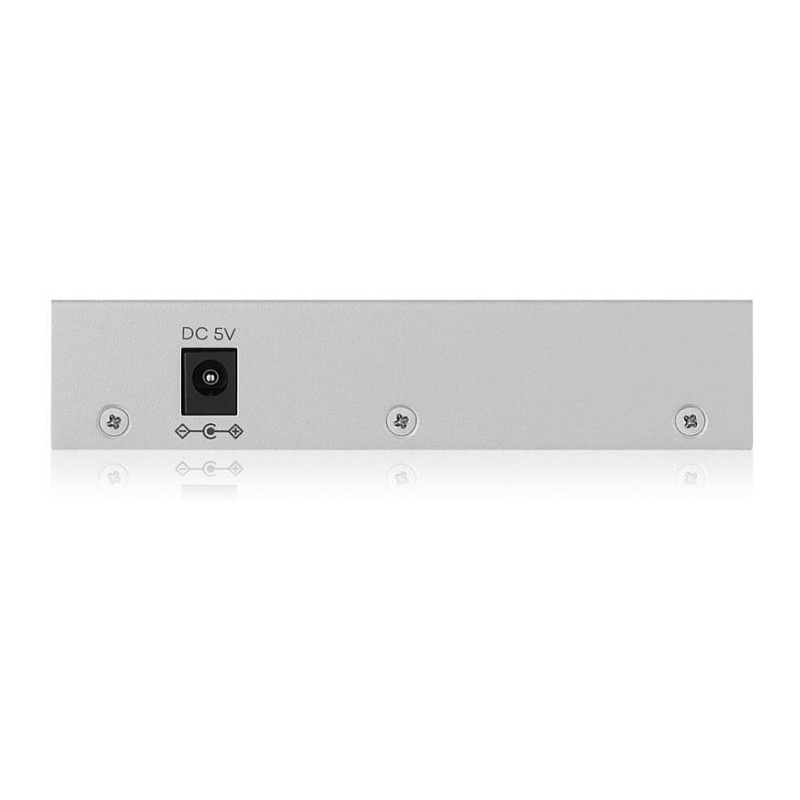

Power connector: DC-in jack

Network

Networking standards: IEEE 802.1Q, IEEE 802.1p, IEEE 802.3, IEEE 802.3ab, IEEE 802.3ad, IEEE 802.3az, IEEE 802.3u, IEEE 802.3x
Copper ethernet cabling technology: 10BASE-T, 100BASE-T, 1000BASE-T
Feature: Port mirroring
Feature: Full duplex
Feature: Flow control support
Feature: Broadcast storm control
Feature: VLAN support
Virtual LAN features: Port-based VLAN

Data transmission

Switching capacity: 10 Gbit/s
Forwarding rate: 7.44 Mpps
MAC address table: 4000 entries
Feature: Jumbo frames support
Jumbo frames: 15
Packet buffer memory: 0.192 MB

Security

DHCP features: DHCP client
Feature: IGMP snooping
Feature: Password protection
Queue scheduling algorithms: Weighted Round Robin (WRR)

Multicast features

Feature: Multicast support
Number of multicast groups filtered: 128

Design

Form factor: Desktop
Product colour: Grey
LED indicators: Yes

Performance

Feature: Fanless
Mean time between failures (MTBF): 1375342 h

Power

Power source: AC
Feature: Power supply included
AC input voltage: 100 - 240 V
AC input frequency: 50/60 Hz
Power consumption (max): 2.718 W

Operational conditions

Operating temperature (T-T): 0 - 50 °C
Storage temperature (T-T): -40 - 70 °C
Operating relative humidity (H-H): 10 - 95%
Storage relative humidity (H-H): 10 - 95%
Heat dissipation: 9.274 BTU/h

Weight & dimensions

Width: 121 mm
Depth: 75 mm
Height: 26 mm
Weight: 172 g

Certificates

Certification: CE-LVD, BSMICE, EAC, FCC, BSMI Class B
