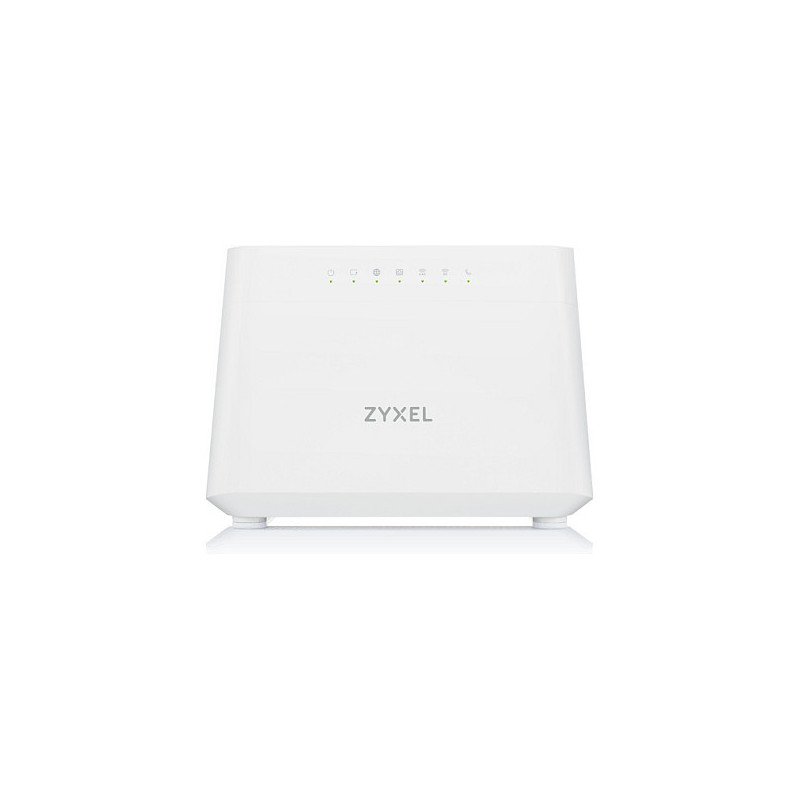

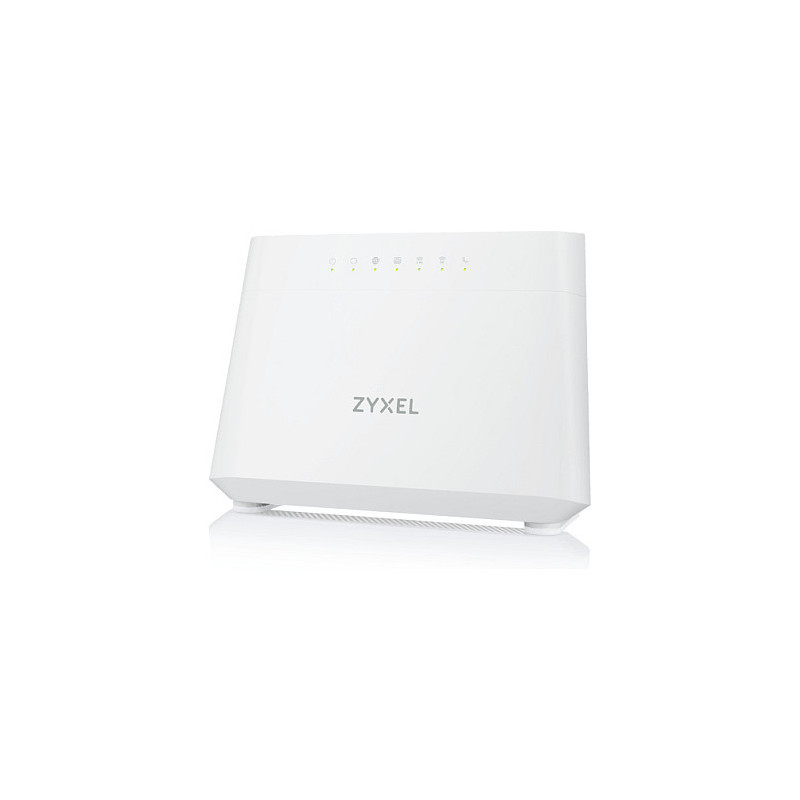

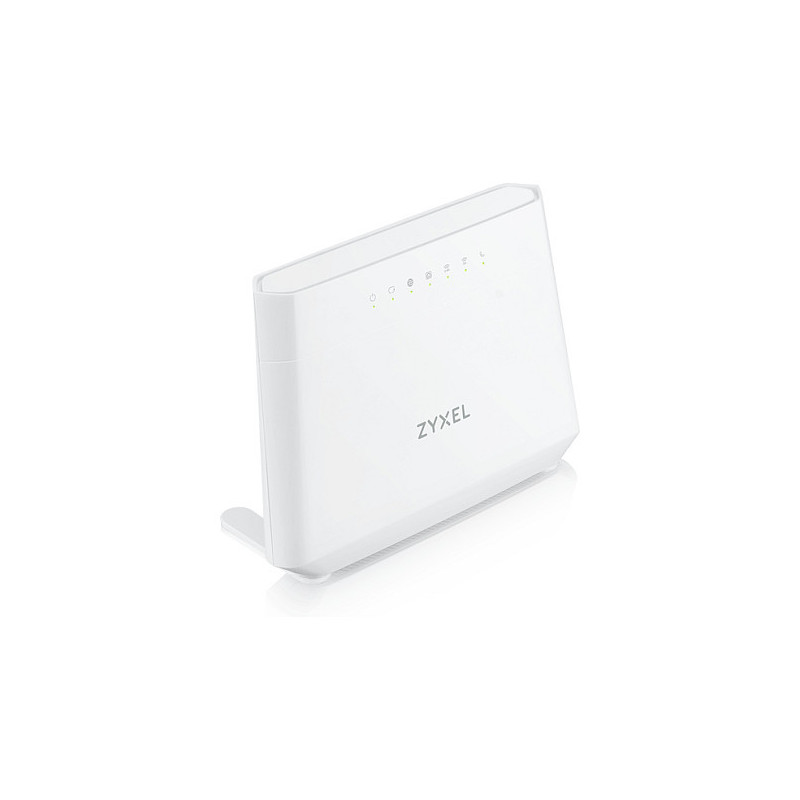

Zyxel DX3301-T0 wireless router

Zyxel DX3301-T0. WAN connection type: RJ-45. Wi-Fi band: Dual-band (2.4 GHz / 5 GHz), Top Wi-Fi standard: Wi-Fi 6 (802.11ax), Wi-Fi standards: Wi-Fi 6 (802.11ax). Ethernet LAN interface type: Gigabit Ethernet, Ethernet LAN data rates: 1000 Mbit/s, Networking standards: IEEE 802.1Q. Product type: Tabletop router, Product colour: White. Antenna design: Internal

The Zyxel DX3301-T0/DX3300-T0/EX3301-T0/EX3300-T0 Series provides high-speed internet access with QoS support to meet the worldwide market demand for triple-play services. With the built-in 2x2 802.11ax WLAN function and Zyxel MPro Mesh TM Solutions, the Series provides seamless WiFi experience and superior, feature-rich WiFi connectivity for service providers to deliver high-performance internet access services.

WiFi 6 technology for superior lag-free performance
Supporting the latest WiFi 6 (11ax) standard, the Series offers speeds of up to 1200 Mbps* with 2x2 802.11ax and 574 Mbps* with 2x2 802.11ax. The uplink MU-MIMO, Orthogonal Frequency Division Multiple Access (OFDMA) and beamforming technologies empower the Series to deliver high speed internet for multi-streaming data access and optimal WiFi experience without dead zones.

WAN connection

Feature: Ethernet WAN
Feature: DSL WAN
WAN connection type: RJ-45

Wireless LAN features

Wi-Fi band: Dual-band (2.4 GHz / 5 GHz)
Top Wi-Fi standard: Wi-Fi 6 (802.11ax)
Wi-Fi standards: Wi-Fi 6 (802.11ax)

Network

Feature: Ethernet LAN
Ethernet LAN interface type: Gigabit Ethernet
Ethernet LAN data rates: 1000 Mbit/s
Networking standards: IEEE 802.1Q
Feature: Auto MDI/MDI-X
Feature: Port forwarding
Feature: Dynamic DNS (DDNS)

DSL features

Feature: ADSL
Feature: ADSL2+
Feature: VDSL

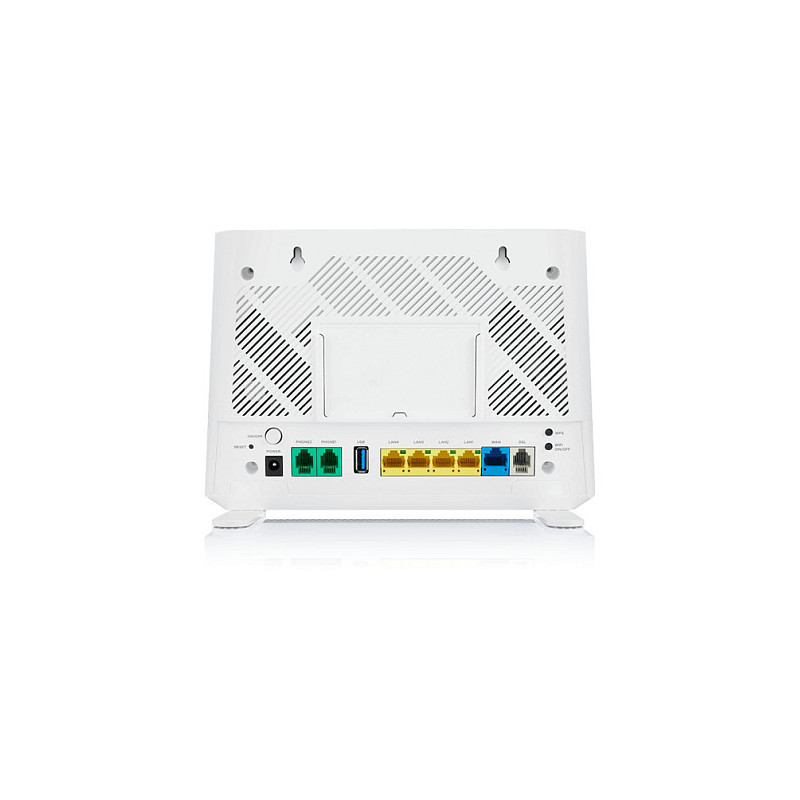

Ports & interfaces

Ethernet LAN (RJ-45) ports: 4
Feature: USB port
USB 2.0 ports quantity: 1
RJ-11 ports quantity: 1
Feature: DC-in jack

Management features

Feature: Web-based management
Feature: Wi-Fi Multimedia (WMM)/(WME)
Feature: Quality of Service (QoS) support
Feature: Reset button
Feature: MU-MIMO technology
Feature: MIMO

Security

Feature: Firewall
Feature: MAC address filtering

Protocols

Feature: DHCP client
Feature: DHCP server
Feature: Universal Plug and Play (UPnP)

Design

Product colour: White
Feature: Indication light
Feature: On/off switch
Product type: Tabletop router

Antenna

Antenna design: Internal

Power

Power source type: DC

Operational conditions

Operating temperature (T-T): 0 - 40 °C
Storage temperature (T-T): -30 - 70 °C
Operating relative humidity (H-H): 10 - 90%
Storage relative humidity (H-H): 10 - 95%

Weight & dimensions

Width: 220 mm
Depth: 35 mm
Height: 153 mm
Weight: 387 g

Logistics data

Harmonized System (HS) code: 85176990
