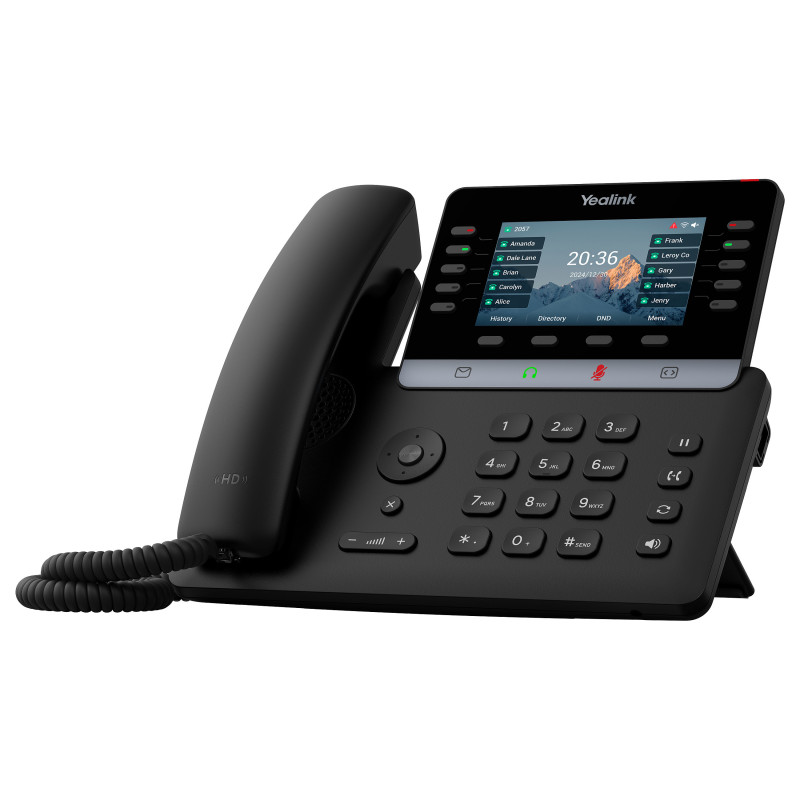

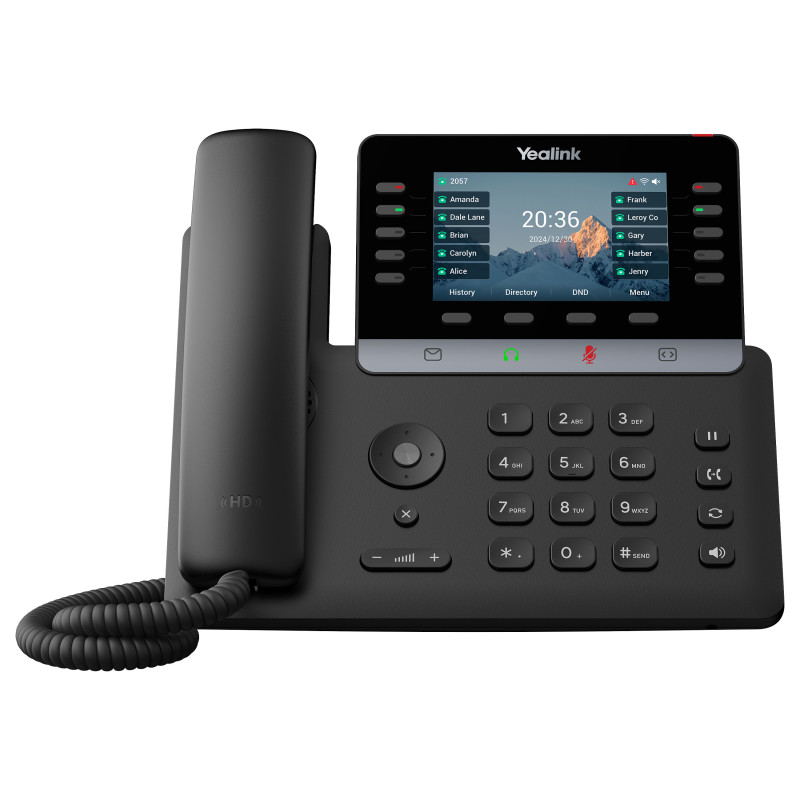

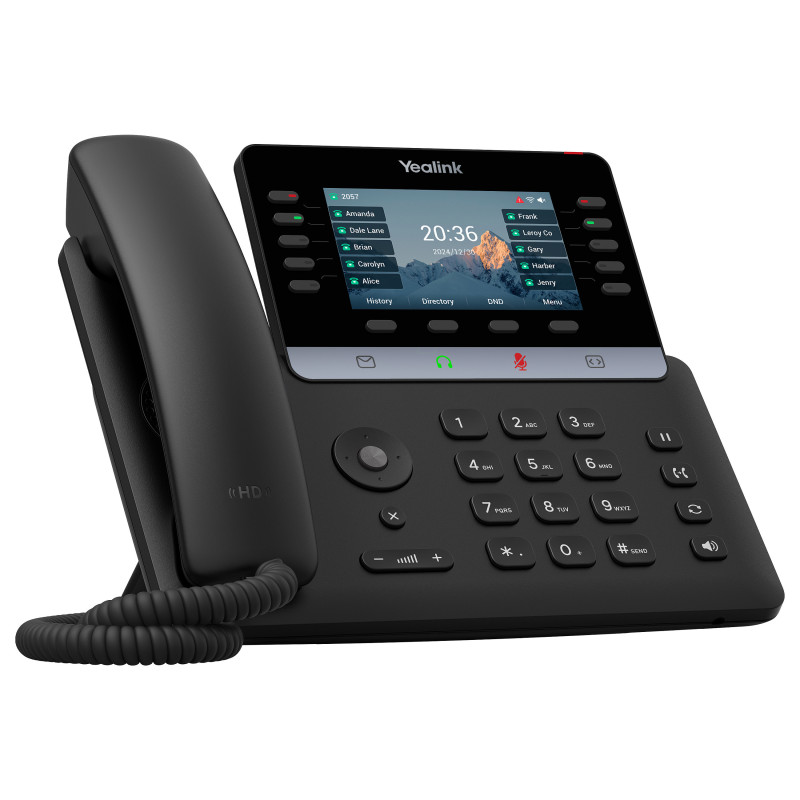

Yealink T74W IP phone

Yealink -SIP-T74W. Product type: IP Phone, Product colour: Black, Handset type: Wired & Wireless handset. Phonebook capacity: 1000 entries. Management platform: Yealink Device Management Platform. Display: LCD, Display diagonal: 10.9 cm (4.3"), Display resolution: 480 x 272 pixels. Voice codecs: G.711a, G.711u, G.723.1, G.726, G.729, G.729A, G.729B, G.729ab

The SIP Phone T74W is the next-gen desk phone with fashion-forward design, Crystal-clear audio, enhanced system security, smarter UX and a sustainable approach. The fashion-forward appearance, featuring slimmer body, color screen, touchable buttons, adapts to modern workspace and provides comfortable hand feel. Empowered by Smart Noise Filtering, optimized Acoustic Shield, and enhanced 3W speaker, it provides ultra clear HD audio. The industry-leading Linux 6.1 and TEE hardware encryption provides enhanced security mechanisms and stronger performance. Built with redesigned UI, Bluetooth 5.0 and Wi-Fi 6, it offers easier access to rich functions like Accessibility, Dark Theme and more flexible connectivity. The adoption of green packaging and Power-saving mode adheres to the sustainability goals.

Design

Product type: IP Phone
Handset type: Wired & Wireless handset
Product colour: Black
Feature: Backlight keypad
Mounting: Desk

Phone features

Feature: Answering machine
Feature: Call waiting
Feature: Speed dialling
Feature: Intercom
Feature: Call hold
Feature: Call forwarding
Feature: Conference call
Feature: Redialing
Feature: Caller ID
Phonebook capacity: 1000 entries
Feature: Phonebook sharing
Number of VoIP accounts: 16
Feature: Call return
Feature: Message-waiting indicator (MWI)
Feature: Call history
Feature: Emergency call

Management features

Management platform: Yealink Device Management Platform

Display

Display: LCD
Display diagonal: 10.9 cm (4.3")
Display resolution: 480 x 272 pixels

Audio

Feature: Speakerphone
Feature: Microphone mute
Voice codecs: G.711a, G.711u, G.723.1, G.726, G.729, G.729A, G.729B, G.729ab

Network

Feature: Ethernet LAN
Ethernet LAN interface type: Gigabit Ethernet
Ethernet LAN data rates: 10,100,1000 Mbit/s
Feature: Wi-Fi
Wi-Fi standards: 802.11a, 802.11b, 802.11g, Wi-Fi 4 (802.11n), Wi-Fi 5 (802.11ac), Wi-Fi 6 (802.11ax)
Feature: Bluetooth
Bluetooth version: 5.0
Feature: Quality of Service (QoS) support
Security algorithms: WPA2, WPA3
Feature: Syslog

Ports & interfaces

Headset connectivity: RJ-9
USB 2.0 ports quantity: 1
Ethernet LAN (RJ-45) ports: 2
RJ-9 ports quantity: 2
Feature: DC-in jack

Power

Feature: Power over Ethernet (PoE)
AC adapter input voltage: 100 - 240 V
AC adapter output voltage: 5 V
AC adapter output current: 2 A

Operational conditions

Operating temperature (T-T): 10 - 45 °C
Operating relative humidity (H-H): 5 - 95%
Storage temperature (T-T): -10 - 70 °C

Weight & dimensions

Width: 235 mm
Depth: 167.5 mm
Height: 214.8 mm
Package width: 258 mm
Package depth: 247 mm
Package height: 99 mm

Packaging content

Feature: Mounting kit
Feature: Ethernet cable
Handset: Yes
Feature: Quick start guide
Number of handles included: 1 pc(s)
