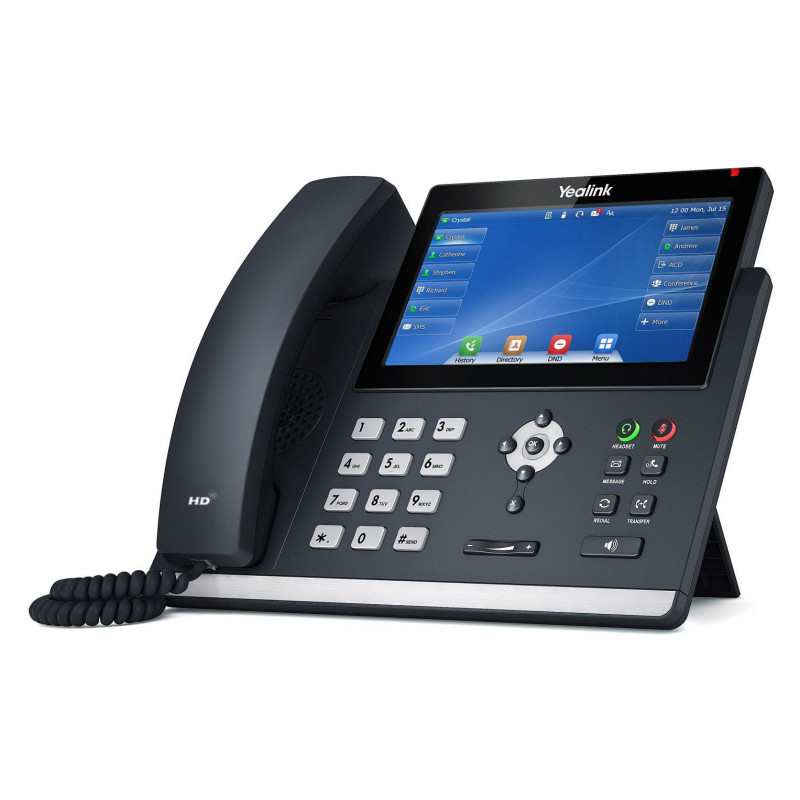

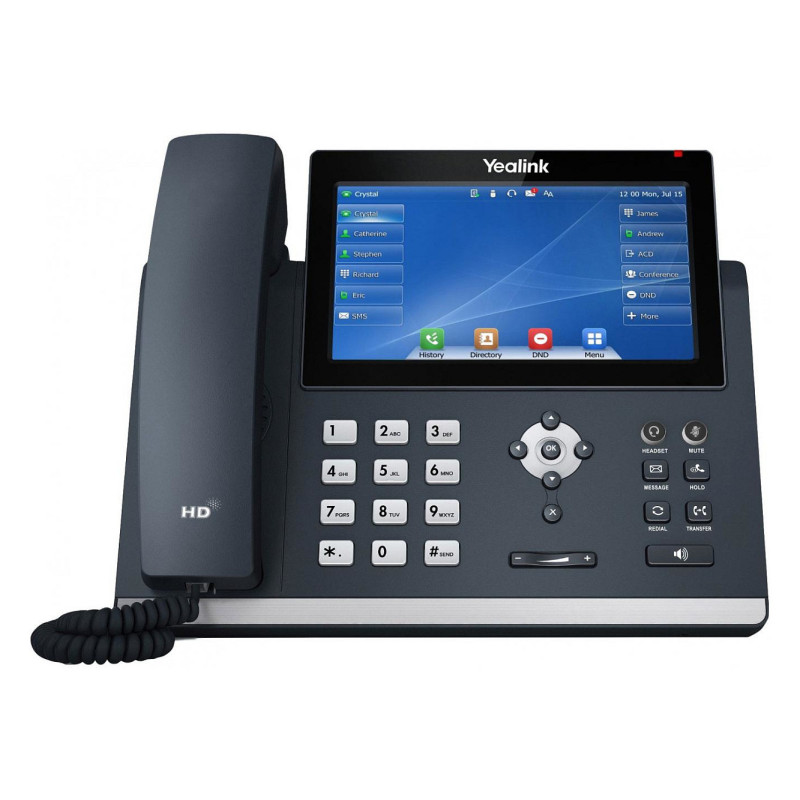

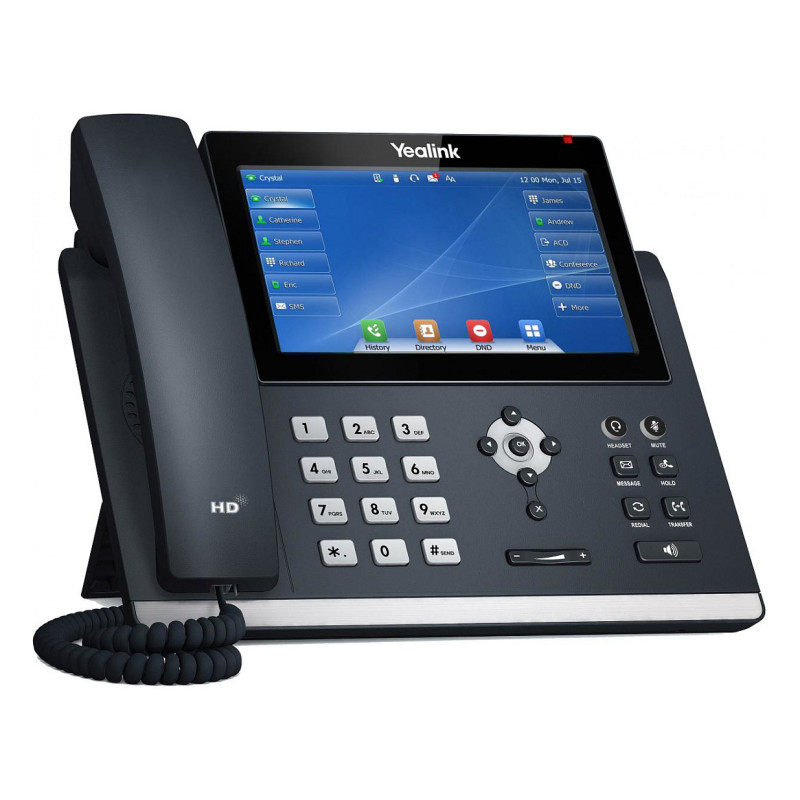

Yealink SIP-T48U IP phone

Yealink SIP-T48U. Product type: IP Phone, Product colour: Grey, Handset type: Wired handset. Phonebook capacity: 1000 entries. Display: LED, Display diagonal: 17.8 cm (7"), Display resolution: 800 x 480 pixels. Voice codecs: AGC, AJB, AMR-WB, CNG, G.711, G.722, G.723.1, G.726, G.729ab, VAD, iLBC. Ethernet LAN interface type: Gigabit Ethernet, Ethernet LAN data rates: 10,100,1000 Mbit/s, Security algorithms: AES, HTTPS, SRTP, TLS

Easy Customization and High Expansibility
The SIP-T48U has a seven-inch, 800 x 480-pixel, backlit- color touch screen, which enables a rich
visual presentation and easy navigation. Accompanied by two USB ports, the T48U is your
right-hand man in the office that makes Bluetooth, Wi-Fi, USB headset and USB recording possible,
and you can use any two of them freely according to your needs to enrich phone features.
Meanwhile, the phone not only has 29 one-touch DSS keys that can be easily programmed to
various features, but also can connect up to three expansion modules, for up to 180 additional
buttons with a screen-based LCD display and LED system.

HD Audio
Yealink Optima HD Voice technology combines cutting-edge hardware and software with
wideband technology for maximum acoustic performance. Being a totally open, highly versatile
audio codec, Opus, is designed to perform a higher HD audio quality than other wideband codecs
in a high network bandwidth; However, if your current network quality is poor, Opus can provide
you with a better audio quality than other narrowband codecs. And its hearing aid compatible
(HAC) handset helps the person who is with hearing loss to hear the voice more clearly.

Efficient Installation and Provisioning
Yealink T4U series supports efficient provisioning and effortless mass deployment with Yealink's
Redirection and Provisioning Service (RPS) and Boot mechanism to help you realize the Zero Touch
Provisioning without any complex manual settings, which makes the T4U series simple to deploy,
easy to maintain and upgrade. Furthermore, a unified firmware and auto-p template that applies
to all T4U phone models (T41U, T43U, T46U and T48U), saves even more time and costs for
businesses, as well as simplifies the management and maintenance.

Secure Transport and Interoperability
The SIP-T48U uses SIP over Transport Layer Security (TLS/SSL), which is the latest network security
technology. It's also compatible with leading soft switch suppliers, such as 3CX, Broadsoft
Broadworks.

Design

Product type: IP Phone
Handset type: Wired handset
Product colour: Grey

Phone features

Feature: Call waiting
Feature: Call hold
Feature: Call forwarding
Feature: Conference call
Feature: Redialing
Feature: Caller ID
Phonebook capacity: 1000 entries
Number of VoIP accounts: 16

Management features

Keypad number of keys: 29

Display

Display: LED
Display diagonal: 17.8 cm (7")
Display resolution: 800 x 480 pixels
Feature: Touchscreen
Feature: Backlight display

Audio

Feature: Speakerphone
Voice codecs: AGC, AJB, AMR-WB, CNG, G.711, G.722, G.723.1, G.726, G.729ab, VAD, iLBC

Network

Feature: Ethernet LAN
Ethernet LAN interface type: Gigabit Ethernet
Ethernet LAN data rates: 10,100,1000 Mbit/s
Feature: Wi-Fi
Feature: Bluetooth
Security algorithms: AES, HTTPS, SRTP, TLS

Ports & interfaces

USB 2.0 ports quantity: 2
Ethernet LAN (RJ-45) ports: 2
Feature: Expansion module support

Power

Feature: Power over Ethernet (PoE)
AC adapter input voltage: 100 - 240 V

Operational conditions

Operating temperature (T-T): 0 - 40 °C
Operating relative humidity (H-H): 10 - 95%

Weight & dimensions

Width: 226 mm
Depth: 226 mm
Height: 185 mm

Packaging content

Number of handles included: 1 pc(s)

Logistics data

Harmonized System (HS) code: 85171800
