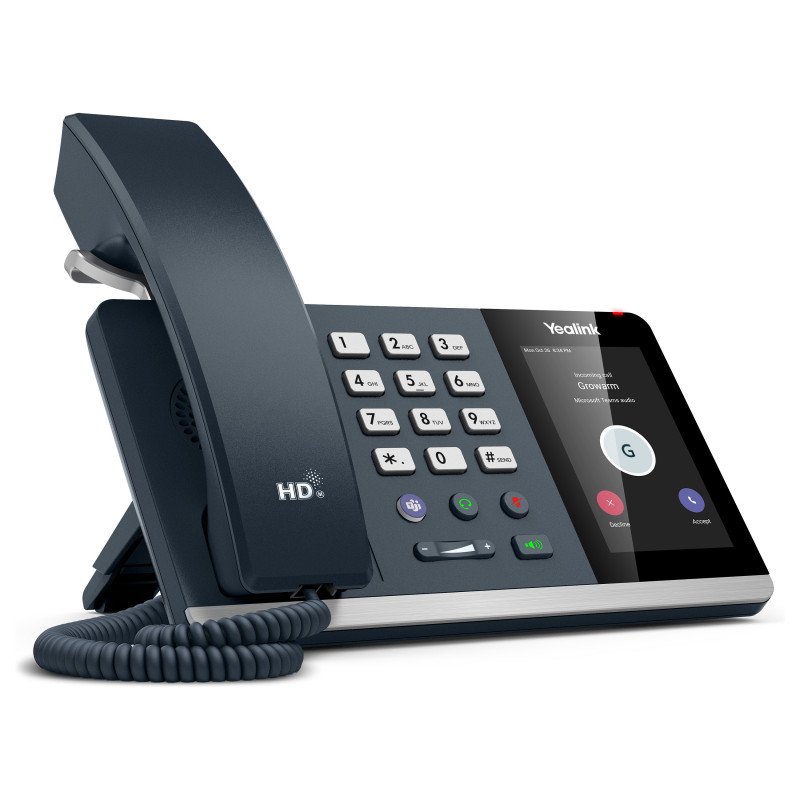

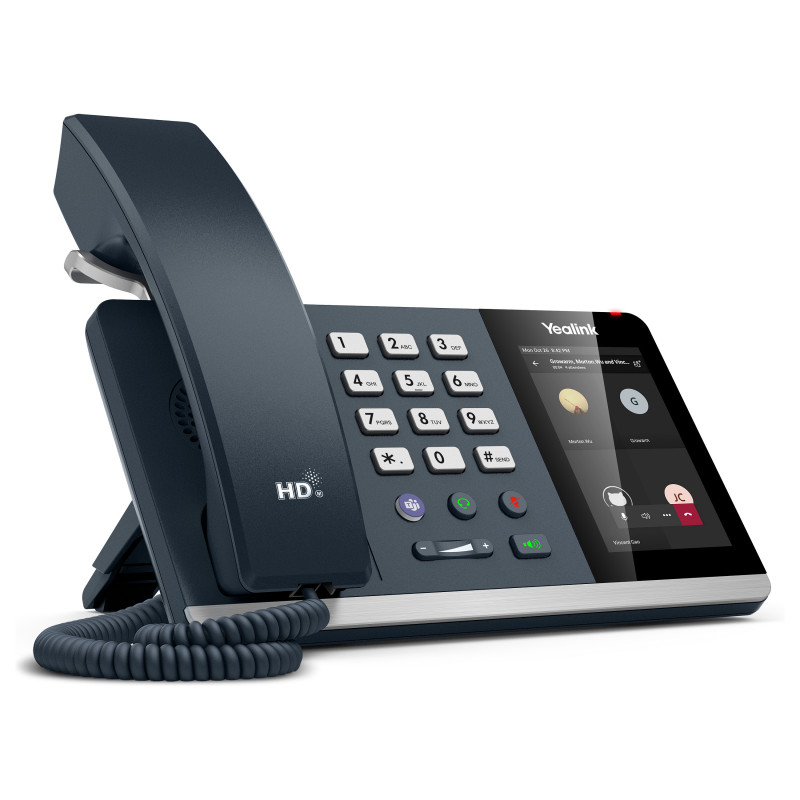

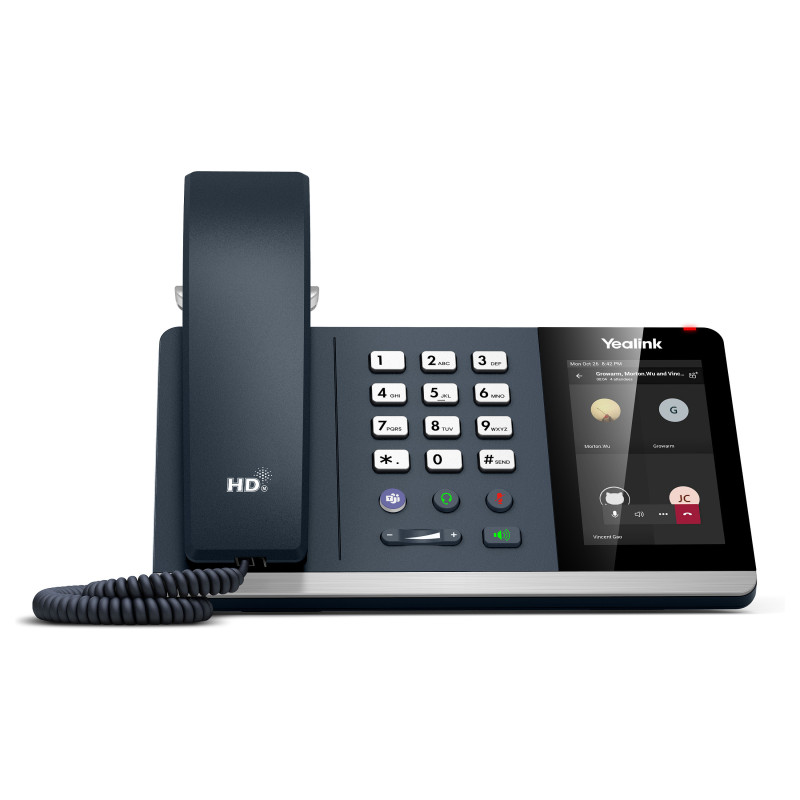

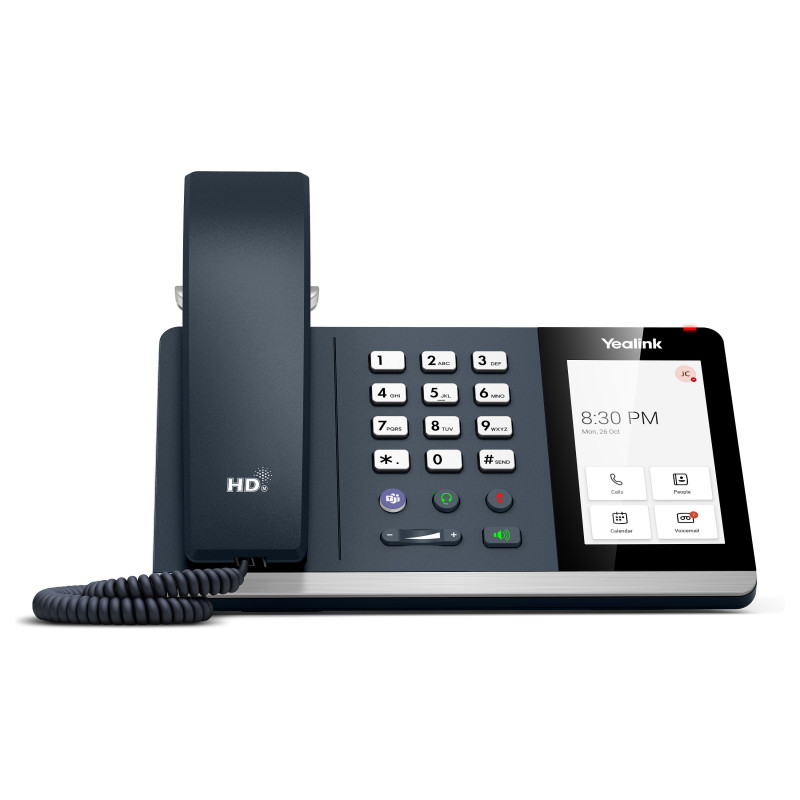

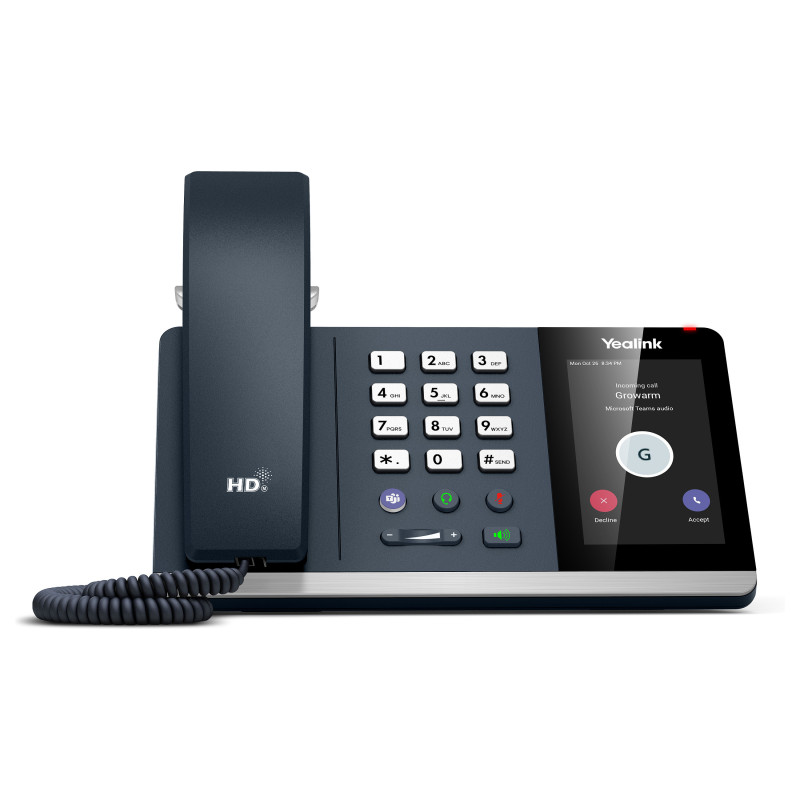

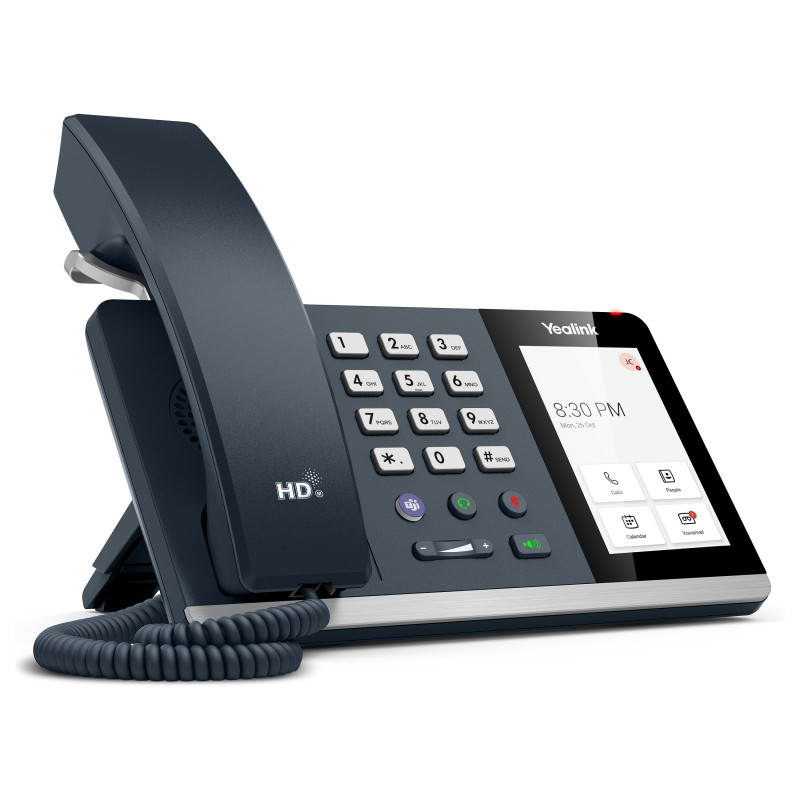

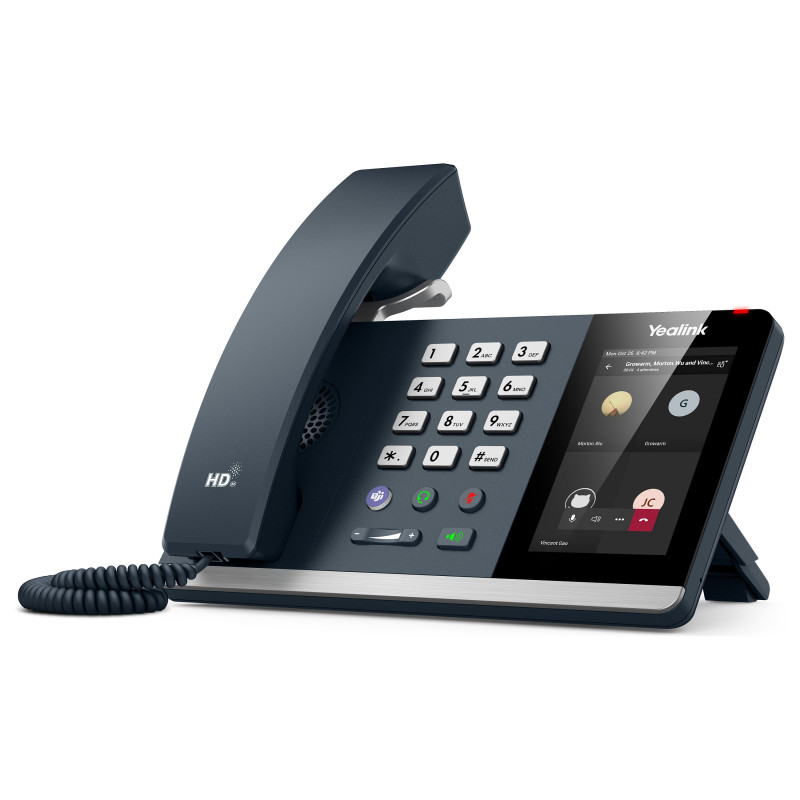

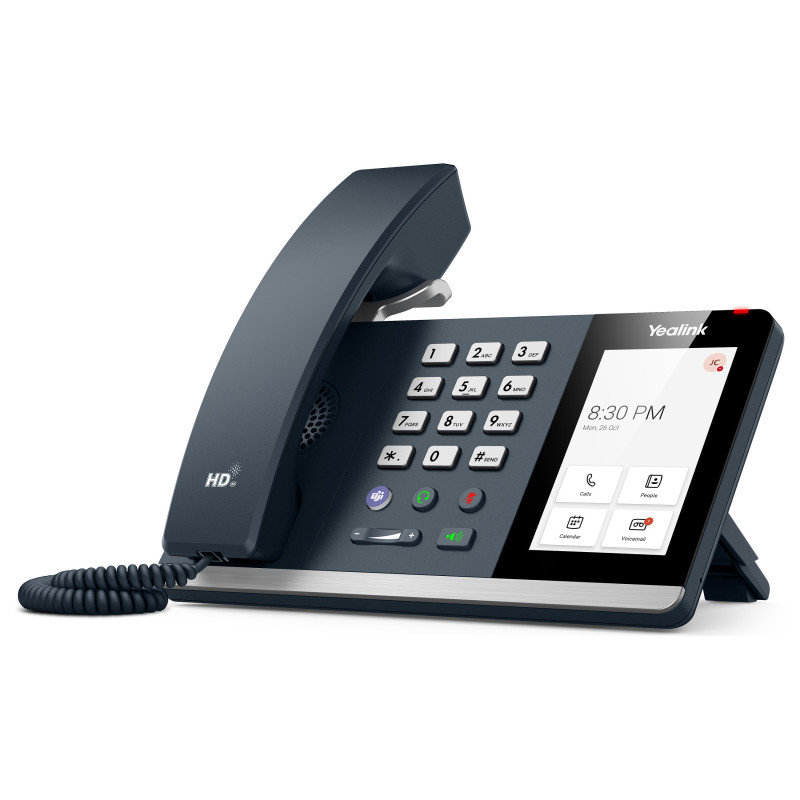

Yealink MP54 Microsoft Teams Edition IP phone

Yealink MP54 Microsoft Teams Edition. Product type: IP Phone, Product colour: Grey, Handset type: Wired handset. Operating system installed: Android, Compatible products: Microsoft Teams. Display: LCD, Display diagonal: 10.2 cm (4"), Display resolution: 800 x 480 pixels. Voice codecs: AGC, AJB, CNG, G.711a, G.711u, G.722, G.722.1, G.722.1C, G.723, G.726, G.729ab, OPUS, PLC, Silk,.... Ethernet LAN interface type: Gigabit Ethernet, Ethernet LAN data rates: 10,100,1000 Mbit/s, Supported network protocols: IPv4/IPv6, SNTP

Microsoft Phone MP54

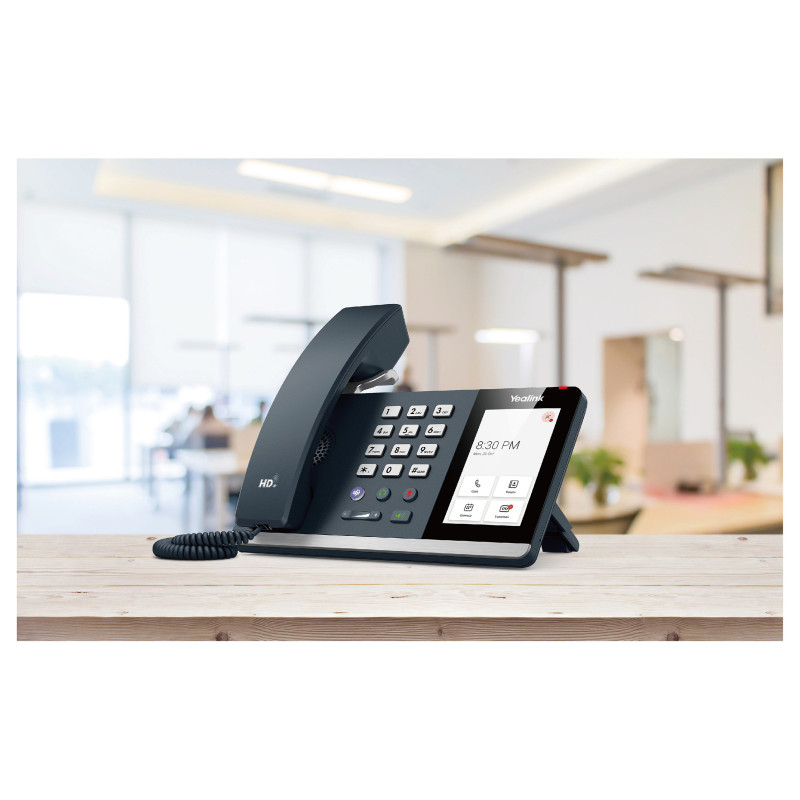

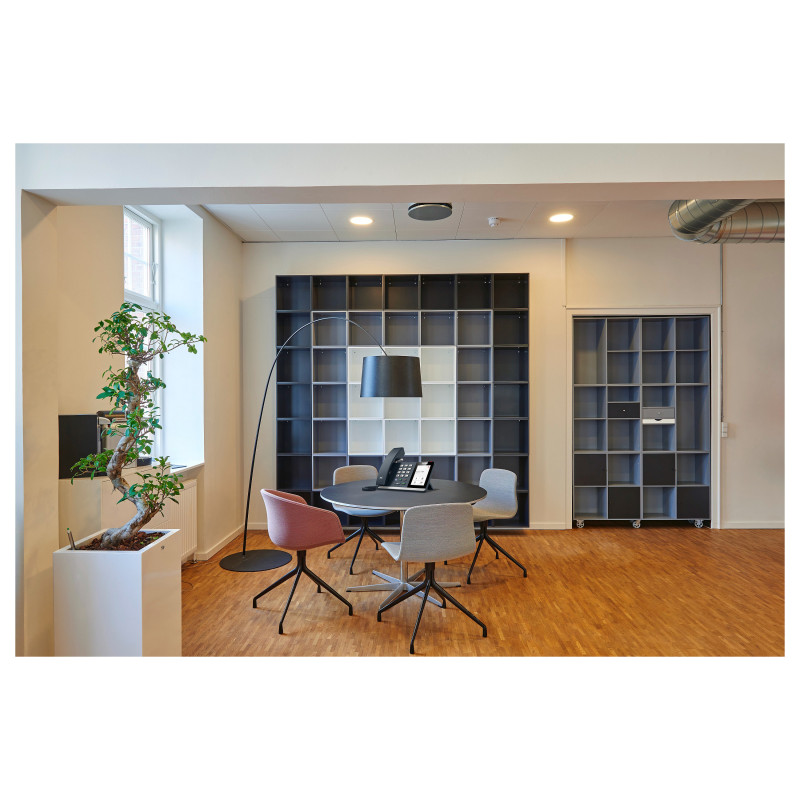

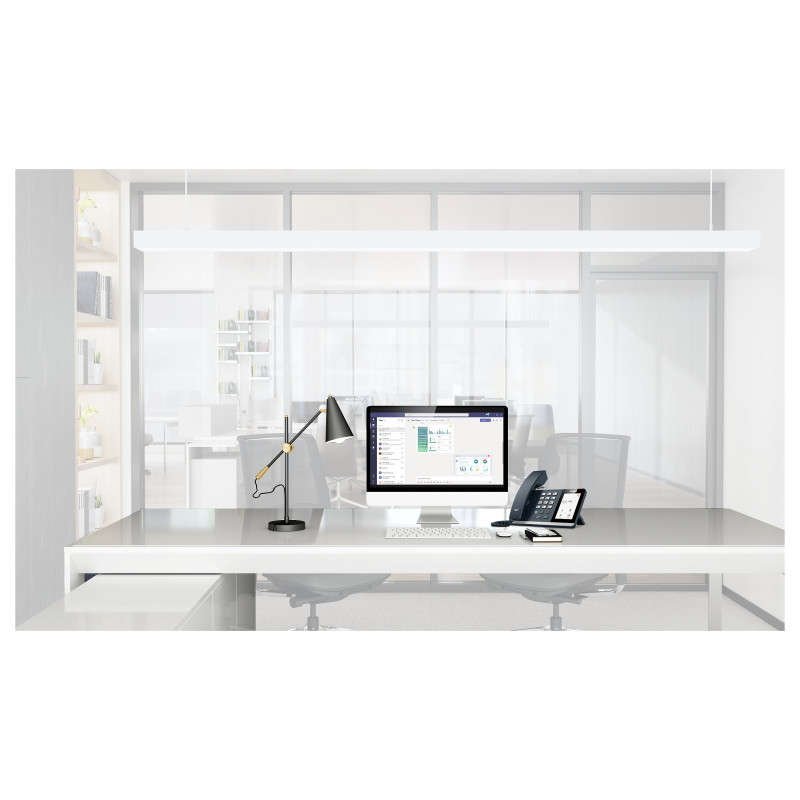

Yealink MP54 Android 9-based phone owns a faster response speed and dedicated Teams button, is ideal for office workers, front desks and common areas. Presenting a standalone voice solution and an unparalleled audio clarity, the MP54 is armed with Yealink's Optima HD Voice and Yealink Noise Proof Technology. Moreover, MP54 makes the collaboration easier than ever thanks to its support for SIP&Teams Hybid mode, and its USB port for a Wi-Fi, Bluetooth and a USB headset.

Excellent Calling Experience
The MP54 combines professional hardware and software technology to deliver crystal-clear voice communications. Thanks to Yealink Optima HD voice and Noise Proof Technology as well as a full-duplex hands-free speakerphone with AEC and a HAC handset, the MP54 provides an excellent audio experience for more efficient and productive calls.

Ease of Use
To extend workflows seamlessly to the desktop device, the MP54 offers a 4.0-inch capacitive touch screen and fully compatible with Microsoft 365 for a consistent calling and meeting user interface. The device owns one USB 2.0 port for USB headsets and Bluetooth dongle. It allows the user to leave the desk and continue talking while paring with a Bluetooth headset or USB headset.

Simplify Deploy and Manage
The MP54 offers deployment flexibility with multiple choices of deployment tools from Microsoft, Yealink and Unify square as well as auto-provision, making it simple to deploy, administer, upgrade and maintain.

Design

Product type: IP Phone
Handset type: Wired handset
Product colour: Grey
Feature: Device lock
Mounting: Desk

Performance

Operating system installed: Android
Operating system version: 9.0
Hearing aid compatibility: Yes
Compatible products: Microsoft Teams

Phone features

Feature: Hot desking
Feature: Common area phone (CAP)
Feature: Call hold
Feature: Call forwarding
Feature: Full duplex
Feature: Call transfer
Feature: Message-waiting indicator (MWI)
Feature: Emergency call

Management features

Feature: Integrated voicemail
Feature: Firmware upgradeable

Display

Display: LCD
Display diagonal: 10.2 cm (4")
Display resolution: 800 x 480 pixels
Feature: Touchscreen
Touchscreen type: Capacitive
Number of simultaneous touchpoints: 5
Graphical user interface (GUI) language: Multi

Audio

Feature: Speakerphone
Feature: Microphone mute
Voice codecs: AGC, AJB, CNG, G.711a, G.711u, G.722, G.722.1, G.722.1C, G.723, G.726, G.729ab, OPUS, PLC, Silk, VAD, iLBC
Feature: Echo cancellation
Feature: Comfort noise generation (CNG)
Feature: Packet loss concealment (PLC)

Network

Feature: Ethernet LAN
Ethernet LAN interface type: Gigabit Ethernet
Ethernet LAN data rates: 10,100,1000 Mbit/s
Supported network protocols: IPv4/IPv6, SNTP
Feature: DHCP client
Security algorithms: 802.1x RADIUS, HTTPS, MD5, TLS
Feature: Syslog
Networking standards: IEEE 802.1x, IEEE 802.3af

Ports & interfaces

USB 2.0 ports quantity: 1
Ethernet LAN (RJ-45) ports: 2
RJ-9 ports quantity: 2
Feature: DC-in jack
Feature: Cable lock slot

Certificates

Certification: CE, FCC, RoHS, ISO 9001, CCC, REACH

Power

Feature: Power over Ethernet (PoE)
AC adapter input voltage: 100 - 240 V
AC adapter output voltage: 5 V
AC adapter output current: 2 A
USB output current: 0.5 A
Power consumption (typical): 5.3 W
Power consumption (Power over Ethernet (PoE)): 6.8 W
Feature: Energy saving mode

Operational conditions

Operating temperature (T-T): -10 - 50 °C
Operating relative humidity (H-H): 10 - 95%

Weight & dimensions

Width: 223 mm
Depth: 159 mm
Height: 127 mm
Package width: 188 mm
Package depth: 529 mm
Package height: 261 mm

Packaging content

Feature: Base station
Number of handles included: 1 pc(s)
Cables included: LAN (RJ-45)
Feature: Stand included

Logistics data

Products per master (outer) case: 5 pc(s)
Master (outer) case gross weight: 5.3 kg
Master (outer) case length: 261 mm
Master (outer) case width: 188 mm
Master (outer) case height: 529 mm
Master (outer) case net weight: 4.8 kg
Harmonized System (HS) code: 85171800
