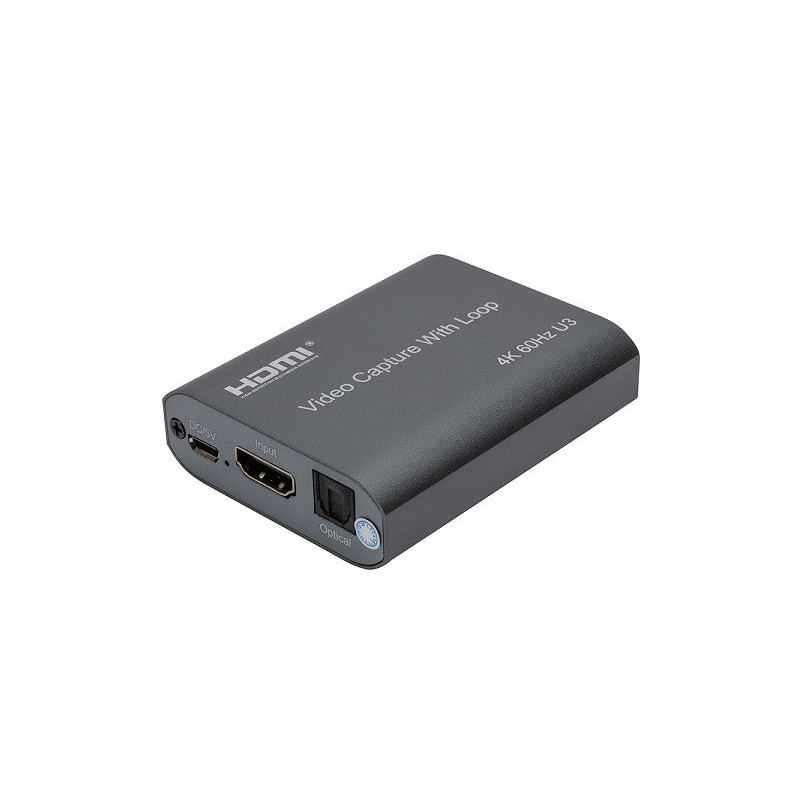

Video capture device HDMI USB3.0, 4K 60Hz

Video capture device HDMI USB3.0, 4K 60Hz

The HDMI capture device allows you to record high-definition video and audio. It can transmit high-definition signals to a monitor or projector. At the same time, it can support USB storage on a computer. The device can separate high-definition video and audio signals. A separate coaxial or fiber optic digital audio signal can be connected to an amplifier. The maximum resolution can reach 4K/60Hz.
Features:

• Supports maximum resolution up to 4K@60Hz.


• Supports data transfer rates up to 6Gbps and TMDS bandwidth up to 600 MHz.


• Supports standard HDMI AWG26 cable: HDMI input up to 8 meters, HDMI output up to 8 meters (for resolutions 1080P and lower).


• Supports standard USB 3.0 output cable up to 1.5m.


• Supports many recording programs such as VLC, OBS, Amcap, etc.


• Supports USB video 1.5 and USB audio 1.0 standards.


• Supports reception of uncompressed YUY2 (USB3.0) signal.

Technical data:

• Supported video resolution: 4K@60Hz.


• Voltage: 5V DC.


• Current: max. 0.7A.


• USB standard: 2.0.


• Supported video format: deep color.


• Supported audio format: LPCM.


• Max bandwidth: 600 MHz.


• Max. data transfer speed: 6Gbps.


• Input cable length: up to 8m (1080p for resolution) HDMI AWG26.


• Output cable length: up to 8m (1080p for resolution) HDMI AWG26, up to 1.5m for USB3.0.


• Operating temperature: -10°C~+55°C.


• Dimensions: 55x70x20 mm.


• Weight: 62 g.
