VALUE 21.99.1189 network switch

VALUE 21.99.1189. Basic switching RJ-45 Ethernet ports type: 2.5G Ethernet (100/1000/2500), Basic switching RJ-45 Ethernet ports quantity: 8. Full duplex. MAC address table: 4000 entries, Switching capacity: 60 Gbit/s. Networking standards: IEEE 802.3af, IEEE 802.3at, IEEE 802.3bt, IEEE 802.3i, IEEE 802.3u, IEEE 802.3x. Power over Ethernet (PoE). Rack mounting, Form factor: 1U

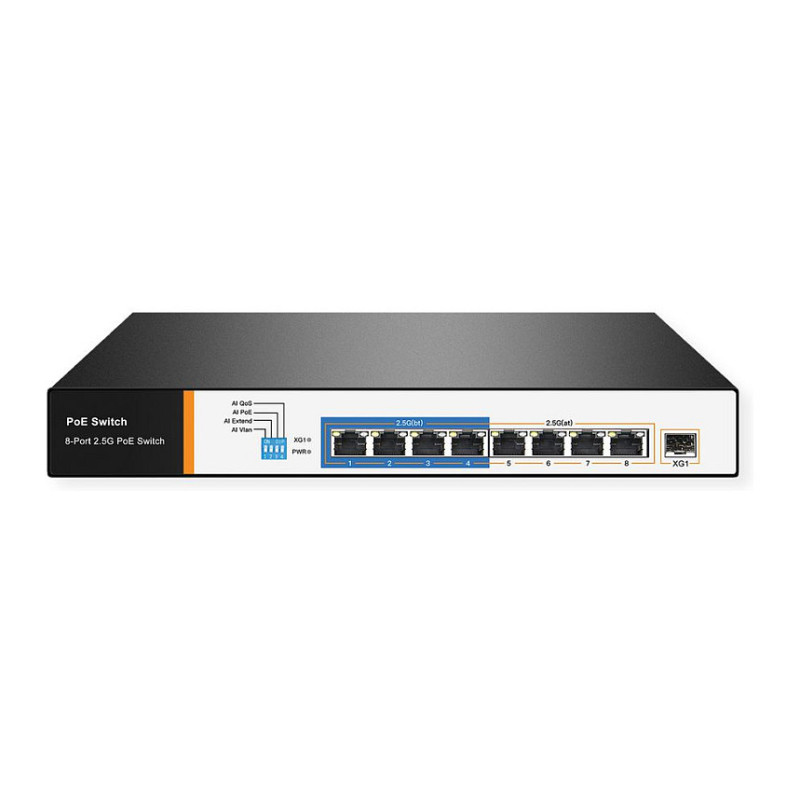

2.5 Gigabit Ethernet switch with 8 ports (including 4 ports PoE++ and 4 ports PoE+) and 1 uplink port (for an SFP+) for small or medium-sized network environments. The switch can be used as a central switch for smaller networks as well as for large networks at the edge (access layer).

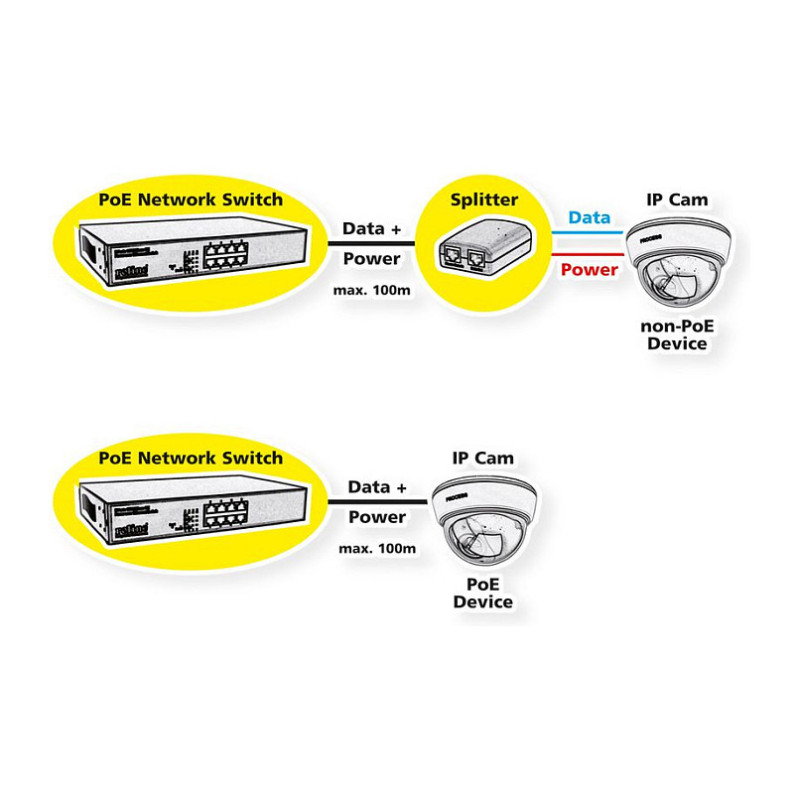

This 2.5 Gigabit Ethernet PoE switch is designed for small or medium network environments to strengthen its network connection. It converts standard 100~240V/AC power into low-voltage DC that runs over an existing LAN cable to power up Power over Ethernet (PoE) compliant network accessories like e.g. workgroup switches, network cameras, access points, IP-phones.

Ports & interfaces

Basic switching RJ-45 Ethernet ports quantity: 8
Basic switching RJ-45 Ethernet ports type: 2.5G Ethernet (100/1000/2500)
SFP+ module slots quantity: 1

Network

Networking standards: IEEE 802.3af, IEEE 802.3at, IEEE 802.3bt, IEEE 802.3i, IEEE 802.3u, IEEE 802.3x
Feature: 10G support
Feature: Full duplex
Feature: Half duplex
Feature: Auto-negotiation

Data transmission

Switching capacity: 60 Gbit/s
Forwarding rate: 44.6 Mpps
MAC address table: 4000 entries
Feature: Store-and-forward

Design

Feature: Rack mounting
Form factor: 1U
Product colour: Black
Housing material: Metal
LED indicators: Yes

Power over Ethernet (PoE)

Feature: Power over Ethernet (PoE)
Power over Ethernet plus (PoE+) ports quantity: 4
Power over Ethernet 4PPoE (PoE++) ports quantity: 4
Total Power over Ethernet (PoE) budget: 150 W

Weight & dimensions

Width: 282 mm
Depth: 180 mm
Height: 44 mm
Weight: 1.12 kg
