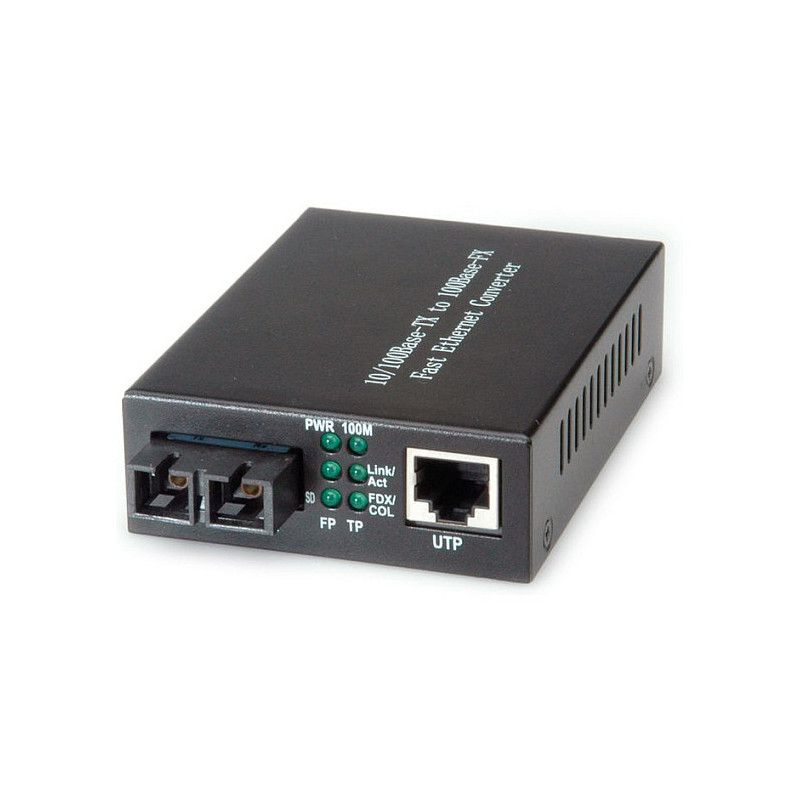

VALUE 21.99.1069 network media converter

VALUE 21.99.1069. Maximum data transfer rate: 100 Mbit/s, Converter input interface: 10Base-T, 100Base-TX, Converter output interface: 100Base-FX. Maximum transfer distance: 2000 m, Fiber mode structure: Multi-mode, Fiber cable diameters supported (core/cladding): 50/125,62.5/125 µm. Product colour: Grey. Fiber optic connector: SC, Connectivity technology: Wired. Output voltage: 5 V, Output current: 1 A, Power consumption (typical): 2.5 W

Converter from Fast Ethernet TP port to multimode fiber
Supports full wire speed conversion for 10/100Mbit/s speed and media types
Transparent conversion to 802.1Q VLAN tagged packets
TP port:
- IEEE 802.3 10Base-T, IEEE 802.3u 100Base-TX
- Shielded RJ-45 jacks with auto MDI/MDI-X detection
- Auto-negotiation for speed and duplex auto detection
- Speed for 10/100 Mbit/s, Full/half-duplex support
FX port: Duplex SC
- IEEE 802.3u 100Base-FX compliant
- Forced 100Mbit/s, Full-duplex
- For multimode fibre cable: 62.5/125µm and 50/125µm
Low power consumption: 2.5W
Power over included power supply (5VDC, 1A)
Remark: The converters do not offer a repeater function!

Contents: Converter, power supply, manual

Network

Maximum data transfer rate: 100 Mbit/s
Converter input interface: 10Base-T, 100Base-TX
Converter output interface: 100Base-FX
Networking standards: IEEE 802.1Q, IEEE 802.3, IEEE 802.3u
Ethernet interface type: Fast Ethernet
Ethernet LAN data rates: 10,100 Mbit/s
Feature: VLAN support
Feature: Auto MDI/MDI-X
Feature: Auto-negotiation
Duplex system: Full

Performance

Maximum transfer distance: 2000 m
Fiber mode structure: Multi-mode
Fiber cable diameters supported (core/cladding): 50/125,62.5/125 µm

Features

Product colour: Grey

Ports & interfaces

Connectivity technology: Wired
Ethernet LAN (RJ-45) ports: 1
Fiber ports quantity: 1
Fiber optic connector: SC

Power

Output voltage: 5 V
Output current: 1 A
Power consumption (typical): 2.5 W

Weight & dimensions

Width: 64 mm
Depth: 59 mm
Height: 21 mm
Weight: 181.2 g

Operational conditions

Operating temperature (T-T): 0 - 40 °C
