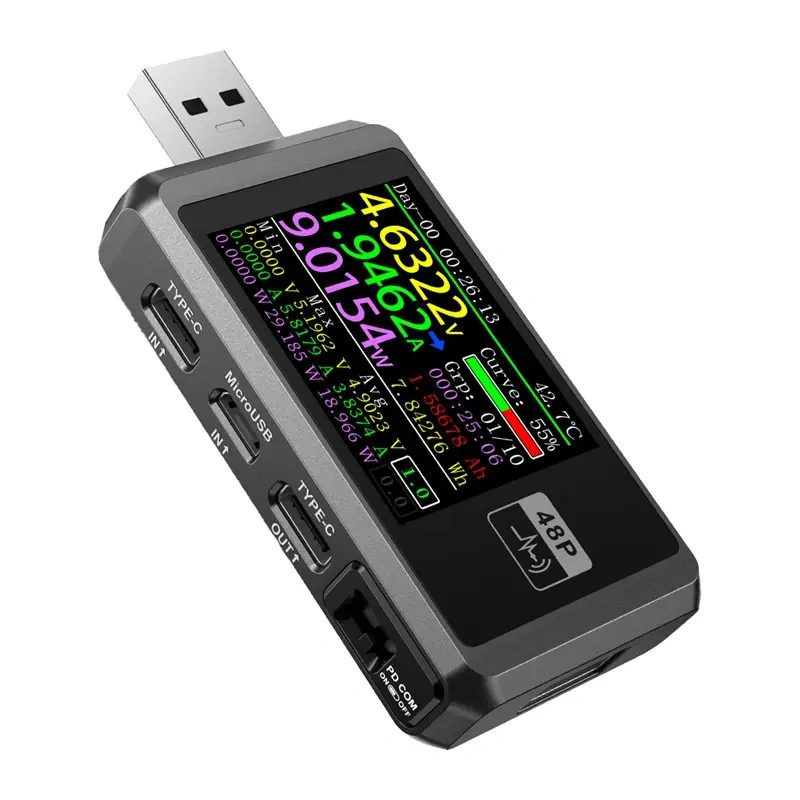

FNIRSI FNB48P - black USB port tester for measuring voltage, current, power, cable resistance, charging capacity and energy consumption. It supports USB-A, USB-C and Micro USB connectors, recognizes various fast charging protocols, saves measurements and displays data on a 1.77-inch screen.
FNIRSI FNB48P - black USB port tester for measuring voltage, current, power, cable resistance, charging capacity and energy consumption. It supports USB-A, USB-C and Micro USB connectors, recognizes various fast charging protocols, saves measurements and displays data on a 1.77-inch screen.
Guarantee
24 month
Delivery from Europe in
15 - 16
business days
FNIRSI FNB48P - black USB port tester for measuring voltage, current, power, cable resistance, charging capacity and energy consumption. It supports USB-A, USB-C and Micro USB interfaces, recognizes various fast charging protocols, records measurements and displays data on a 1.77-inch screen.
Product information | |
|---|---|
| Product type | USB port tester |
| Brand | FNIRSI |
| Model | FNB48P |
| Color | Black |
Measurement specifications | |
| Voltage measurement | 4-24 V; resolution: 0.00001 V; accuracy: ±(0.2 % + 2) |
| Current measurement | 0-6.5 A; resolution: 0.00001 A; accuracy: ±(0.5% + 2) |
| Power measurement | 0-156 W; resolution: 0.00001 W; accuracy: ±(0.5% + 2) |
| Equivalent load resistance | 0-9999.9 Ω; resolution: 0.0001 Ω; accuracy: ±(0.5% + 2) |
| D+ / D− line voltage | 0-3.3 V; resolution: 0.001 V; accuracy: ±(1.0 % + 2) |
| Device temperature | Resolution: 1 °C; accuracy: ±(1.2 % + 3) |
| Capacity measurement | 0-9999.99 Ah; resolution: 0.00001 Ah |
| Energy measurement | 0-9999.99 Wh; resolution: 0.00001 Wh |
| Conductor resistance measurement | 0-9999.9Ω; resolution: 0.0001Ω |
Interfaces and usage | |
| Supported interfaces | USB-A input/output, USB-C input/output, Micro USB input and PD COM |
| Fast charging protocols | Apple 2.4A, QC2.0, QC3.0, USB Power Delivery, Samsung AFC, Huawei FCP and SCP, OPPO VOOC, DASH, WARP, SuperVOOC, PE+ 1.1 and PE+ 2.0 |
| Cable diagnostics | PD e-marker detection, DASH cable recognition and internal conductor resistance measurement |
| Screen | 1.77-inch high-resolution display with high-precision six-digit display |
| Graph modes | Voltage to current ratio, D+ / D− voltage, offline recording and AC power ripple |
| Data recording | Up to 10 measurement groups; recording duration - up to 999 hours 59 minutes 59 seconds. |
| Operating time counter | Up to 99 days 23 hours 59 minutes 59 seconds; resolution: 1 second |
| Situation | Automatic screen rotation using gravity sensor |
| Control and connectivity | Function buttons, back button and computer interface |
| Housing | CNC machined metal body |
Safety information | |
| Safety warning | Use only to test compatible USB charging equipment and do not exceed the specified voltage and current limits. Do not exceed 24 V or 6.5 A. Check connections before use and unplug the tester if it becomes hot, damaged, or malfunctions. |
| Height | 30 mm |
| Length | 120mm |
| Weight | 80 g |
| Width | 80mm |
