StarTech.com US1GC30SFP network card

StarTech.com USB-C to Fiber Optic Converter - Open SFP. Connectivity technology: Wired, Host interface: USB Type-C, Interface: Fiber. Maximum data transfer rate: 1000 Mbit/s. USB powered. Product colour: Black

Connect to a GbE network through your laptop's USB-C port using the Gigabit SFP of your choice

This USB-C™ to fiber-optic converter lets you utilize the USB 3.0 (Type-C™) port on your laptop or tablet to provide a secure fiber network connection. Windows® and Mac compatible, the network adapter provides a Gigabit Ethernet (1000 Mbps) optical network connection for portable laptops or tablets, or systems without expansion slots.

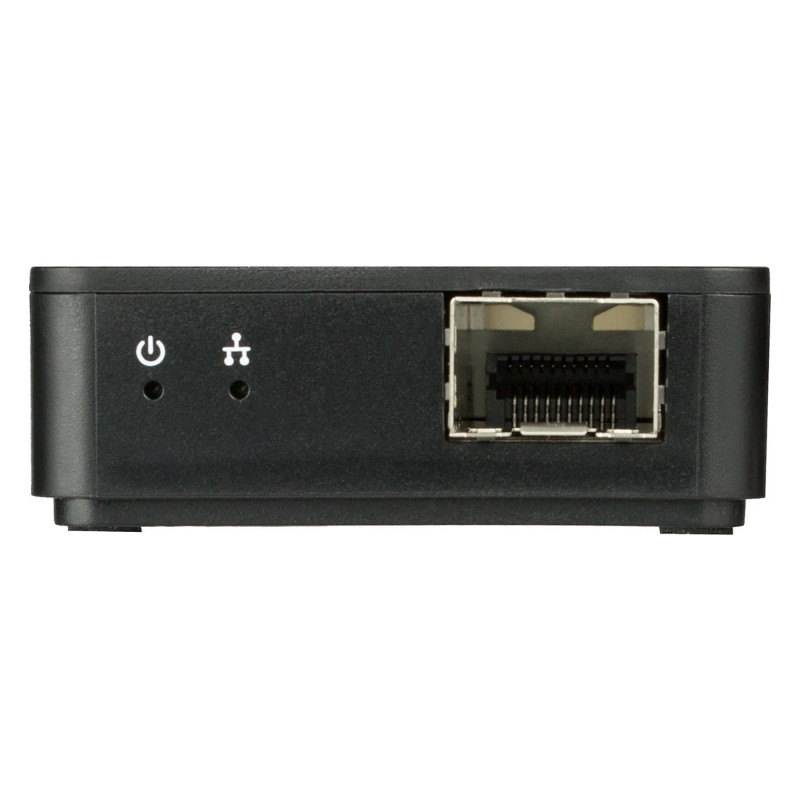

A flexible solution with an open SFP slot

The open SFP slot enables you to use your preferred SFP transceiver module to meet your networking needs - use an SFP with your desired wavelength, distance, connection type to achieve an efficient network solution. (SFP sold separately.)

Secure fiber-to-the-desk connectivity

This USB to fiber-optic converter provides reliable fiber connectivity while protecting your network from problems with electronic interference - a common issue with copper Ethernet networks. Fiber-to-the-desk connectivity (FTTD) maximizes network security, reducing the risk of data leaks for sensitive information, without compromising network speed and reliability.

Easy portability

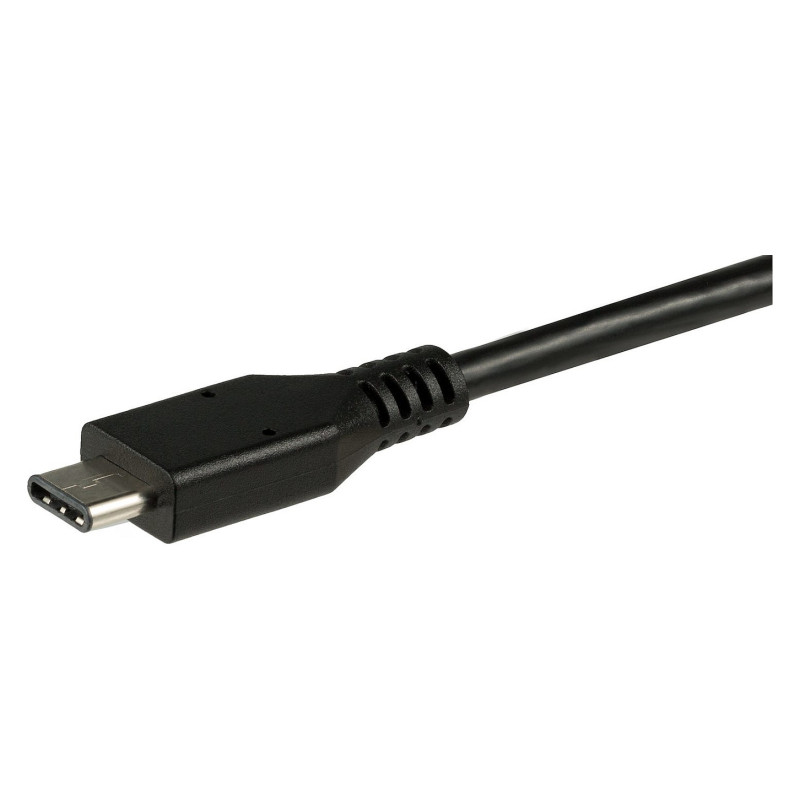

Compact and portable, this USB-C to fiber-optic converter is powered directly from the USB port.

Plug and play

Get up and running quickly. The USB to fiber-optic converter supports certified drivers for Windows, Mac and Linux®. Once the adapter is plugged into a USB-C port, you simply install the drivers and the adapter is ready to transmit over a fiber network.

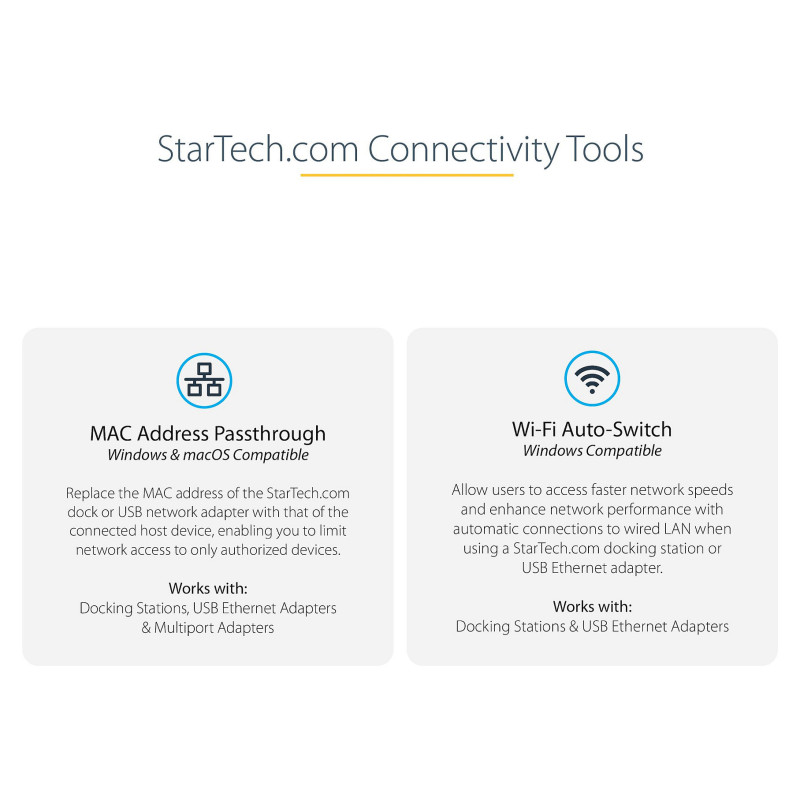

Enhance Productivity and Device Management with the StarTech.com Connectivity Tools Application

Developed to improve performance and security, StarTech.com Connectivity Tools is the only software suite on the market that works with a wide range of IT connectivity accessories. The software suite includes:

• Mac Address Pass-Through Utility : To improve network security.

• Wi-Fi Auto Switch Utility : Enabling users to quickly access faster network speeds via wired LAN.

For more information and to download the StarTech.com Connectivity Tools application, please visit: www.StarTech.com/Connectivity-Tools

The US1GC30SFP is backed by a StarTech.com 2-year warranty and free lifetime technical support.

Ports & interfaces

Connectivity technology: Wired
Host interface: USB Type-C
Interface: Fiber
Fiber ports quantity: 1
Fiber optic connector: SFP
USB version: 3.2 Gen 1 (3.1 Gen 1)

Network

Maximum data transfer rate: 1000 Mbit/s
Networking standards: IEEE 802.1Q, IEEE 802.3z
Fiber ethernet cabling technology: 1000BASE-SX, 1000BASE‑LX
Feature: Wake-on-LAN ready
Feature: Full duplex
Feature: Jumbo frames support
Jumbo frames: 9000
Feature: VLAN tagging

Design

Product colour: Black
Chipset: Realtek - RTL8153-VB-CG, Microsemi - VSC8211XVW
Feature: Plug and Play
LED indicators: Activity, Link, Power

Power

Feature: USB powered

System requirements

Linux operating systems supported: Yes
Server operating systems supported: Windows Server 2008, Windows Server 2012, Windows Server 2016, Windows Server 2019

Operational conditions

Operating temperature (T-T): 0 - 60 °C
Storage temperature (T-T): -10 - 70 °C
Operating relative humidity (H-H): 5 - 90%

Sustainability

Feature: Sustainability compliance

Weight & dimensions

Width: 55 mm
Depth: 260 mm
Height: 20 mm
Weight: 100 g

Packaging data

Package width: 141 mm
Package depth: 171 mm
Package height: 30 mm
Package weight: 104 g

Technical details

Compliance certificates: CE, RoHS

Logistics data

Harmonized System (HS) code: 85176990
Master (outer) case width: 308 mm
Master (outer) case length: 590 mm
Master (outer) case height: 366 mm
Products per master (outer) case: 40 pc(s)

Other features

Housing material: Plastic
Cable length: 0.195 m
