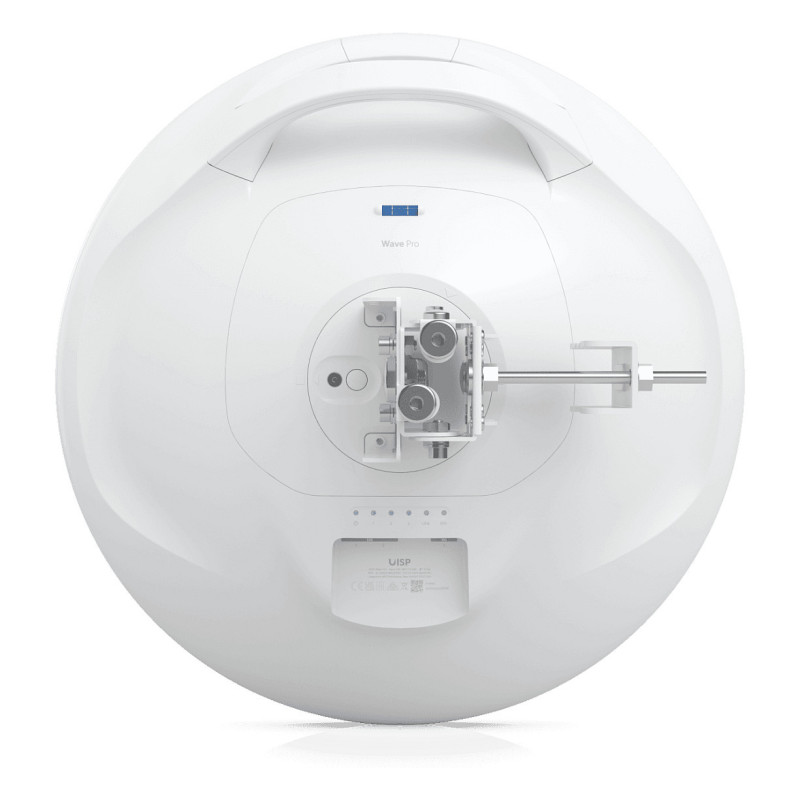

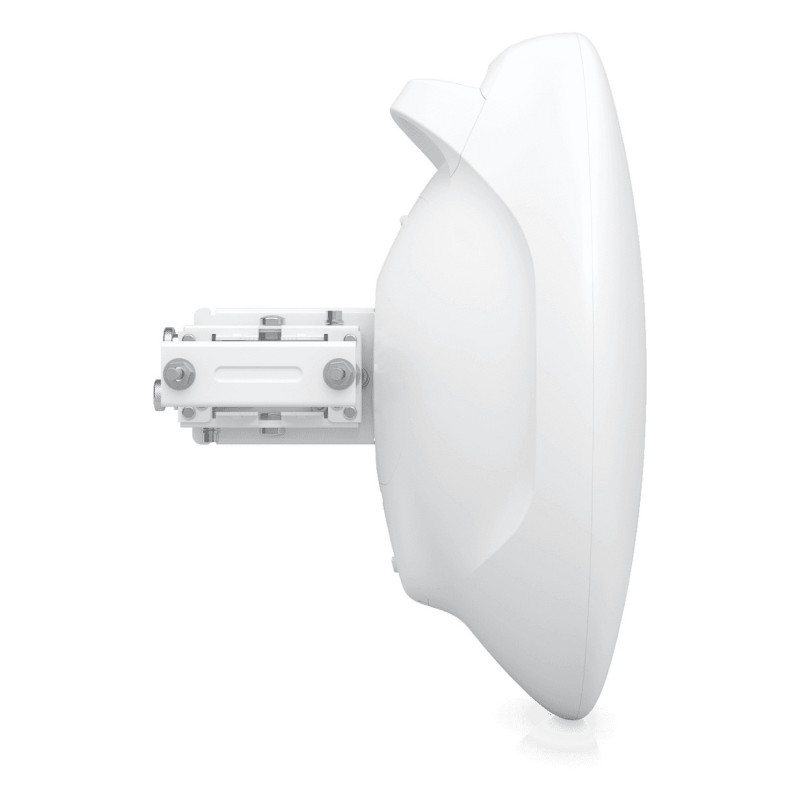

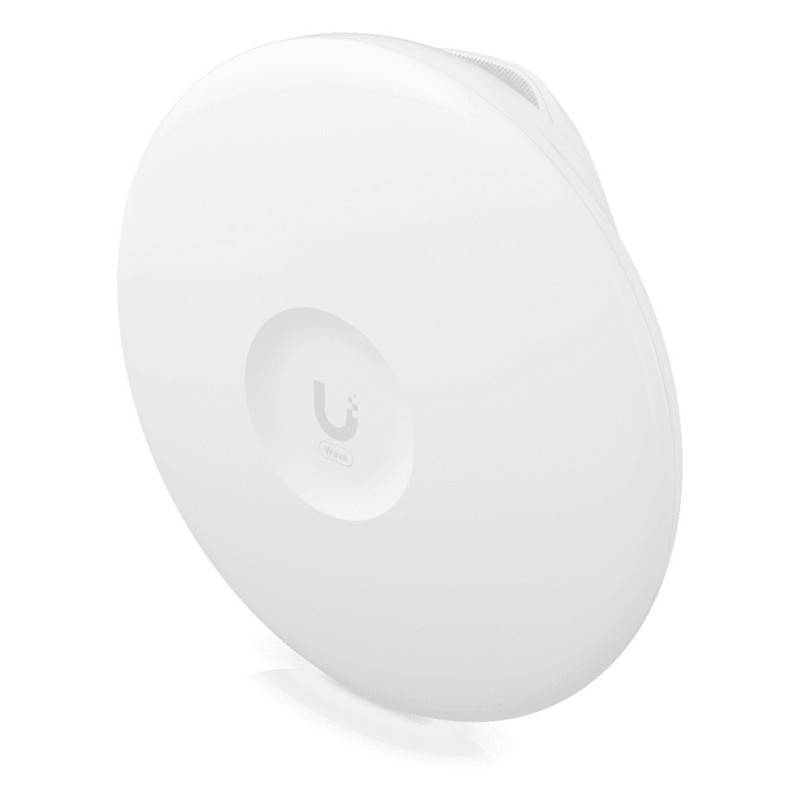

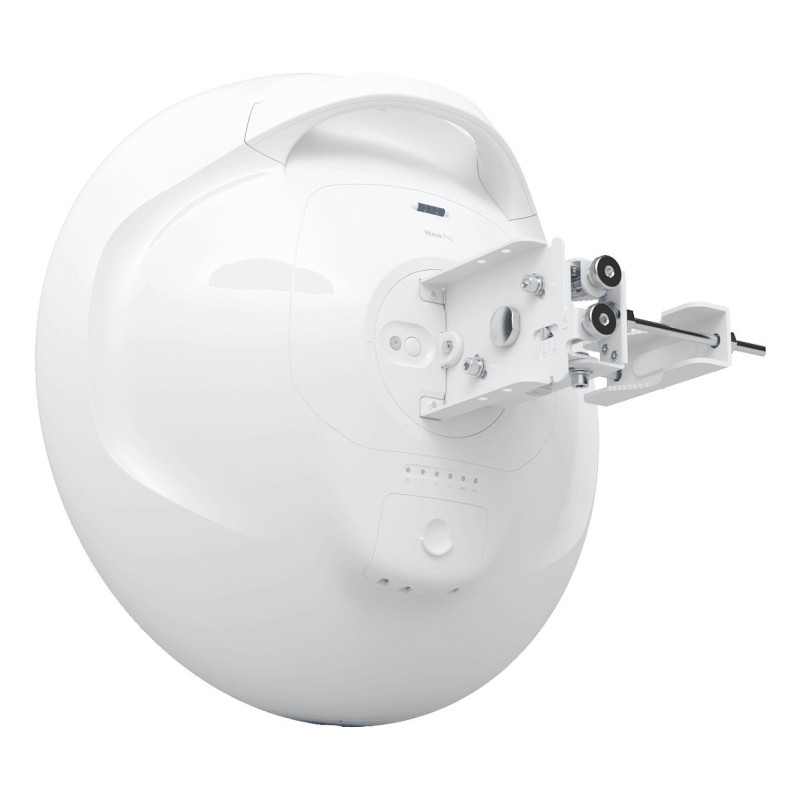

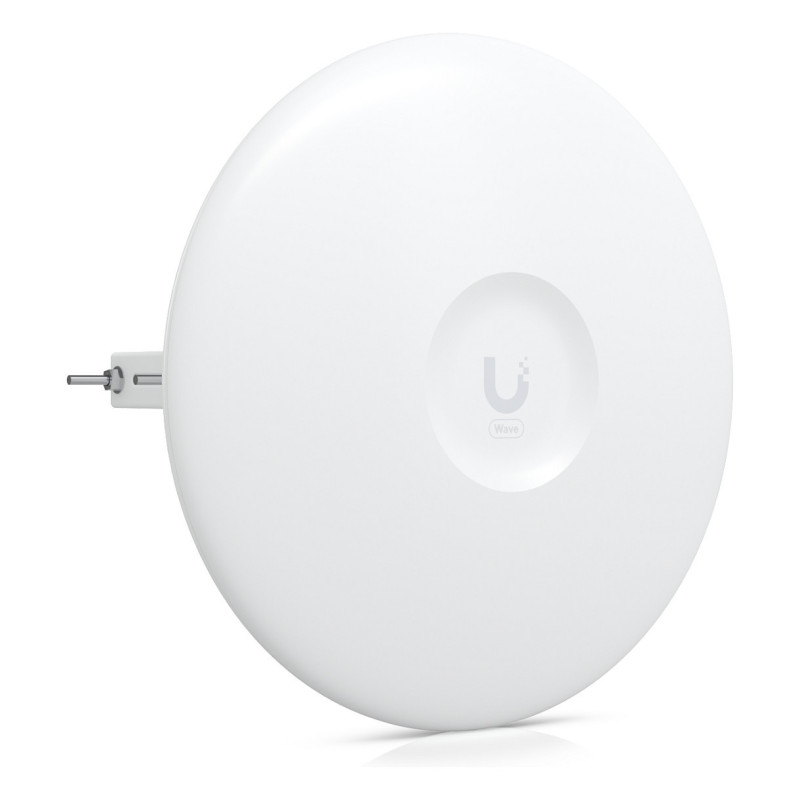

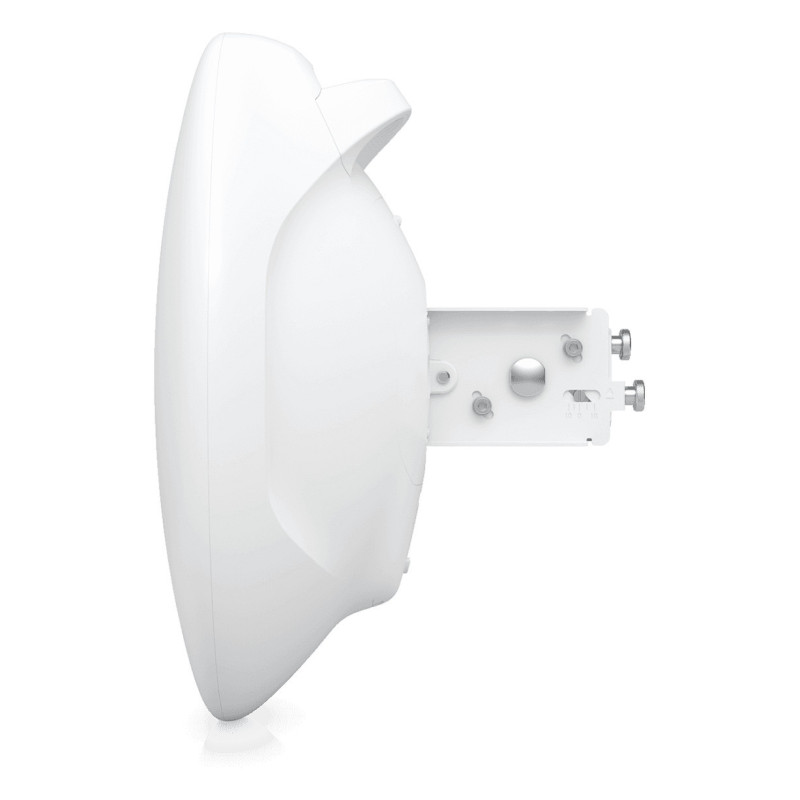

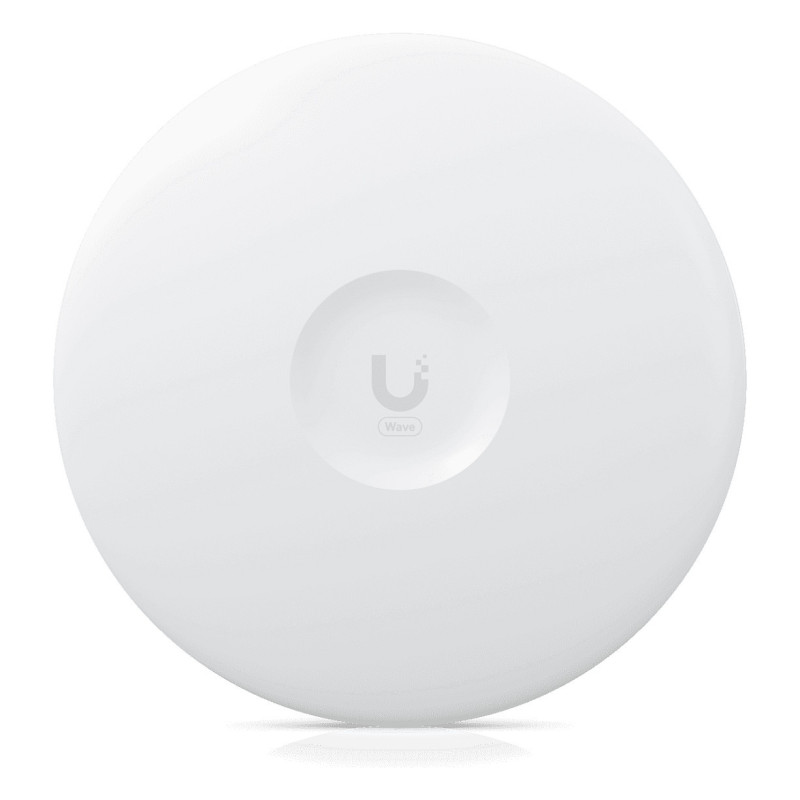

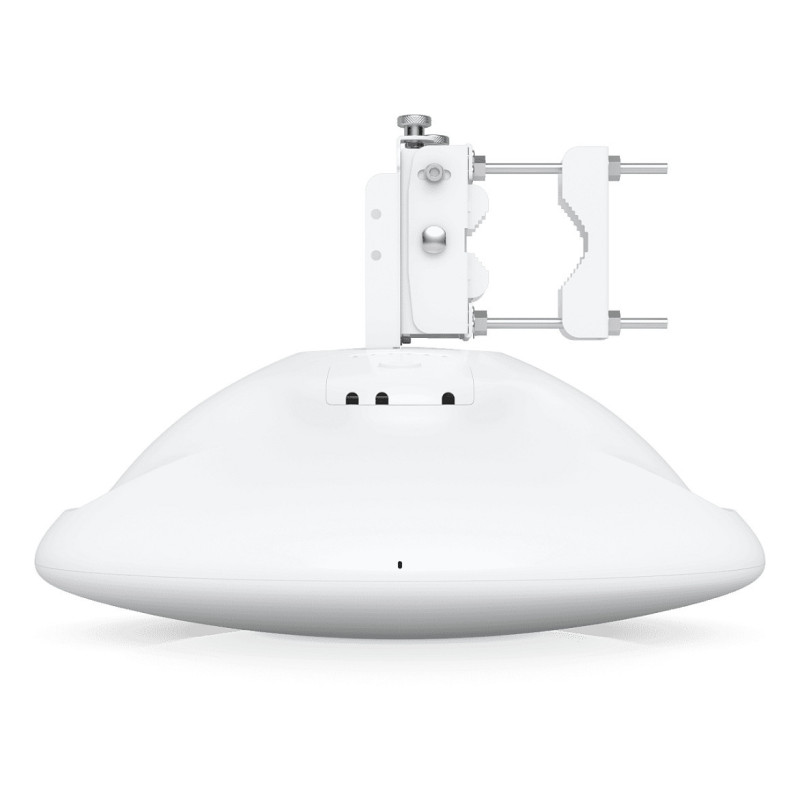

Ubiquiti Wave Professional

Ubiquiti Wave Professional. Maximum data transfer rate: 5400 Mbit/s, Maximum transfer distance: 15000 m. Antenna design: Internal, Antenna type: Internal, Antenna gain level (max): 46 dBi. Wi-Fi band: Single-band (5 GHz), Top Wi-Fi standard: Wi-Fi 6 (802.11ax), Frequency band: 57 - 71 GHz. Ethernet LAN data rates: 2500 Mbit/s, Networking standards: IEEE 802.11ax. Connectivity technology: Wired & Wireless

High-capacity 60 GHz radio that supports long-distance PtP (bridge) and PtMP links.

Data transmission

Maximum data transfer rate: 5400 Mbit/s
Maximum transfer distance: 15000 m

Antenna

Antenna design: Internal
Antenna type: Internal
Antenna gain level (max): 46 dBi

Wireless LAN features

Feature: Wi-Fi
Wi-Fi band: Single-band (5 GHz)
Top Wi-Fi standard: Wi-Fi 6 (802.11ax)
Frequency band: 57 - 71 GHz
Modulation: 16-QAM, 64-QAM, 256-QAM, 1024-QAM, BPSK, QPSK

Network

Feature: Ethernet LAN
Ethernet LAN data rates: 2500 Mbit/s
Networking standards: IEEE 802.11ax

Ports & interfaces

Connectivity technology: Wired & Wireless
Ethernet LAN (RJ-45) ports: 2
Feature: DC-in jack

Security

Security algorithms: WPA2-PSK

Features

Product type: Network bridge
Material: Aluminium, Plastic
Mounting type: Pole
Product colour: White
LED indicators: GPS, LAN, Link, Power
Feature: Power LED
Feature: Reset button
International Protection (IP) code: IPX6
Feature: Network Time Protocol (NTP) client
Processor family: ARM Cortex
Processor model: ARM Cortex-A53
Processor frequency: 1400 MHz
Processor manufacturer: ARM
Internal memory: 512 MB
RAM type: DDR3L

Power

Power source type: DC, PoE
DC input voltage: 44 - 54
Power consumption (max): 26 W
Feature: Power over Ethernet (PoE)
DC output voltage: 48 V

Operational conditions

Operating temperature (T-T): -40 - 60 °C
Operating temperature (T-T): -40 - 140 °F
Operating relative humidity (H-H): 5 - 95%

Certificates

Certification: FCC, IC, CE

Weight & dimensions

Width: 424.4 mm
Depth: 424.4 mm
Height: 166.2 mm
Weight: 2.8 kg

Packaging content

Feature: Mounting bracket(s) included
Feature: Quick installation guide

Packaging data

Quantity per pack: 1 pc(s)
