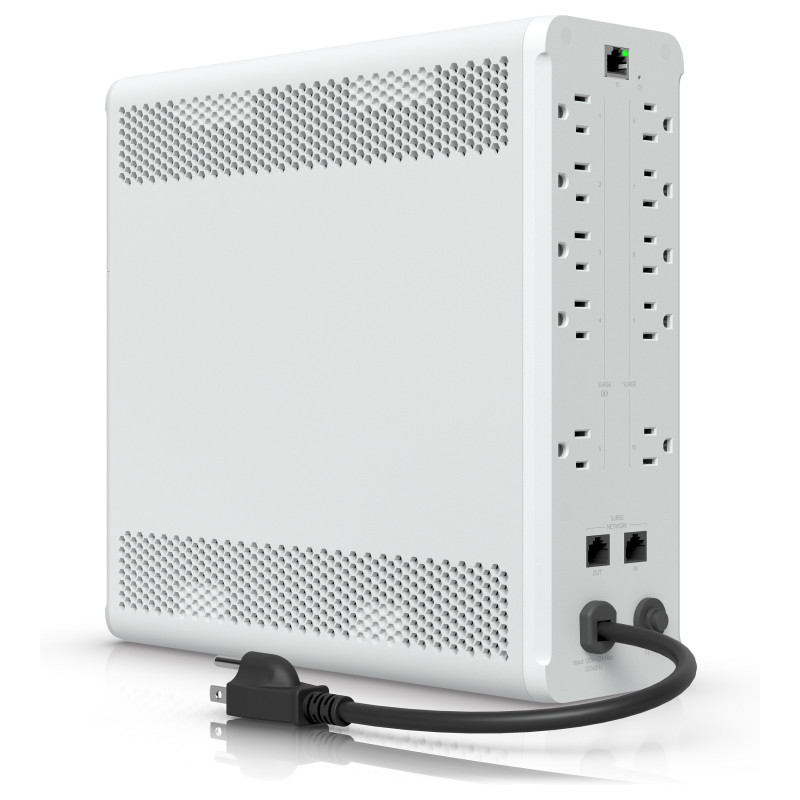

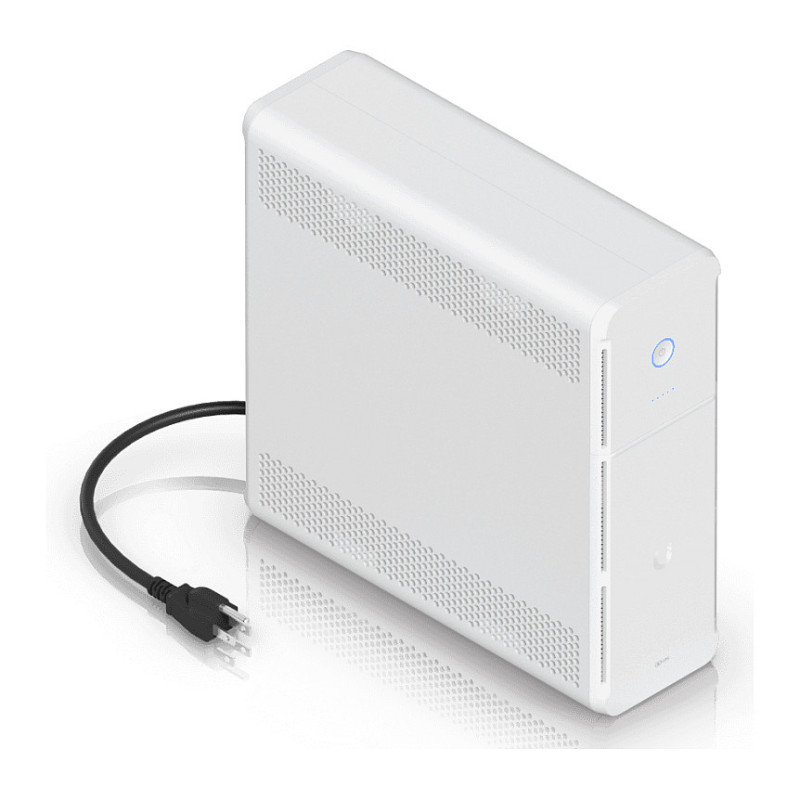

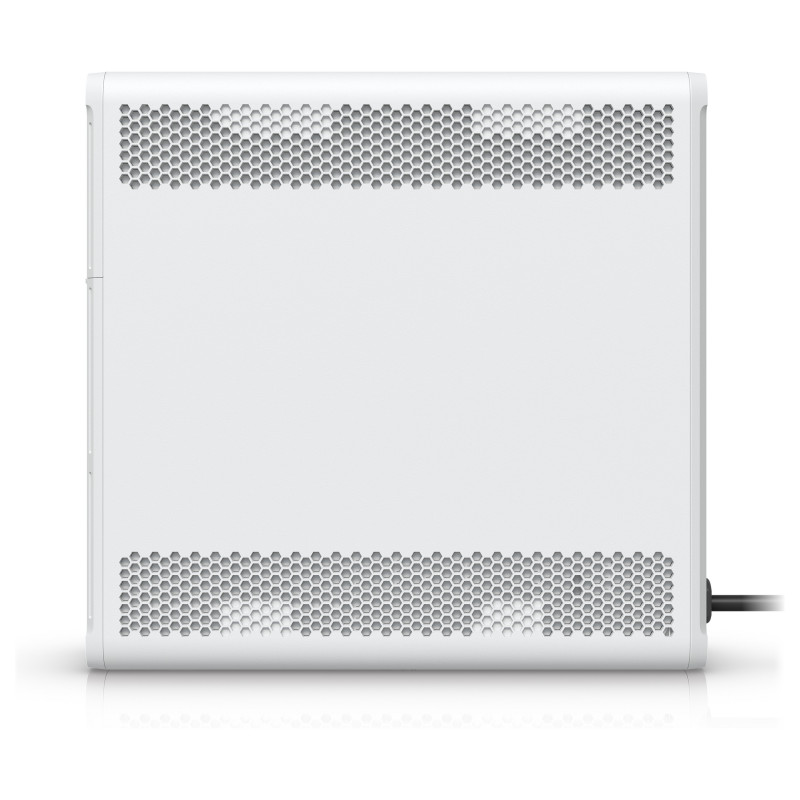

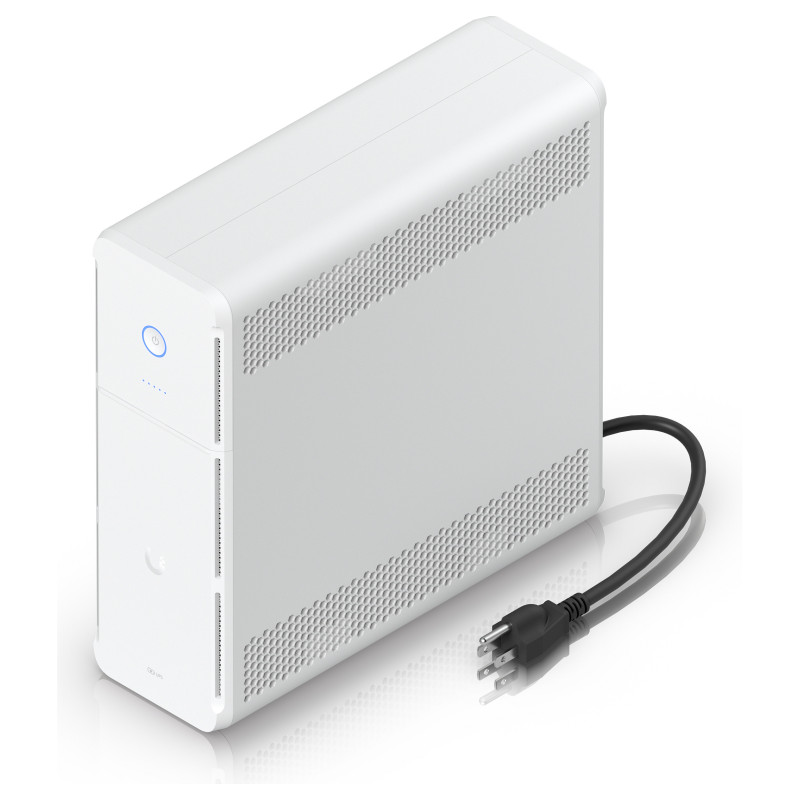

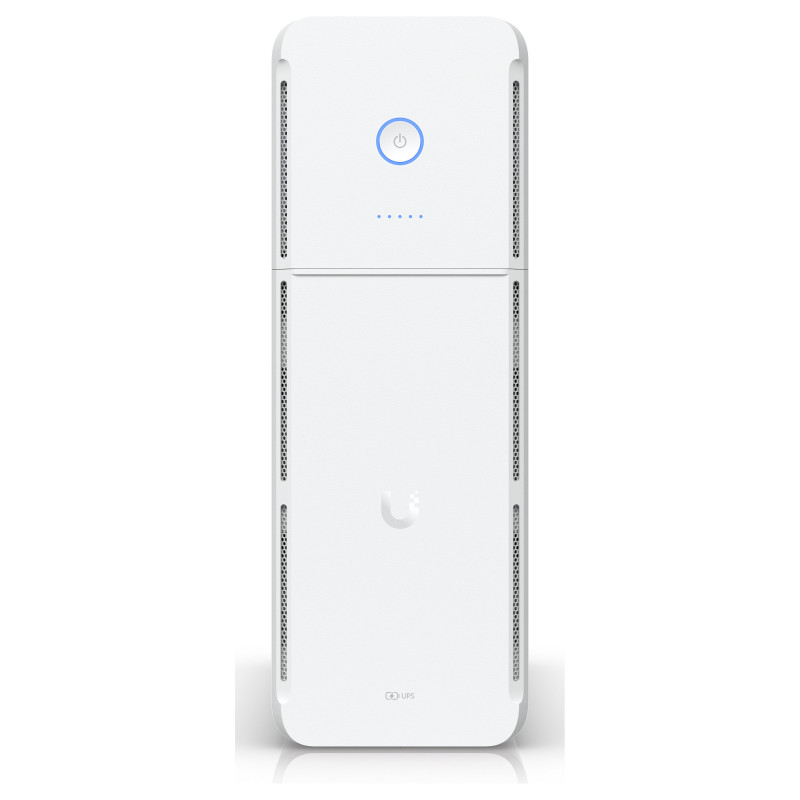

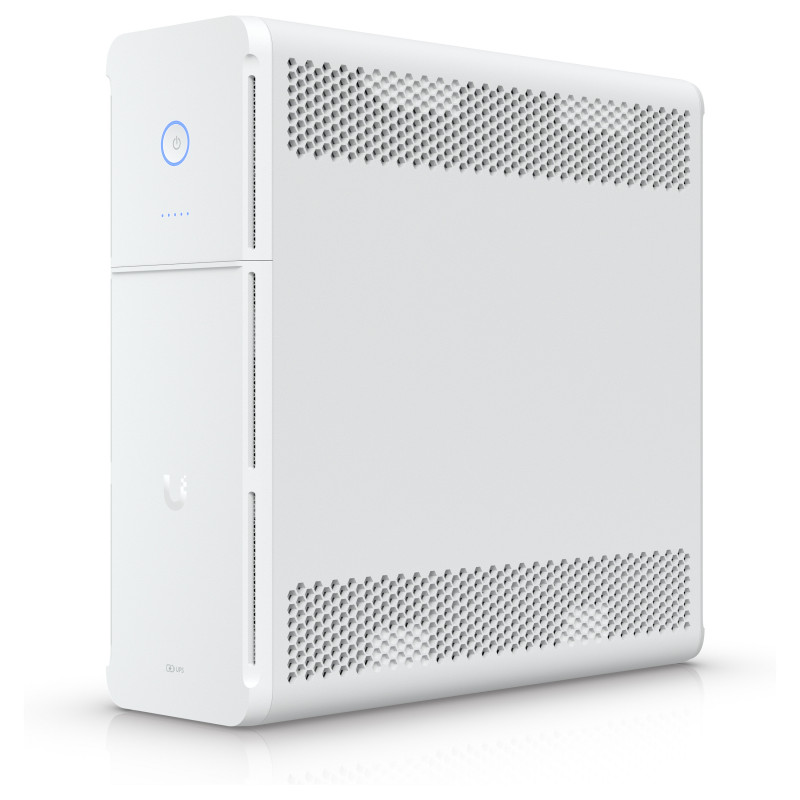

Ubiquiti UPS-Tower uninterruptible power supply (UPS)

Ubiquiti UPS-Tower. UPS topology: Line-Interactive, Output power capacity: 1 kVA, Output power: 600 W. AC outlet types: C13 coupler, C14 coupler, Power plug: NEMA 5-15P, AC outlets quantity: 10 AC outlet(s). Battery technology: Lead-Acid, Battery capacity: 9 Ah, Battery voltage: 12 V. Form factor: Desktop, Product colour: White, Housing material: Acrylonitrile butadiene styrene (ABS), Polycarbonate (PC). Compliance certificates: CE, Federal Communications Commission (FCC), Industry Canada (IC), National Defense Authorization...

UniFi managed 1kVA uninterruptible power supply with 5 backup outlets 5 surge outlets and hot swappable battery, 108Wh, half load (300W) runtime of 7 minutes. Supports Graceful Shutdown for UNVR and UNAS, and includes NUT compatibility for third-party devices.

Features

UPS topology: Line-Interactive
Output power capacity: 1 kVA
Output power: 600 W
Waveform: Sine
Input operation voltage (min): 89 V
Input operation voltage (max): 145 V
Input frequency: 50/60 Hz
Output frequency: 50/60 Hz
Output voltage regulation: 10%
Transfer time (Line Mode to Battery Mode): 10 ms
Overload capacity (5 minute): 110%
Feature: Surge protection
Power protection features: Over voltage, Overload, Short circuit

Ports & interfaces

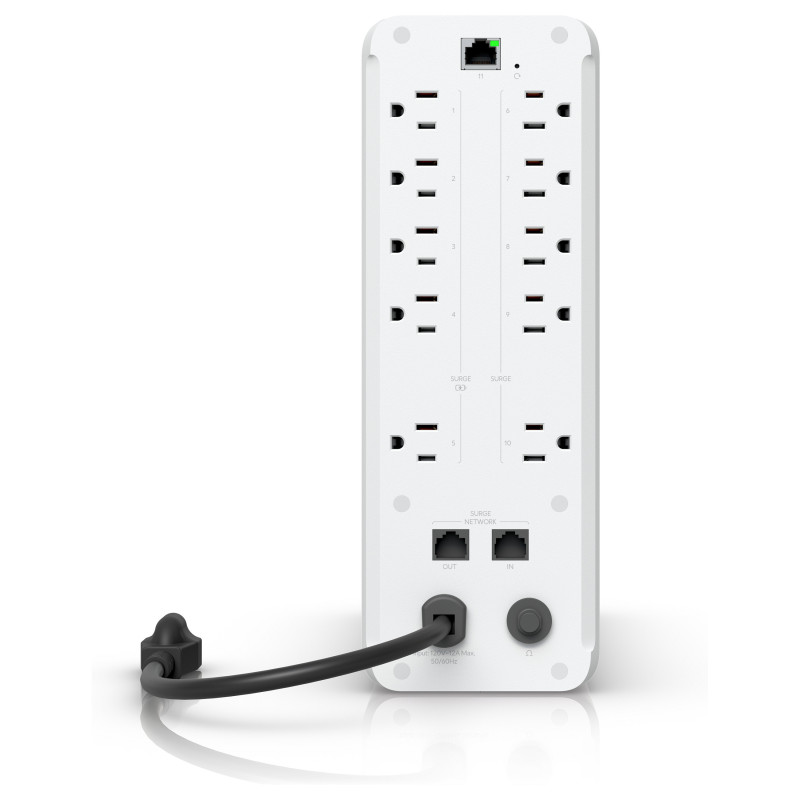

AC outlet types: C13 coupler, C14 coupler
Power plug: NEMA 5-15P
AC outlets quantity: 10 AC outlet(s)
Ethernet LAN (RJ-45) ports: 3

Battery

Battery technology: Lead-Acid
Battery capacity: 9 Ah
Battery voltage: 12 V
Number of batteries included: 1 pc(s)
Typical backup time at full load: 2 min
Typical backup time at half load: 7 min
Battery recharge time: 8 h
Feature: Hot-swap battery
Battery capacity: 108 Wh
Feature: Battery level indicator

Design

Form factor: Desktop
Housing material: Acrylonitrile butadiene styrene (ABS), Polycarbonate (PC)
Product colour: White
Control type: Buttons
LED indicators: Status
International Protection (IP) code: IP20

Operational conditions

Operating temperature (T-T): 0 - 40 °C
Storage temperature (T-T): -20 - 50 °C
Operating relative humidity (H-H): 0 - 95%
Operating altitude: 0 - 3000 m

Certificates

Compliance certificates: CE, Federal Communications Commission (FCC), Industry Canada (IC), National Defense Authorization Act (NDAA), UL

Packaging content

Cables included: Input power cable

Weight & dimensions

Width: 99 mm
Depth: 288 mm
Height: 280.5 mm
Weight: 8.17 kg

Other features

Nominal output voltage: 120 V
Nominal input voltage: 120 V
