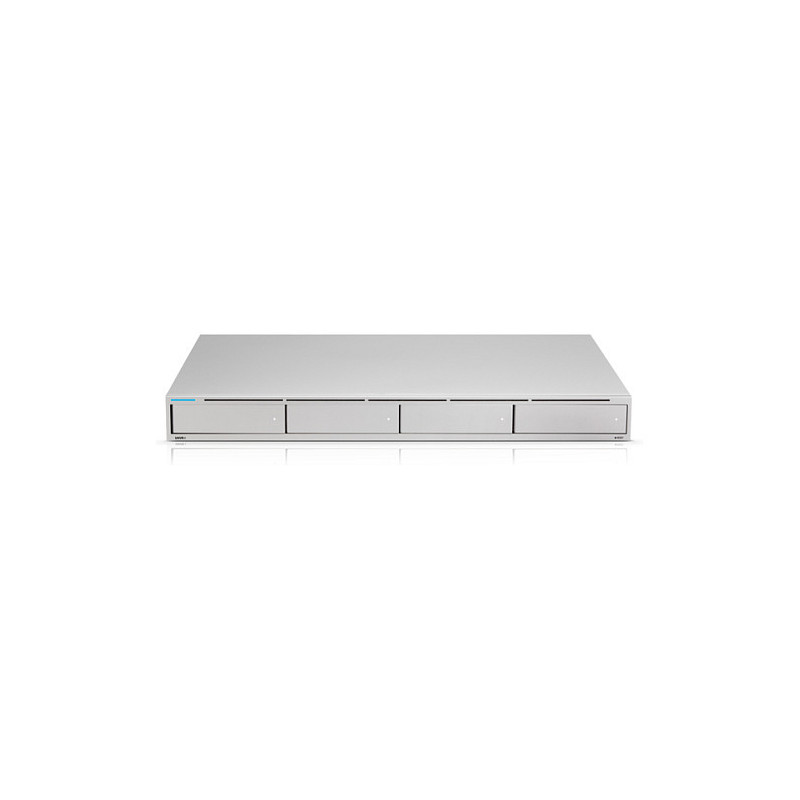

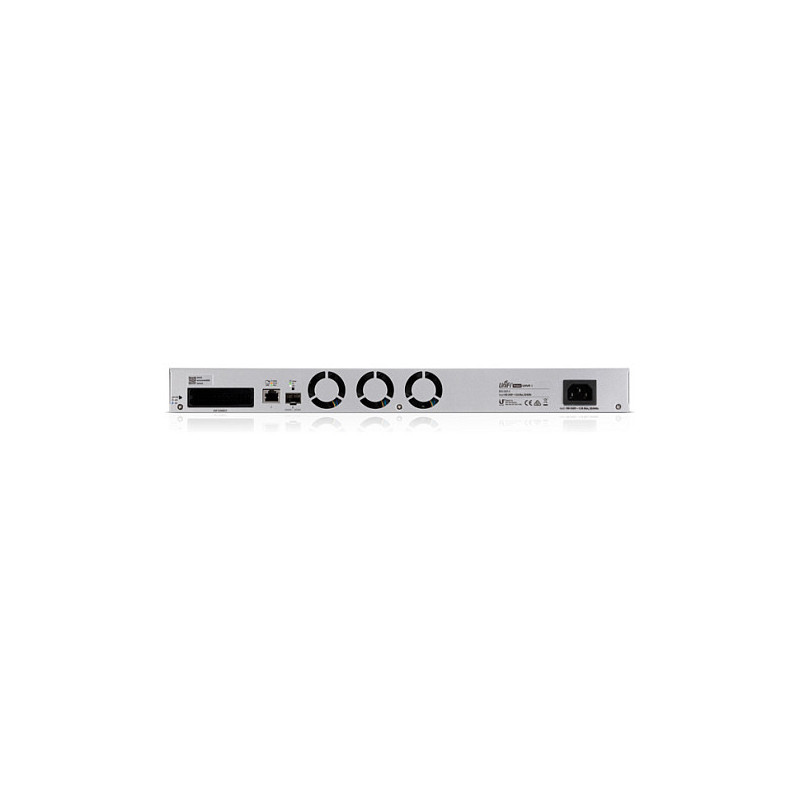

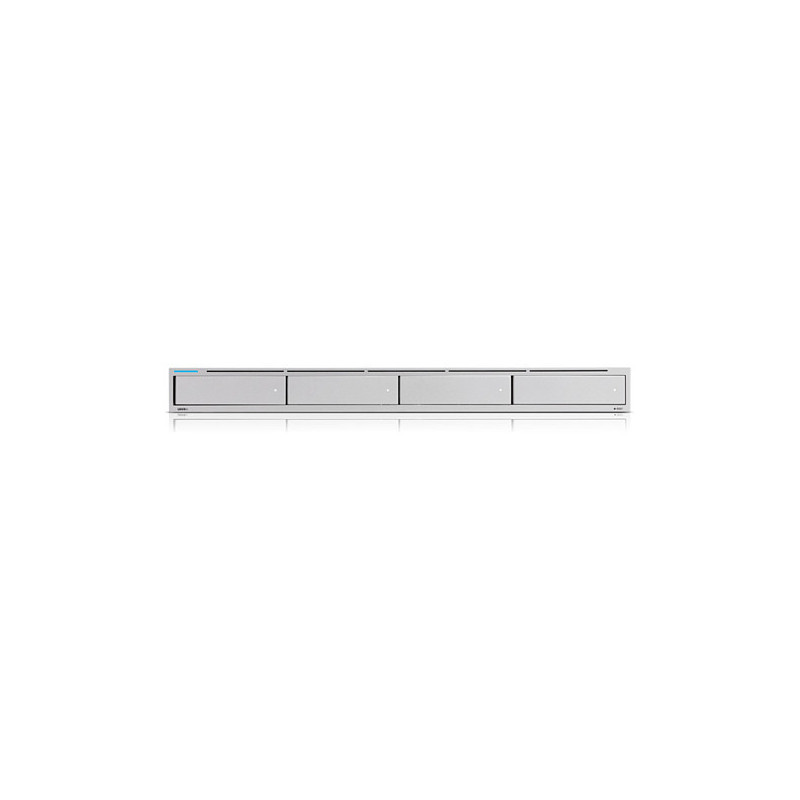

Ubiquiti UNVR network video recorder

Ubiquiti Protect Network Video Recorder. Video input channels: 4 channels. HDD capacity: 4 GB. Ethernet LAN data rates: 1000,10000,100000 Mbit/s. Product colour: Grey. Processor frequency: 1.7 GHz

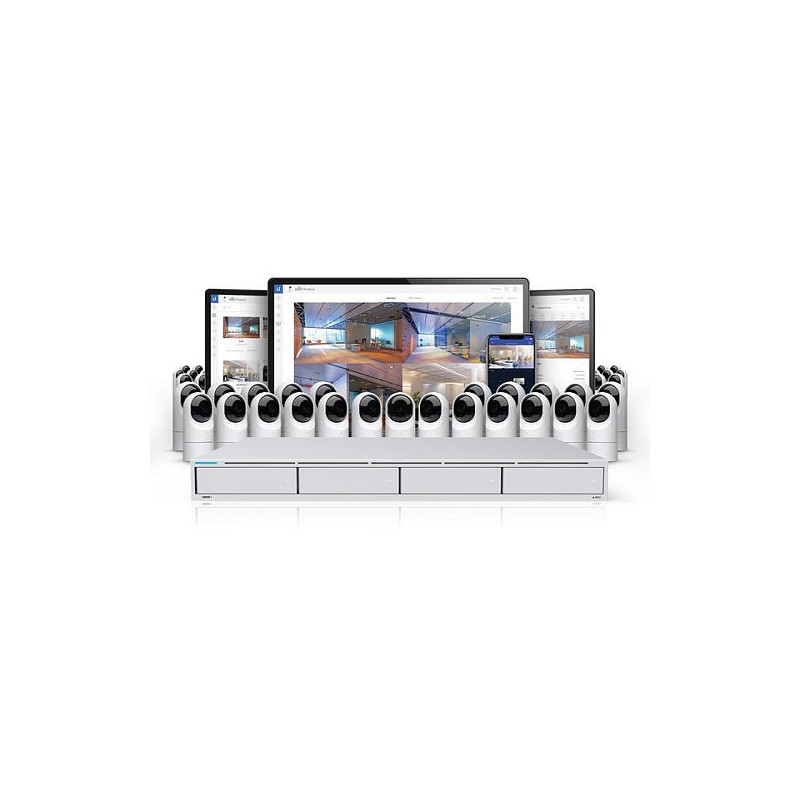

Enterprise network video recorder, can provide up to 30 days of 4K video storage for 15 cameras or Full HD video storage for 50 cameras
The UniFi® NVR is an enterprise network video recorder that integrates an NVR, the UniFi Protect software, and a 4-drive bay. UNVR unifies enterprise-class data protection and scalable storage with simple Plug and Play integration using the intuitive UniFi Protect software. From a desktop computer or mobile device, you can access your surveillance recordings from virtually anywhere using the intuitive graphical user interface. The mobile app is available for iOS and Android-based devices. The drive bays are easily accessed from the front panel, so hard drive mounting and maintenance are simple. Using four 8 TB drives in a RAID 5 configuration, the UNVR can provide up to 30 days of 4k video storage for 15 cameras or Full HD video storage for 50 cameras.

Performance

Video input channels: 4 channels

Hard drive

HDD capacity: 4 GB
RAID support: Yes
RAID levels: 5

Ports interfaces

Ethernet LAN (RJ-45) ports: 1
Ethernet LAN data rates: 1000,10000,100000 Mbit/s

Features

Rack mounting: Yes
LED indicators: Yes
On/off switch: Yes
Product colour: Grey

Processor

Built-in processor: Yes
Processor cores: 4
Processor frequency: 1.7 GHz

Power

Power consumption (max): 100 W
Power consumption (typical): 75 W
AC input voltage: 100 - 240 V
AC input frequency: 50 - 60 Hz
Output current: 2 A

Operational conditions

Operating temperature (T-T): -5 - 40 °C

Weight dimensions

Width: 442.4 mm
Depth: 325 mm
Height: 43.7 mm
Weight: 5.11 kg

Logistics data

Harmonized System (HS) code: 85219000
