Ubiquiti UNVR-Instant-Kit video surveillance kit

Ubiquiti UNVR-Instant-Kit. Connectivity technology: Wired, Surveillance camera form factor: Turret, Camera interface: RJ-45. Storage media type: HDD, Total storage capacity: 1 TB, HDD interface: SATA. Display diagonal: 2.9 cm (1.14"), Display type: LCM, Placement: Desk, Wall. Power source type: AC, AC input voltage: 100 - 240 V, AC input frequency: 50/60 Hz. Width: 220 mm, Depth: 220 mm, Height: 47 mm

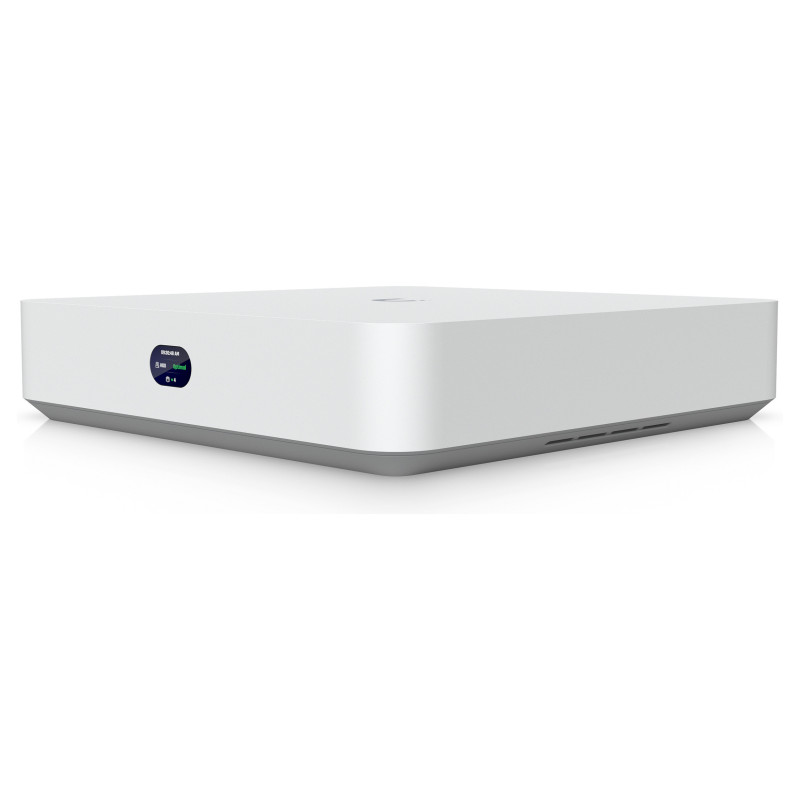

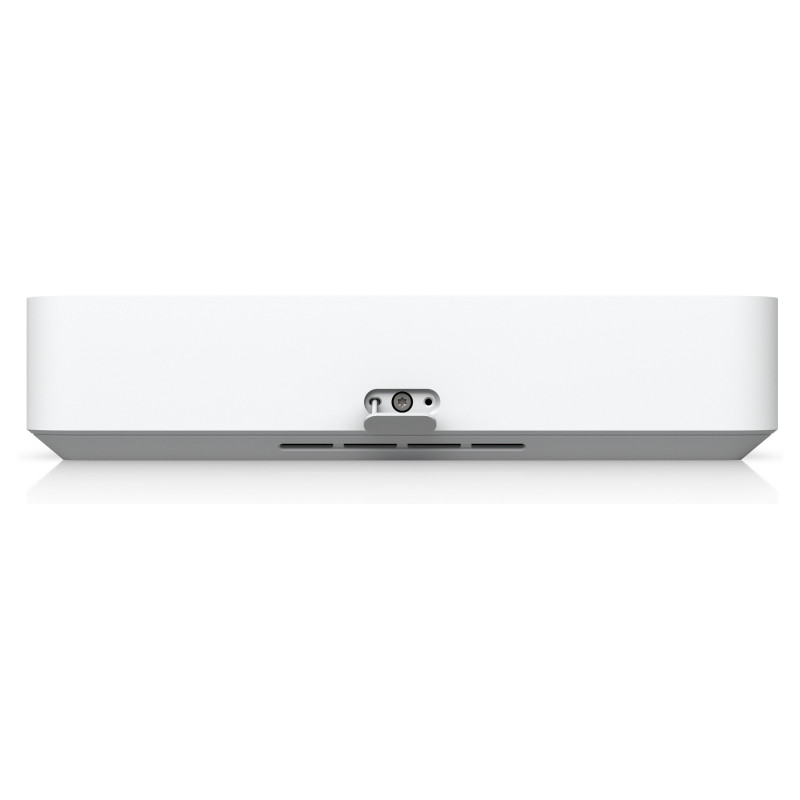

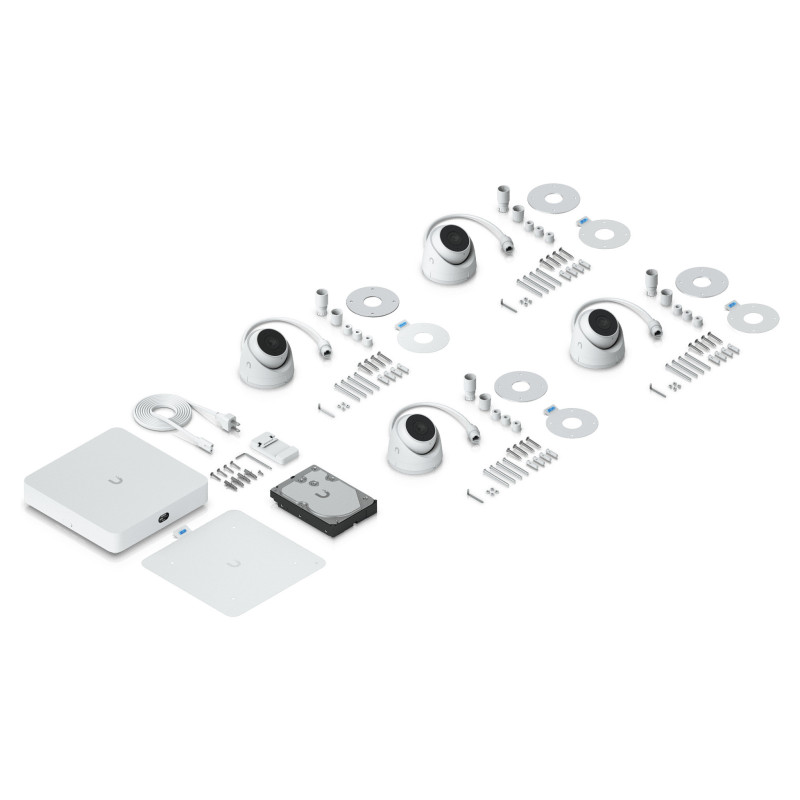

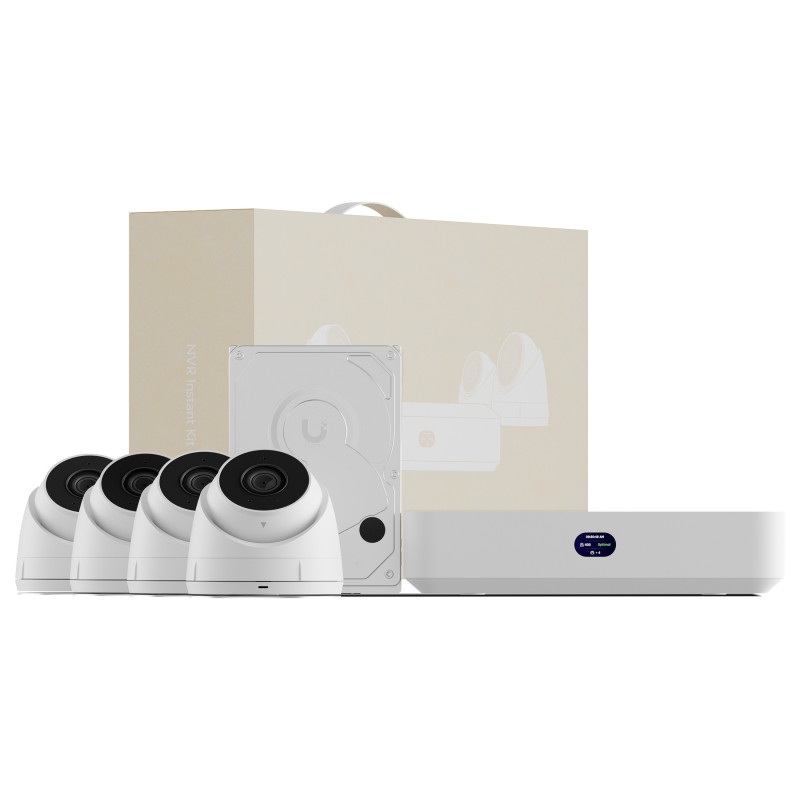

Compact UniFi Protect NVR Kit, includes (1) UniFi Protect NVR Instant with (4) G5 Turret Ultra cameras and (1) 1TB HDD, delivering an all-in-one solution for fast and effortless setup.

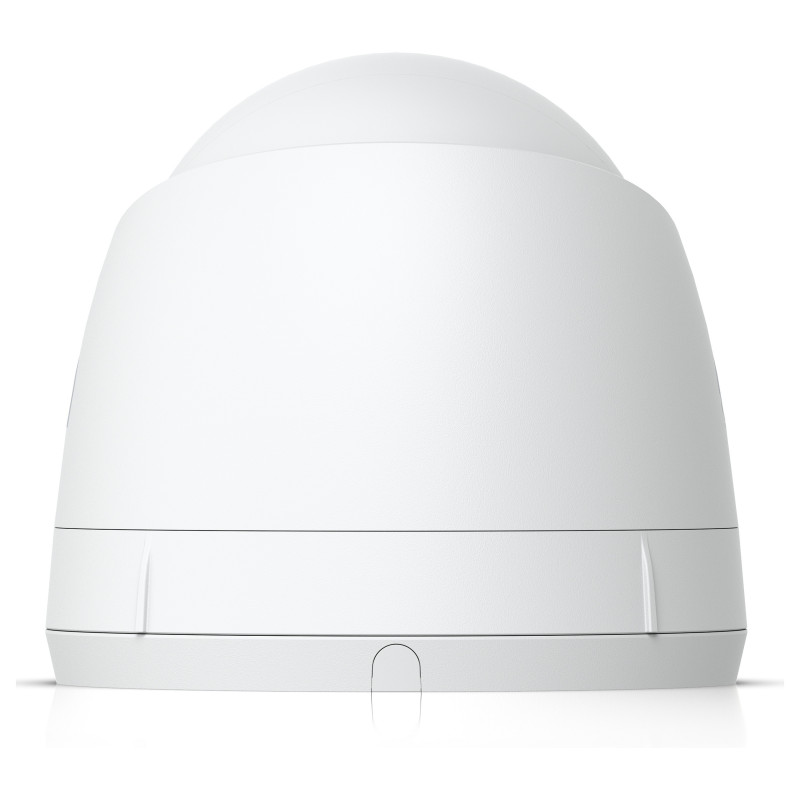

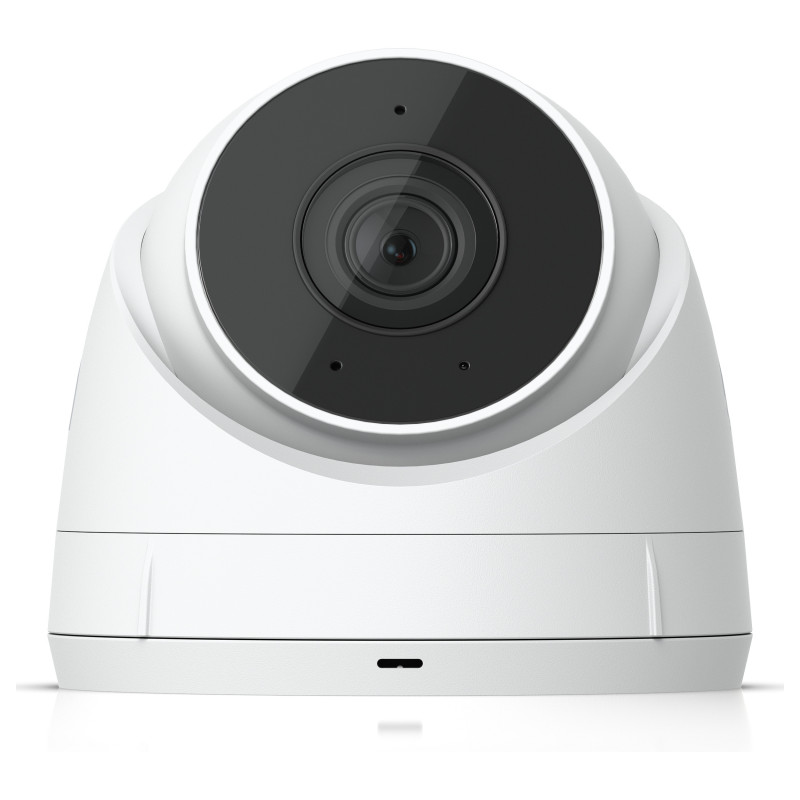

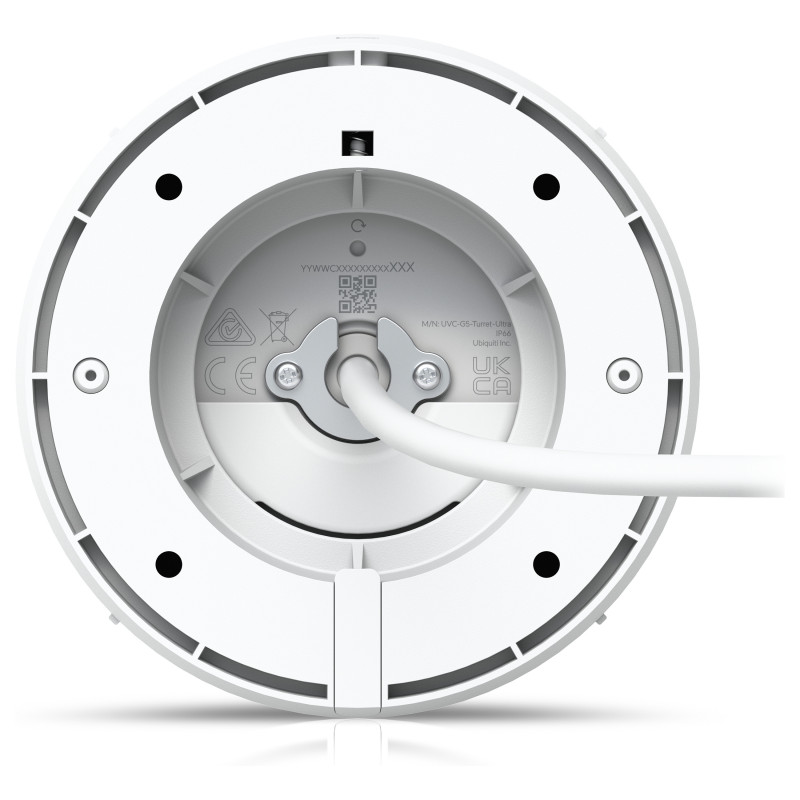

Camera

Connectivity technology: Wired
Feature: Camera included
Feature: Colour

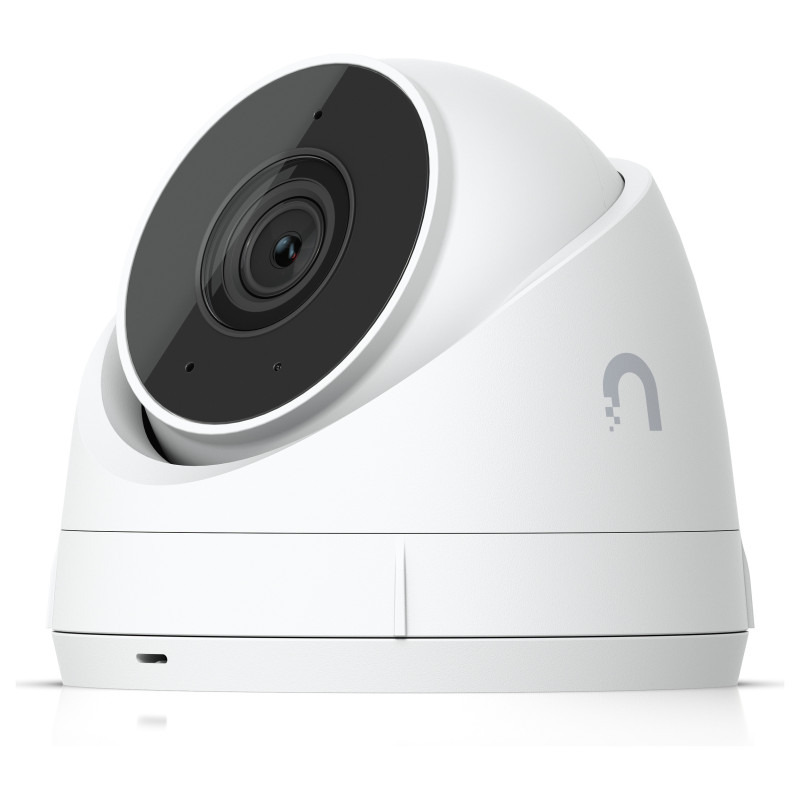

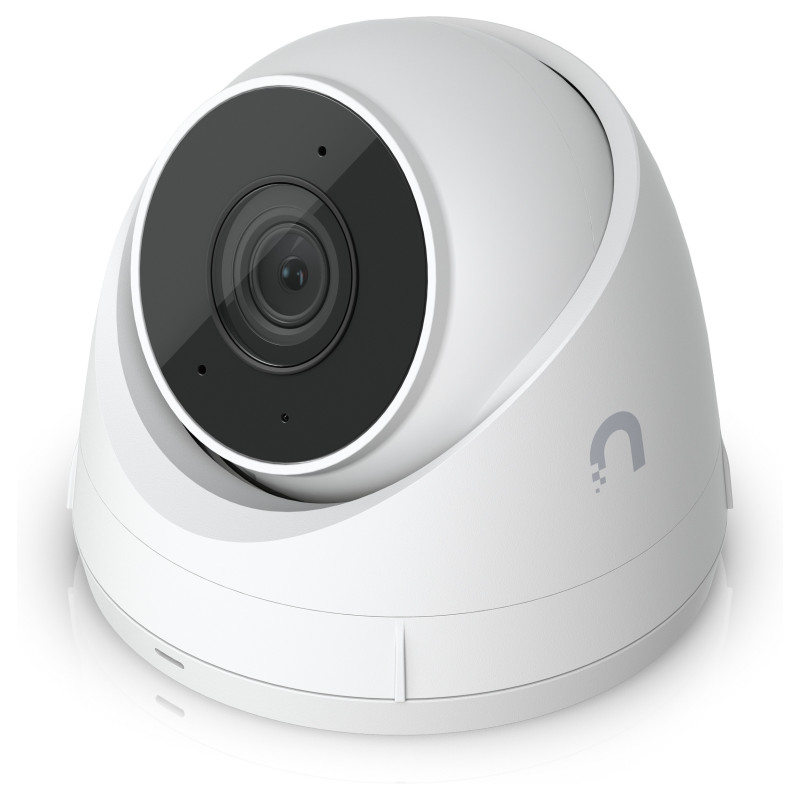

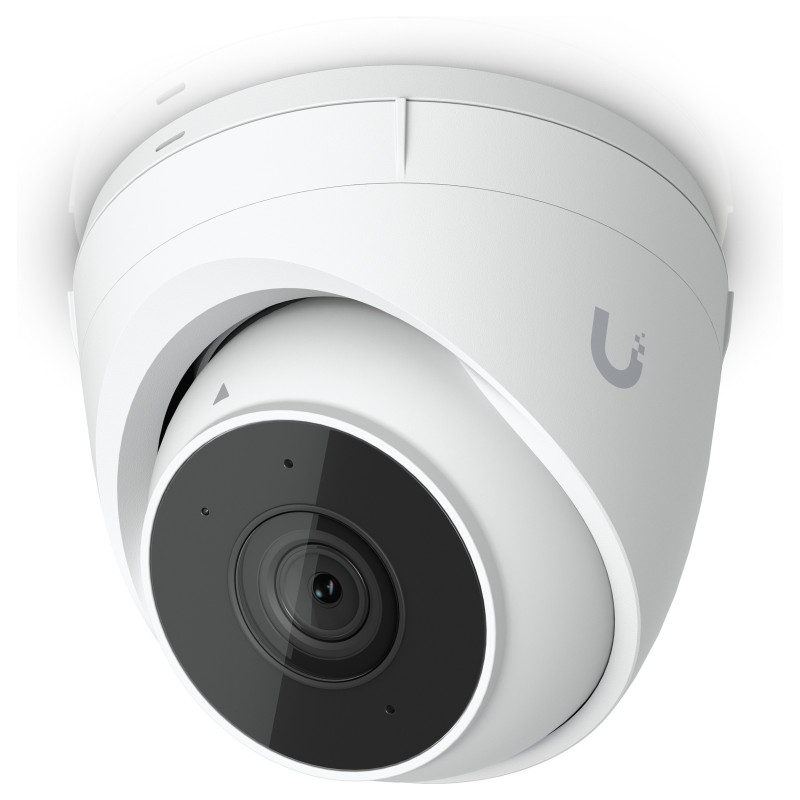

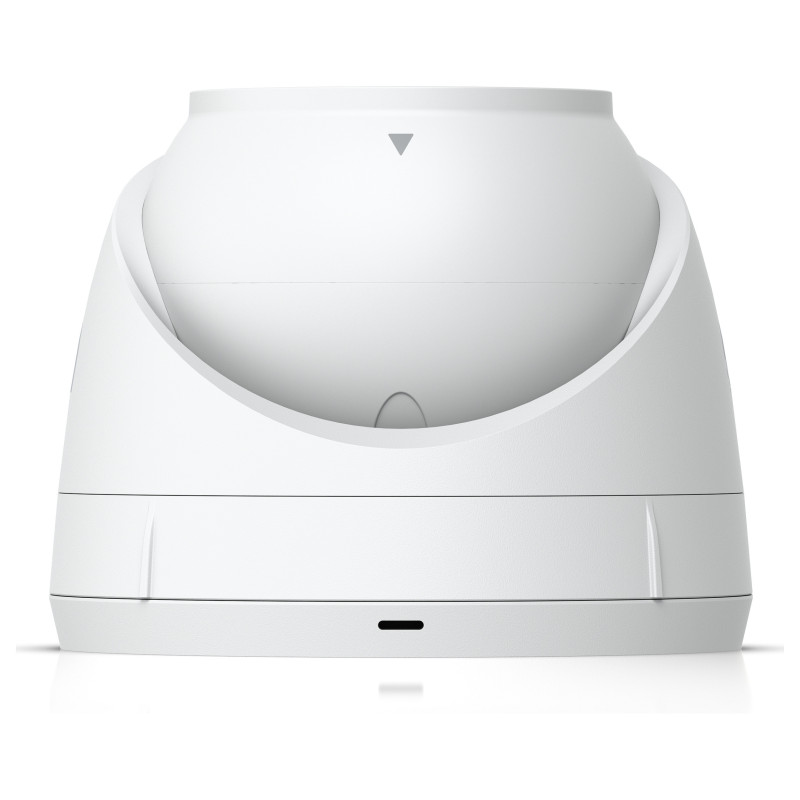

Surveillance camera form factor: Turret
Camera interface: RJ-45
Feature: Day/night mode
Feature: Infrared (IR) cut-off filter
Feature: Night mode
Placement supported: Indoor/outdoor
Viewing angle, horizontal: 102.4°
Viewing angle, vertical: 54.9°
Viewing angle, diagonal: 120.6°
Number of cameras: 4
Housing material: Polycarbonate (PC)
Night vision distance: 30 m
Sensor type: CMOS
Optical sensor size: 25.4 / 2.4 mm (1 / 2.4")
LED type: IR
Camera resolution: 2688 x 1512 pixels
Megapixel (approx.): 4 MP
International Protection (IP) code: IP66
Feature: Weatherproof

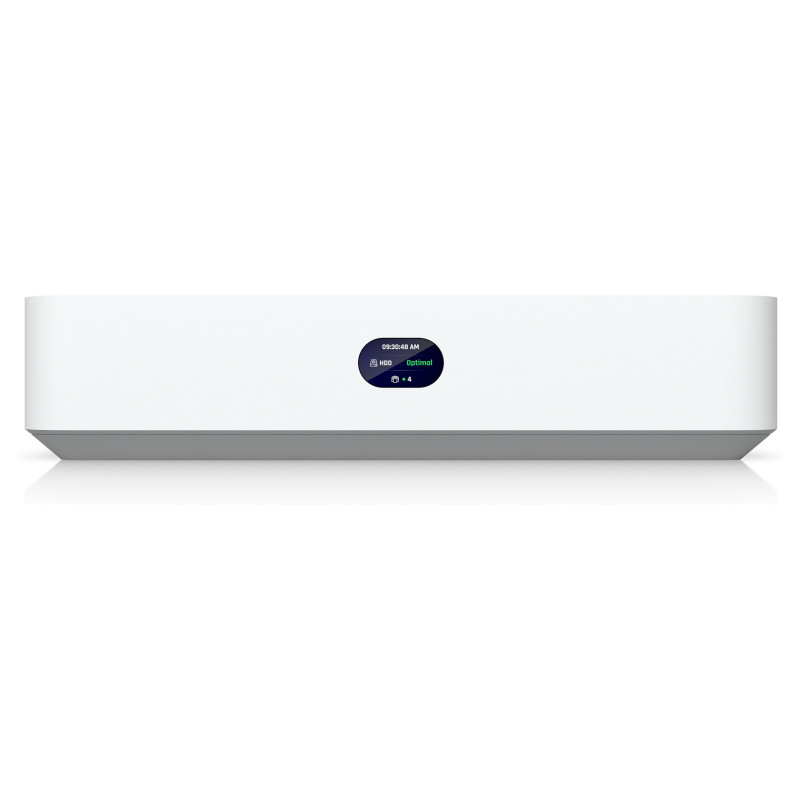

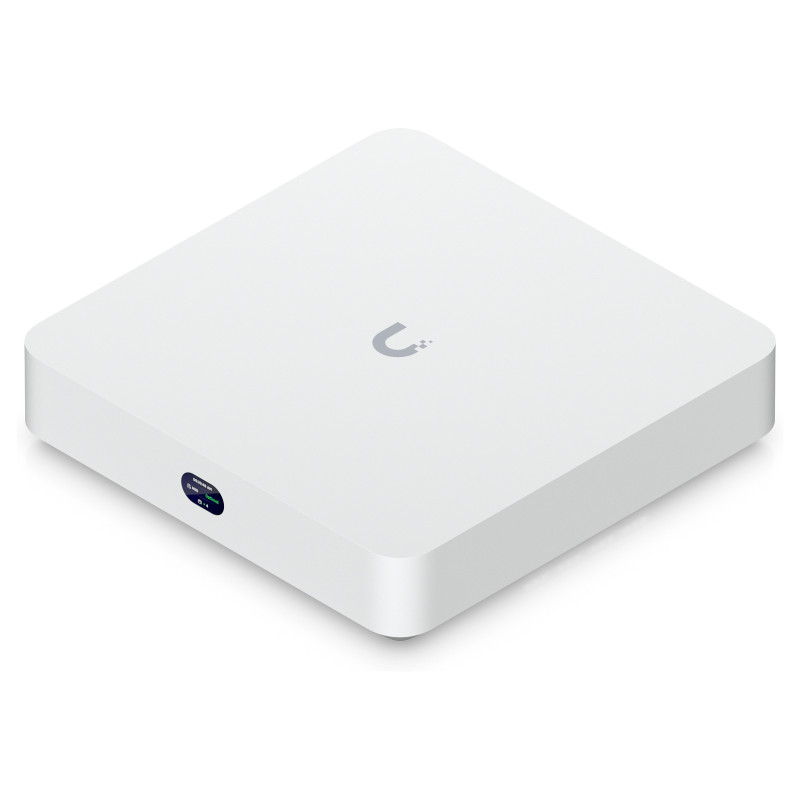

Recorder

Feature: Recorder included

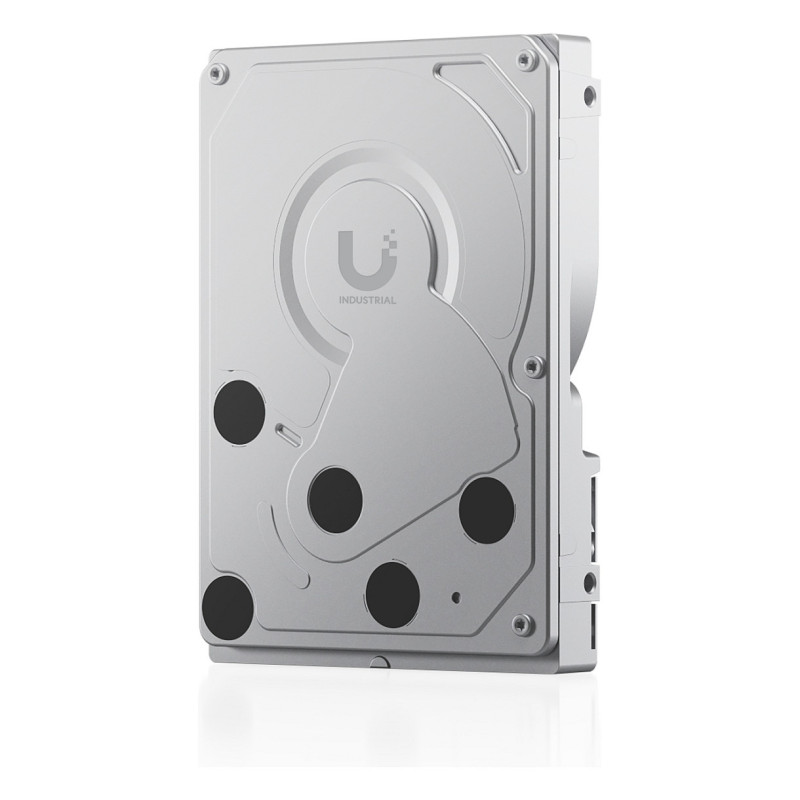

Storage media type: HDD
Total storage capacity: 1 TB

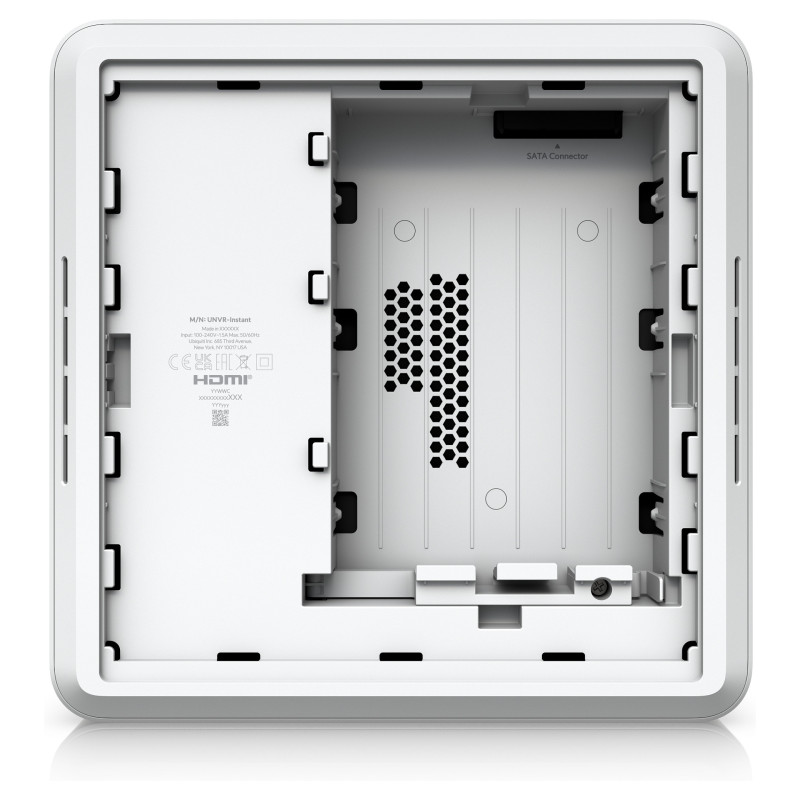

HDD interface: SATA

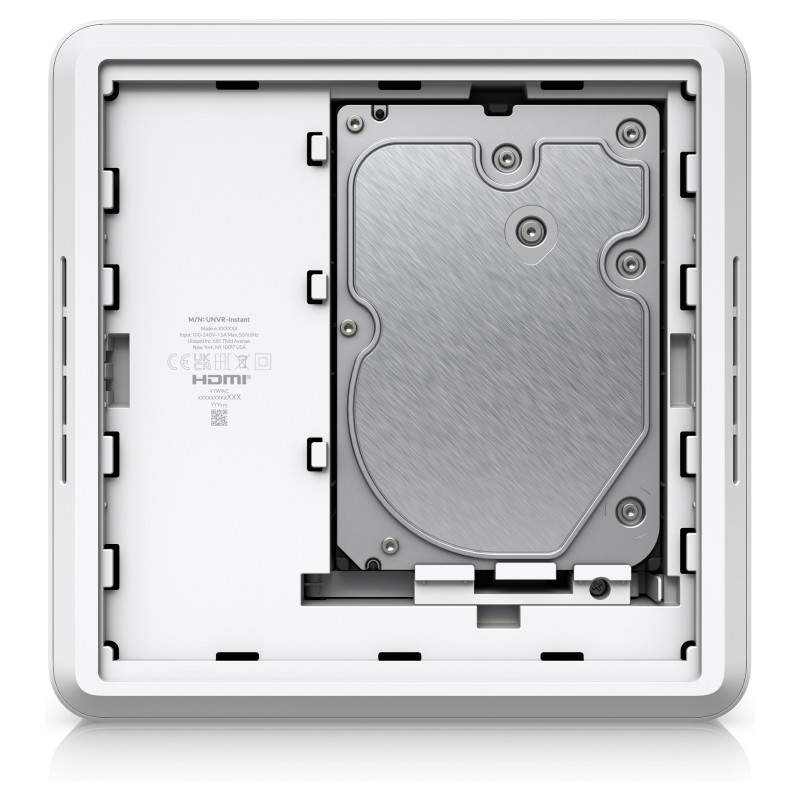

HDD size: 3.5"
Number of HDDs installed: 1
HDD capacity: 1 TB

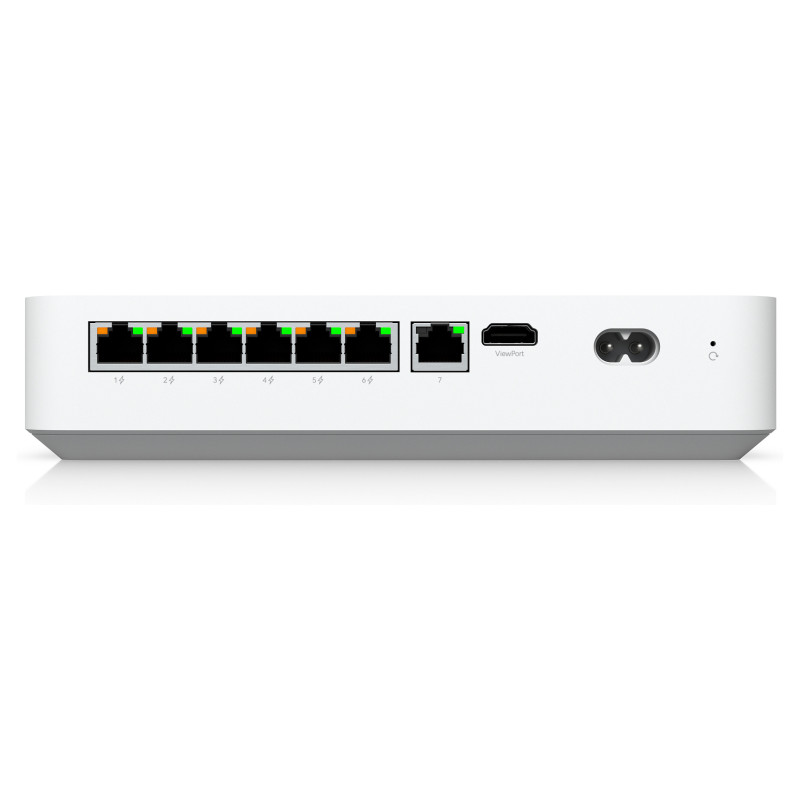

LED indicators: LAN, PoE
HDMI ports quantity: 1
Ethernet LAN (RJ-45) ports: 7
Power over Ethernet (PoE) ports quantity: 6
Power over Ethernet (PoE) power per port: 15.4 W
Total Power over Ethernet (PoE) budget: 40 W

Display

Display diagonal: 2.9 cm (1.14")
Display type: LCM
Placement: Desk, Wall

Network

Feature: Ethernet LAN

Power

Power source type: AC
AC input voltage: 100 - 240 V
AC input frequency: 50/60 Hz
Power consumption (max): 9 W
Feature: Power over Ethernet (PoE)

Audio

Feature: Built-in microphone

Operational conditions

Camera operating temperature (T-T): -30 - 50 °C
Camera operating relative humidity (H-H): 0 - 90%
Recorder operating temperature (T-T): 0 - 40 °C
Recorder operating relative humidity (H-H): 5 - 95%

Technical details

Product colour: White
Feature: Reset button
Compliance certificates: BSMI, CE, Federal Communications Commission (FCC), Industry Canada (IC), KC, National Defense Authorization Act (NDAA), RCM, TÜV mark, UL

Weight & dimensions

Width: 220 mm
Depth: 220 mm
Height: 47 mm

Logistics data

Harmonized System (HS) code: 85219000

Packaging content

Cables included: Power
