Ubiquiti UniFi WAN Switch

Ubiquiti UniFi WAN Switch. Basic switching RJ-45 Ethernet ports type: Gigabit Ethernet (10/100/1000), Basic switching RJ-45 Ethernet ports quantity: 1. Switching capacity: 20 Gbit/s. Power connector: AC/DC. Rack mounting, Form factor: 1U

10G SFP+ WAN Switch linking two Shadow Mode High Availability UniFi Gateways to a single ISP.

Ports & interfaces

Basic switching RJ-45 Ethernet ports quantity: 1
Basic switching RJ-45 Ethernet ports type: Gigabit Ethernet (10/100/1000)
SFP+ module slots quantity: 3
Power cables quantity: 2
Power connector: AC/DC

Data transmission

Switching capacity: 20 Gbit/s
Throughput: 10 Gbit/s
Forwarding rate: 15 Mpps

Design

Feature: Rack mounting
Form factor: 1U
Product colour: Grey
Housing material: SGCC
Feature: Reset button
LED indicators: Network, System

Power

Power source: AC/DC
Feature: Power supply included
AC input voltage: 100 - 240 V
AC input frequency: 50/60 Hz
Power consumption (max): 13 W

Operational conditions

Operating temperature (T-T): -5 - 40 °C
Operating relative humidity (H-H): 10 - 90%

Weight & dimensions

Width: 442.4 mm
Depth: 120 mm
Height: 43.7 mm
Weight: 2.2 kg

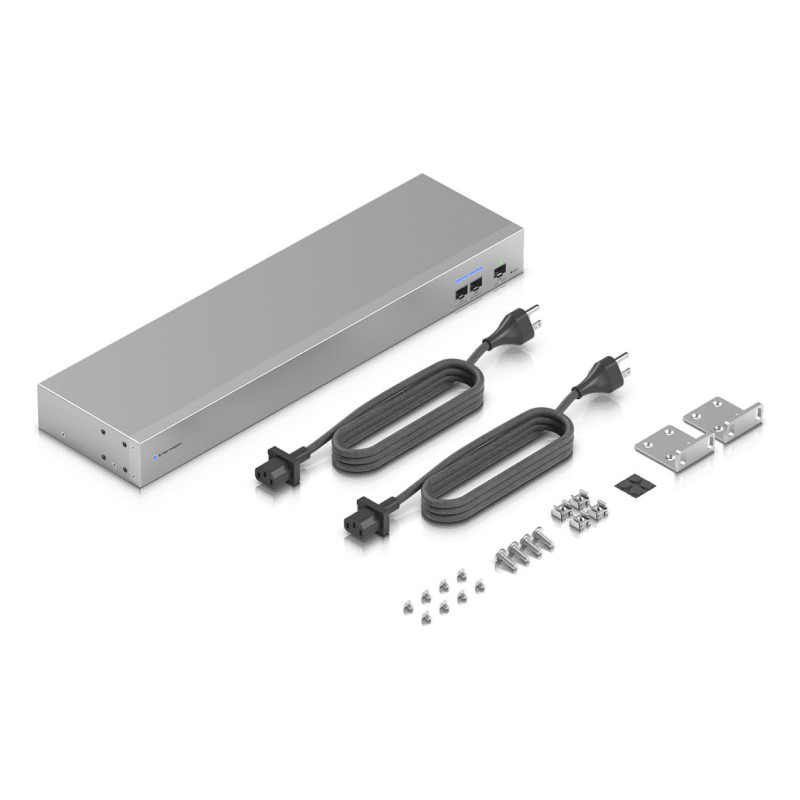

Packaging content

Cables included: Power
Feature: Rack mount kit

Certificates

Compliance certificates: CE, Federal Communications Commission (FCC), Industry Canada (IC), National Defense Authorization Act (NDAA)
