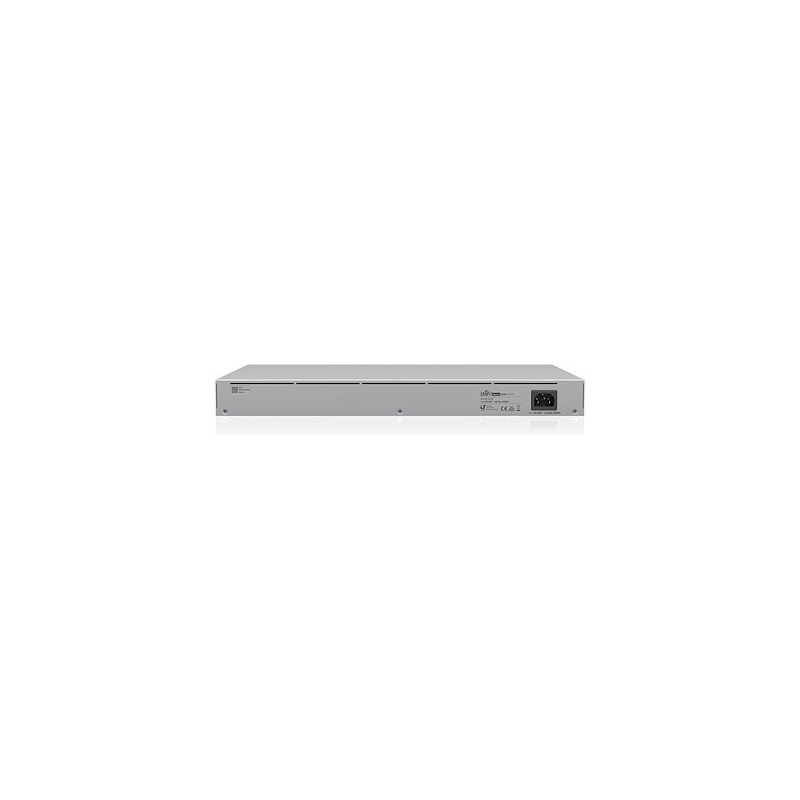

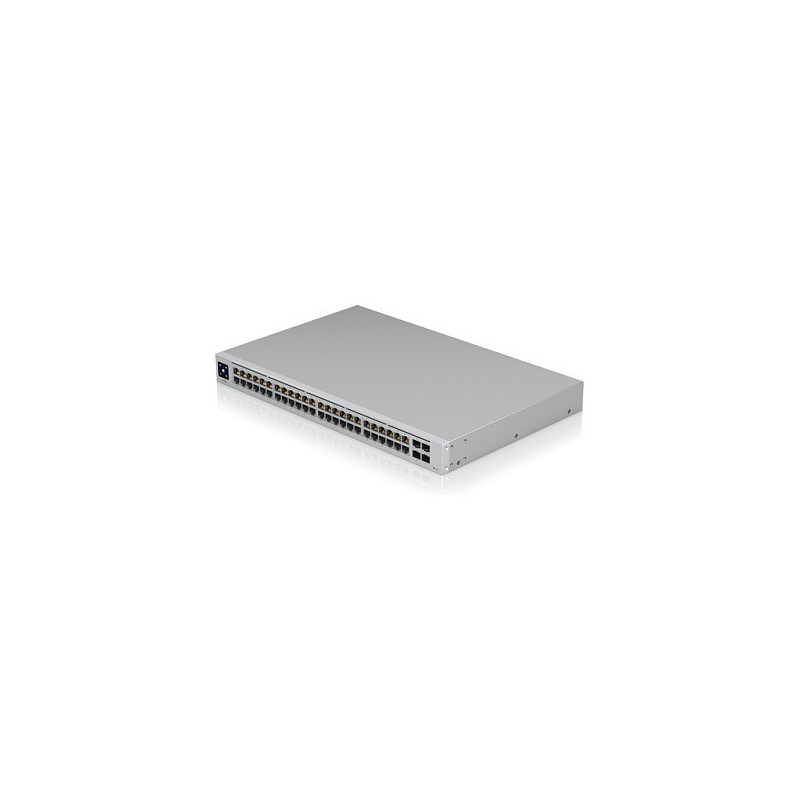

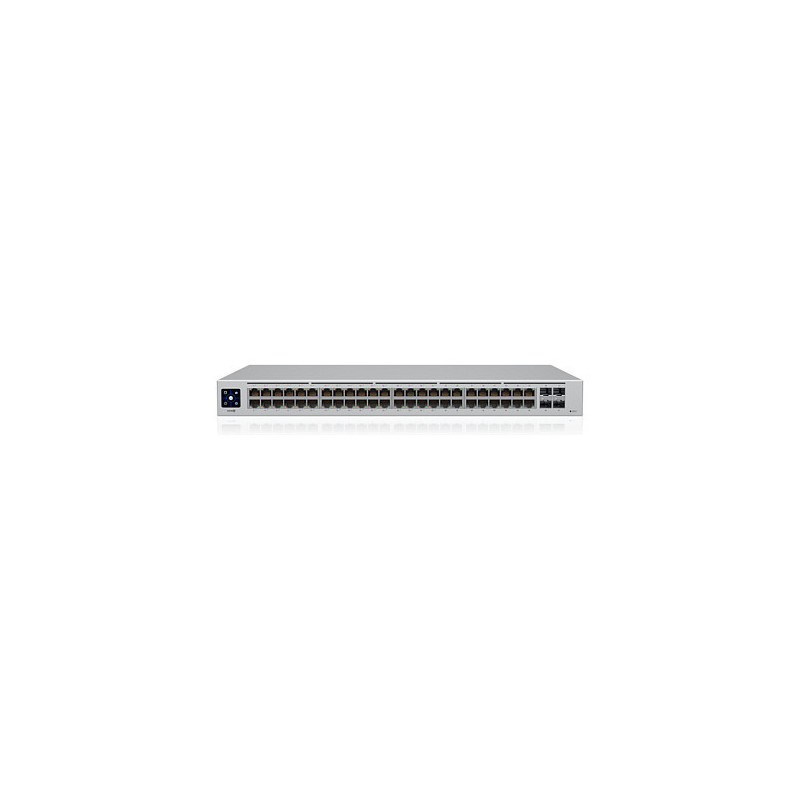

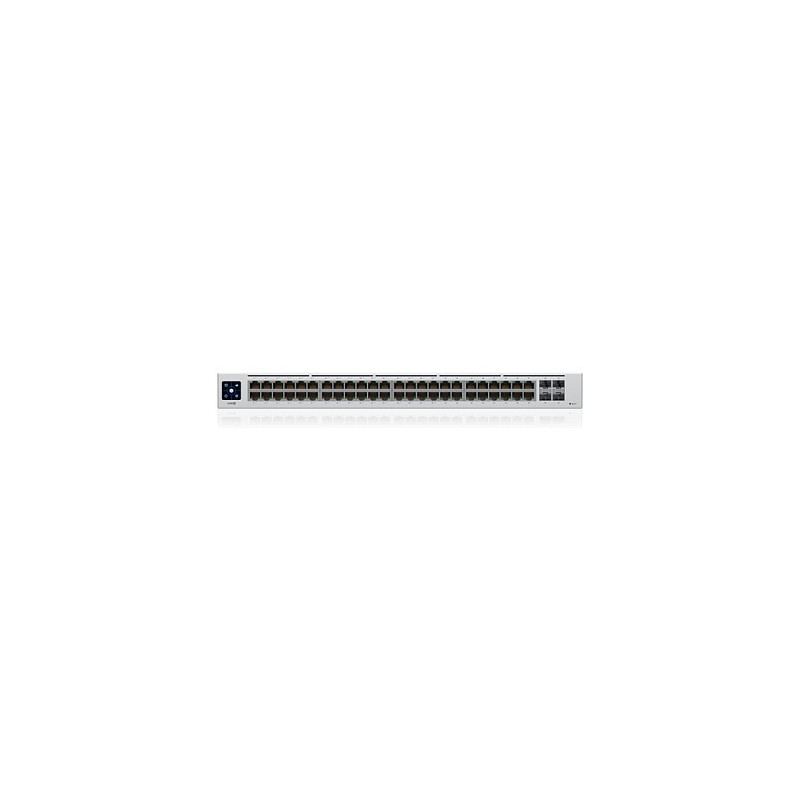

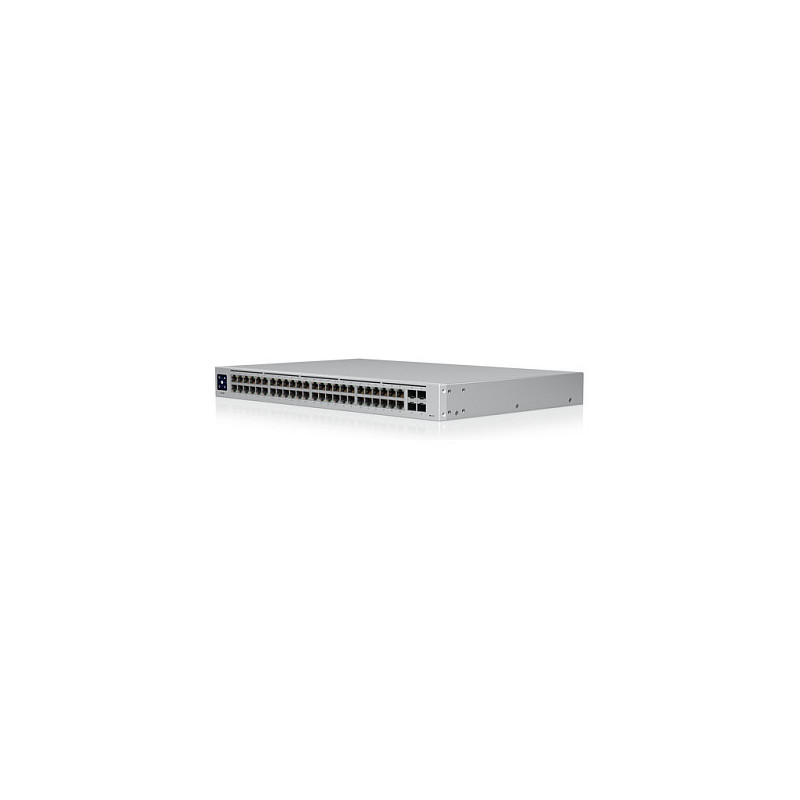

Ubiquiti UniFi USW-48-POE network switch

Ubiquiti UniFi USW-48-POE. Switch type: Managed, Switch layer: L2. Basic switching RJ-45 Ethernet ports type: Gigabit Ethernet (10/100/1000), Basic switching RJ-45 Ethernet ports quantity: 48. Switching capacity: 104 Gbit/s. Networking standards: IEEE 802.1x, IEEE 802.3af, IEEE 802.3at. Power over Ethernet (PoE). Rack mounting, Form factor: 1U

A 48-port, Layer 2 PoE switch with a silent, fanless cooling system.

Management features

Switch type: Managed
Switch layer: L2

Ports & interfaces

Basic switching RJ-45 Ethernet ports quantity: 48
Basic switching RJ-45 Ethernet ports type: Gigabit Ethernet (10/100/1000)
SFP module slots quantity: 4

Network

Networking standards: IEEE 802.1x, IEEE 802.3af, IEEE 802.3at
Feature: Port mirroring
Feature: Flow control support
Feature: Link aggregation
Feature: Auto MDI/MDI-X
Feature: Spanning tree protocol
Feature: Auto-sensing
Feature: VLAN support

Data transmission

Switching capacity: 104 Gbit/s
Throughput: 52 Gbit/s
Forwarding rate: 77.38 Mpps
Feature: Jumbo frames support

Security

Authentication type: RADIUS

Design

Feature: Rack mounting
Form factor: 1U
Product colour: Stainless steel
LED indicators: Activity, Link, Speed

Performance

Feature: Fanless

Power

Power source: AC/DC
Feature: Power supply included
AC input voltage: 100 - 240 V
AC input frequency: 50 - 60 Hz
Power consumption (max): 45 W

Power over Ethernet (PoE)

Feature: Power over Ethernet (PoE)
Power over Ethernet plus (PoE+) ports quantity: 32
Power over Ethernet (PoE) power per port: 32 W
Total Power over Ethernet (PoE) budget: 195 W

Operational conditions

Operating temperature (T-T): -5 - 40 °C
Operating relative humidity (H-H): 10 - 90%

Weight & dimensions

Width: 442.4 mm
Depth: 285 mm
Height: 43.7 mm
Weight: 4.52 kg

Packaging content

Feature: Manual

Certificates

Certification: CE, FCC, IC
