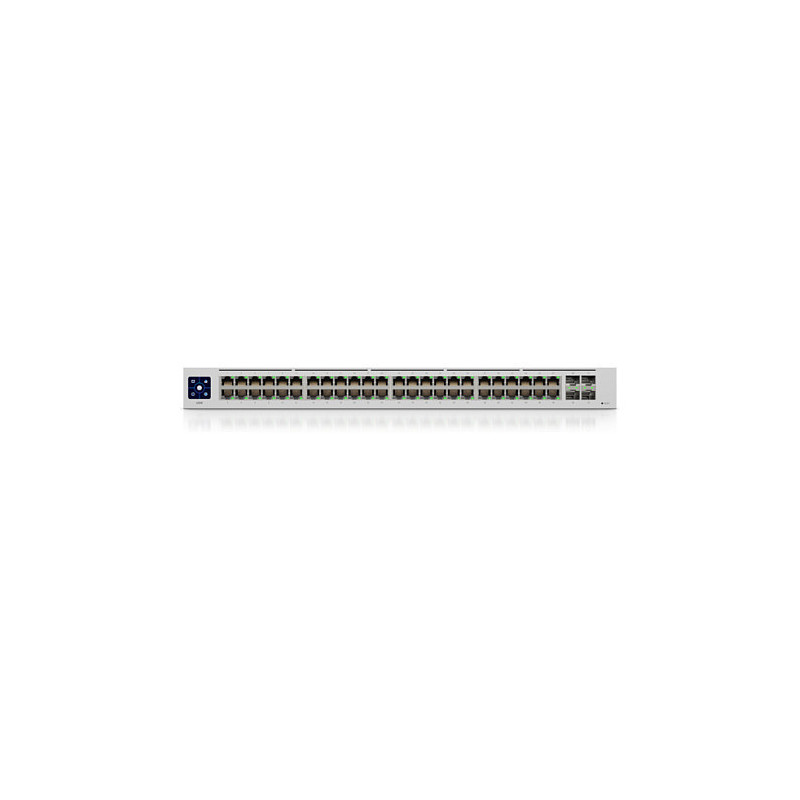

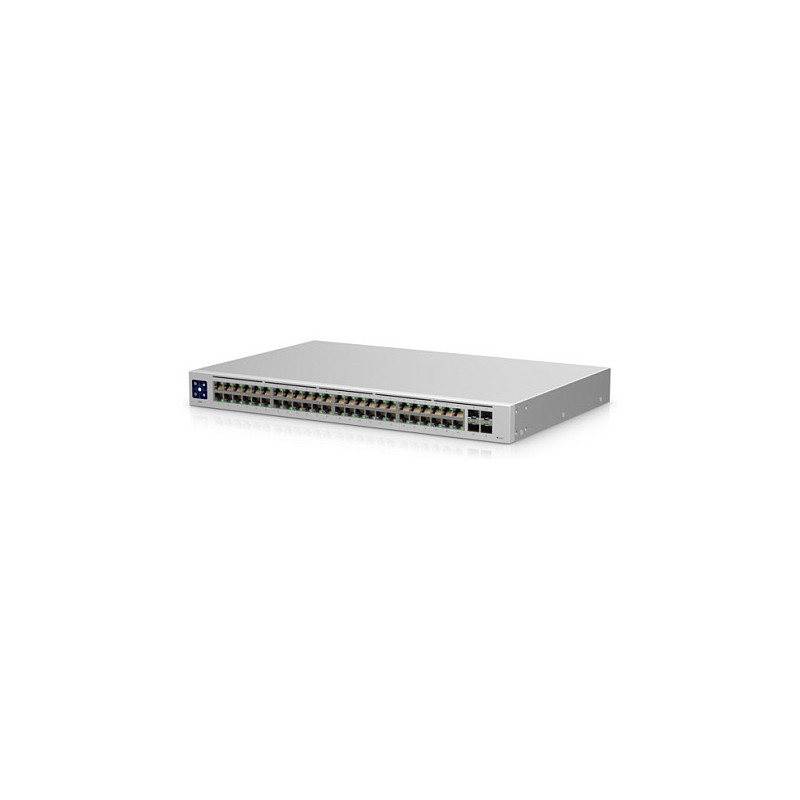

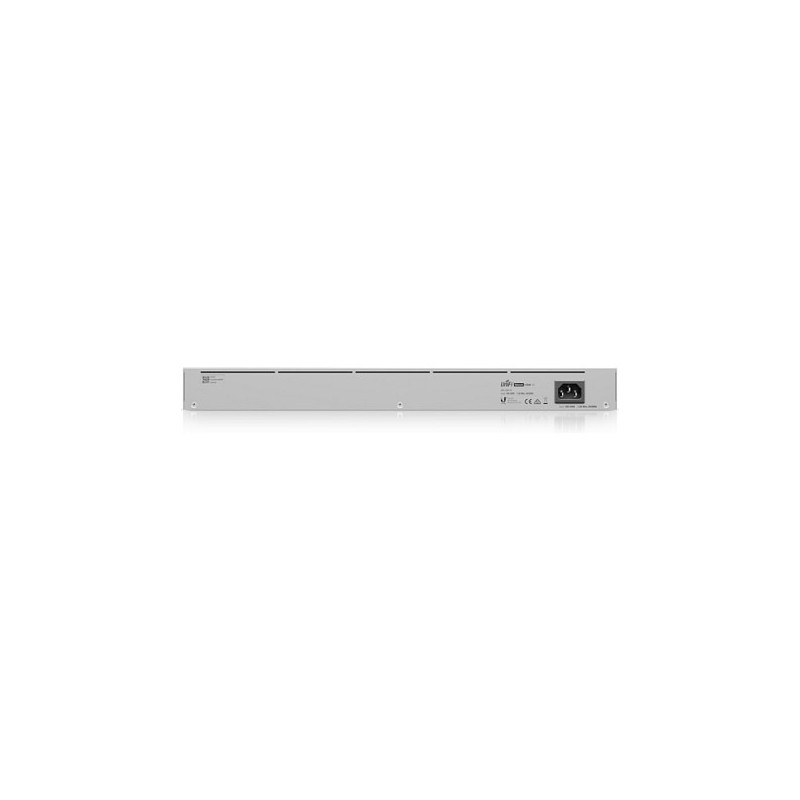

Ubiquiti UniFi USW-48 network switch

Ubiquiti UniFi USW-48. Switch type: Managed, Switch layer: L2. Basic switching RJ-45 Ethernet ports type: Gigabit Ethernet (10/100/1000), Basic switching RJ-45 Ethernet ports quantity: 48. Switching capacity: 52 Gbit/s. Rack mounting

The UniFi Switch 48 features a rich set of Layer 2 capabilities and fanless, silent cooling for use as an access layer switch. UniFi Network Controller and UniFi Network mobile app allow admins to configure and monitor virtually all of the switch features in an intuitive graphical user interface from anywhere.

Management features

Switch type: Managed
Switch layer: L2

Ports & interfaces

Basic switching RJ-45 Ethernet ports quantity: 48
Basic switching RJ-45 Ethernet ports type: Gigabit Ethernet (10/100/1000)
SFP module slots quantity: 4

Data transmission

Switching capacity: 52 Gbit/s
Forwarding rate: 77.376 Mpps

Design

Feature: Rack mounting
Product colour: Silver
Housing material: Steel
LED indicators: LAN, System

Performance

Feature: Firmware upgradeable
Feature: Fanless

Power

Feature: Power supply included
AC input voltage: 100 - 240 V
AC input frequency: 50 - 60 Hz
Power consumption (max): 40 W

Operational conditions

Operating temperature (T-T): -15 - 40 °C
Operating relative humidity (H-H): 10 - 90%

Weight & dimensions

Width: 442.4 mm
Depth: 285 mm
Height: 43.7 mm
Weight: 3.9 kg

Certificates

Certification: CE, FCC, IC

Logistics data

Harmonized System (HS) code: 85176990
