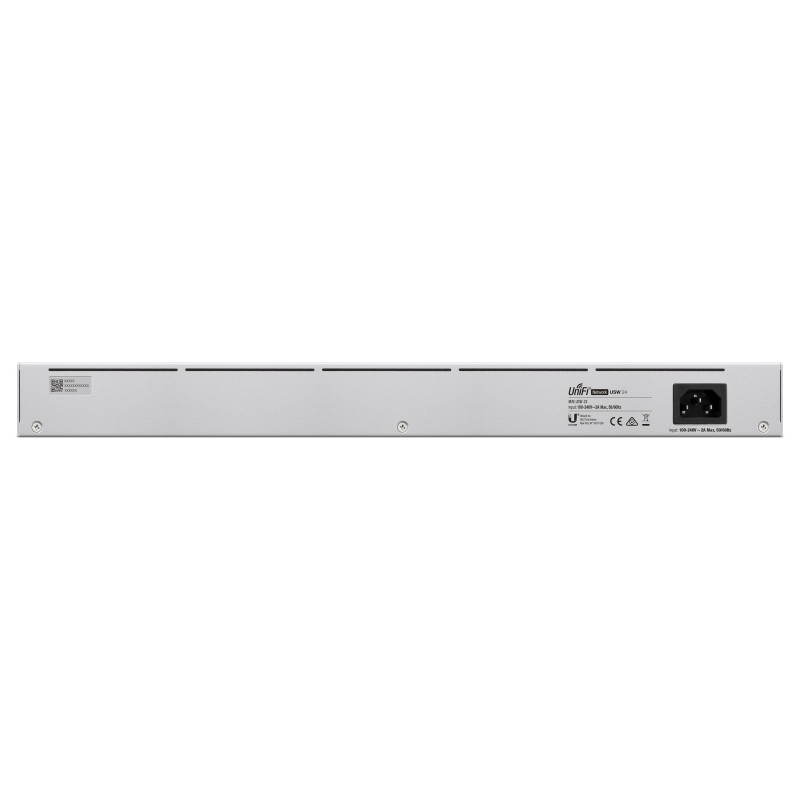

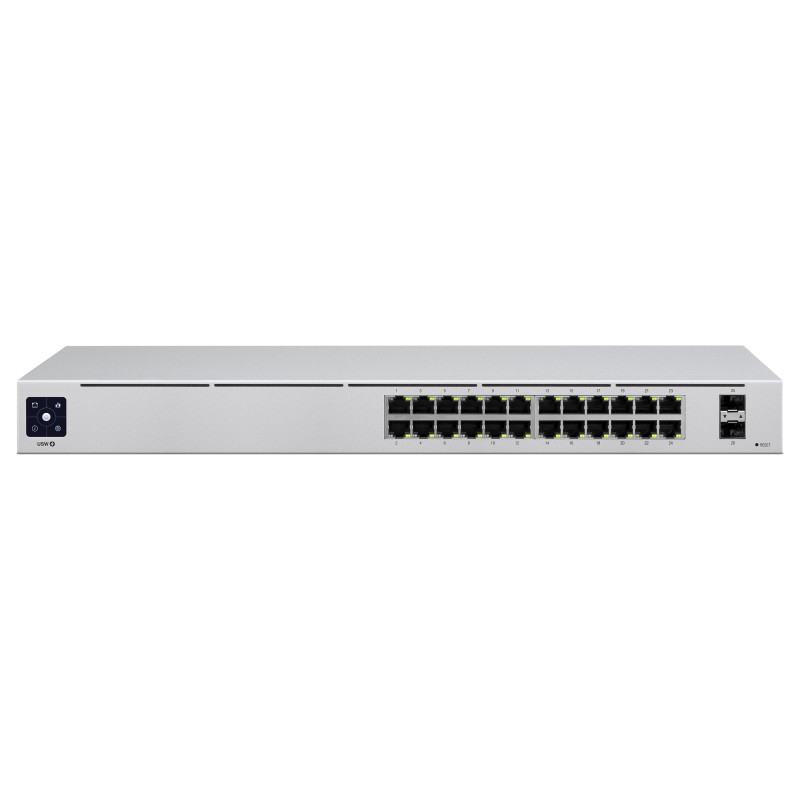

Ubiquiti UniFi USW-24 network switch

Ubiquiti UniFi USW-24. Switch type: Managed, Switch layer: L2. Basic switching RJ-45 Ethernet ports type: Gigabit Ethernet (10/100/1000), Basic switching RJ-45 Ethernet ports quantity: 24. Networking standards: IEEE 802.3af, IEEE 802.3at. Power connector: AC-in jack. Rack mounting

UniFi Switch 24 is a fully managed Layer 2 switch with (24) Gigabit Ethernet ports and (2) Gigabit SFP ports for fiber connectivity

The USW-24 is a configurable Layer 2 switch with 24 Gigabit Ethernet ports and 2 SFP ports. The SFP ports provide 1 Gbps fiber uplink options to your enterprise network. The USW-24 features a 1.3" touchscreen, compact size, and fanless design. The touchscreen displays the current switch state and information for quick diagnosis. Managed and configured by the UniFi Network application with UniFi mobile app support, the USW-24 switch offers an extensive suite of advanced Layer 2 switching protocols and features, including operating mode (switching, mirroring, or aggregate) per port.

Management features

Switch type: Managed
Switch layer: L2
Feature: Web-based management

Ports & interfaces

Basic switching RJ-45 Ethernet ports quantity: 24
Basic switching RJ-45 Ethernet ports type: Gigabit Ethernet (10/100/1000)
SFP module slots quantity: 2
Power connector: AC-in jack

Network

Networking standards: IEEE 802.3af, IEEE 802.3at
Ethernet LAN data rates: 10,100,1000 Mbit/s

Design

Feature: Rack mounting
Feature: Stackable
Product colour: Silver

Power

Power source: AC
Feature: Power supply included
AC input voltage: 100 - 240 V
AC input frequency: 50 - 60 Hz
Power consumption (typical): 120 W

Operational conditions

Operating temperature (T-T): -5 - 40 °C
Operating relative humidity (H-H): 10 - 90%

Weight & dimensions

Width: 442.4 mm
Depth: 200 mm
Height: 43.7 mm
Weight: 2.7 kg

Certificates

Certification: CE, FCC, IC

Logistics data

Harmonized System (HS) code: 85176990
