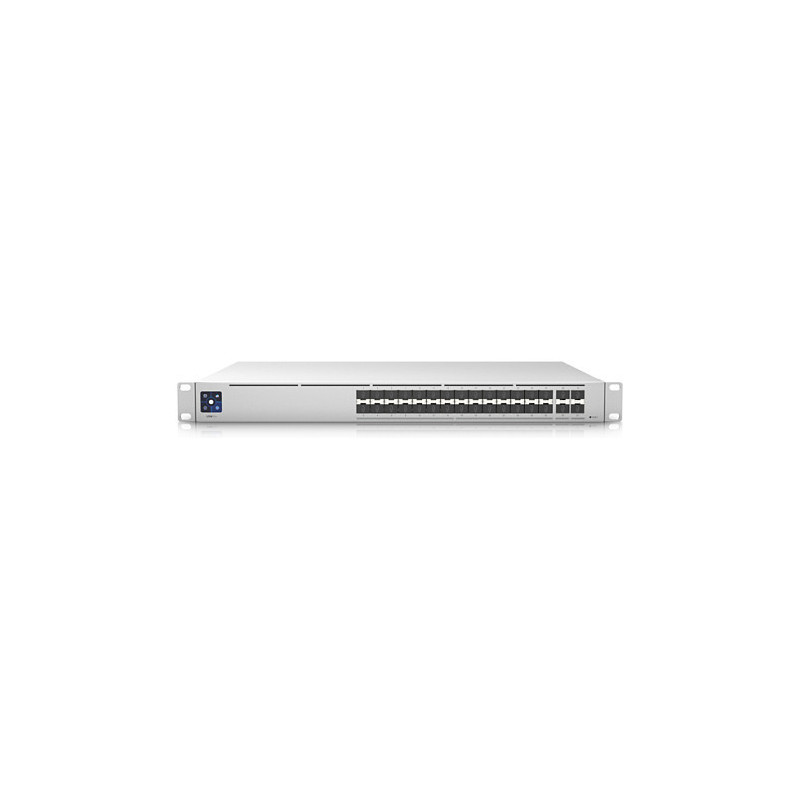

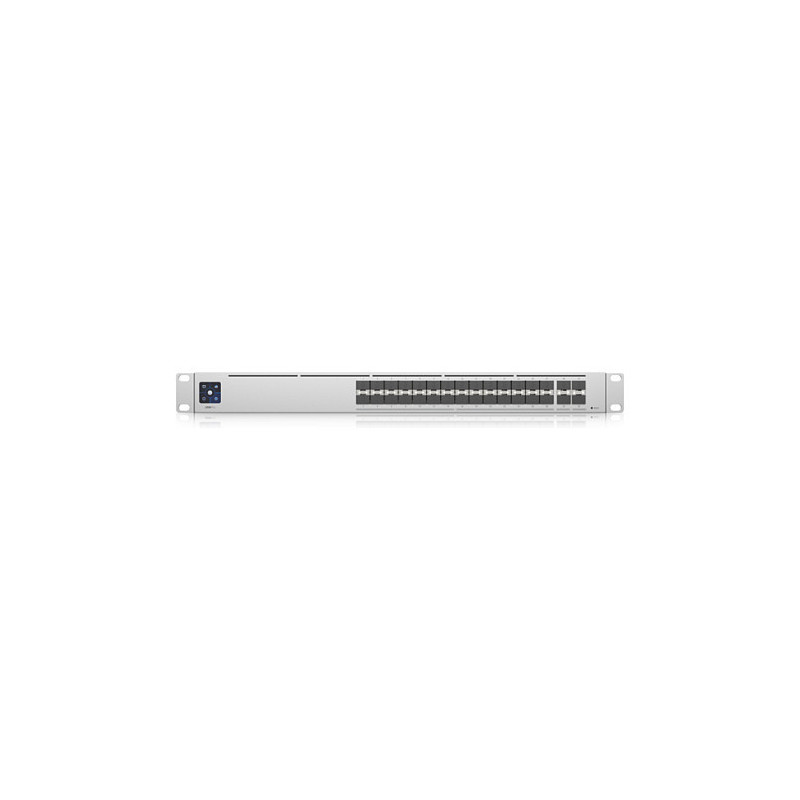

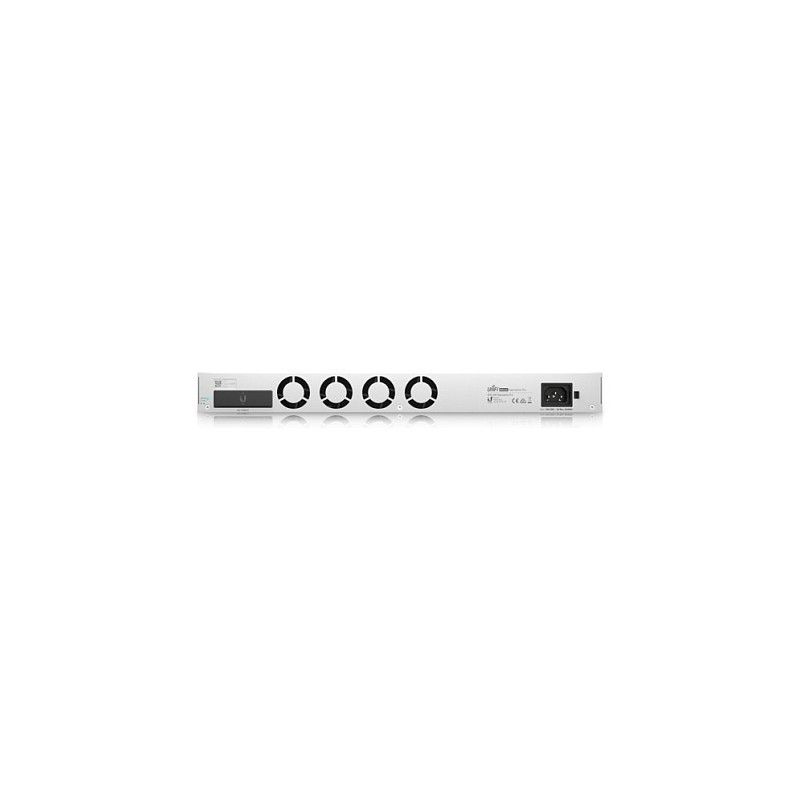

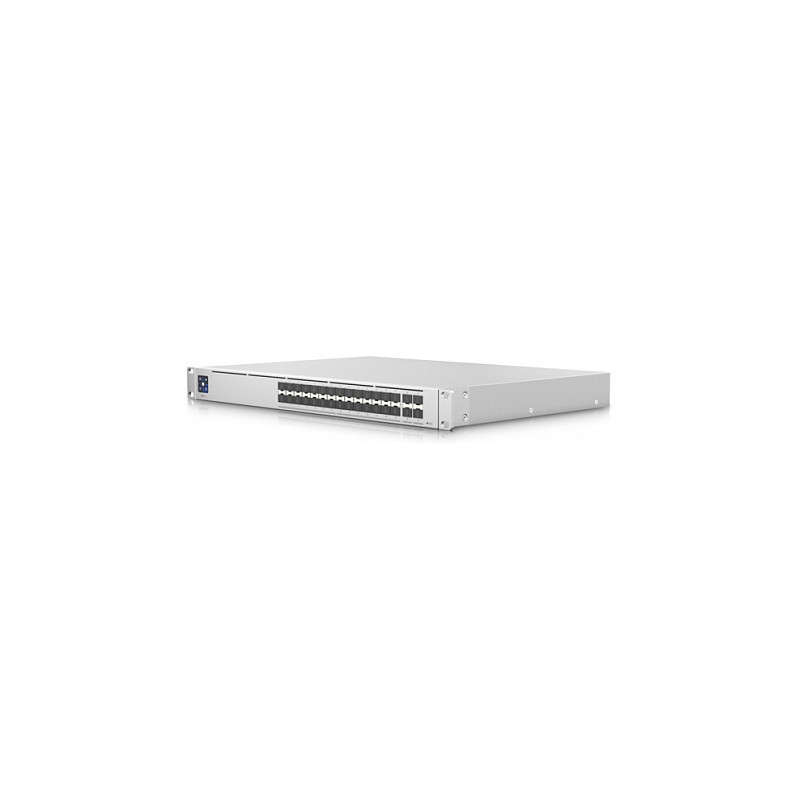

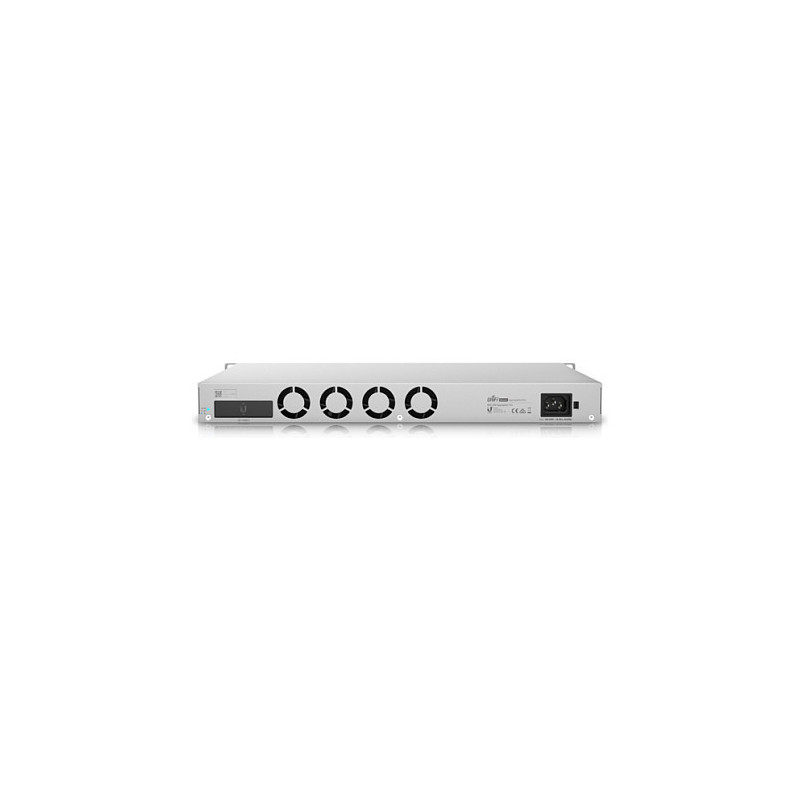

Ubiquiti UniFi Switch Pro Aggregation

Ubiquiti UniFi Switch Pro Aggregation. Switch type: Managed, Switch layer: L3. Switching capacity: 760 Gbit/s. DC input voltage: 11.5 V. Power connector: DC-in jack

Featuring a 1.3" touchscreen, it supports high-bandwidth links to provide link aggregation for higher capacity and increased availability. The USW-Pro-Aggregation is managed through the UniFi controller and mobile App, allowing you to easily build, scale and monitor your enterprise networks.

Management features

Switch type: Managed
Switch layer: L3

Ports & interfaces

Basic switching RJ-45 Ethernet ports type: No
SFP+ module slots quantity: 28
SFP28 ports quantity: 4
Power connector: DC-in jack

Network

Feature: 10G support
Feature: Port mirroring
Feature: Link aggregation
Feature: VLAN support

Data transmission

Switching capacity: 760 Gbit/s
Throughput: 380 Mpps
Forwarding rate: 565.44 Mpps
Feature: Static route

Security

DHCP features: DHCP server

Design

Product colour: Grey
Housing material: Steel
LED indicators: Yes
Number of fans: 4 fan(s)

Power

Feature: Power supply included
AC input voltage: 100 - 240 V
AC input frequency: 50 - 60 Hz
DC input voltage: 11.5 V
Input current: 2 A
Power consumption (max): 100 W

Operational conditions

Operating temperature (T-T): -5 - 40 °C
Operating relative humidity (H-H): 10 - 90%

Weight & dimensions

Width: 442 mm
Depth: 325 mm
Height: 44 mm
Weight: 4.6 kg

Logistics data

Harmonized System (HS) code: 85176990
