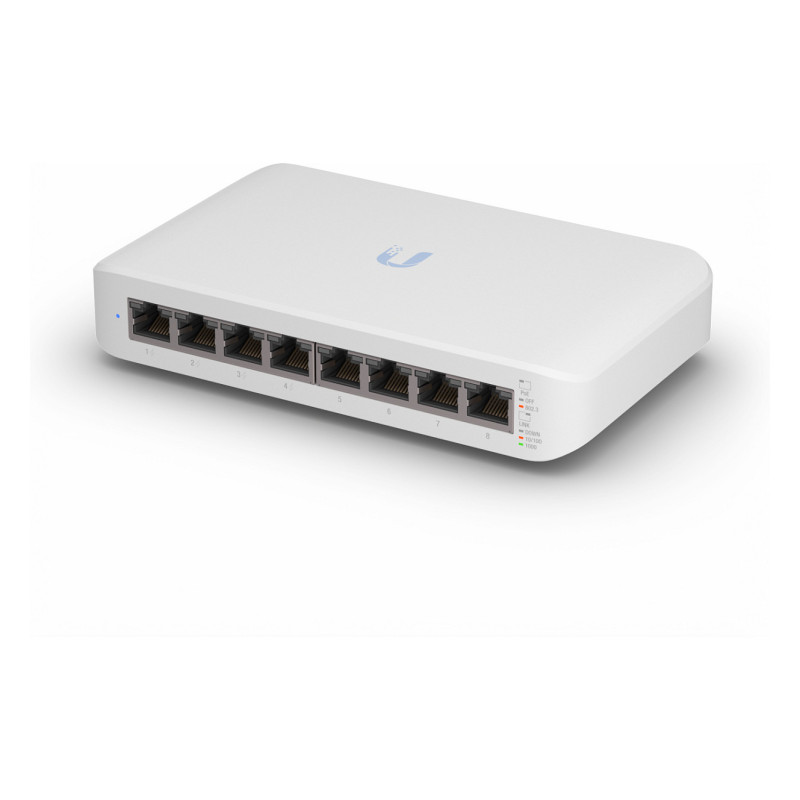

Ubiquiti UniFi Switch Lite 8 PoE

Ubiquiti UniFi Switch Lite 8 PoE. Switch type: Managed, Switch layer: L2. Basic switching RJ-45 Ethernet ports type: Gigabit Ethernet (10/100/1000), Basic switching RJ-45 Ethernet ports quantity: 8. Switching capacity: 8 Gbit/s. Networking standards: IEEE 802.3at. DC input voltage: 54 V. Power connector: DC-in jack. Power over Ethernet (PoE). Wall mountable

The USW-Lite-8-PoE is a fully managed Layer 2 switch with eight Gigabit Ethernet ports for your RJ45 Ethernet devices. Four ports also offer auto-sensing 802.3at PoE+ that provide up to a total PoE wattage of 52W for UniFi Access Points or other PoE devices.

Managed and configured by the UniFi Network Controller with UniFi mobile app support, the USW-Lite-8-PoE offers Layer 2 switching protocols and features. The UniFi Network Controller and mobile app allow admins to configure and monitor virtually all of the switch features in a graphical user interface from anywhere.

Management features

Switch type: Managed
Switch layer: L2

Ports & interfaces

Basic switching RJ-45 Ethernet ports quantity: 8
Basic switching RJ-45 Ethernet ports type: Gigabit Ethernet (10/100/1000)

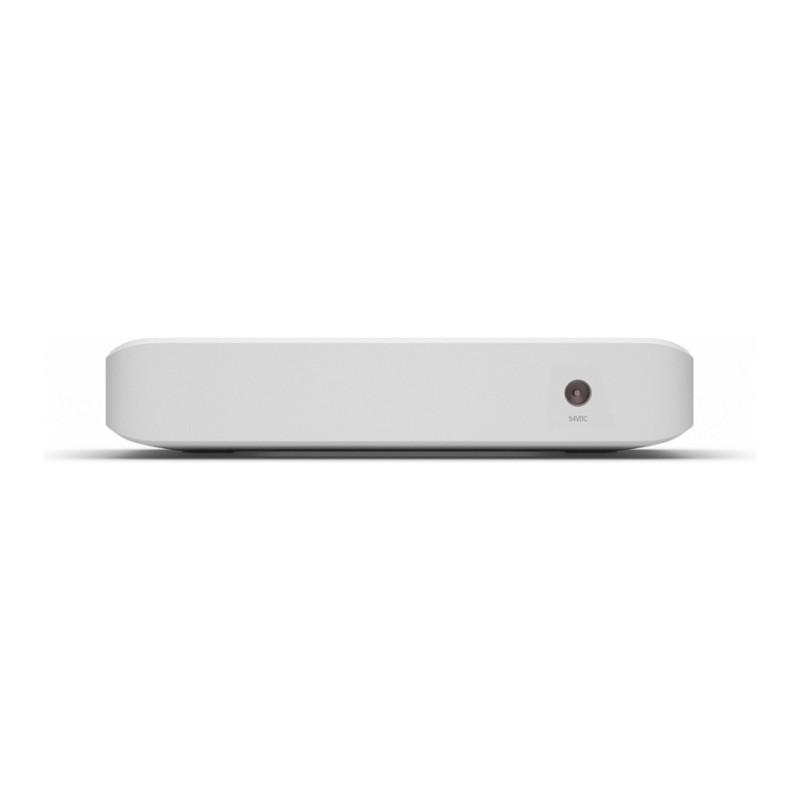

Power connector: DC-in jack

Network

Networking standards: IEEE 802.3at

Data transmission

Switching capacity: 8 Gbit/s

Design

Product colour: White
LED indicators: Yes

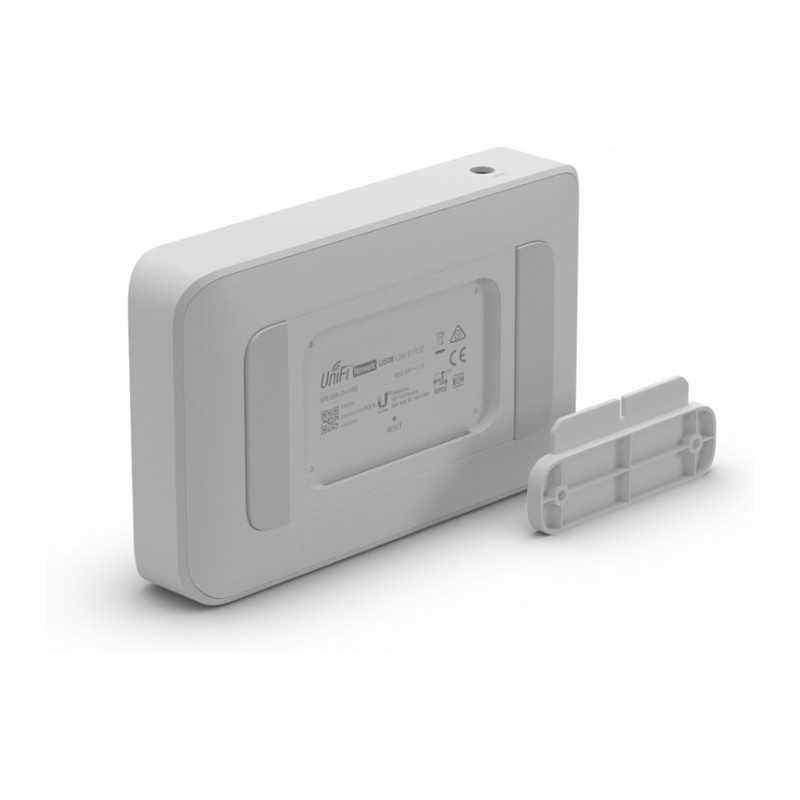

Feature: Wall mountable

Power

Feature: Power supply included
Number of power supply units: 1
DC input voltage: 54 V
Power consumption (typical): 60 W

Power over Ethernet (PoE)

Feature: Power over Ethernet (PoE)
Power over Ethernet (PoE) type supported: PoE+
Power over Ethernet plus (PoE+) ports quantity: 4
Power over Ethernet (PoE) power per port: 30 W

Operational conditions

Operating temperature (T-T): -15 - 40 °C
Operating relative humidity (H-H): 10 - 90%

Weight & dimensions

Width: 163.7 mm
Depth: 99.6 mm
Height: 31.7 mm
Weight: 450 g

Logistics data

Harmonized System (HS) code: 85176990
