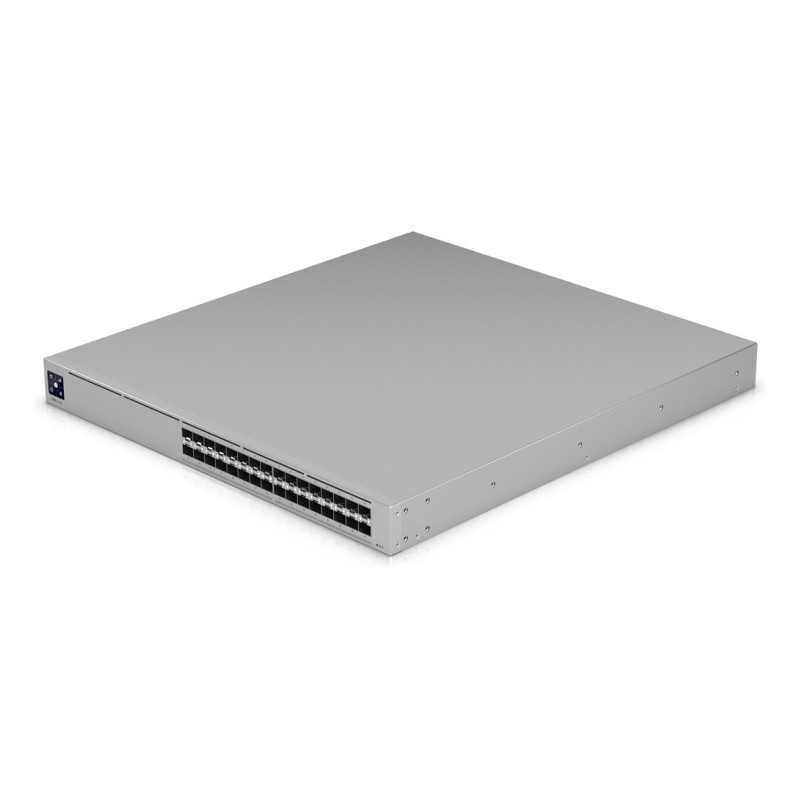

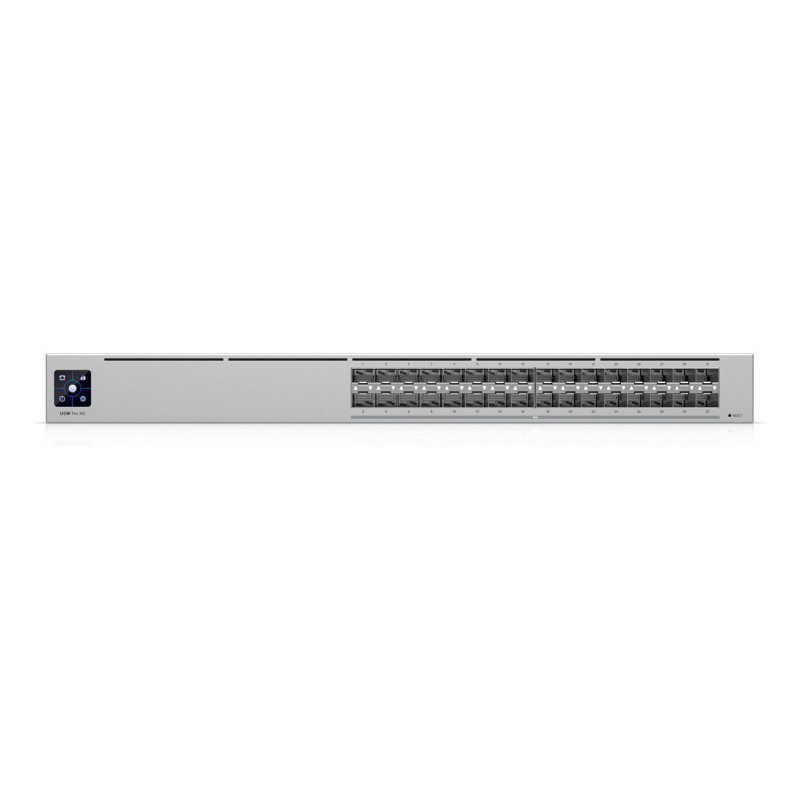

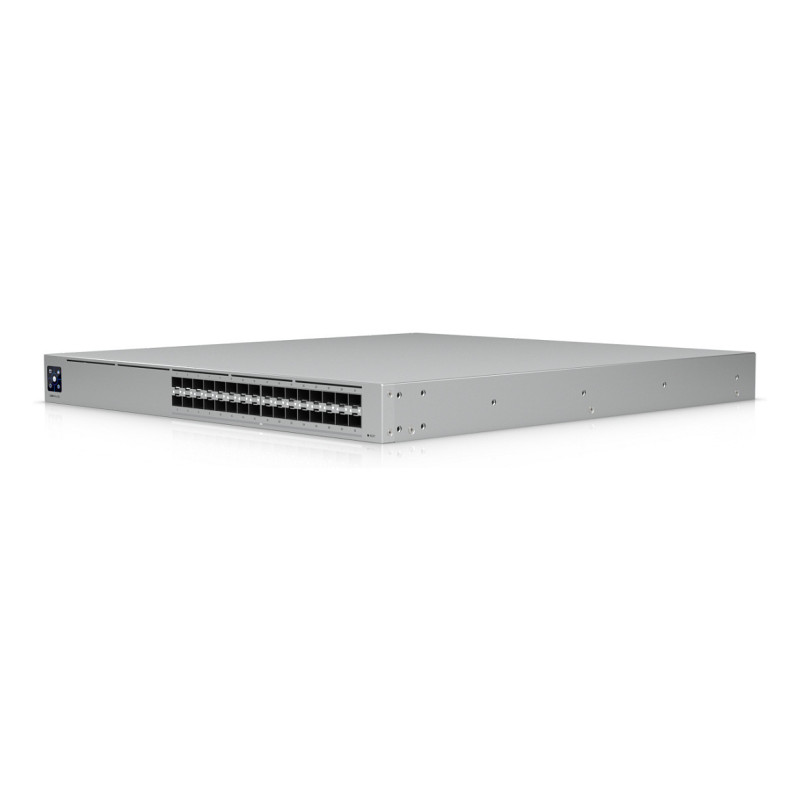

Ubiquiti UniFi Pro XG Aggregation

Ubiquiti UniFi Pro XG Aggregation. Switch type: Managed, Switch layer: L2/L3. MAC address table: 32000 entries, Switching capacity: 1600 Gbit/s. Power connector: AC/DC. Rack mounting, Form factor: 1U

Professional-grade 32-port, Layer 3 Etherlighting™ switch for high-capacity 25G SFP28 connections.

Management features

Switch type: Managed
Switch layer: L2/L3
Feature: Quality of Service (QoS) support

Ports & interfaces

Basic switching RJ-45 Ethernet ports type: No
SFP28 ports quantity: 32
Power connector: AC/DC

Network

Feature: 10G support
Feature: Port mirroring
Feature: Flow control support
Feature: Broadcast storm control
Feature: Rate limiting
IPv4 routes: 256000
Feature: VLAN support
Virtual LAN features: Interface-based VLAN, Voice VLAN
Number of VLANs: 1000

Data transmission

Switching capacity: 1600 Gbit/s
Throughput: 800 Gbit/s
Forwarding rate: 1200 Mpps
MAC address table: 32000 entries
Feature: Static route
Feature: Jumbo frames support
Packet buffer memory: 8 MB

Security

DHCP features: DHCP guarding, DHCP relay, DHCP server, DHCPv6 snooping
Feature: IGMP snooping
Feature: Loop protection

Multicast features

Feature: Multicast support

Design

Feature: Rack mounting
Feature: Stackable
Form factor: 1U
Product colour: Grey
Housing material: SGCC
Feature: Reset button
Display type: LCM
Feature: Backlight display

Power

Power source: AC/DC
Feature: Power supply included
Feature: Redundant power supply (RPS) support
AC input voltage: 100 - 240 V
AC input frequency: 50/60 Hz
Power consumption (max): 200 W

Operational conditions

Operating temperature (T-T): -5 - 40 °C
Operating relative humidity (H-H): 10 - 90%

Weight & dimensions

Width: 442.4 mm
Depth: 480 mm
Height: 43.7 mm
Weight: 7 kg

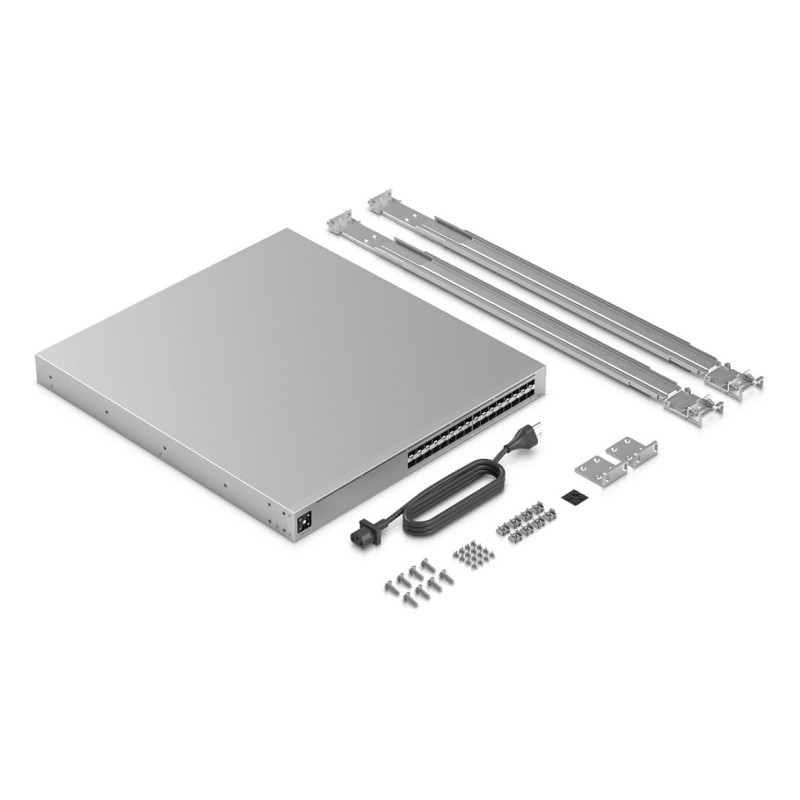

Packaging content

Cables included: Power
Feature: Rack mount kit

Certificates

Compliance certificates: CE, Federal Communications Commission (FCC), Industry Canada (IC), National Defense Authorization Act (NDAA)
