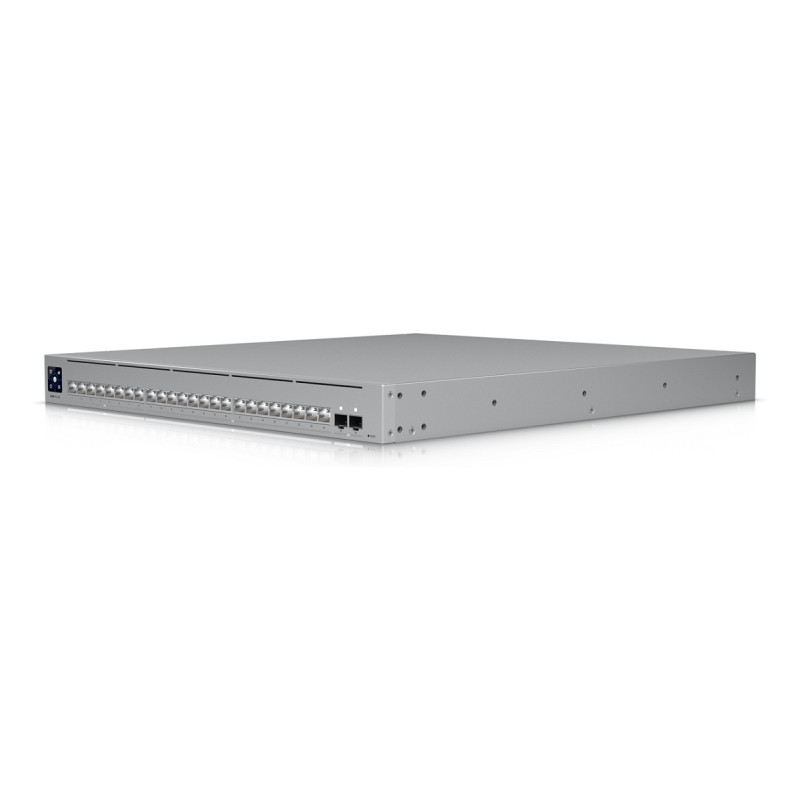

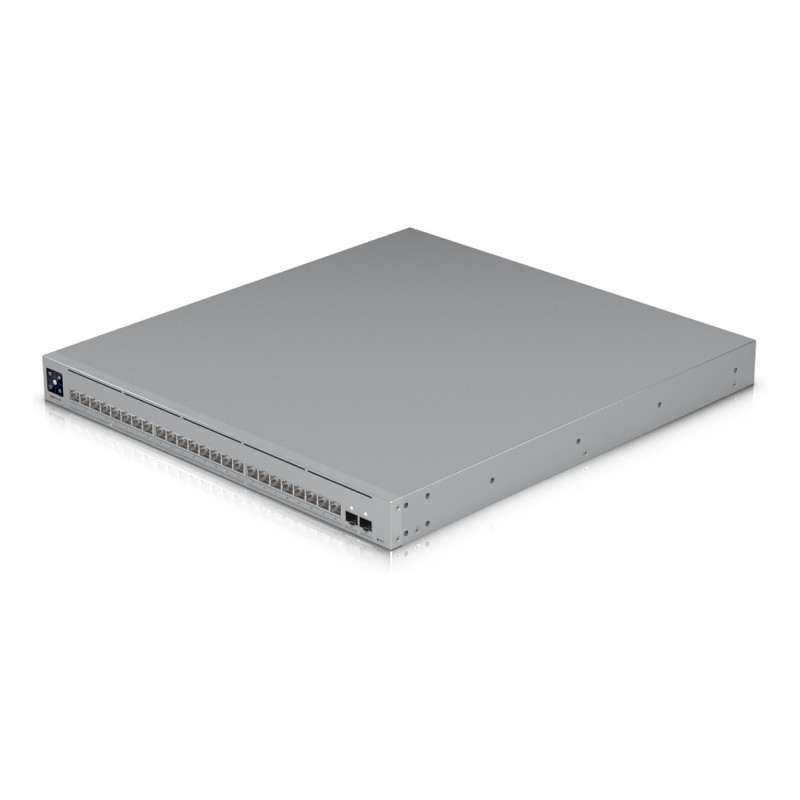

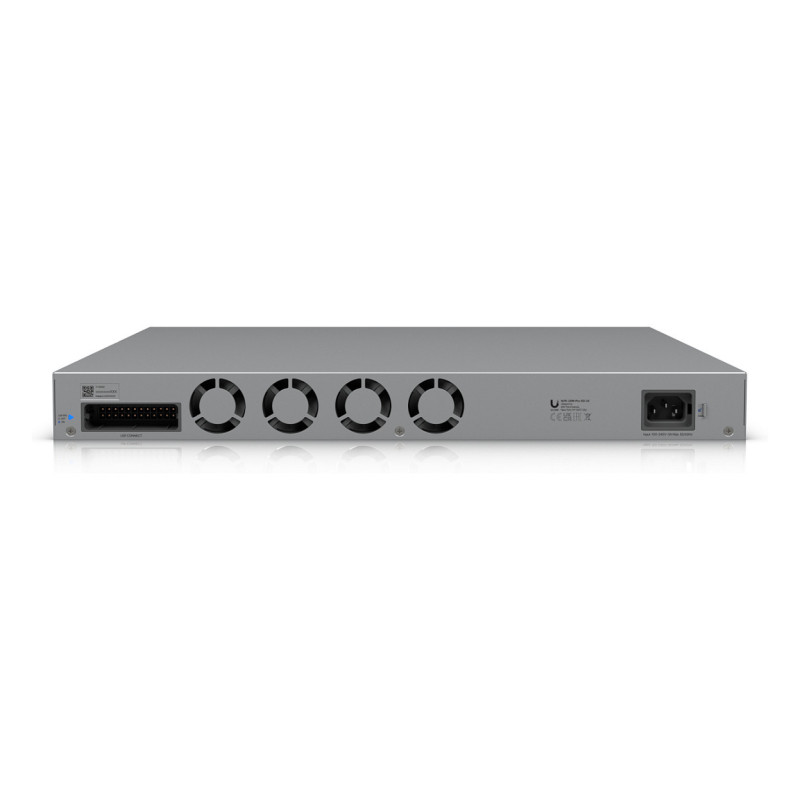

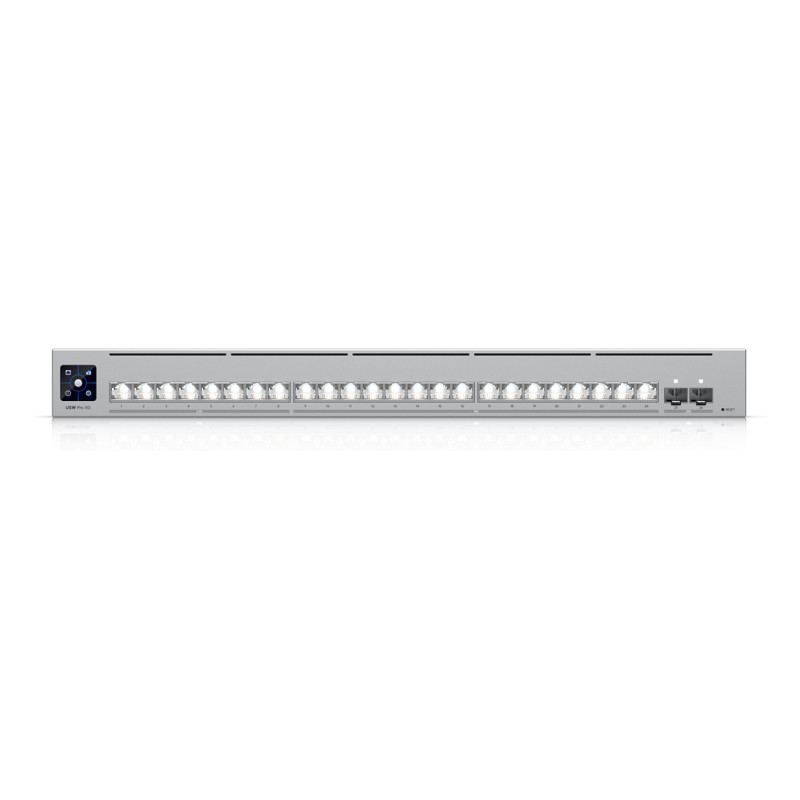

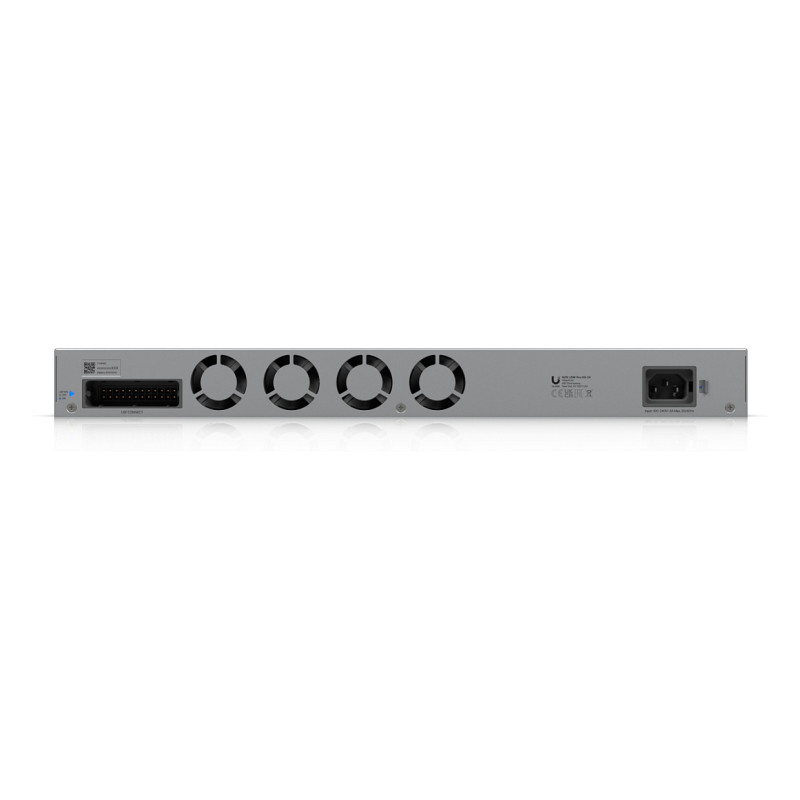

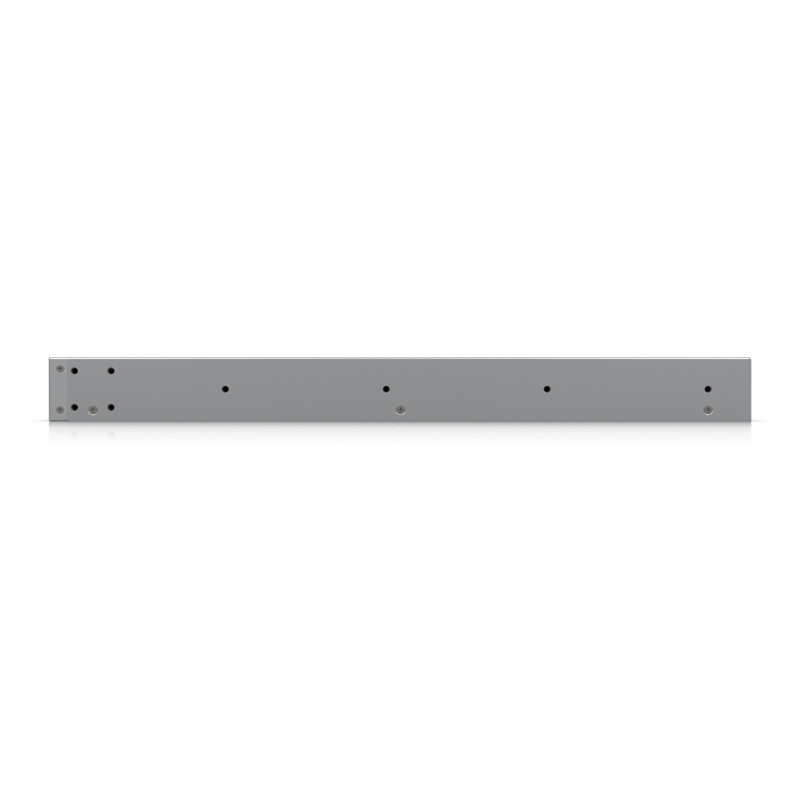

Ubiquiti UniFi Pro XG 24

Ubiquiti UniFi Pro XG 24. Switch type: Managed, Switch layer: L2/L3. Basic switching RJ-45 Ethernet ports type: 10G Ethernet (100/1000/10000), Basic switching RJ-45 Ethernet ports quantity: 24. MAC address table: 128000 entries, Switching capacity: 460 Gbit/s. Power connector: AC/DC. Rack mounting, Form factor: 1U

Professional-grade, 24-port Layer 3 Etherlighting™ switch with (16) 10 GbE, (8) 2.5 GbE, and (2) 25G SFP28 ports.

Management features

Switch type: Managed
Switch layer: L2/L3
Feature: Quality of Service (QoS) support

Ports & interfaces

Basic switching RJ-45 Ethernet ports quantity: 24
Basic switching RJ-45 Ethernet ports type: 10G Ethernet (100/1000/10000)
2.5G Ethernet (copper) ports quantity: 8
10G Ethernet (copper) ports quantity: 16
SFP28 ports quantity: 2
Power connector: AC/DC

Network

Feature: 10G support
Feature: Port mirroring
Feature: Flow control support
Feature: Broadcast storm control
Feature: Rate limiting
IPv4 routes: 256000
Feature: VLAN support
Virtual LAN features: Interface-based VLAN, Voice VLAN
Number of VLANs: 1000

Data transmission

Switching capacity: 460 Gbit/s
Throughput: 230 Gbit/s
Forwarding rate: 342 Mpps
MAC address table: 128000 entries
Feature: Static route
Feature: Jumbo frames support
Packet buffer memory: 8 MB

Security

DHCP features: DHCP guarding, DHCP relay, DHCP server, DHCPv6 snooping
Access Control List (ACL) IPv4 entries: 256
Feature: IGMP snooping
Feature: Loop protection

Multicast features

Feature: Multicast support

Design

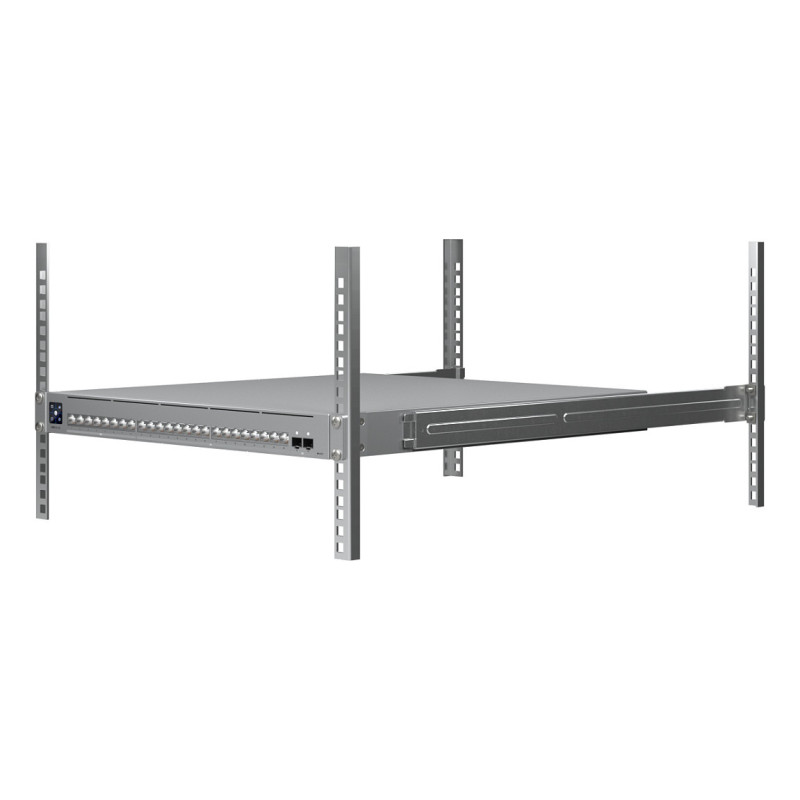

Feature: Rack mounting
Feature: Stackable
Form factor: 1U
Product colour: Grey
Housing material: SGCC
Feature: Reset button
Display type: LCM
Feature: Backlight display

Power

Power source: AC/DC
Feature: Power supply included
Feature: Redundant power supply (RPS) support
AC input voltage: 100 - 240 V
AC input frequency: 50/60 Hz
Power consumption (max): 150 W

Operational conditions

Operating temperature (T-T): -5 - 40 °C
Operating relative humidity (H-H): 10 - 90%

Weight & dimensions

Width: 442 mm
Depth: 480 mm
Height: 44 mm
Weight: 7.2 kg

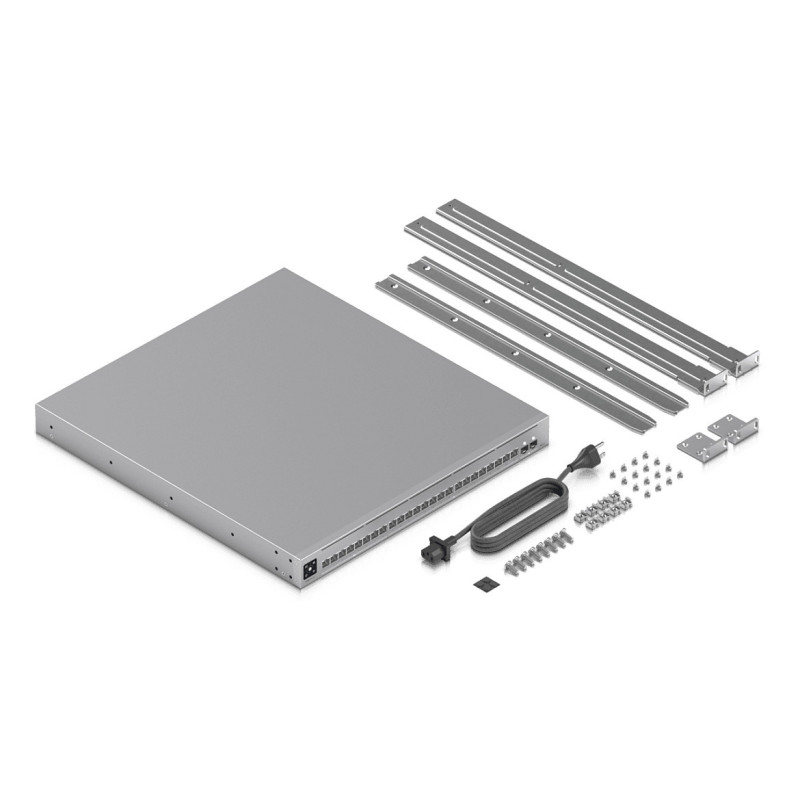

Packaging content

Cables included: Power
Feature: Rack mount kit

Certificates

Compliance certificates: CE, Federal Communications Commission (FCC), Industry Canada (IC), National Defense Authorization Act (NDAA)
