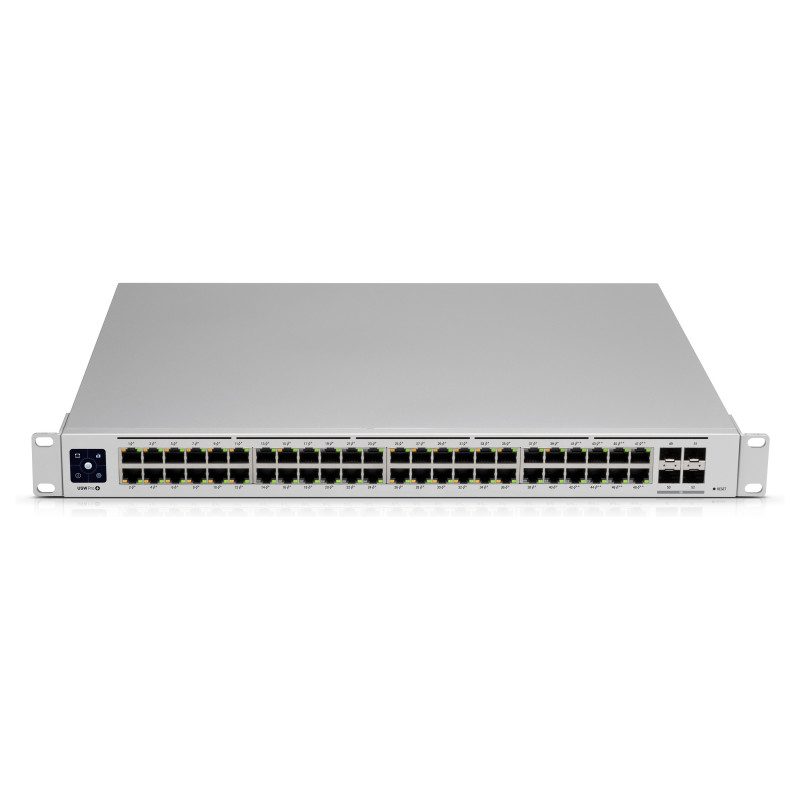

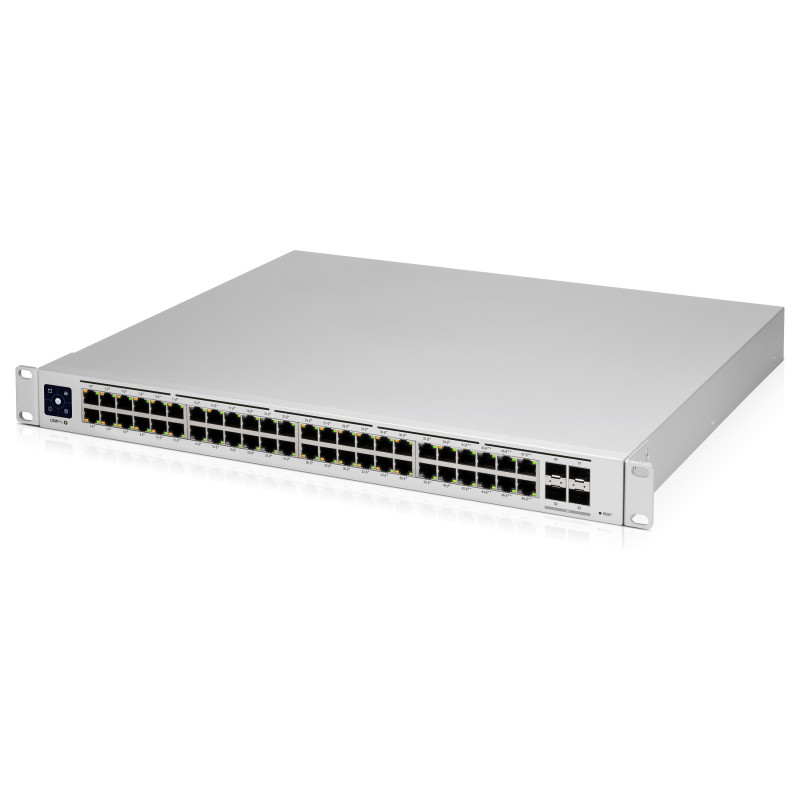

Ubiquiti UniFi Pro 48-Port PoE

Ubiquiti UniFi Pro 48-Port PoE. Switch type: Managed, Switch layer: L2/L3. Basic switching RJ-45 Ethernet ports type: Gigabit Ethernet (10/100/1000), Basic switching RJ-45 Ethernet ports quantity: 48. Full duplex. Switching capacity: 176 Gbit/s. Networking standards: IEEE 802.3af, IEEE 802.3at. DC input voltage: 44 - 57 V. Power over Ethernet (PoE). Rack mounting, Form factor: 1U

Second-Generation UniFi Switching
We've redesigned our UniFi Switches from the ground up.

Near Silent Cooling
Our new airflow design reduces the need for fan usage.

Powerful Hardware and Software
UniFi Switches offer a variety of features, including 10G SFP+ ports, PoE+ or PoE++ support, and Layer 3* switching capabilities.

Redundant Power System
UniFi SmartPower RPS, USP-RPS, is our PSU failover system.

Power Supply Failure
In the event of a UniFi switch power supply failure, the USP-RPS automatically supplies redundant power to the failed device.

UniFi SmartPower
One UniFi SmartPower device can support up to 6 devices until the failed device is replaced.

Touchscreen Display
The 1.3" touchscreen display allows easy monitoring and quick troubleshooting.

Management features

Switch type: Managed
Switch layer: L2/L3

Ports & interfaces

Basic switching RJ-45 Ethernet ports quantity: 48
Basic switching RJ-45 Ethernet ports type: Gigabit Ethernet (10/100/1000)
SFP+ module slots quantity: 4

Network

Networking standards: IEEE 802.3af, IEEE 802.3at
Feature: 10G support
Feature: Port mirroring
Feature: Full duplex
Feature: Flow control support
Feature: Auto MDI/MDI-X
Feature: Spanning tree protocol
Feature: Auto-sensing
Feature: VLAN support

Data transmission

Switching capacity: 176 Gbit/s
Throughput: 88000 Mpps
Forwarding rate: 130.944 Mpps
Feature: Static route
Feature: Jumbo frames support

Security

DHCP features: DHCP server
Authentication type: IEEE 802.1x, RADIUS

Design

Feature: Rack mounting
Form factor: 1U
Product colour: Silver
LED indicators: Activity, Link, PoE, Speed, System

Power

Feature: Power supply included
Number of power supply units: 1
AC input voltage: 100 - 240 V
AC input frequency: 50 - 60 Hz
DC input voltage: 44 - 57 V
Input current: 11.54 A

Power over Ethernet (PoE)

Feature: Power over Ethernet (PoE)
Power over Ethernet plus (PoE+) ports quantity: 40
Power over Ethernet (PoE) power per port: 64 W
Total Power over Ethernet (PoE) budget: 600 W

Operational conditions

Operating temperature (T-T): -5 - 40 °C
Operating relative humidity (H-H): 10 - 90%

Weight & dimensions

Width: 442.4 mm
Depth: 399.6 mm
Height: 43.7 mm
Weight: 6.25 kg

Certificates

Certification: CE, FCC, IC

Logistics data

Harmonized System (HS) code: 85176990
