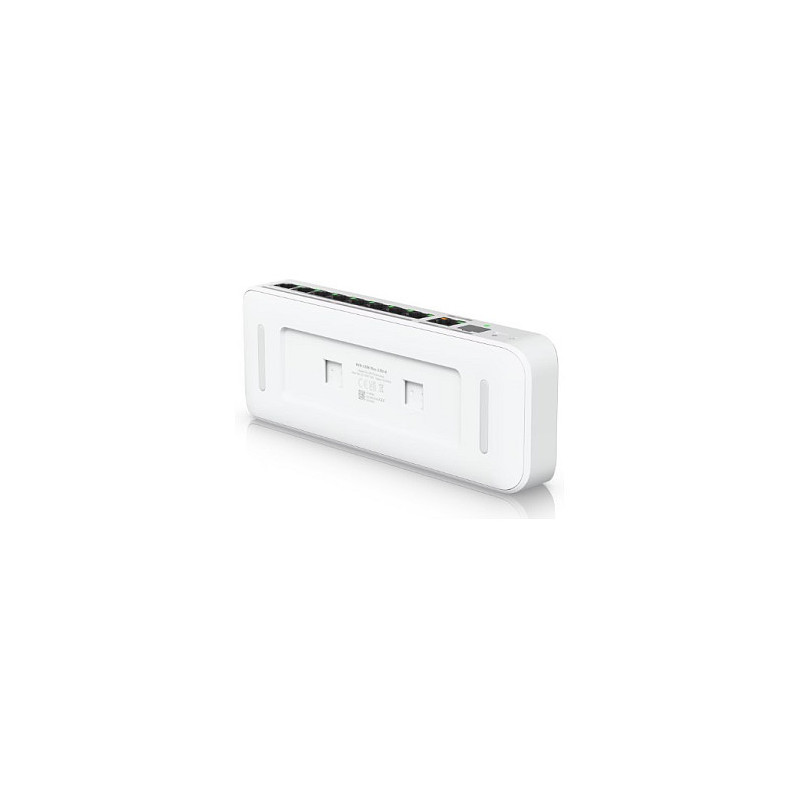

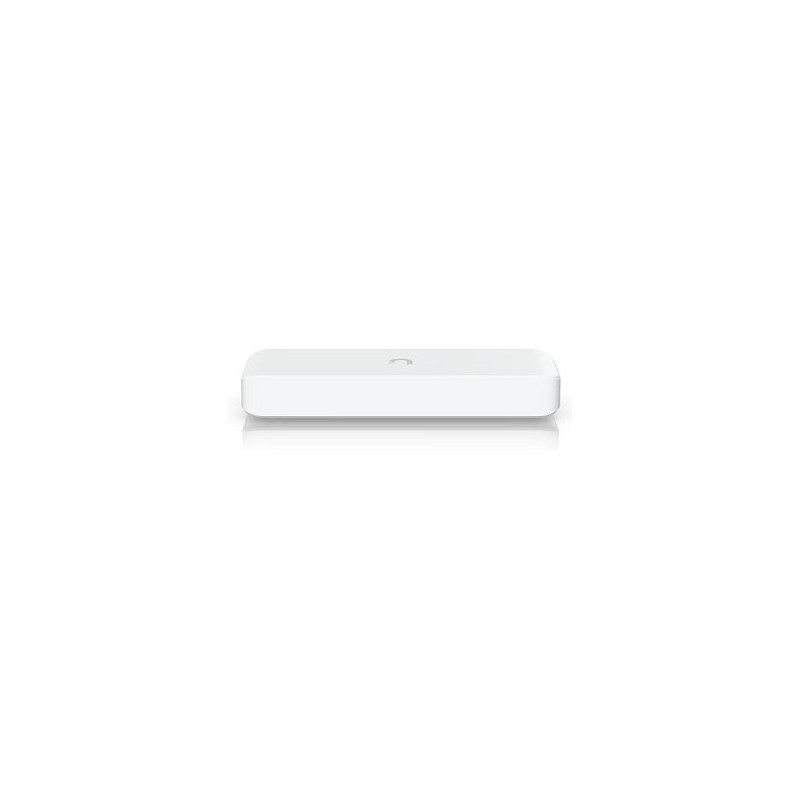

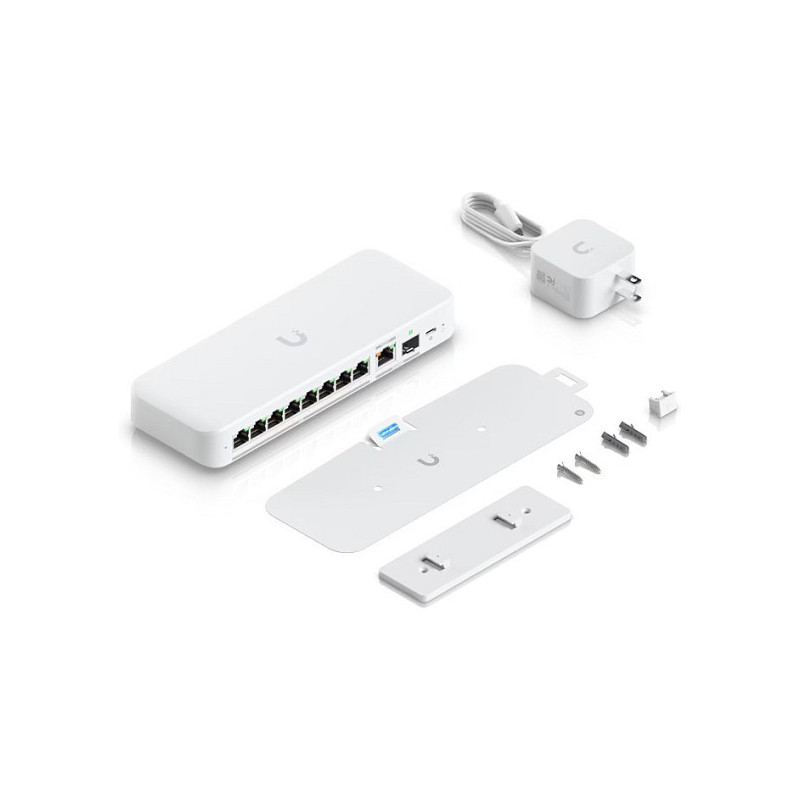

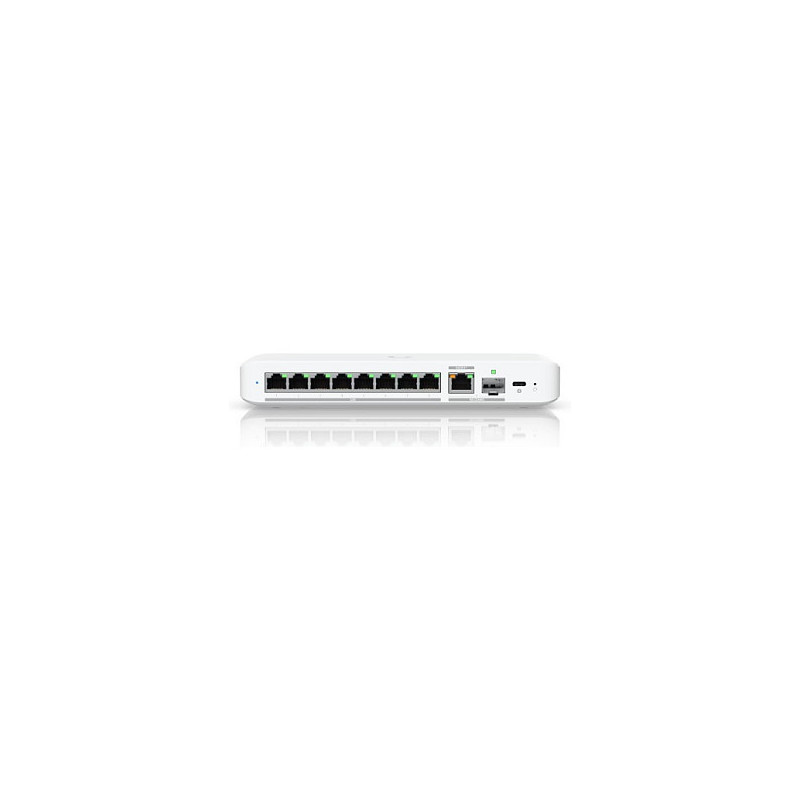

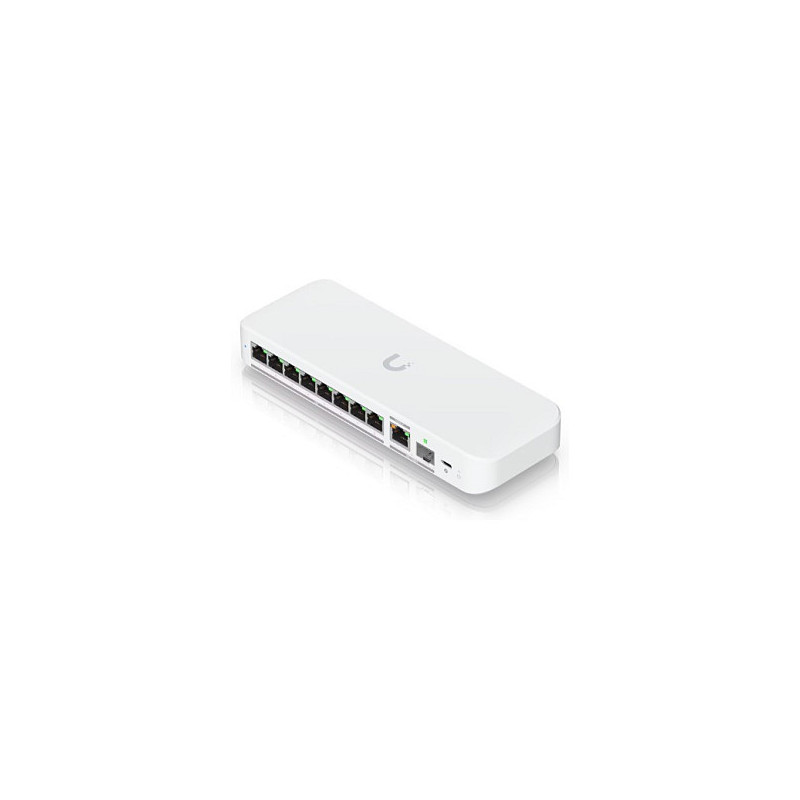

Ubiquiti UniFi Flex 2.5G

Ubiquiti UniFi Flex 2.5G. Switch type: Managed, Switch layer: L2. Basic switching RJ-45 Ethernet ports type: 2.5G Ethernet (100/1000/2500), Basic switching RJ-45 Ethernet ports quantity: 8. MAC address table: 4000 entries, Switching capacity: 60 Gbit/s. Wall mountable, Form factor: Desktop/Wall-Mounting

Management features

Switch type: Managed
Switch layer: L2

Ports & interfaces

Basic switching RJ-45 Ethernet ports quantity: 8
Basic switching RJ-45 Ethernet ports type: 2.5G Ethernet (100/1000/2500)
2.5G Ethernet (copper) ports quantity: 8
10G Ethernet (copper) ports quantity: 1
SFP+ module slots quantity: 1

Network

Feature: 10G support
Feature: Port mirroring
Feature: Flow control support
Feature: Broadcast storm control
Feature: Rate limiting
Ethernet LAN data rates: 10,100,1000,2500 Mbit/s
Feature: VLAN support
Number of VLANs: 256

Data transmission

Switching capacity: 60 Gbit/s
Throughput: 30 Gbit/s
Forwarding rate: 45 Mpps
MAC address table: 4000 entries
Feature: Jumbo frames support

Security

Feature: Loop protection

Multicast features

Feature: Multicast support

Design

Form factor: Desktop/Wall-Mounting
Product colour: White
Housing material: Polycarbonate (PC)
LED indicators: Activity, Link, Power, Status
Feature: Wall mountable
Feature: DIN rail mounting

Power

Power source: PoE/USB
Input current: 3.9 A
Power consumption (max): 17 W

Operational conditions

Operating temperature (T-T): -20 - 45 °C
Operating relative humidity (H-H): 10 - 90%

Weight & dimensions

Width: 212.9 mm
Depth: 99.4 mm
Height: 33.5 mm
Weight: 567 g

Certificates

Compliance certificates: CE, Federal Communications Commission (FCC), Industry Canada (IC)
