Ubiquiti UniFi Enterprise XG 24

Ubiquiti UniFi Enterprise XG 24. Switch type: Managed, Switch layer: L3. Basic switching RJ-45 Ethernet ports type: 10G Ethernet (100/1000/10000), Basic switching RJ-45 Ethernet ports quantity: 24. Switching capacity: 580 Gbit/s. DC input voltage: 11.5 V. Rack mounting
Layer 3 switch with (24) 10GbE RJ45 ports and (2) 25G SFP28 ports.

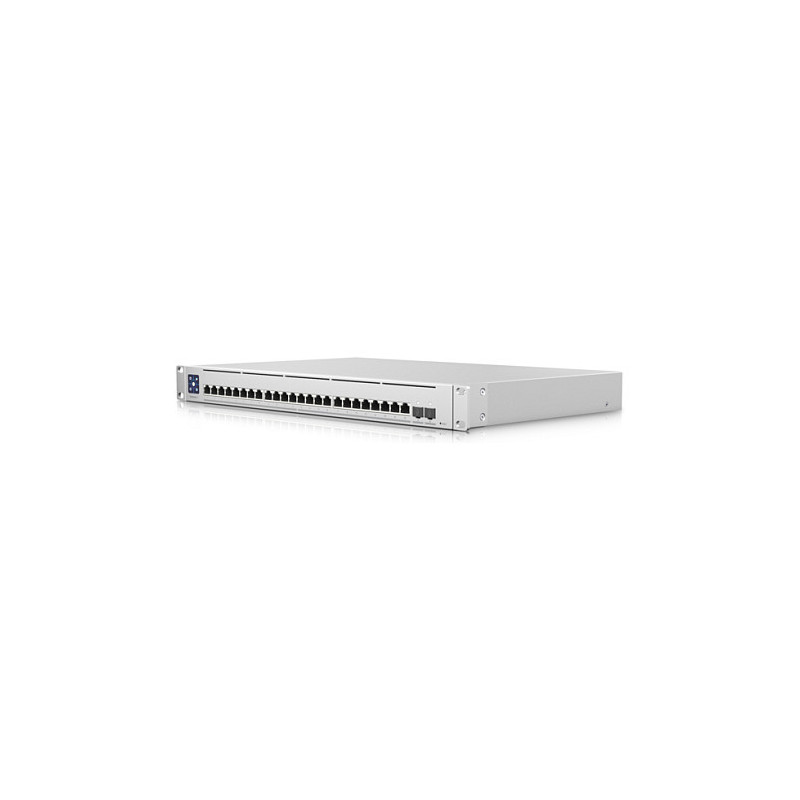

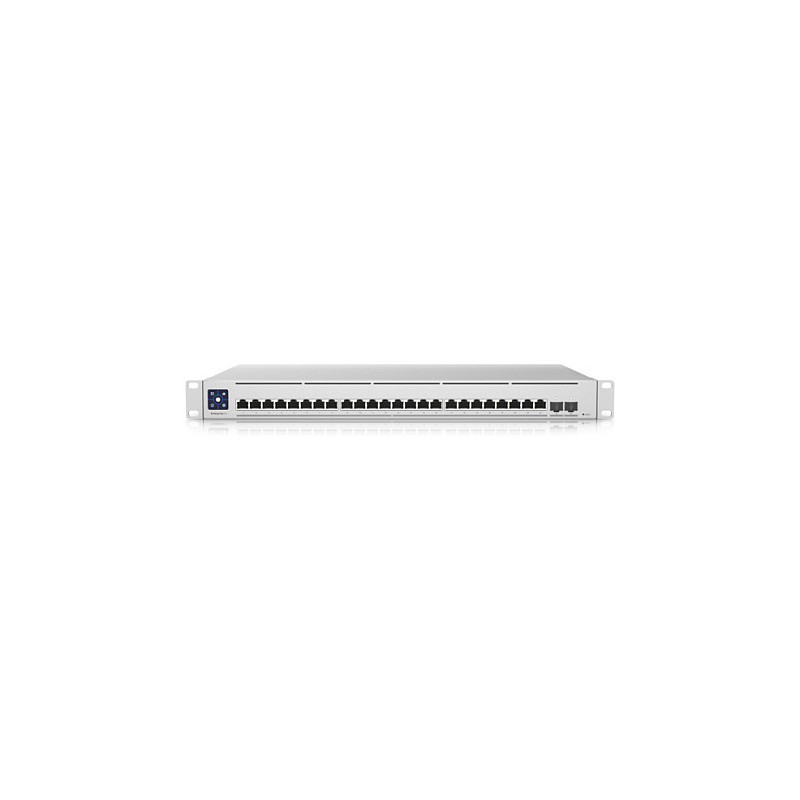

The Switch Enterprise XG 24 (USW Enterprise XG 24) is a fully managed, mult-gigabit, Layer 3 switch with (24) 10GbE RJ45 ports and (2) 25G SFP28 ports. The USW Enterprise XG 24 also features a 1.3" LCM color touchscreen that concisely displays key system and connection insights.
Additionally, the USW Enterprise XG 24 offers enhanced power supply failure protection when connected to the SmartPower Redundant Power System (USP RPS sold separately). This switch can be monitored or configured from anywhere with the powerful, intuitive UniFi Network web application and mobile app.

Management features

Switch type: Managed
Switch layer: L3
Feature: Web-based management

Ports interfaces

Basic switching RJ-45 Ethernet ports quantity: 24
Basic switching RJ-45 Ethernet ports type: 10G Ethernet (100/1000/10000)
SFP28 ports quantity: 2

Network

Feature: 10G support
Ethernet LAN data rates: 10,1000,2500,5000,10000 Mbit/s

Data transmission

Switching capacity: 580 Gbit/s
Throughput: 290 Gbit/s
Forwarding rate: 431.52 Mpps

Design

Feature: Rack mounting
Product colour: Stainless steel
Housing material: Steel
Feature: Reset button
LED indicators: Activity, Link

Power

Feature: Redundant power supply (RPS) support
AC input voltage: 100 - 240 V
AC input frequency: 50 - 60 Hz
DC input voltage: 11.5 V
Input current: 8.7 A
Power consumption (max): 100 W

Operational conditions

Operating temperature (T-T): -5 - 40 °C
Operating relative humidity (H-H): 10 - 95%

Weight dimensions

Width: 442 mm
Depth: 285 mm
Height: 44 mm
Weight: 4.47 kg

Packaging content

Feature: Manual

Certificates

Compliance certificates: CE

Logistics data

Harmonized System (HS) code: 85176990
