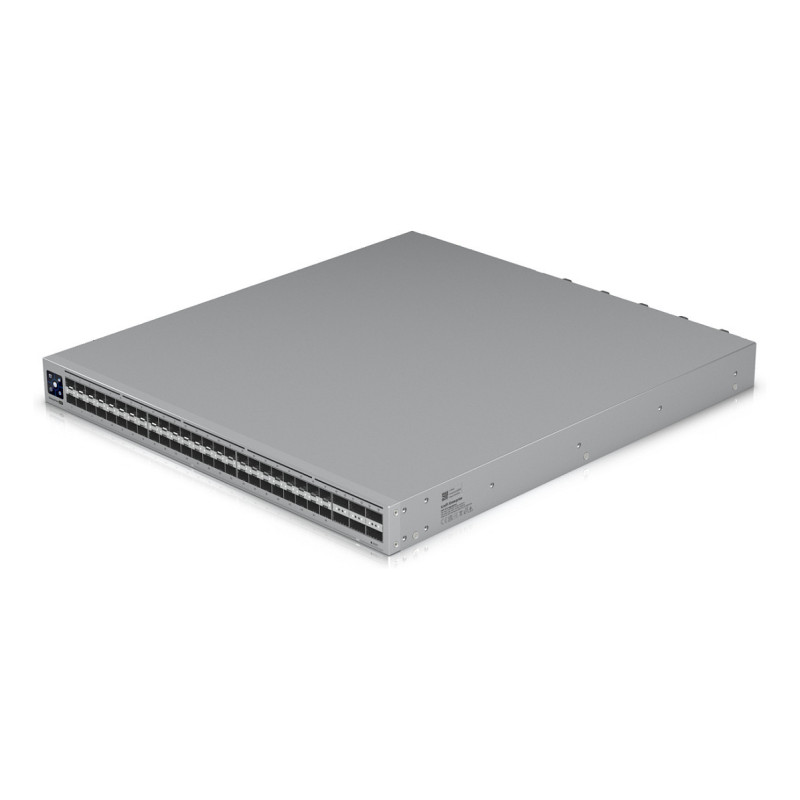

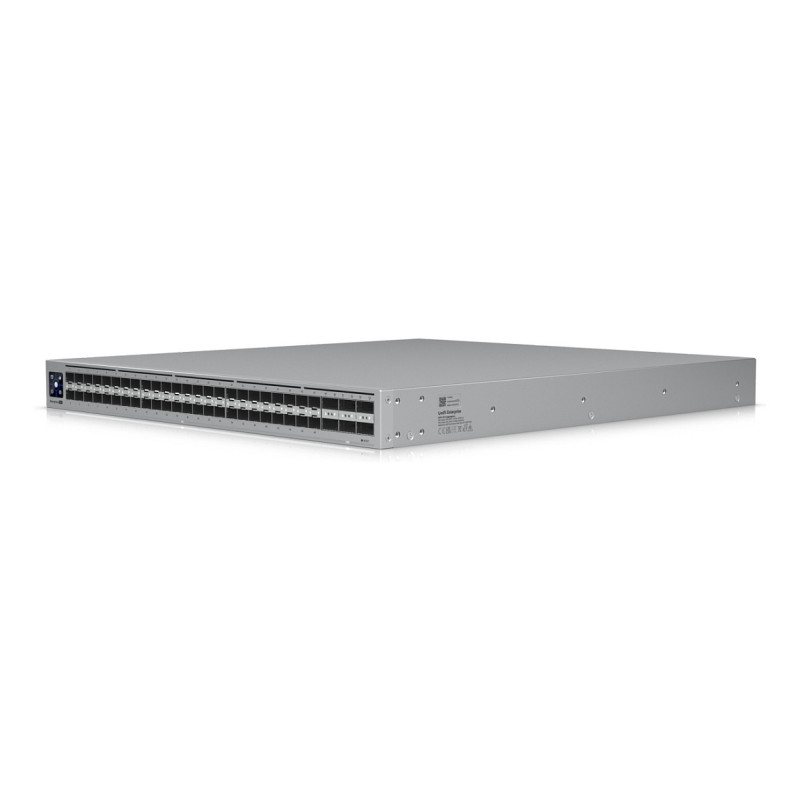

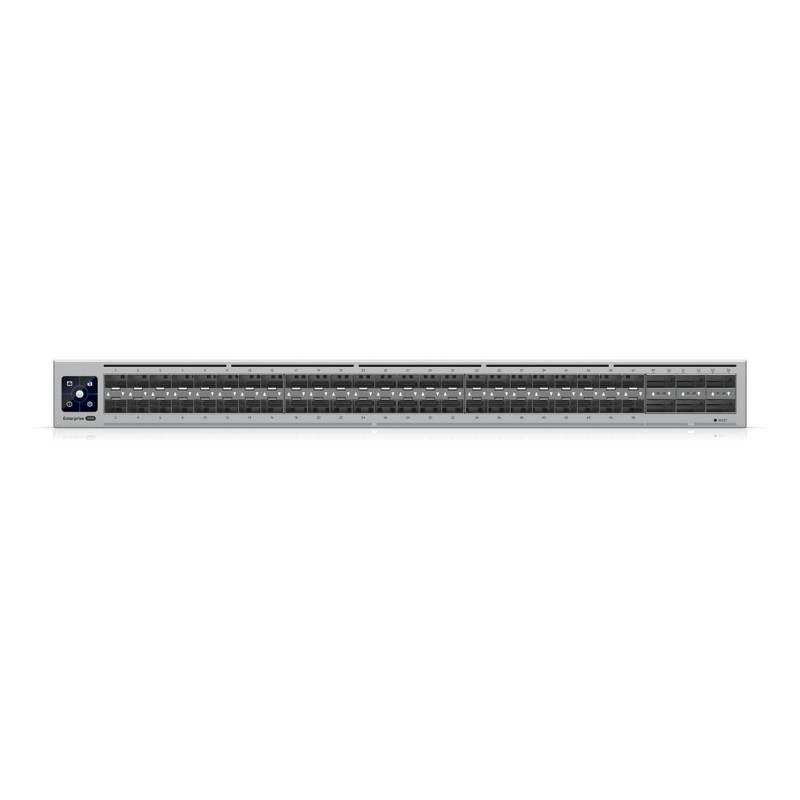

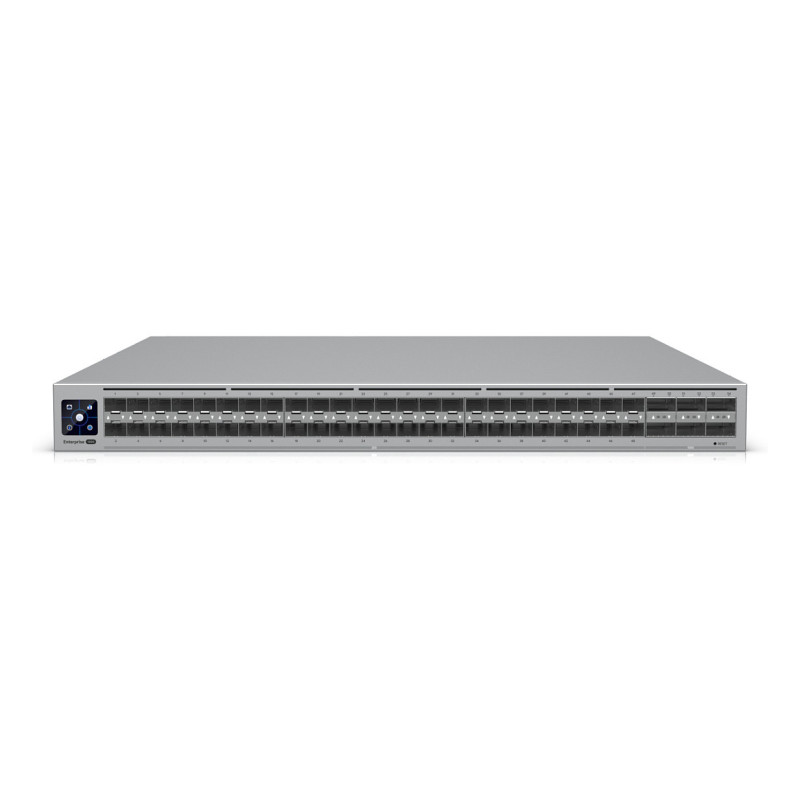

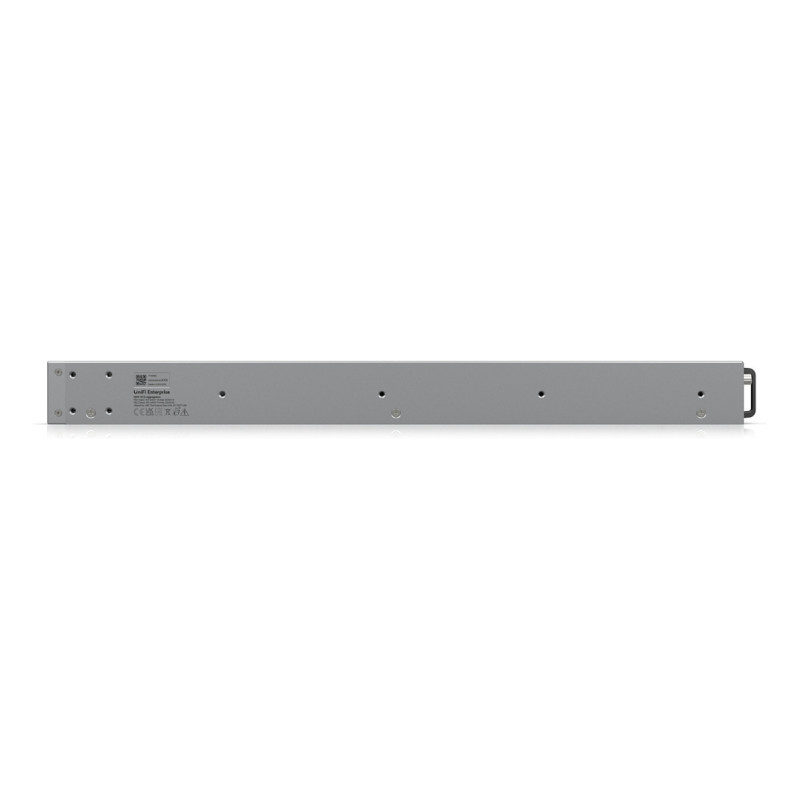

Ubiquiti UniFi ECS-Aggregation

Ubiquiti UniFi ECS-Aggregation. Switch type: Managed, Switch layer: L2/L3. Switching capacity: 3600 Gbit/s. Rack mounting, Form factor: 1U

1.8 Tbps high-density 100G/25G Layer 3 Etherlighting™ aggregation switch with MC-LAG support for high availability system design.

Management features

Switch type: Managed
Switch layer: L2/L3

Ports & interfaces

Basic switching RJ-45 Ethernet ports type: No
QSFP28 ports quantity: 6
SFP28 ports quantity: 48

Network

Feature: 10G support
Feature: Port mirroring
Feature: Flow control support
Feature: Link aggregation
Feature: Broadcast storm control

Data transmission

Switching capacity: 3600 Gbit/s
Throughput: 1800 Gbit/s
Forwarding rate: 2300 Mpps
Feature: Jumbo frames support

Security

DHCP features: DHCP guarding, DHCP relay, DHCP snooping
Feature: IGMP snooping
Feature: MAC address filtering
Feature: Loop protection

Multicast features

Feature: Multicast support

Design

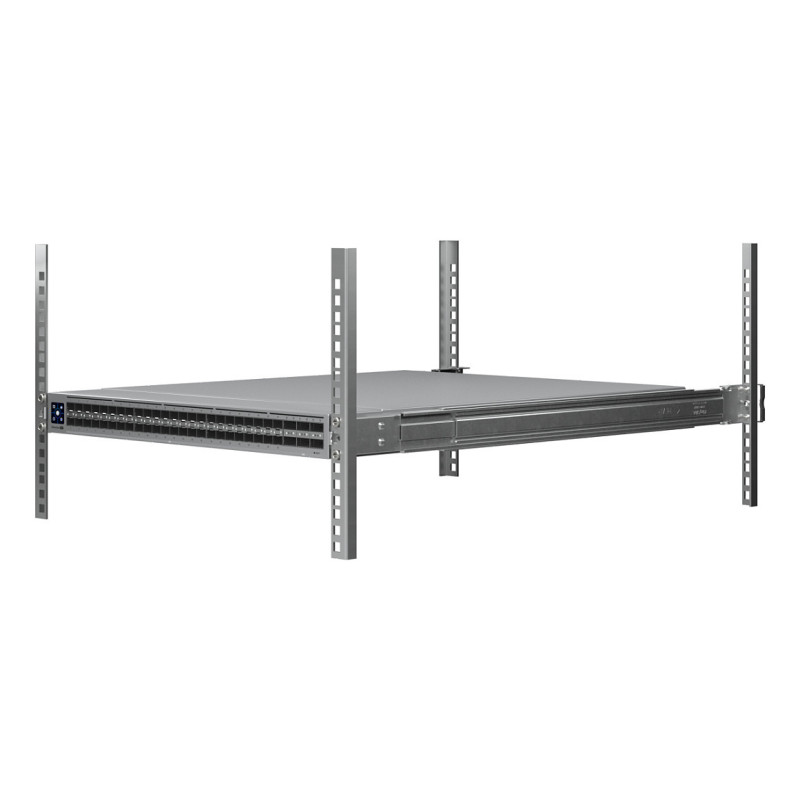

Feature: Rack mounting
Form factor: 1U
Product colour: Grey
LED indicators: Yes

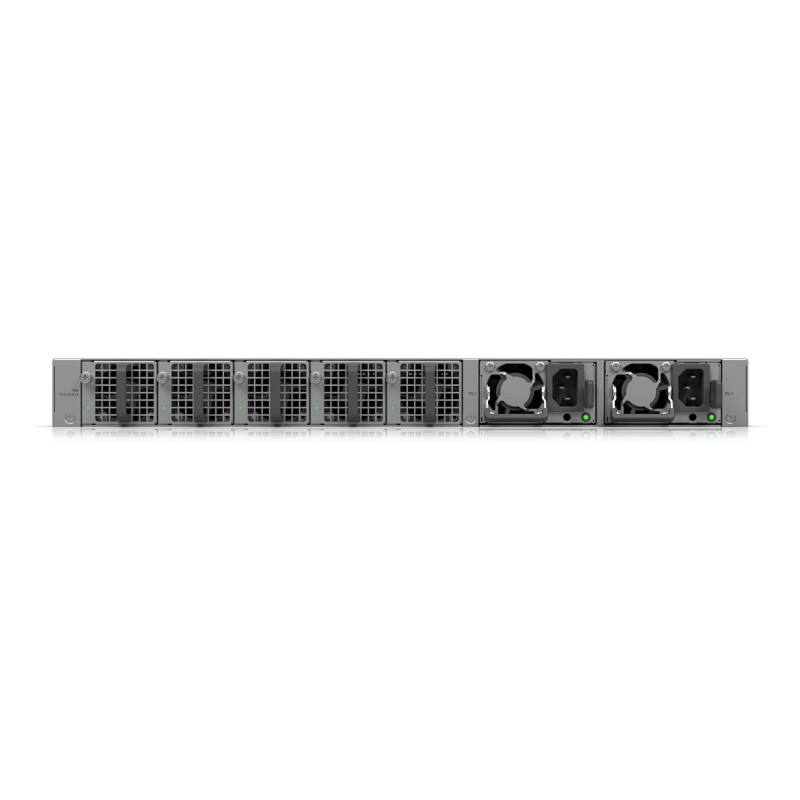

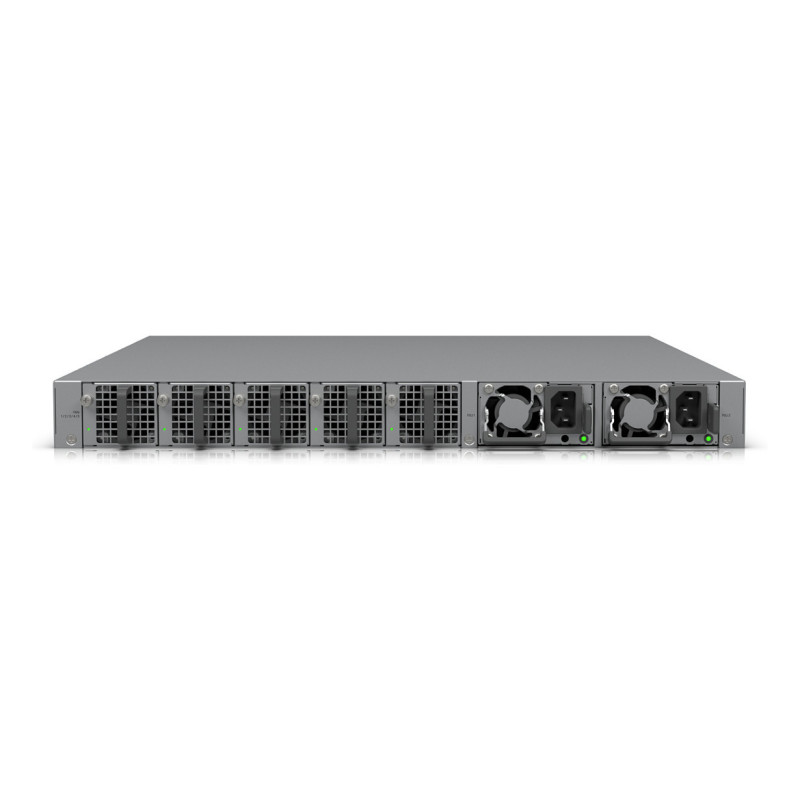

Power

Power source: AC
Feature: Power supply included
Number of power supply units: 2
AC input voltage: 100 - 240 V
Power consumption (max): 340 W

Operational conditions

Operating temperature (T-T): -5 - 40 °C
Operating relative humidity (H-H): 10 - 95%

Weight & dimensions

Width: 442.4 mm
Depth: 496 mm
Height: 43.7 mm
Weight: 9.9 kg
