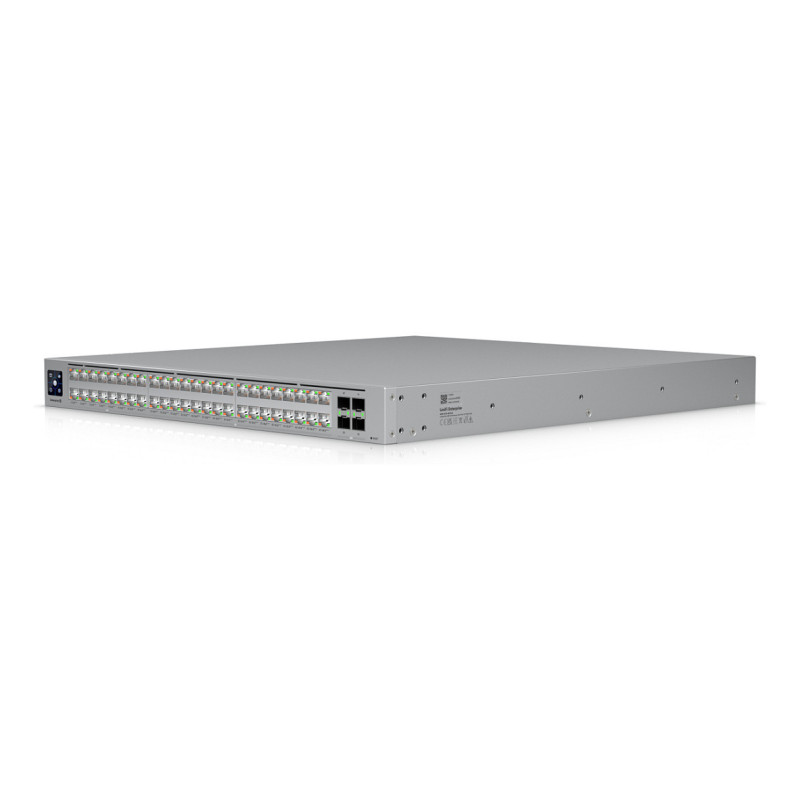

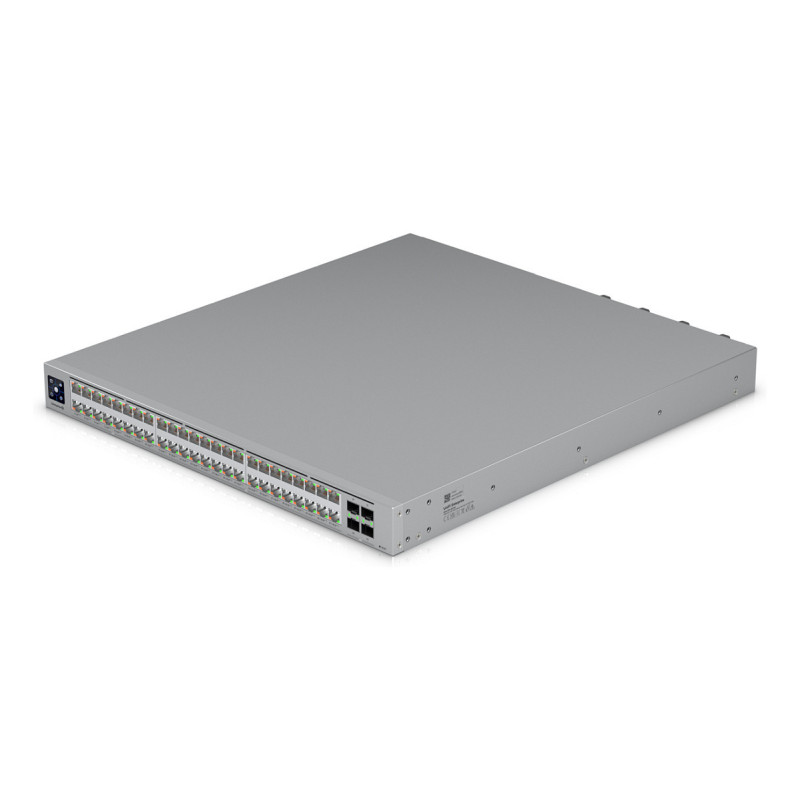

Ubiquiti UniFi ECS-48-PoE

Ubiquiti UniFi ECS-48-PoE. Switch type: Managed, Switch layer: L2/L3. Basic switching RJ-45 Ethernet ports type: 10G Ethernet (100/1000/10000), Basic switching RJ-45 Ethernet ports quantity: 48. MAC address table: 128000 entries, Switching capacity: 920 Gbit/s. Networking standards: IEEE 802.1x, IEEE 802.3bt. Power connector: AC-in jack. Power over Ethernet (PoE). Rack mounting, Form factor: 1U

Enterprise-grade 48-port, Layer 3 Etherlighting™ PoE+++ switch with high-capacity 10 GbE RJ45 and 25G SFP28 connections for high availability system design.

Management features

Switch type: Managed
Switch layer: L2/L3
Feature: Quality of Service (QoS) support

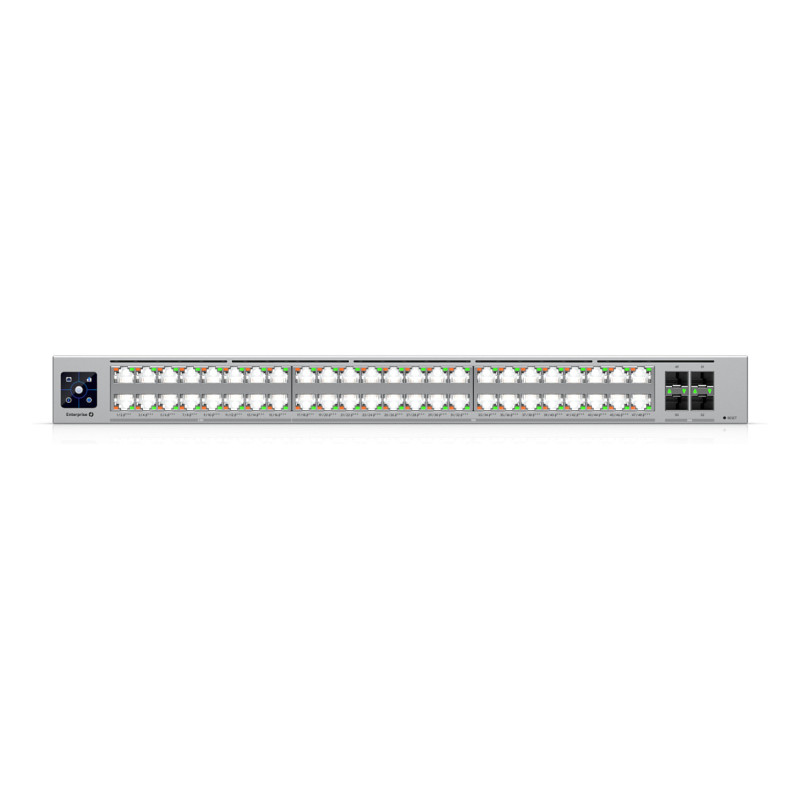

Ports & interfaces

Basic switching RJ-45 Ethernet ports quantity: 48
Basic switching RJ-45 Ethernet ports type: 10G Ethernet (100/1000/10000)
2.5G Ethernet (copper) ports quantity: 16
10G Ethernet (copper) ports quantity: 32
SFP module slots quantity: 4
SFP28 ports quantity: 4
Power connector: AC-in jack

Network

Networking standards: IEEE 802.1x, IEEE 802.3bt
Feature: 10G support
Feature: Port mirroring
Feature: Flow control support
Feature: Link aggregation
Feature: Broadcast storm control
Feature: Rate limiting
Ethernet LAN data rates: 10,100,1000,2500,5000,10000 Mbit/s
IPv4 routes: 256000
Feature: VLAN support
Virtual LAN features: Voice VLAN
Number of VLANs: 1000

Data transmission

Switching capacity: 920 Gbit/s
Throughput: 460 Gbit/s
Forwarding rate: 684 Mpps
MAC address table: 128000 entries
Feature: Static route
Feature: Jumbo frames support
Packet buffer memory: 8 MB

Security

DHCP features: DHCP guarding, DHCP relay, DHCP snooping
Feature: IGMP snooping
Feature: Loop protection

Multicast features

Feature: Multicast support

Design

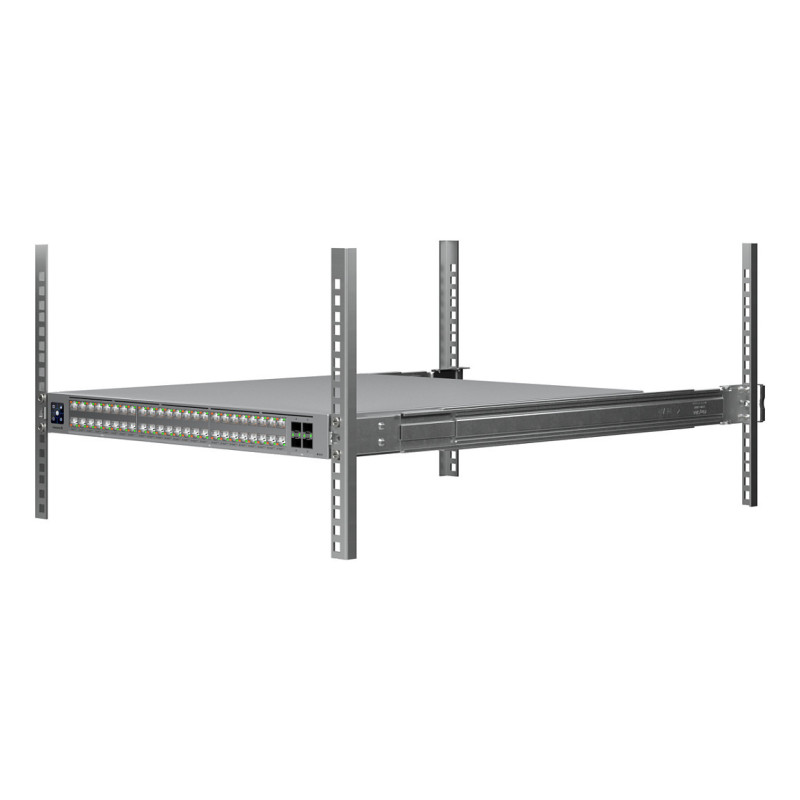

Feature: Rack mounting
Form factor: 1U
Product colour: Grey
Housing material: SGCC
Feature: Reset button
LED indicators: Activity, Link, Status
Feature: Redundant fans support
Display type: LCM
Number of fans: 4 fan(s)

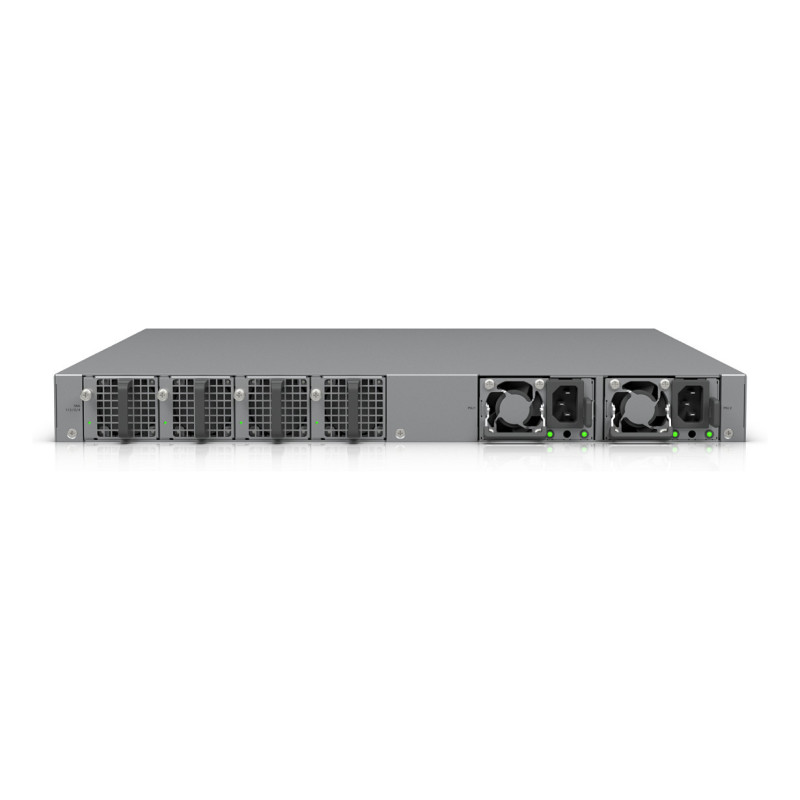

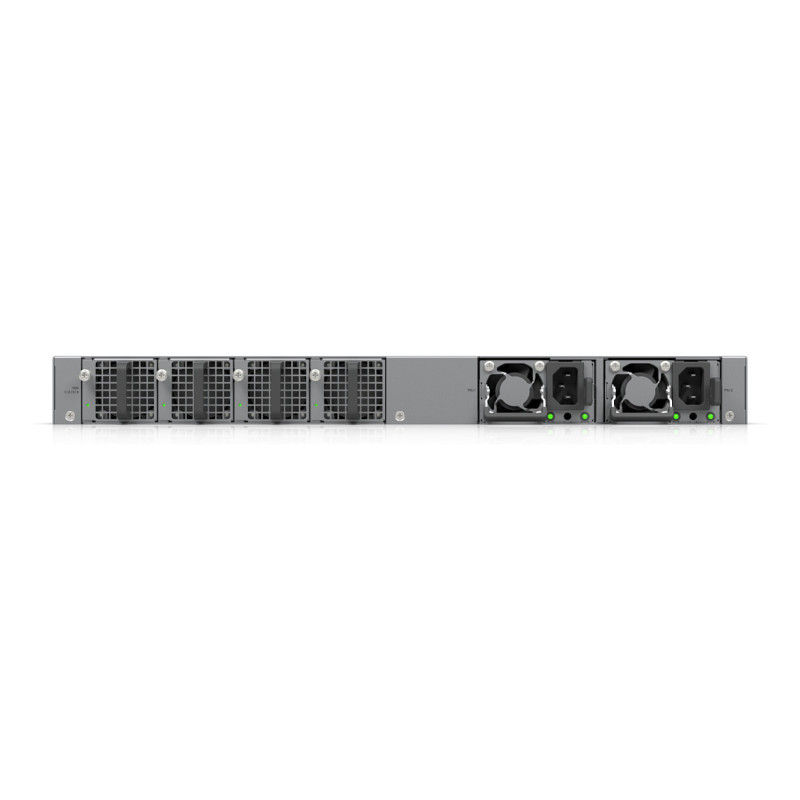

Power

Power source: AC
Feature: Power supply included
Feature: Redundant power supply (RPS) support
Number of power supply units: 2
AC input voltage: 100 - 240 V
AC input frequency: 50/60 Hz
Power consumption (max): 2400 W

Power over Ethernet (PoE)

Feature: Power over Ethernet (PoE)
Power over Ethernet (PoE) type supported: PoE+, PoE++ (4PPoE), PoE+++
Power over Ethernet (PoE) power per port: 90 W
Total Power over Ethernet (PoE) budget: 2150 W

Operational conditions

Operating temperature (T-T): -5 - 40 °C
Operating relative humidity (H-H): 10 - 90%

Weight & dimensions

Width: 442 mm
Depth: 496 mm
Height: 43.7 mm
Weight: 9.46 kg

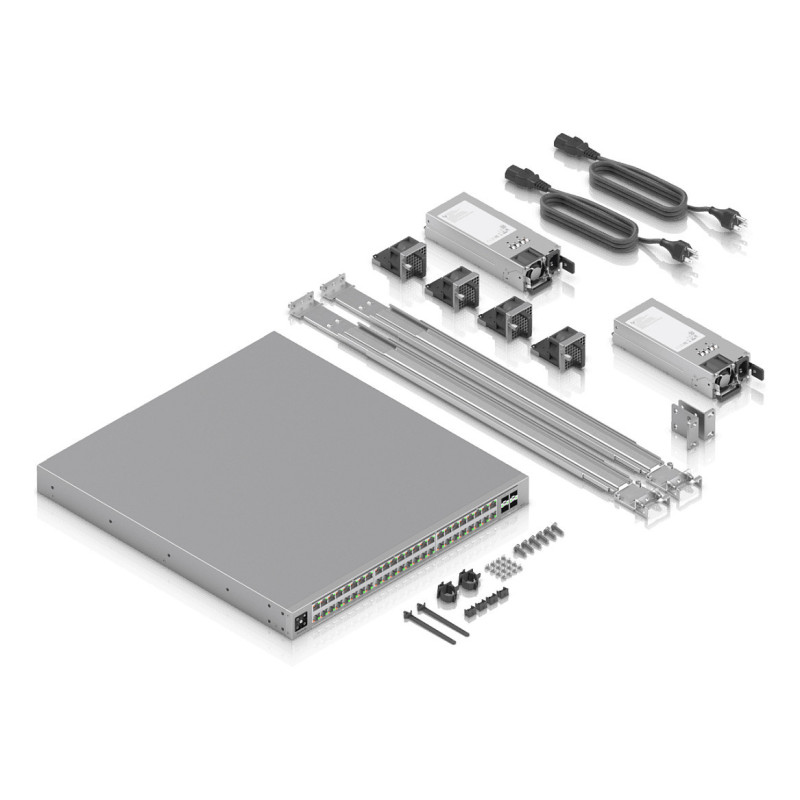

Packaging content

Cables included: Power
Feature: Rack mount kit

Packaging data

Feature: Rack rails
Feature: Mounting brackets included

Certificates

Compliance certificates: CE, Federal Communications Commission (FCC), Industry Canada (IC)
