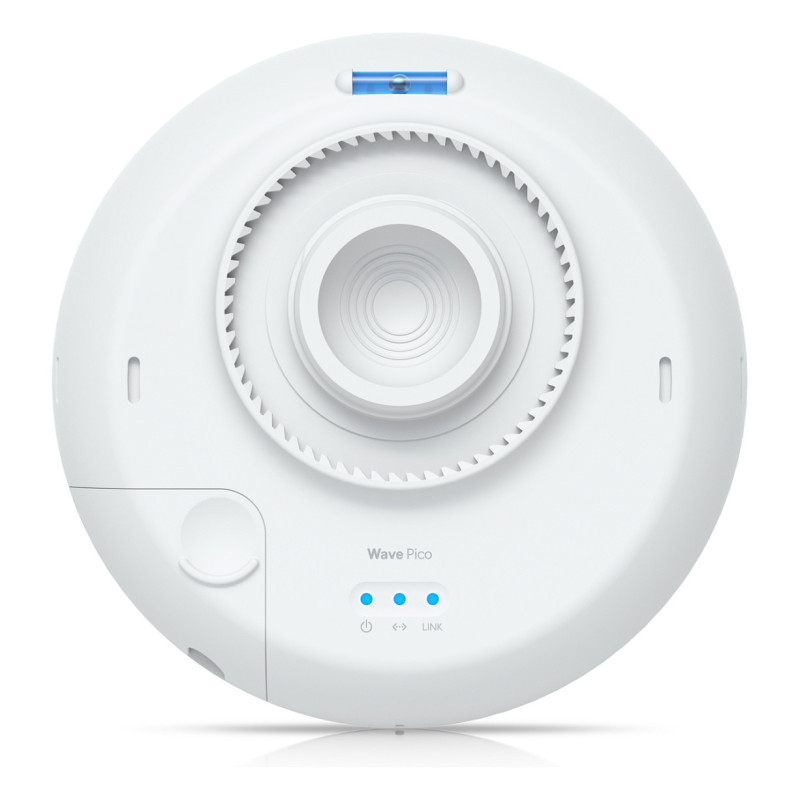

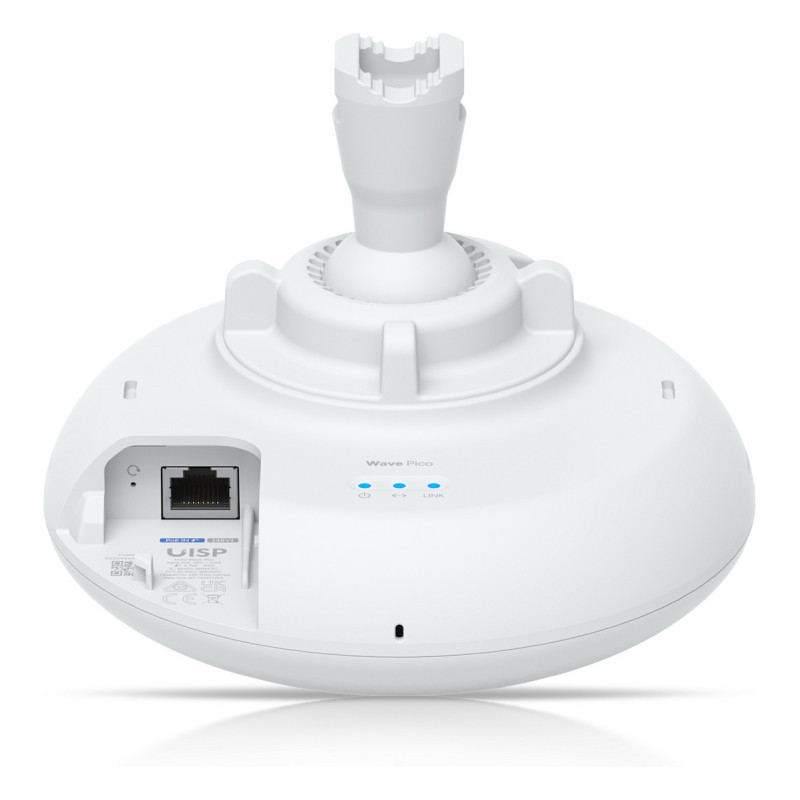

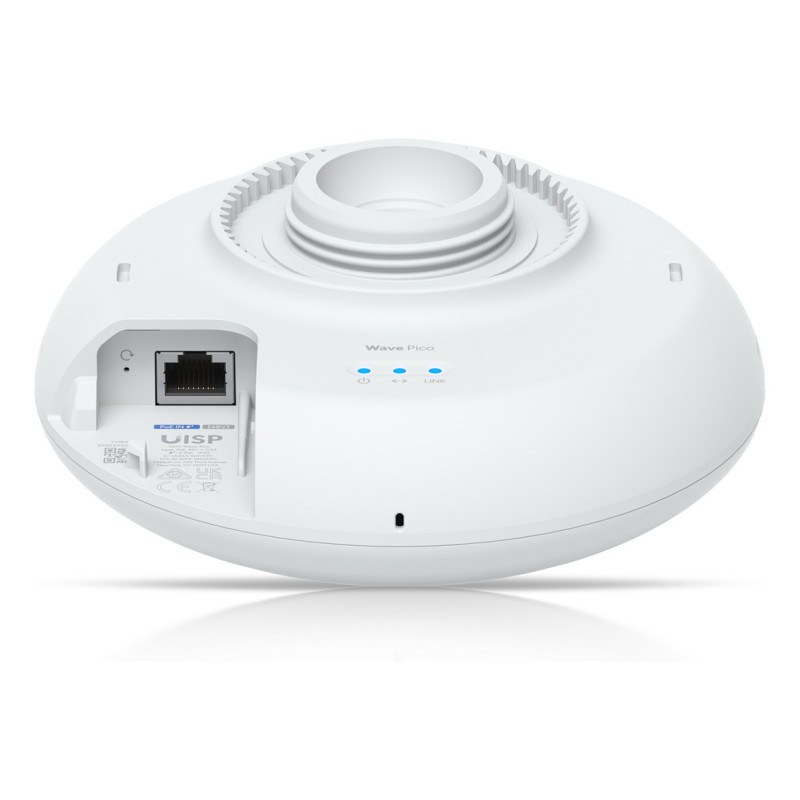

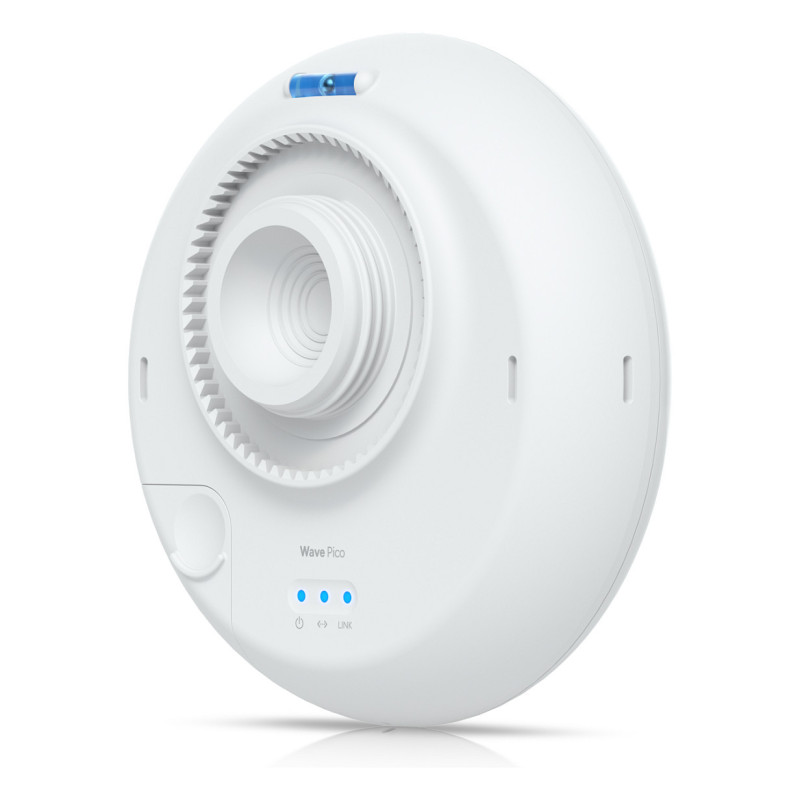

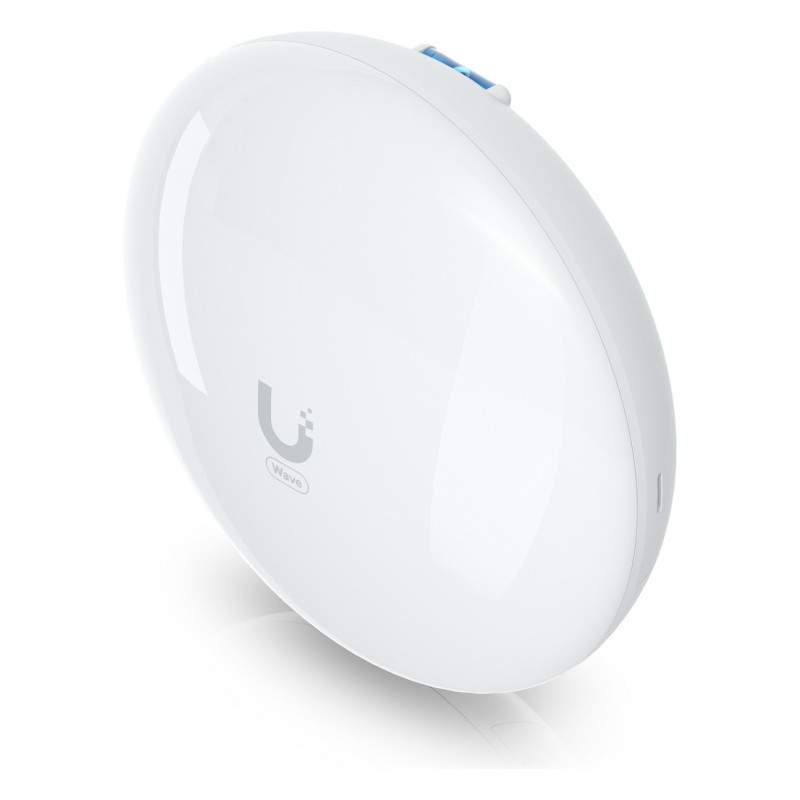

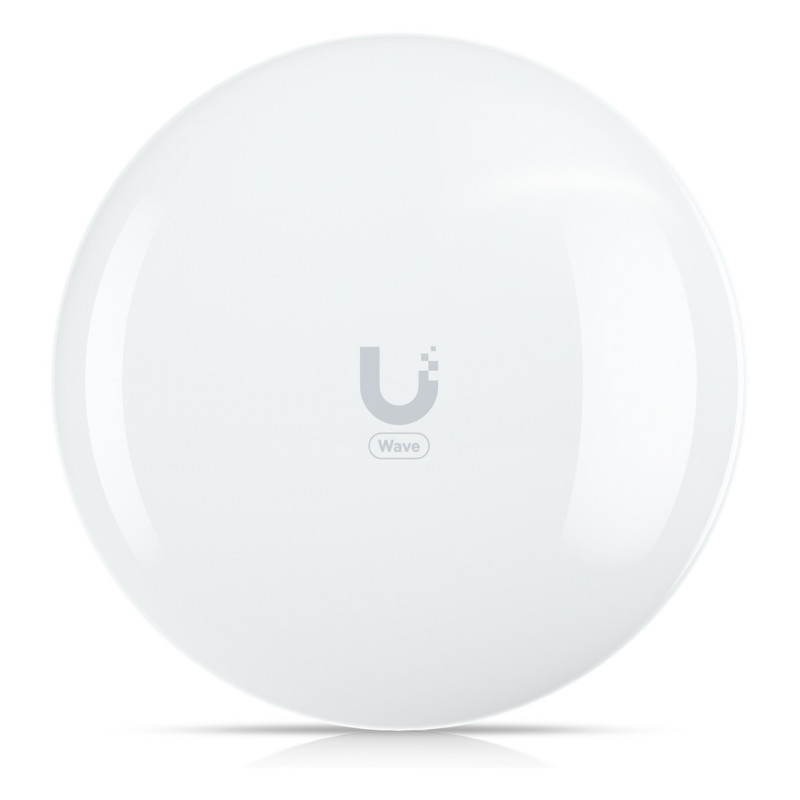

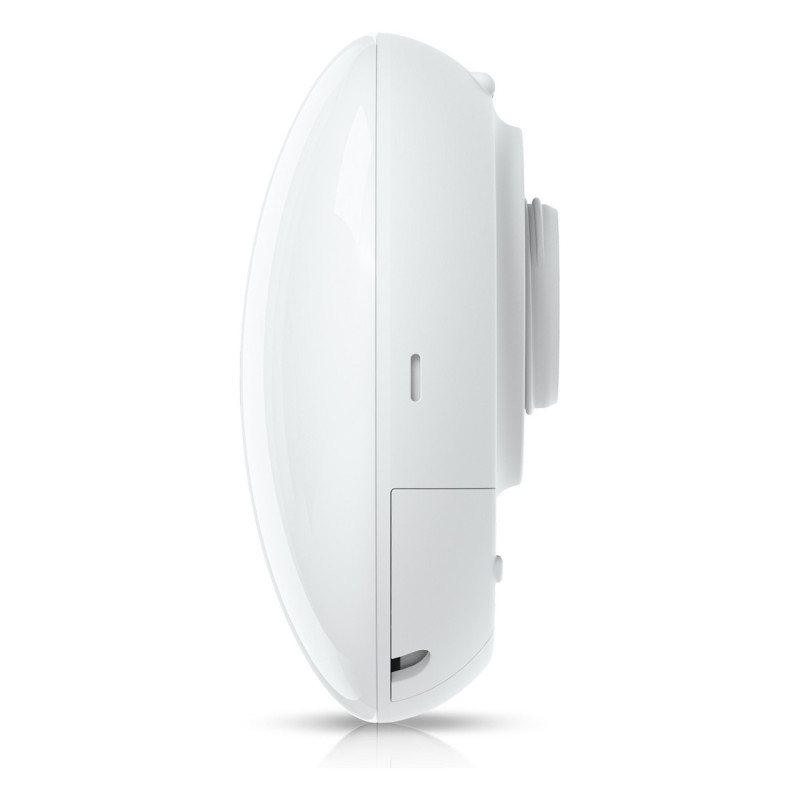

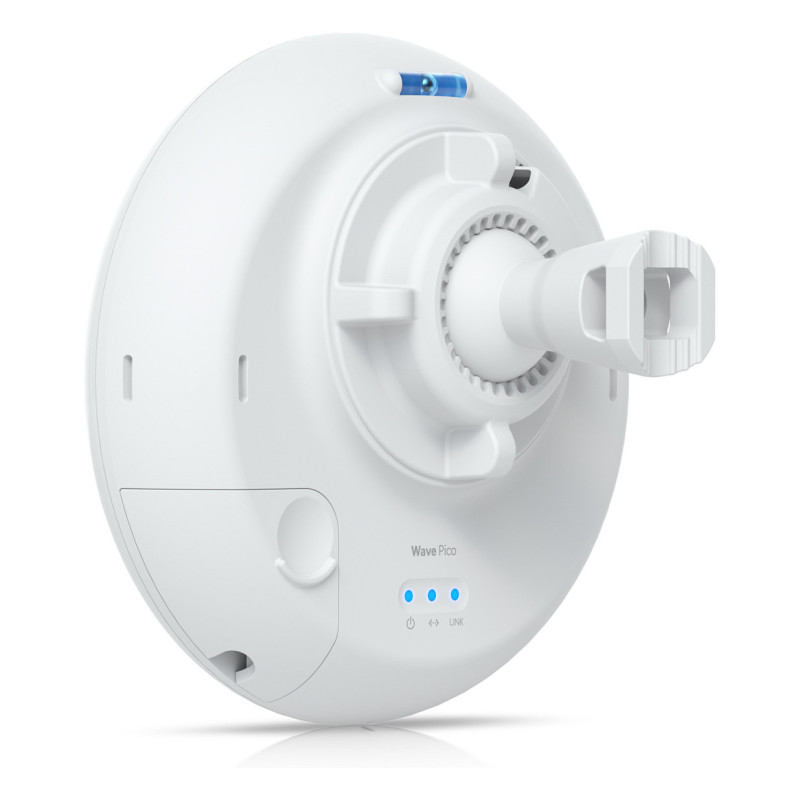

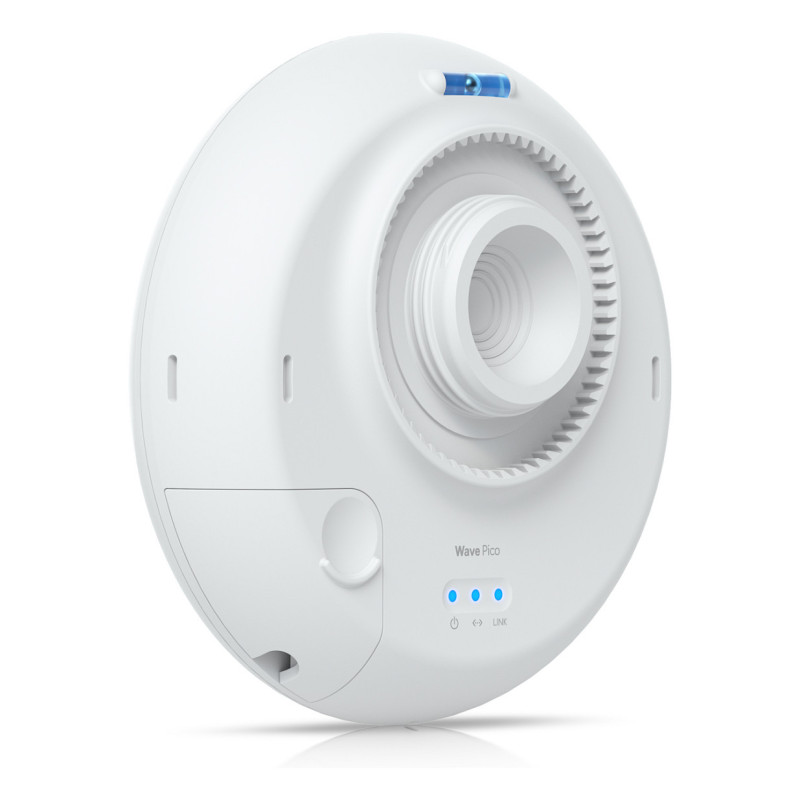

Ubiquiti UISP Wave Pico

Ubiquiti UISP Wave Pico. Maximum data transfer rate: 800 Mbit/s, Maximum transfer distance: 1300 m. Antenna design: Internal, Antenna gain level (max): 27.7 dBi. Wi-Fi band: Single-band (5 GHz), Top Wi-Fi standard: Wi-Fi 6 (802.11ax), Frequency band: 5.18 - 5.875 GHz. Ethernet LAN interface type: Multi-Gigabit Ethernet, Ethernet LAN data rates: 10,100,1000,2000 Mbit/s. Connectivity technology: Wired & Wireless

Lightweight, compact 60 GHz PtMP station powered by Wave Technology.

Data transmission

Maximum data transfer rate: 800 Mbit/s
Maximum transfer distance: 1300 m

Antenna

Antenna design: Internal
Antenna gain level (max): 27.7 dBi

Wireless LAN features

Feature: Wi-Fi
Wi-Fi band: Single-band (5 GHz)
Top Wi-Fi standard: Wi-Fi 6 (802.11ax)
Frequency band: 5.18 - 5.875 GHz
Modulation: 16-QAM, 64-QAM, 256-QAM, 1024-QAM, BPSK, QPSK
Outdoor range: 0.9 - 1.3 km

Network

Feature: Ethernet LAN
Ethernet LAN interface type: Multi-Gigabit Ethernet
Ethernet LAN data rates: 10,100,1000,2000 Mbit/s

Ports & interfaces

Connectivity technology: Wired & Wireless
Ethernet LAN (RJ-45) ports: 1

Security

Security algorithms: SNMP, WPA2-PSK

Features

Product type: Network bridge
Material: Polycarbonate (PC)

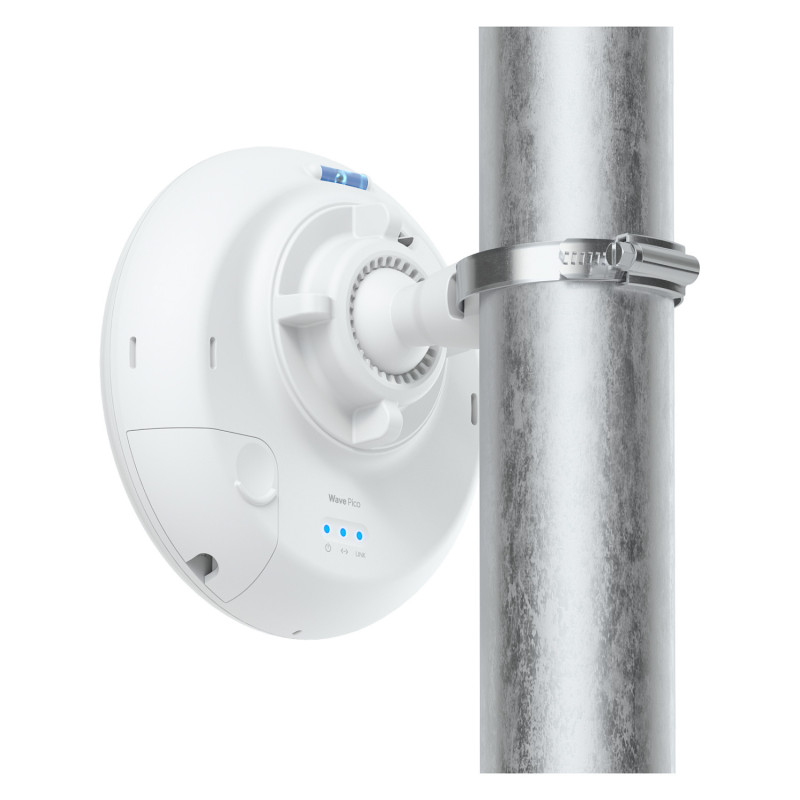

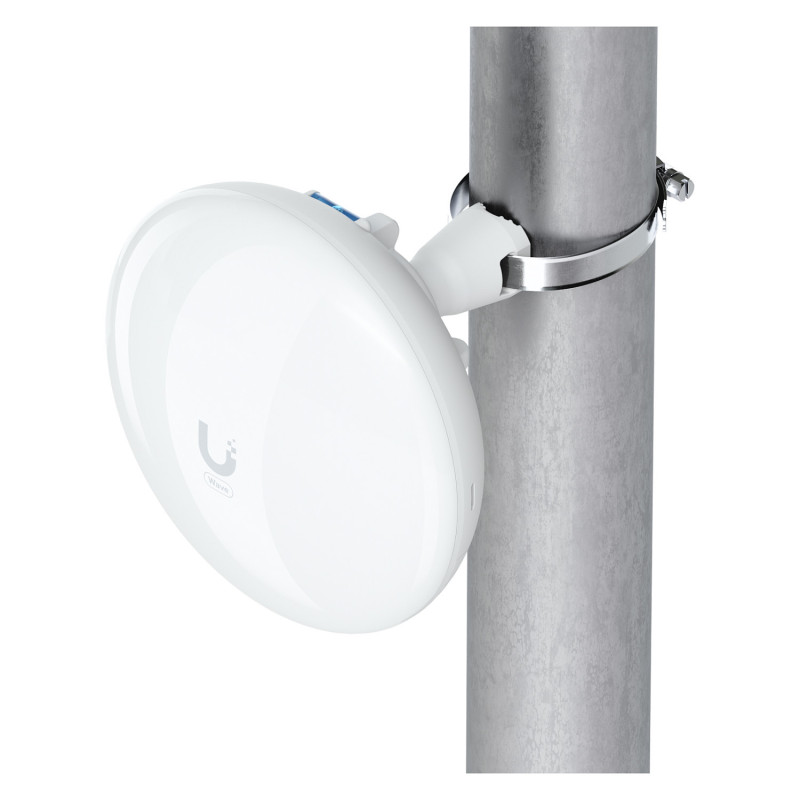

Mounting type: Pole
Product colour: White
LED indicators: LAN, Link, Power, Status
Feature: Power LED
Feature: Reset button
International Protection (IP) code: IPX6
Feature: Network Time Protocol (NTP) client
Processor family: ARM Cortex
Processor model: Cortex-A53
Processor frequency: 1000 MHz
Processor manufacturer: ARM
Internal memory: 512 MB
RAM type: DDR3L

Power

Power source type: PoE
DC input voltage: 44 - 54 V
Power consumption (max): 10 W
Feature: Power over Ethernet (PoE)

Operational conditions

Operating temperature (T-T): -40 - 60 °C
Operating temperature (T-T): -40 - 140 °F
Operating relative humidity (H-H): 5 - 95%

Certificates

Compliance certificates: CE, Federal Communications Commission (FCC)

Weight & dimensions

Width: 152.1 mm
Depth: 55.8 mm
Height: 152.1 mm
Weight: 347 g

Packaging content

Feature: Quick installation guide

Sustainability

Feature: Sustainability compliance

Packaging data

Quantity per pack: 1 pc(s)
