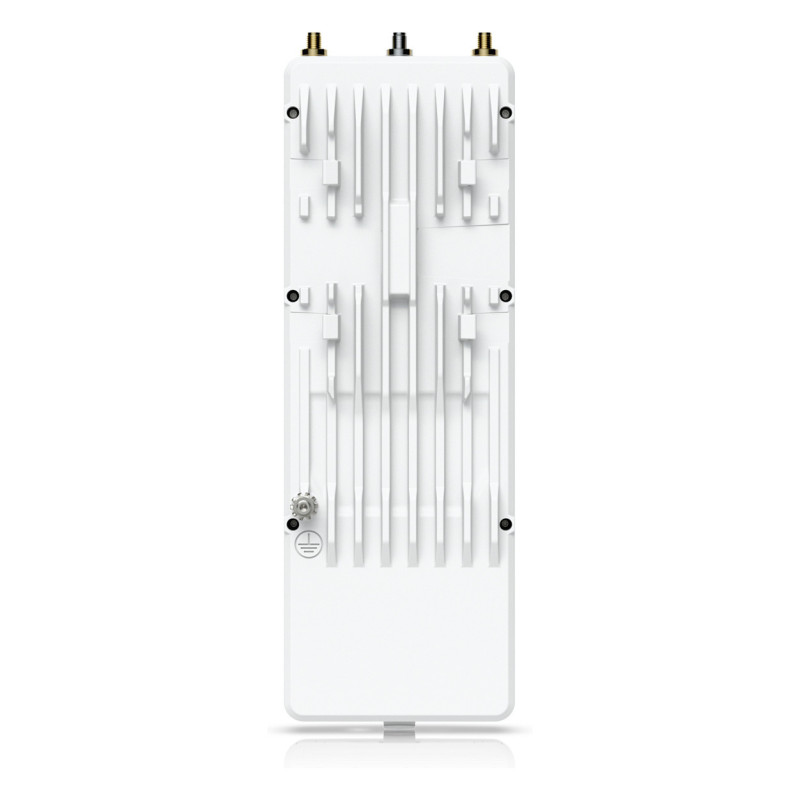

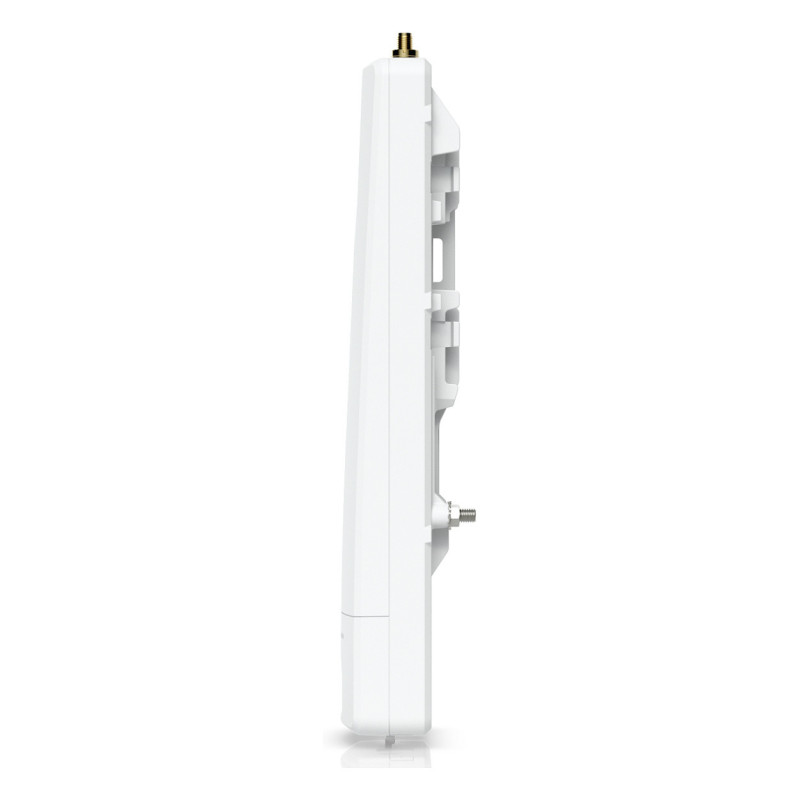

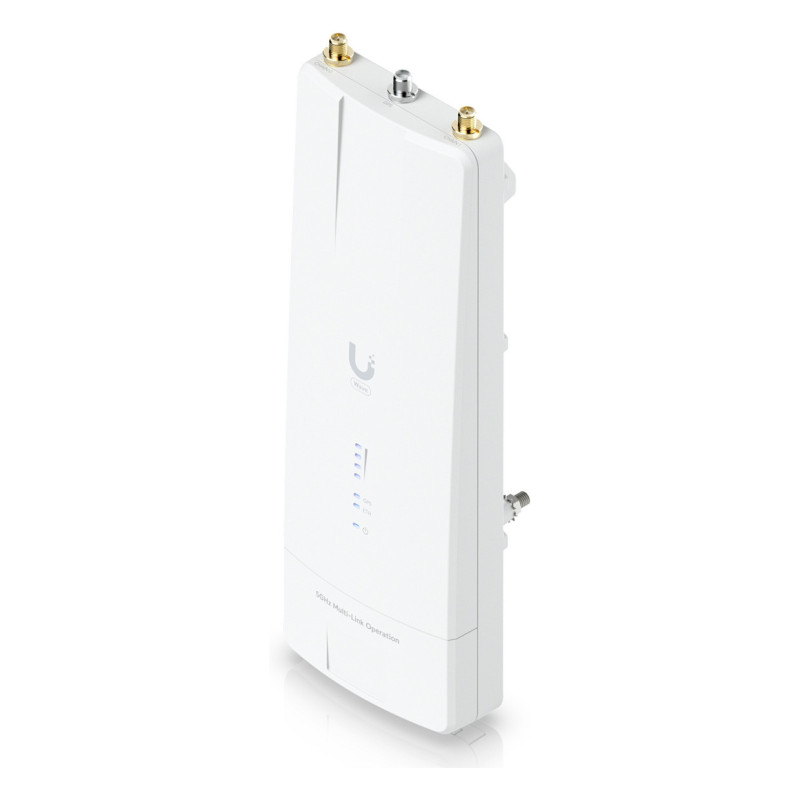

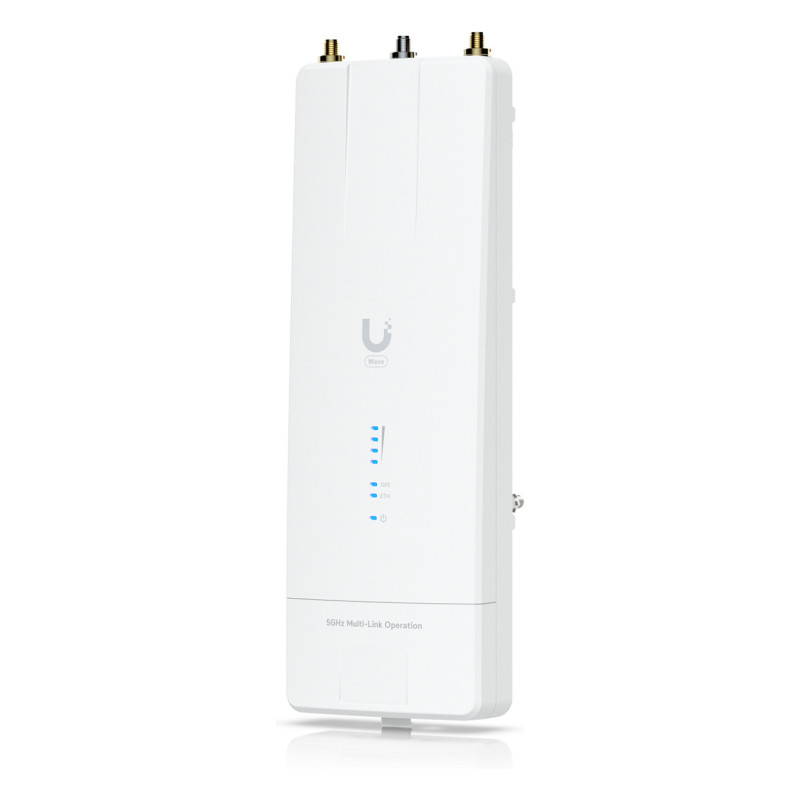

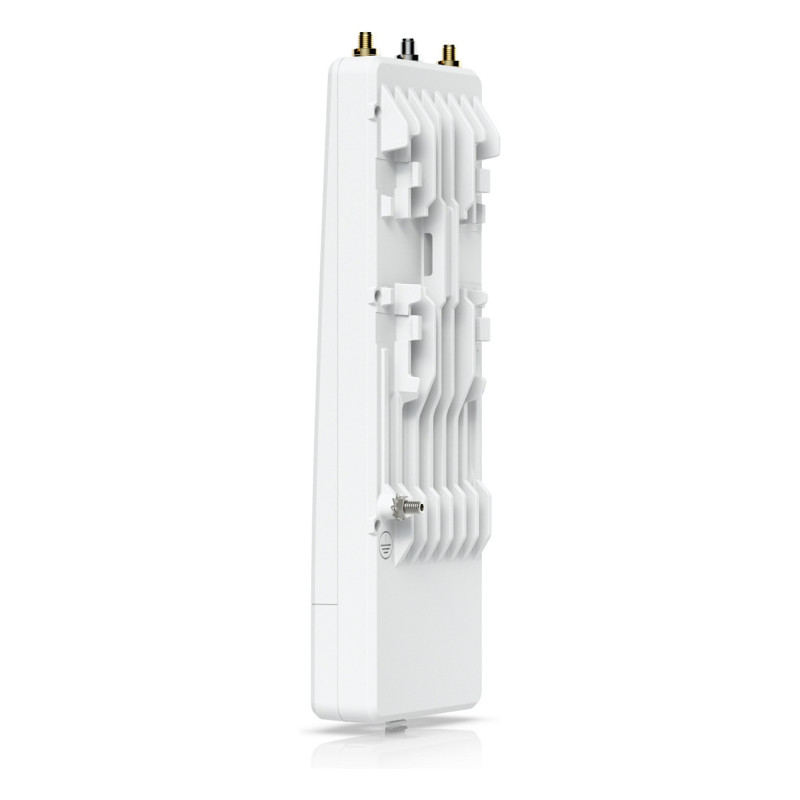

Ubiquiti UISP Wave MLO5

Ubiquiti UISP Wave MLO5. Maximum data transfer rate: 5000 Mbit/s, Maximum transfer distance: 100000 m. Antenna type: 2x2, Antenna connector type: RP-SMA. Wi-Fi band: Single-band (5 GHz), Top Wi-Fi standard: Wi-Fi 7 (802.11be), Frequency band: 5180 - 5320, 5500 - 5700, 5745 - 5825 GHz. Ethernet LAN interface type: 10 Gigabit Ethernet, Ethernet LAN data rates: 10,100,1000,10000 Mbit/s. Connectivity technology: Wired & Wireless

High-performance dual 5 GHz WiFi 7-based radios with Multi-Link Operation (MLO) technology for enhanced throughput and reliable connectivity.

Data transmission

Maximum data transfer rate: 5000 Mbit/s
Maximum transfer distance: 100000 m

Antenna

Antenna type: 2x2

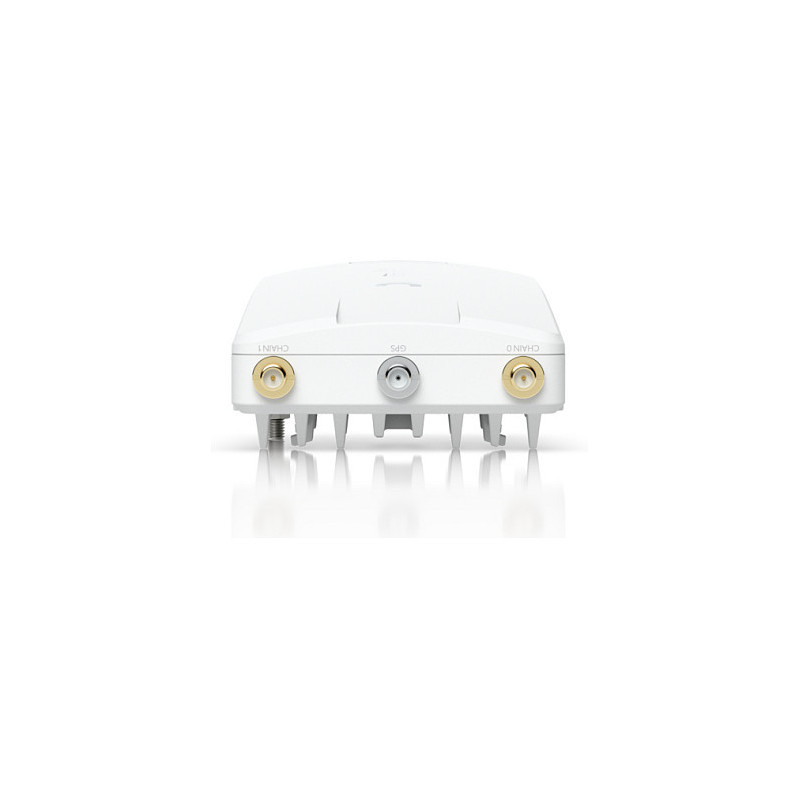

Antenna connector type: RP-SMA
Antennas quantity: 2

Wireless LAN features

Feature: Wi-Fi
Wi-Fi band: Single-band (5 GHz)
Top Wi-Fi standard: Wi-Fi 7 (802.11be)
Frequency band: 5180 - 5320, 5500 - 5700, 5745 - 5825 GHz
Modulation: 16-QAM, 64-QAM, 256-QAM, 1024-QAM, 4096-QAM, BPSK, QPSK
Outdoor range: 100 km

Network

Feature: Ethernet LAN
Ethernet LAN interface type: 10 Gigabit Ethernet
Ethernet LAN data rates: 10,100,1000,10000 Mbit/s

Ports & interfaces

Connectivity technology: Wired & Wireless

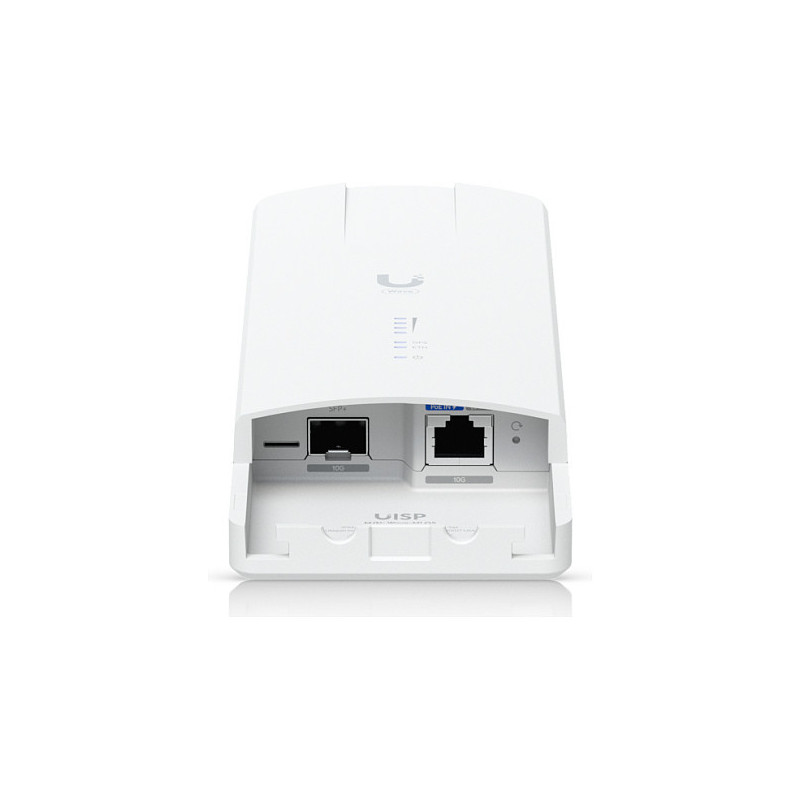

Ethernet LAN (RJ-45) ports: 1

Security

Security algorithms: AES, WPA3-PSK

Features

Product type: Network bridge
Material: Aluminium, Polycarbonate (PC)
Mounting type: Pole
Product colour: White
LED indicators: GPS, LAN, Power, Signal strength, Status
Feature: Power LED
Feature: Reset button
International Protection (IP) code: IPX6
Feature: Network Time Protocol (NTP) client
Processor family: ARM Cortex
Processor model: Cortex-A53
Processor frequency: 1500 MHz
Processor manufacturer: ARM
Internal memory: 1000 MB
RAM type: DDR4

Power

Power source type: PoE
DC input voltage: 44 - 54 V
Power consumption (max): 20 W
Feature: Power over Ethernet (PoE)

Operational conditions

Operating temperature (T-T): -40 - 60 °C
Operating temperature (T-T): -40 - 140 °F
Operating relative humidity (H-H): 5 - 95%

Certificates

Compliance certificates: CE, Federal Communications Commission (FCC), Industry Canada (IC)

Weight & dimensions

Width: 82 mm
Depth: 47.6 mm
Height: 249.3 mm
Weight: 575 g

Packaging data

Quantity per pack: 1 pc(s)
