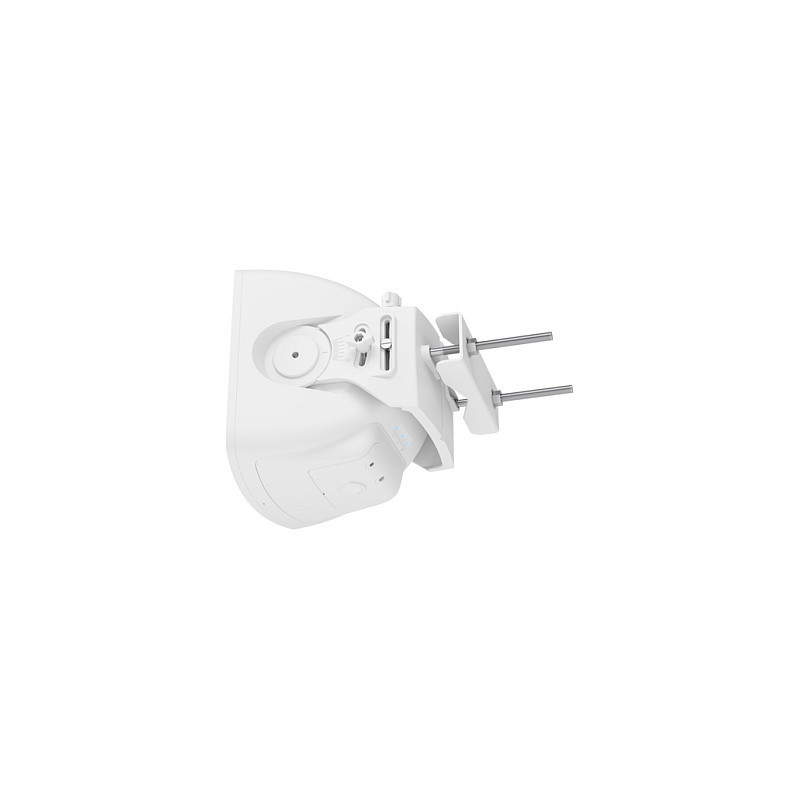

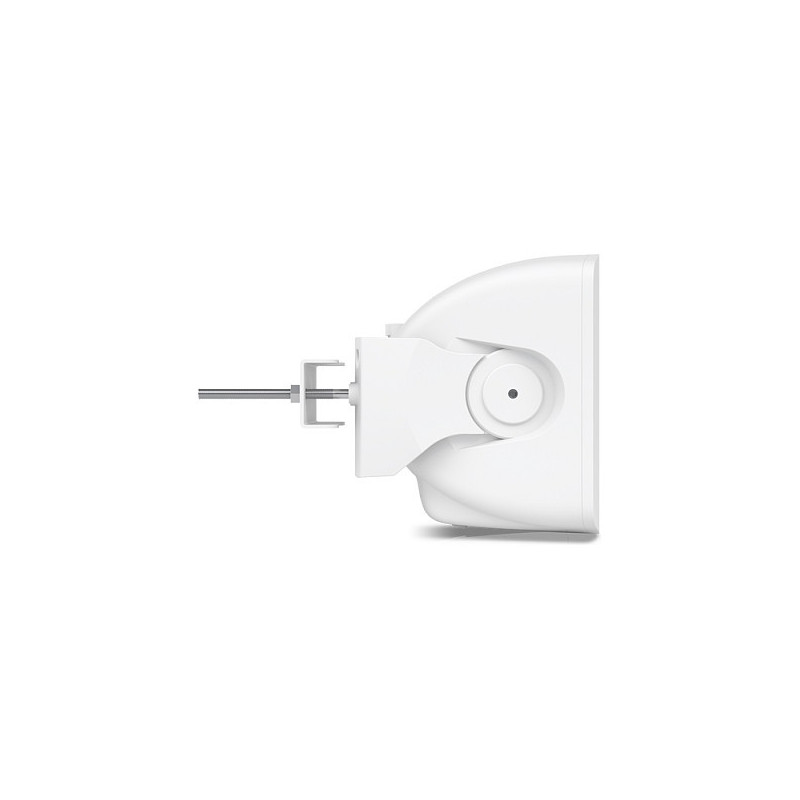

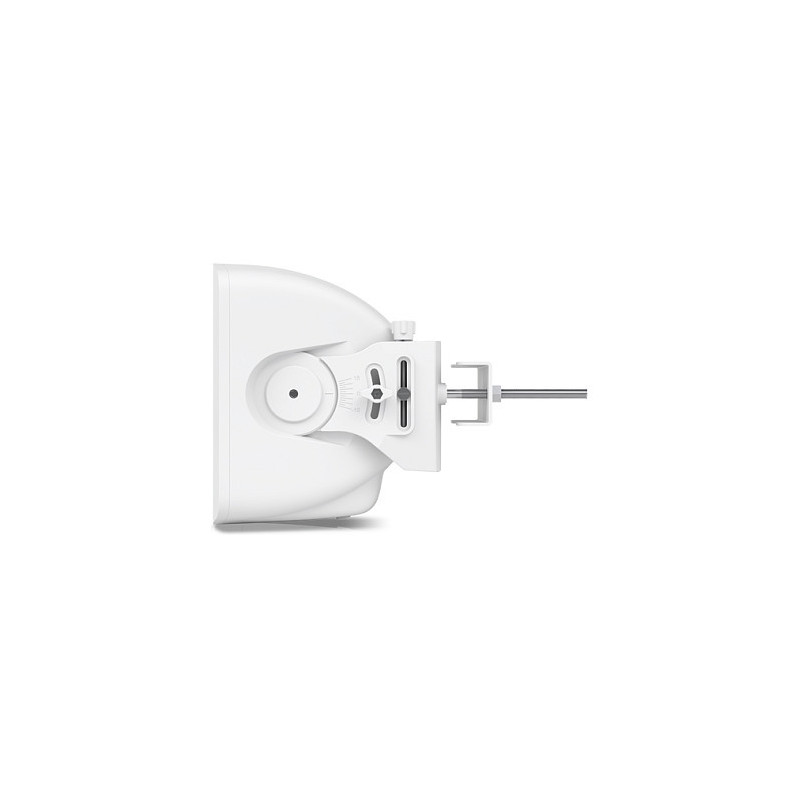

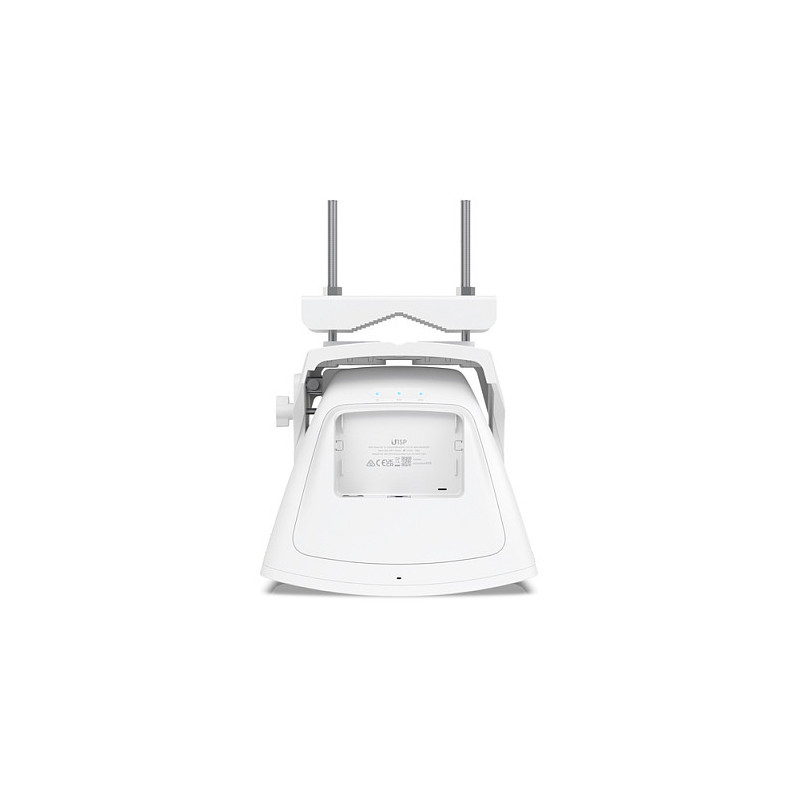

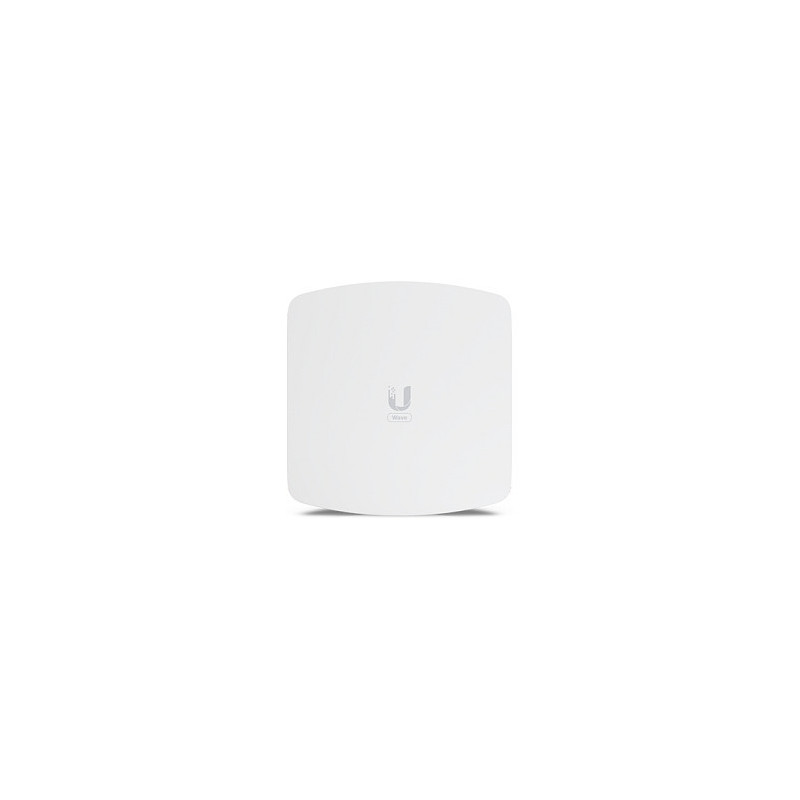

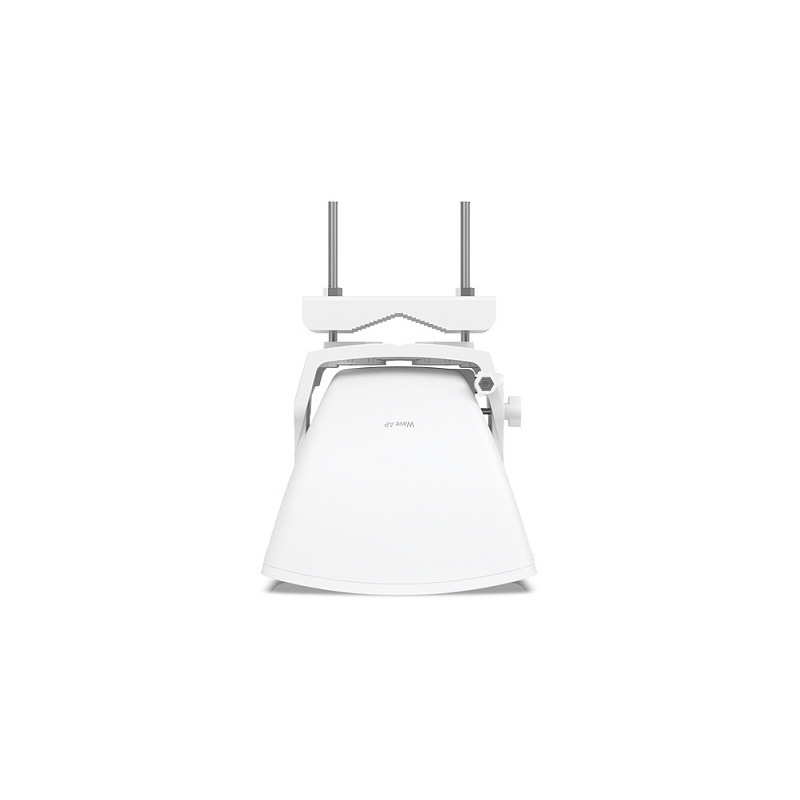

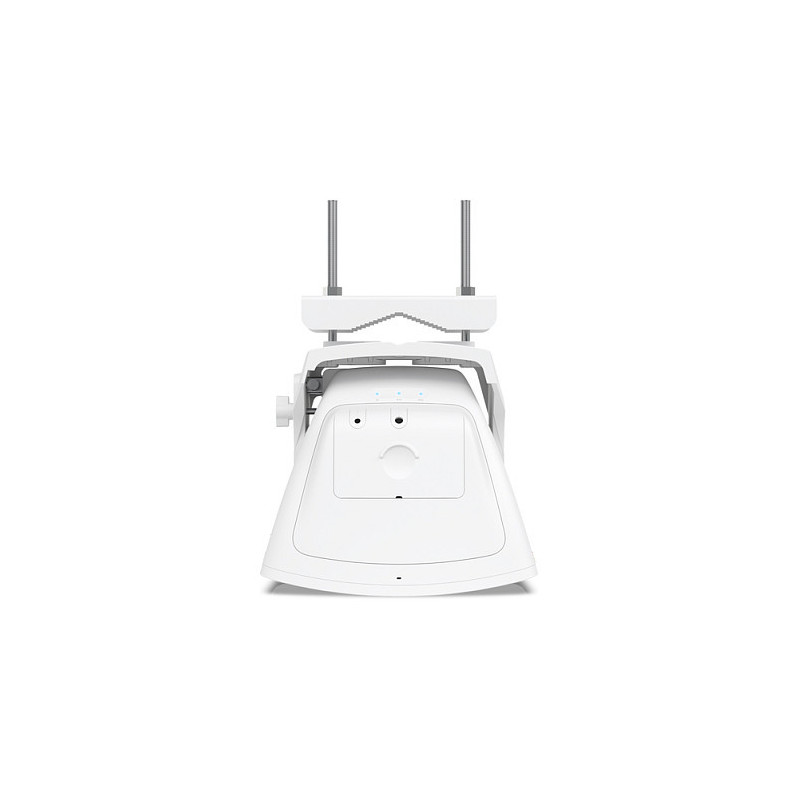

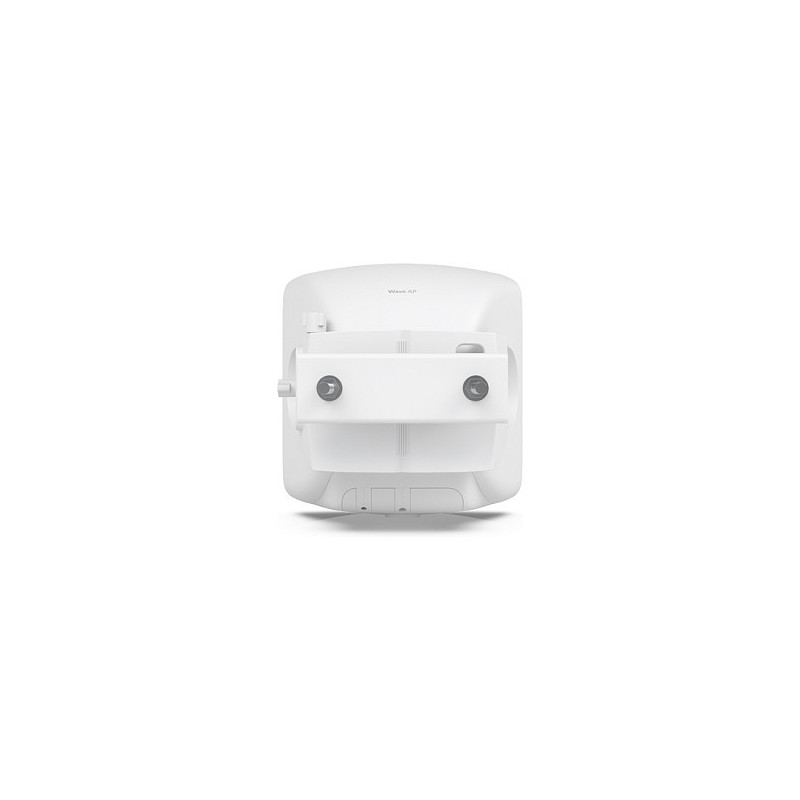

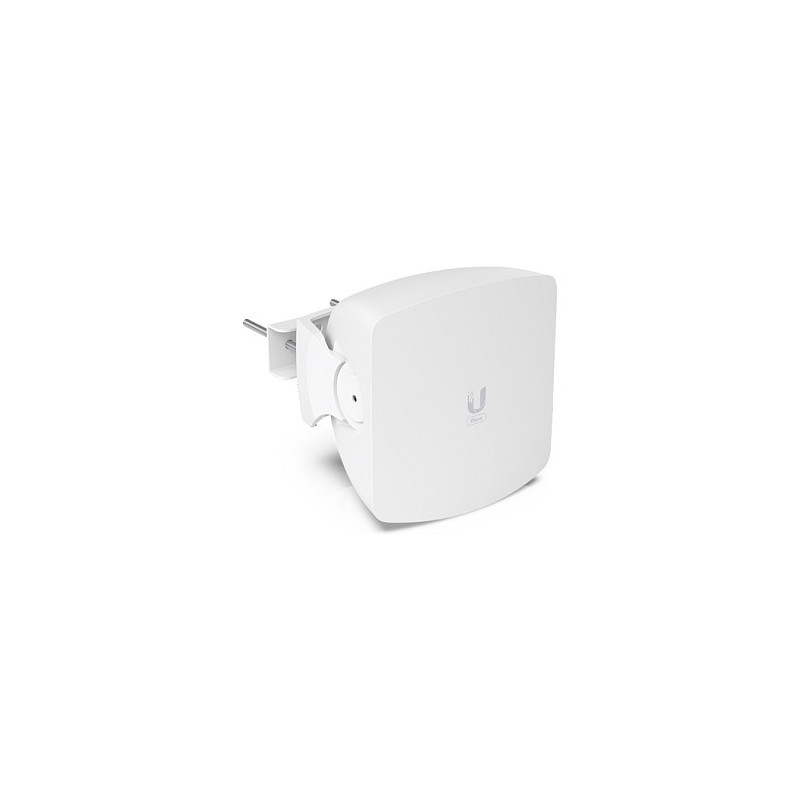

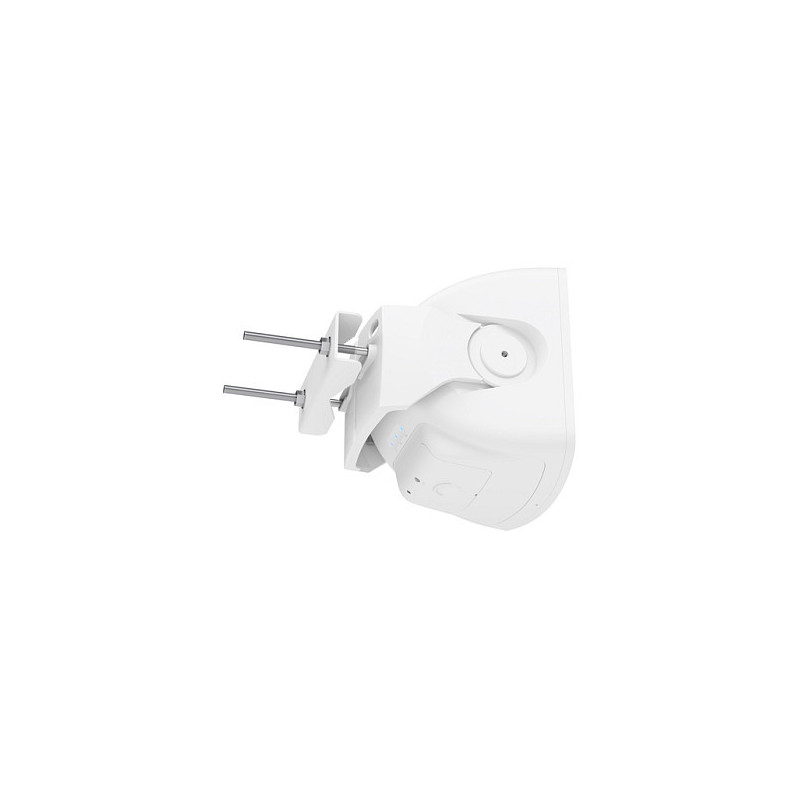

Ubiquiti UISP Wave Access Point

Ubiquiti UISP Wave Access Point. Maximum data transfer rate: 5400 Mbit/s. Antenna type: Internal, Antenna gain level (max): 24 dBi. Frequency band: 57 - 71 GHz, Modulation: 16-QAM, 64-QAM, 256-QAM, 1024-QAM, BPSK, QPSK. Ethernet LAN data rates: 100,1000,2500,10000 Mbit/s. Security algorithms: AES, WPA2-PSK

60 GHz PtMP access point powered by Wave Technology.

The Wave Access Point can connect up to 15 stations and deliver up to 5.4 Gbps total throughput (2.7 Gbps duplex). It is equipped with a high-performance 5 GHz backup radio to ensure uninterrupted connection, as well as a Bluetooth radio to simplify setup in the UISP® Mobile app.

Data transmission

Maximum data transfer rate: 5400 Mbit/s

Antenna

Antenna type: Internal
Antenna gain level (max): 24 dBi

Wireless LAN features

Frequency band: 57 - 71 GHz
Modulation: 16-QAM, 64-QAM, 256-QAM, 1024-QAM, BPSK, QPSK

Network

Ethernet LAN data rates: 100,1000,2500,10000 Mbit/s
Feature: Full duplex

Ports & interfaces

Ethernet LAN (RJ-45) ports: 1

Security

Security algorithms: AES, WPA2-PSK

Management features

Management protocols: SNMP
Feature: Web-based management

Features

Product colour: White
LED indicators: Yes
Feature: Reset button
International Protection (IP) code: IPX6
Processor frequency: 1400 MHz
Internal memory: 512 MB

Power

Power consumption (max): 24 W
Feature: Power over Ethernet (PoE)

Operational conditions

Operating temperature (T-T): -40 - 60 °C
Operating relative humidity (H-H): 5 - 95%

Certificates

Compliance certificates: CE
Certification: FCC, IC

Weight & dimensions

Width: 212 mm
Depth: 187 mm
Height: 205 mm
Weight: 2.3 kg

Sustainability

Feature: Sustainability compliance
