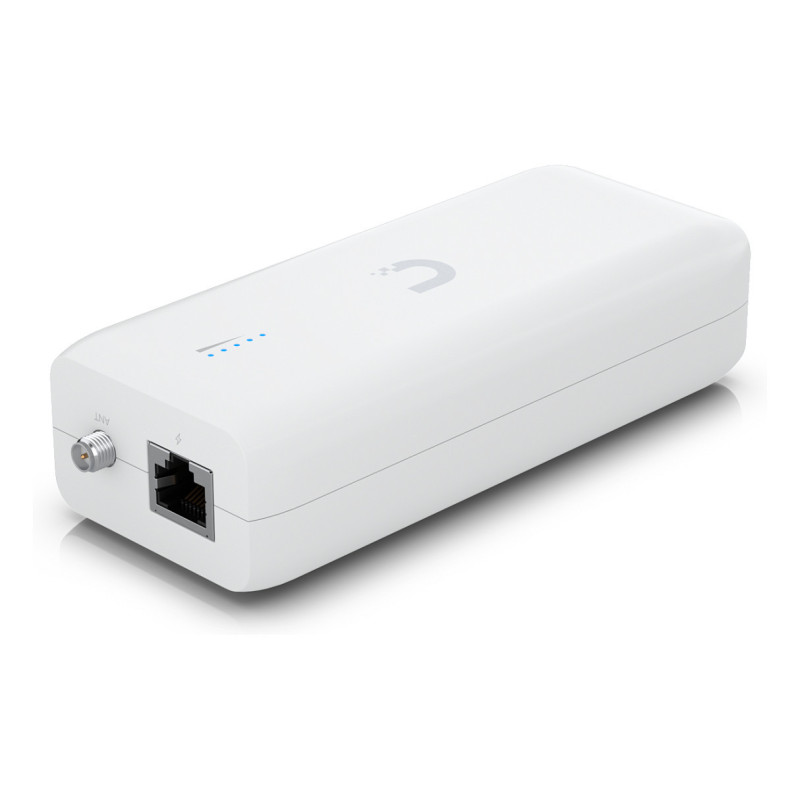

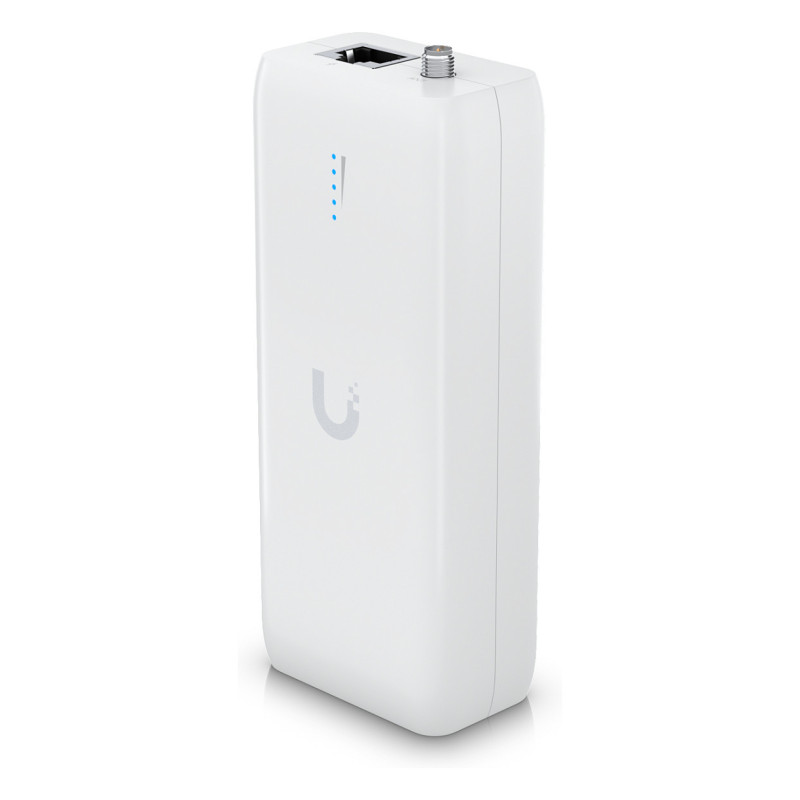

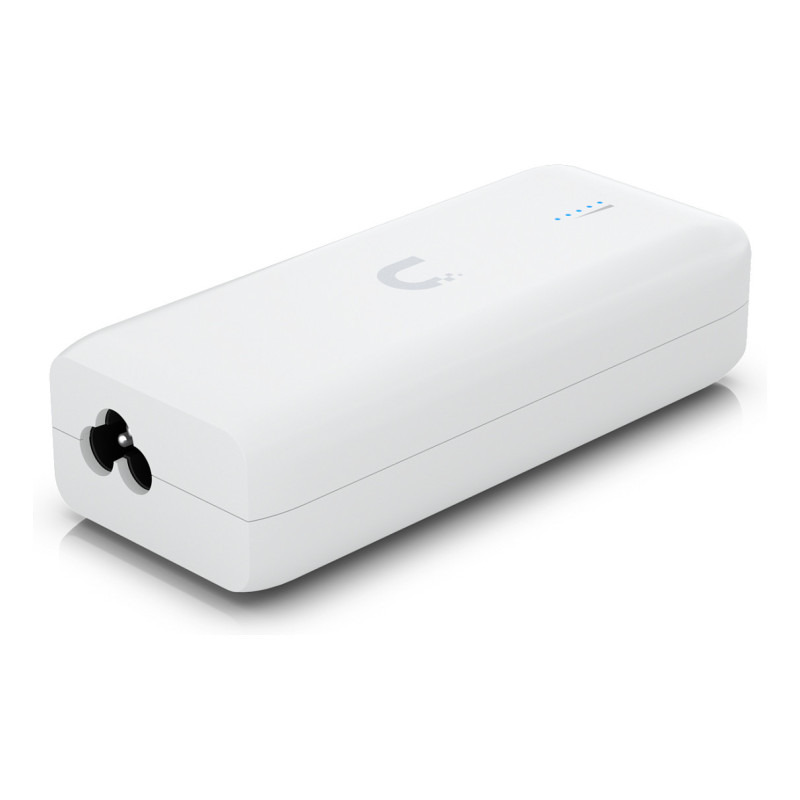

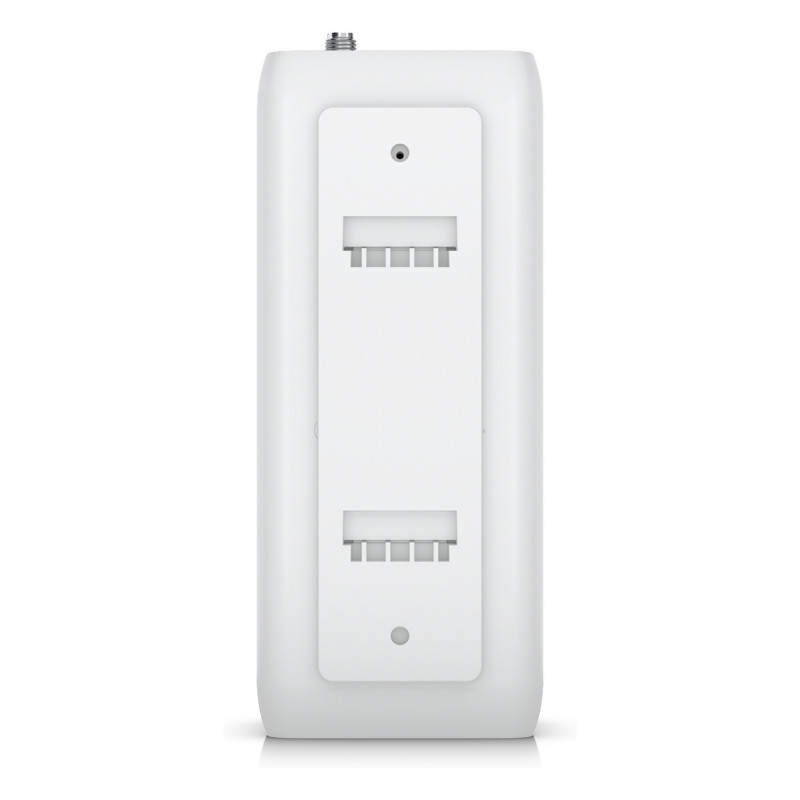

Ubiquiti UDB bridge / repeater

Ubiquiti UDB. Maximum data transfer rate: 866.7 Mbit/s. Antenna design: Internal & external, Antenna type: 2x2, Antenna connector type: RP-SMA. Wi-Fi band: Single-band (5 GHz), Top Wi-Fi standard: Wi-Fi 5 (802.11ac), Frequency band: 5 GHz. Ethernet LAN interface type: Gigabit Ethernet, Ethernet LAN data rates: 10,100,1000 Mbit/s, Networking standards: IEEE 802.11a, IEEE 802.11ac, IEEE 802.11n. Connectivity technology: Wired & Wireless

Plug-and-play, wireless bridging PoE adapter with integrated UniFi WiFi Auto-Link.

Data transmission

Maximum data transfer rate: 866.7 Mbit/s

Antenna

Antenna design: Internal & external
Antenna type: 2x2
Antenna connector type: RP-SMA
Antenna gain level (max): 5 dBi

Wireless LAN features

Feature: Wi-Fi
Wi-Fi band: Single-band (5 GHz)
Top Wi-Fi standard: Wi-Fi 5 (802.11ac)
Frequency band: 5 GHz
Signal strength: 21 dBm

Network

Feature: Ethernet LAN
Ethernet LAN interface type: Gigabit Ethernet
Ethernet LAN data rates: 10,100,1000 Mbit/s
Networking standards: IEEE 802.11a, IEEE 802.11ac, IEEE 802.11n

Ports & interfaces

Connectivity technology: Wired & Wireless

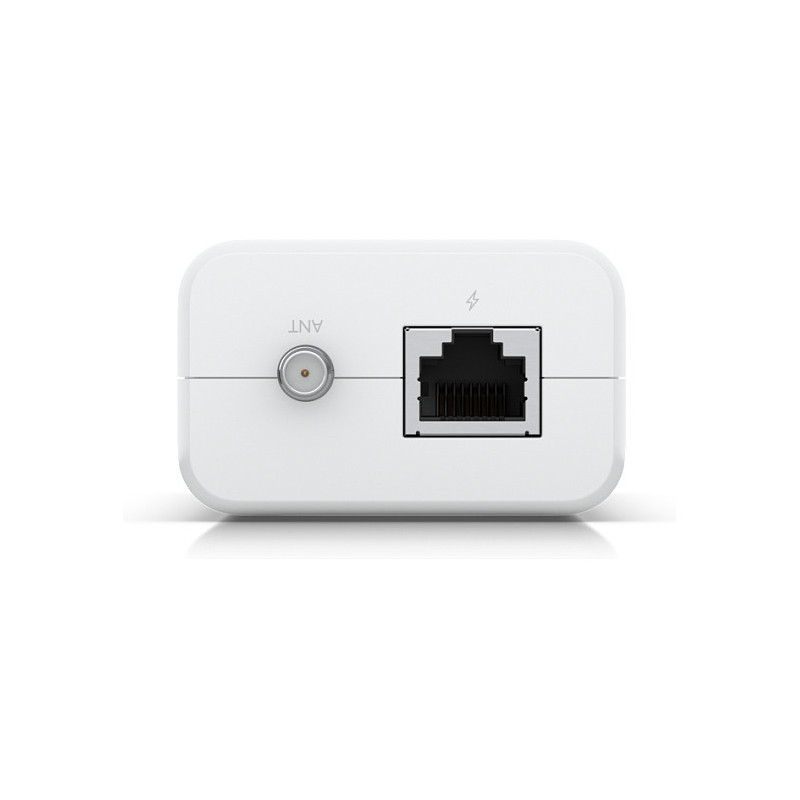

Ethernet LAN (RJ-45) ports: 1

Features

Product type: Network bridge
Material: Polycarbonate (PC)
Mounting type: Wall
Product colour: White

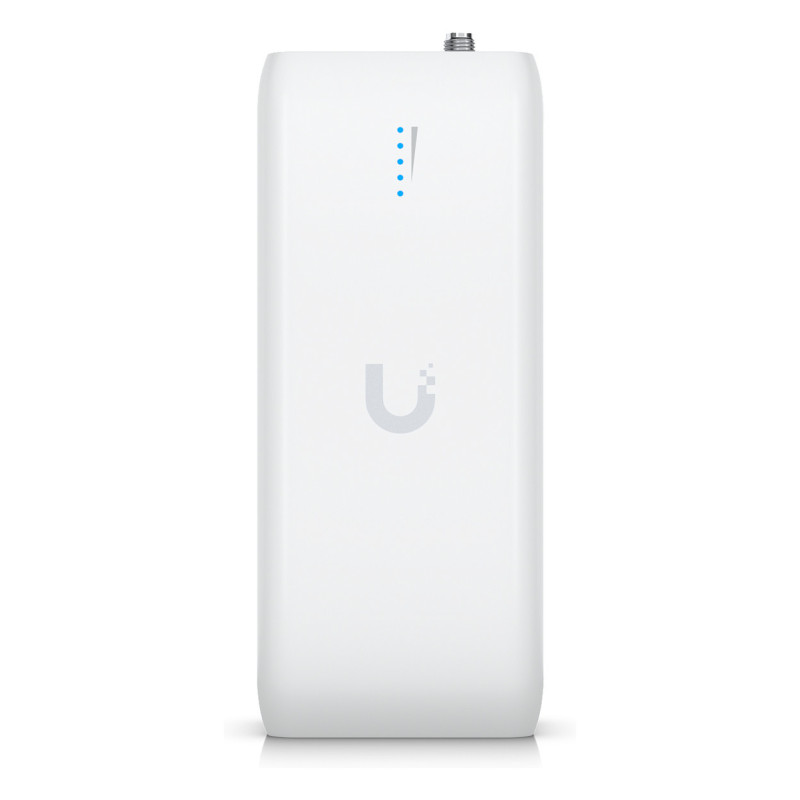

LED indicators: Signal strength, Status

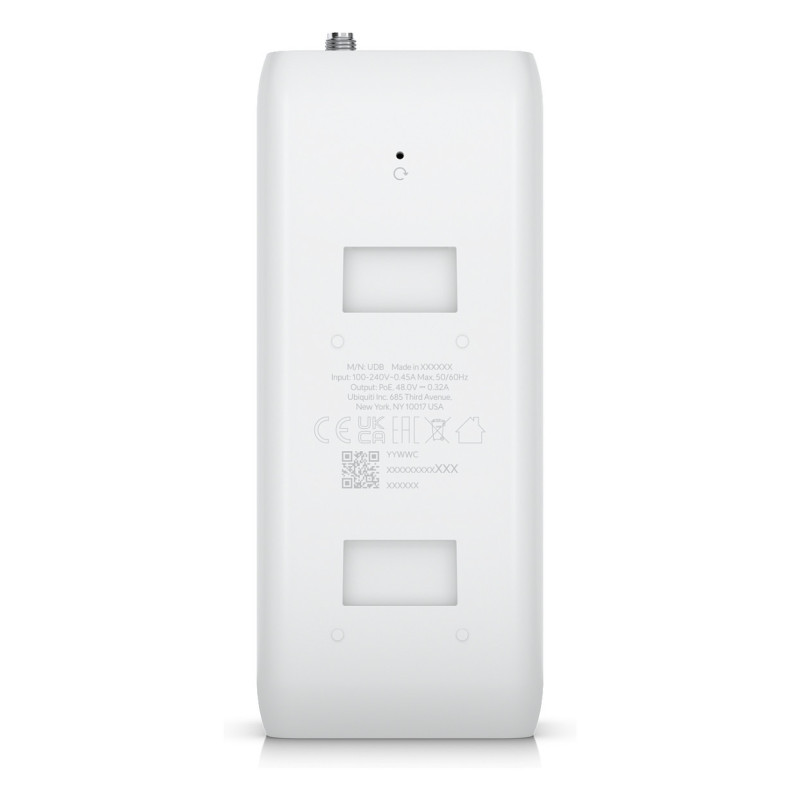

Feature: Reset button

Power

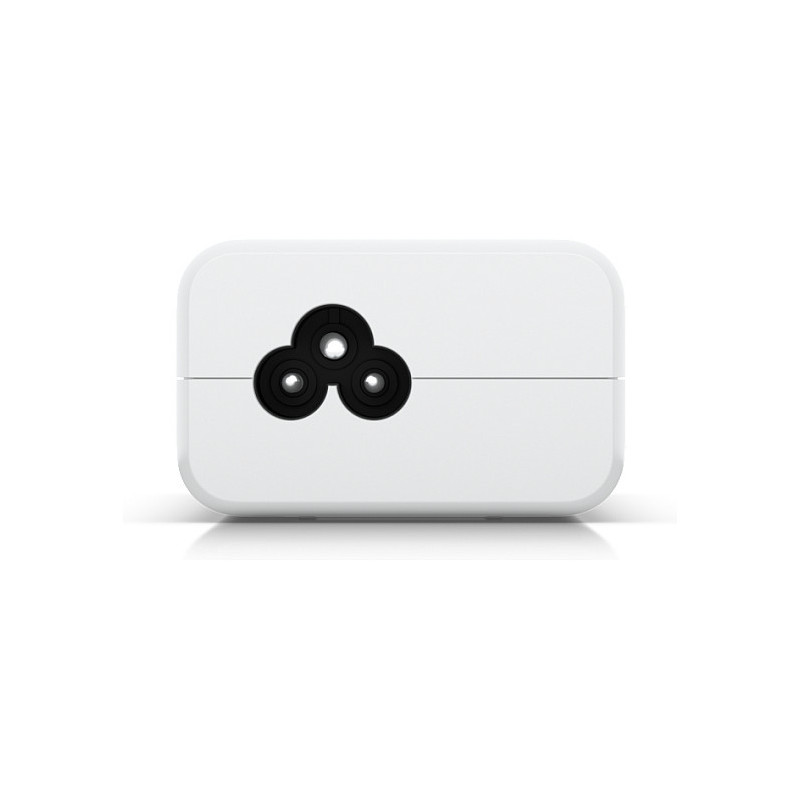

Power source type: AC
AC input voltage: 100 - 240 V
AC input frequency: 50/60 Hz
Power consumption (max): 25 W
Feature: Power over Ethernet (PoE)

Operational conditions

Operating temperature (T-T): -10 - 40 °C
Operating relative humidity (H-H): 5 - 95%

Certificates

Compliance certificates: CE, Federal Communications Commission (FCC), Industry Canada (IC)

Weight & dimensions

Width: 130 mm
Depth: 55 mm
Height: 34 mm
Weight: 200 g

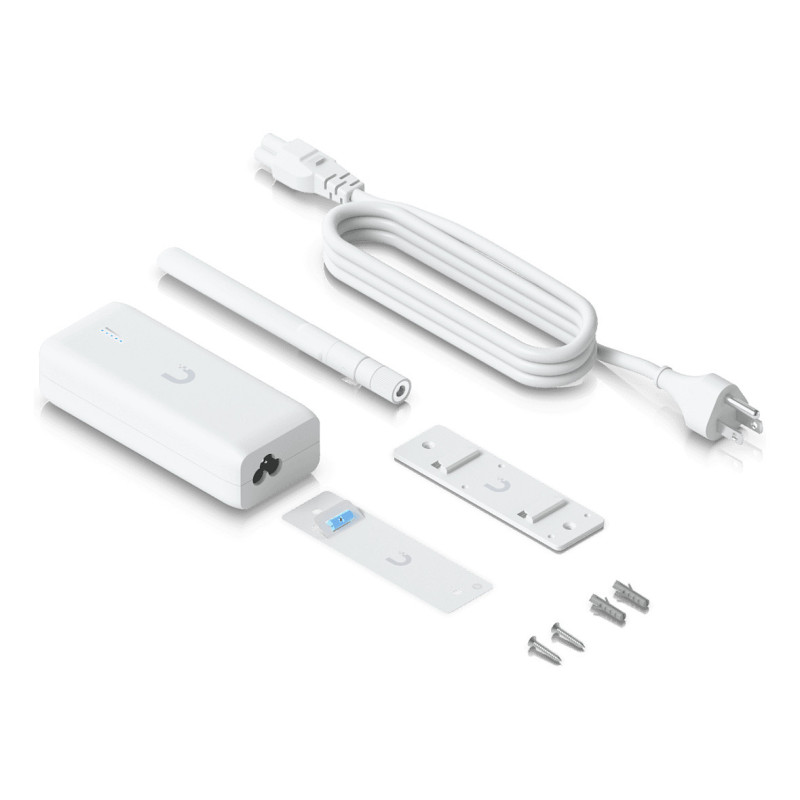

Packaging content

Feature: Mounting bracket(s) included
Feature: Power supply included
Cables included: AC

Packaging data

Quantity per pack: 1 pc(s)
