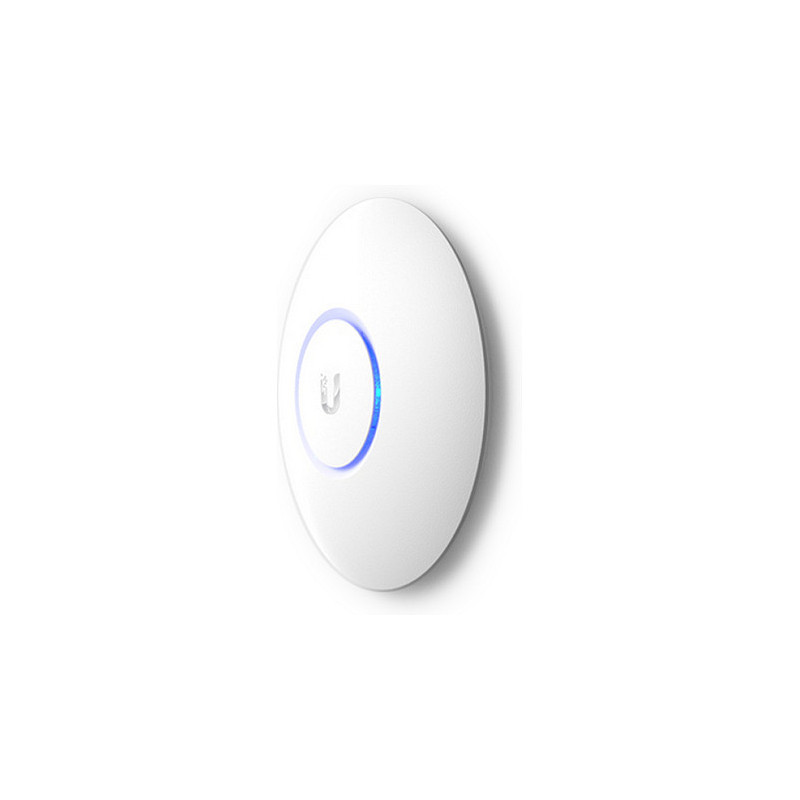

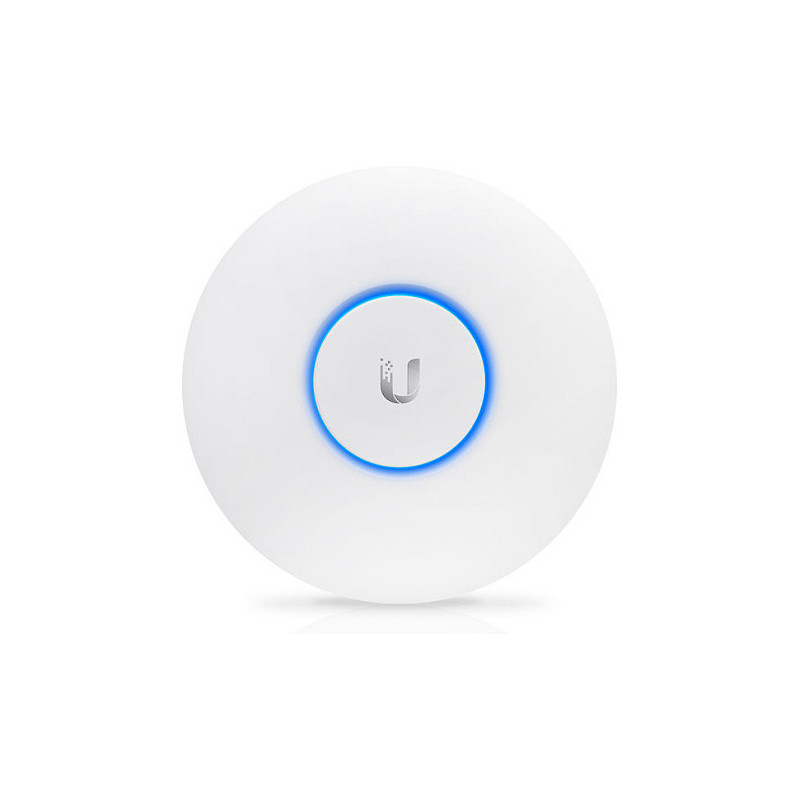

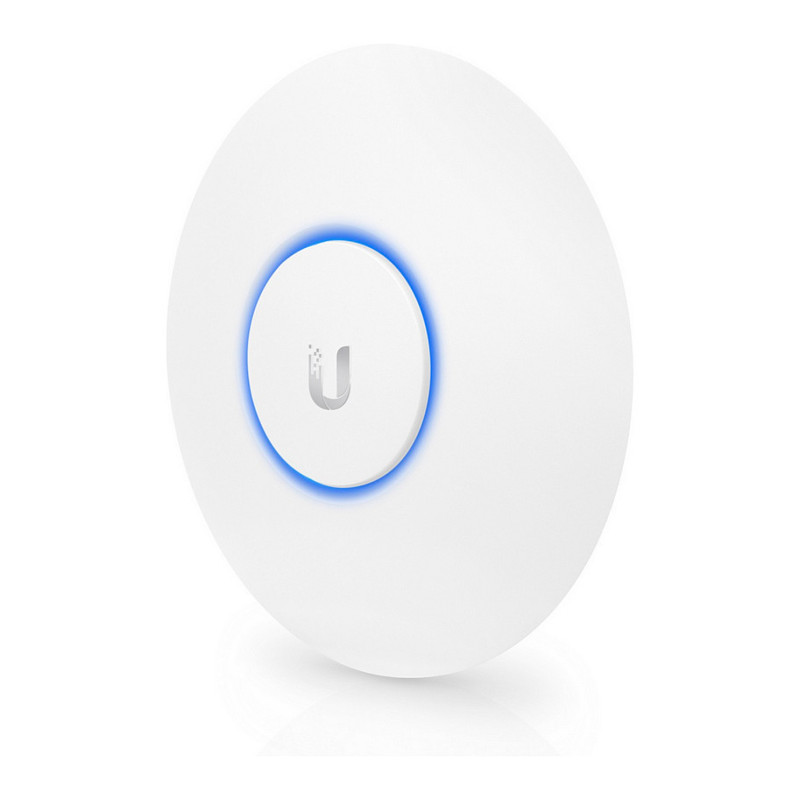

Ubiquiti UAP-AC-PRO-5 wireless access point

Ubiquiti UAP-AC-PRO-5. 2.4 GHz, 5 GHz, Maximum data transfer rate: 1300 Mbit/s. Security algorithms: AES, TKIP, WEP, WPA, WPA-PSK, WPA2. Ethernet LAN data rates: 10,100,1000 Mbit/s. Product colour: White. Power consumption (max): 9 W

Scalable Enterprise Wi-Fi Management

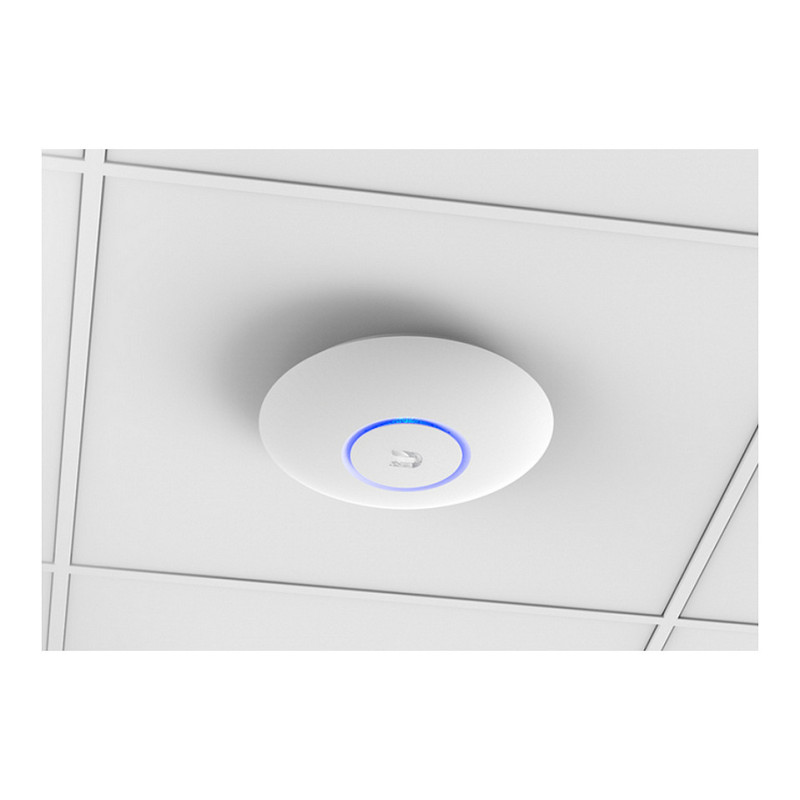

UniFi® is the revolutionary Wi-Fi system that combines enterprise performance, unlimited scalability, and a central management controller. UniFi 802.11AC Dual‑Radio Access Points (APs) have a refined industrial design and can be easily installed using the included mounting hardware.
Easily accessible through any standard web browser, the UniFi Controller software is a powerful software engine ideal for high-density client deployments requiring low latency and high uptime performance.
Use the UniFi Controller software to quickly configure and administer an enterprise Wi-Fi network - no special training required. RF map and performance features, real-time status, automatic UAP device detection, and advanced security options are all seamlessly integrated.

Save money and save time
Unlike traditional enterprise Wi-Fi systems that use a hardware controller, UniFi comes bundled with a non-dedicated software controller that can be deployed on an on-site PC, Mac, or Linux machine; in a private cloud; or using a public cloud service.
Powerful Hardware
The UniFi 802.11AC Dual-Radio APs feature the latest in Wi-Fi 802.11AC MIMO technology.
Intuitive UniFi Controller Software
Configure and manage your APs with the easy-to-learn user interface.
Expandable
Unlimited scalability: build wireless networks as big or small as needed. Start with one (or upgrade to a three‑pack) and expand to thousands while maintaining a single unified management system.

UAP-AC-PRO
Deploy the UniFi AC Pro AP indoors or outdoors, in wireless networks requiring maximum performance.

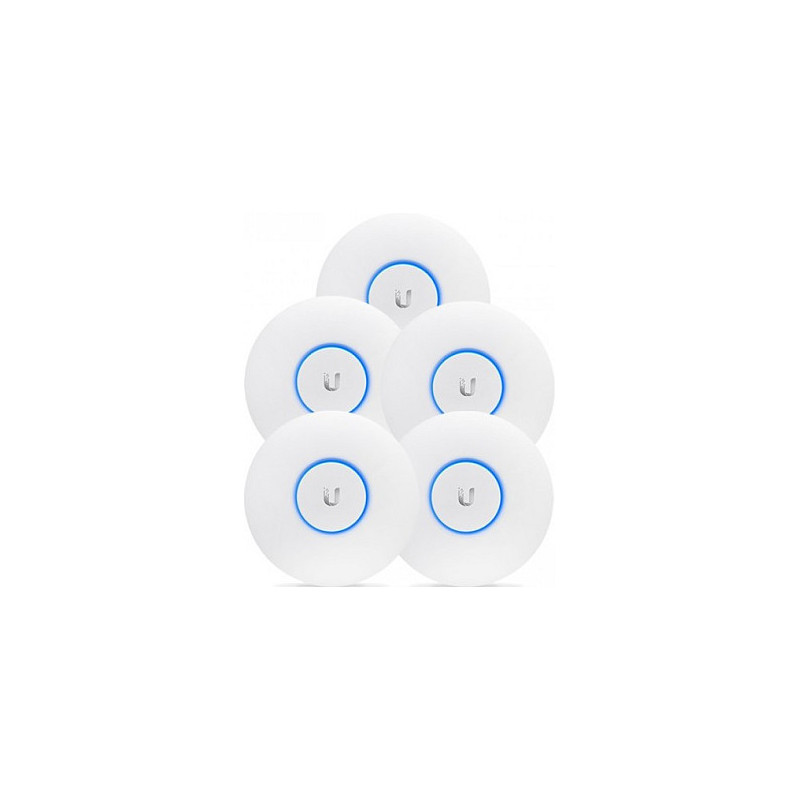

Sporting a weatherproof design, the UniFi AC Pro AP features simultaneous, dual-band, 3x3 MIMO technology and convenient 802.3af PoE/802.3at PoE+ compatibility. It is available in single- and five‑packs*.
* Four- and five-packs do not ship with PoE adapters; we recommend powering the UniFi APs with the UniFi Switch instead.

Features

Feature: 2.4 GHz
Feature: 5 GHz
Maximum data transfer rate: 1300 Mbit/s
Wi-Fi data rate (max): 1300 Mbit/s
Ethernet LAN data rates: 10,100,1000 Mbit/s
Networking standards: IEEE 802.11a, IEEE 802.11ac, IEEE 802.11ax, IEEE 802.11b, IEEE 802.11g, IEEE 802.11n
Maximum indoor range: 122 m

Security

Security algorithms: AES, TKIP, WEP, WPA, WPA-PSK, WPA2

Ports & interfaces

Ethernet LAN (RJ-45) ports: 2
USB 2.0 ports quantity: 1

Power

AC input voltage: 48 V
Input current: 0.5 A
Power consumption (max): 9 W

Design

Product colour: White
Feature: Reset button

Antenna

Antennas quantity: 3
Antenna gain level (max): 3 dBi

Certificates

Certification: CE, FCC, IC

Weight & dimensions

Depth: 196.7 mm
Height: 35 mm
Weight: 350 g

Packaging content

Feature: Mounting kit

Operational conditions

Operating relative humidity (H-H): 5 - 95%
Operating temperature (T-T): -10 - 70 °C

Logistics data

Harmonized System (HS) code: 85176990
