Ubiquiti U7 Pro Max

Ubiquiti U7 Pro Max. 2.4 GHz, 5 GHz, 6 GHz, Maximum data transfer rate: 5700 Mbit/s. Security algorithms: PPSK, WPA, WPA-Enterprise, WPA-PSK, WPA2, WPA3. Ethernet LAN data rates: 2500 Mbit/s. Power over Ethernet (PoE). Product colour: White. Power consumption (max): 22 W

Ceiling-mounted WiFi 7 AP with 8 spatial streams, 6 GHz support, and a dedicated spectral scanning engine for interference-free WiFi in demanding, large-scale environments.

Features

Feature: 2.4 GHz
Feature: 5 GHz
Feature: 6 GHz
Maximum data transfer rate: 5700 Mbit/s
Ethernet LAN data rates: 2500 Mbit/s
Throughput data rate: 5765 Mbit/s
Frequency band: 2.4 - 5.7 GHz
Networking standards: IEEE 802.11a, IEEE 802.11ac, IEEE 802.11ax, IEEE 802.11b, IEEE 802.11be, IEEE 802.11g, IEEE 802.11n, IEEE 802.1Q, IEEE 802.3at
Feature: MIMO
MIMO type: Multi User MIMO
Spatial streams: 8
Feature: VLAN support
Feature: Rate limiting
Feature: Quality of Service (QoS) support

Security

Security algorithms: PPSK, WPA, WPA-Enterprise, WPA-PSK, WPA2, WPA3

Ports & interfaces

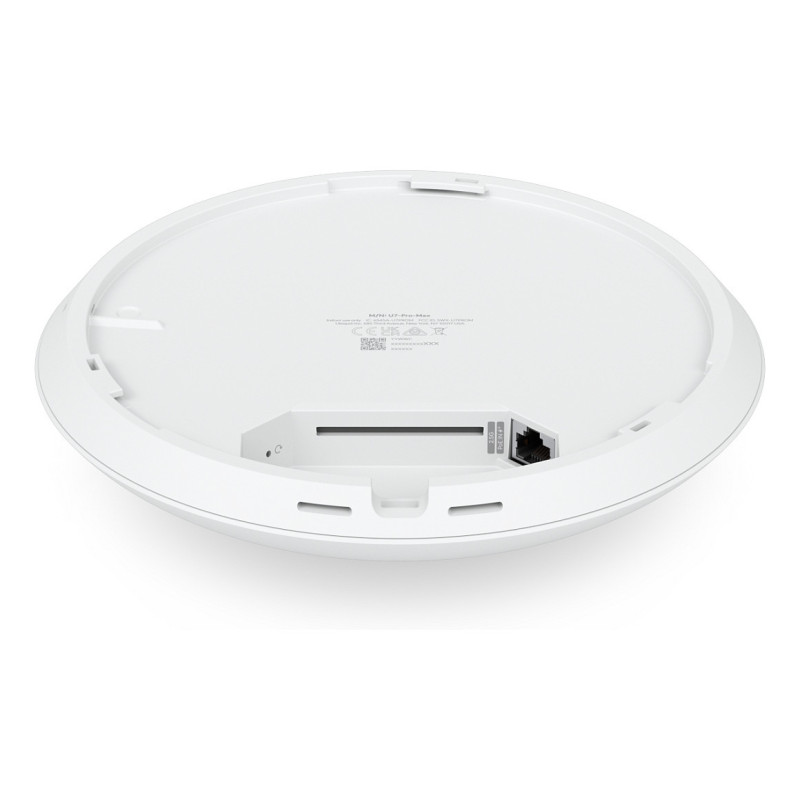

Ethernet LAN (RJ-45) ports: 1

Power

Feature: Power over Ethernet (PoE)
DC voltage range: 44 - 57 V
Power consumption (max): 22 W

Design

Placement: Ceiling, Wall
Product colour: White
Housing material: Aluminium, Polycarbonate (PC)
Feature: Reset button
LED indicators: Yes
Recommended usage: Indoor

Antenna

Antenna type: Internal
Antenna gain level (max): 5.9 dBi

Certificates

Compliance certificates: CE, Federal Communications Commission (FCC), Industry Canada (IC)

Weight & dimensions

Width: 206 mm
Depth: 206 mm
Height: 46 mm
Weight: 680 g

Packaging content

Quantity per pack: 1 pc(s)

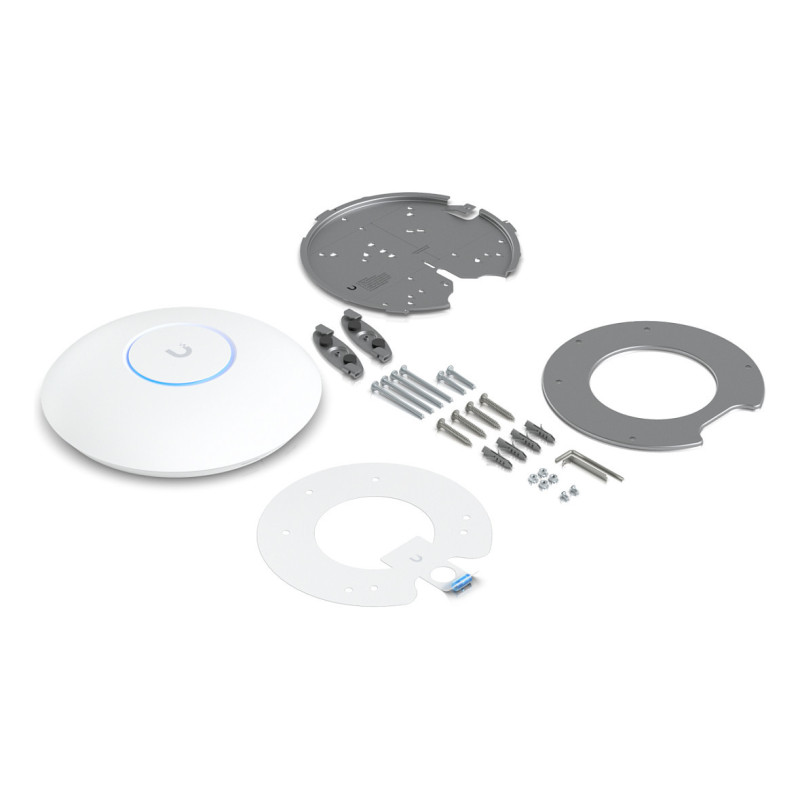

Feature: Mounting kit

Operational conditions

Operating relative humidity (H-H): 5 - 95%
Operating temperature (T-T): -30 - 60 °C

Sustainability

Feature: Sustainability compliance
