Ubiquiti U7 In-Wall

Ubiquiti U7 In-Wall. 2.4 GHz, 5 GHz, Maximum data transfer rate: 4300 Mbit/s. Security algorithms: PPSK. Ethernet LAN data rates: 2500 Mbit/s. Power over Ethernet (PoE). Product colour: White. Power consumption (max): 13 W

Wall-mounted WiFi 7 AP with 4 spatial streams and an integrated 2.5 GbE PoE switch designed for hospitality environments.

Features

Feature: 2.4 GHz
Feature: 5 GHz
Maximum data transfer rate: 4300 Mbit/s
Maximum data transfer rate (2.4 GHz): 688 Mbit/s
Maximum data transfer rate (5 GHz): 4300 Mbit/s
Ethernet LAN data rates: 2500 Mbit/s
Frequency band: 2.4 - 5 GHz
Networking standards: IEEE 802.11ac, IEEE 802.11ax, IEEE 802.11be, IEEE 802.11k, IEEE 802.11n, IEEE 802.11r, IEEE 802.11v
Coverage area: 115 m²
Number of users: 200 user(s)
Feature: MIMO
MIMO type: Multi User MIMO
Spatial streams: 4
Fit AP mode features: Hotspot 2.0
Feature: Fast roaming
Feature: VLAN support
Feature: Wireless meshing
Feature: Band steering
Maximum Tx power (2.4 GHz): 23 dBmW
Maximum Tx power (5 GHz): 24 dBmW

Security

Security algorithms: PPSK

Management features

Access point management: Wi-Fi schedule

Ports & interfaces

Ethernet LAN (RJ-45) ports: 3

Power

Feature: Power over Ethernet (PoE)
DC voltage range: 42.5 - 57 V
Power consumption (max): 13 W

Design

Placement: Wall
Product colour: White
Housing material: Aluminium, Polycarbonate (PC)
Feature: Reset button
LED indicators: Status

Antenna

Antenna type: Internal
Antennas quantity: 4
Antenna gain level (max): 8 dBi

Certificates

Compliance certificates: CE, Federal Communications Commission (FCC), Industry Canada (IC)

Weight & dimensions

Width: 98.7 mm
Depth: 30.2 mm
Height: 137 mm
Weight: 400 g

Packaging content

Quantity per pack: 1 pc(s)

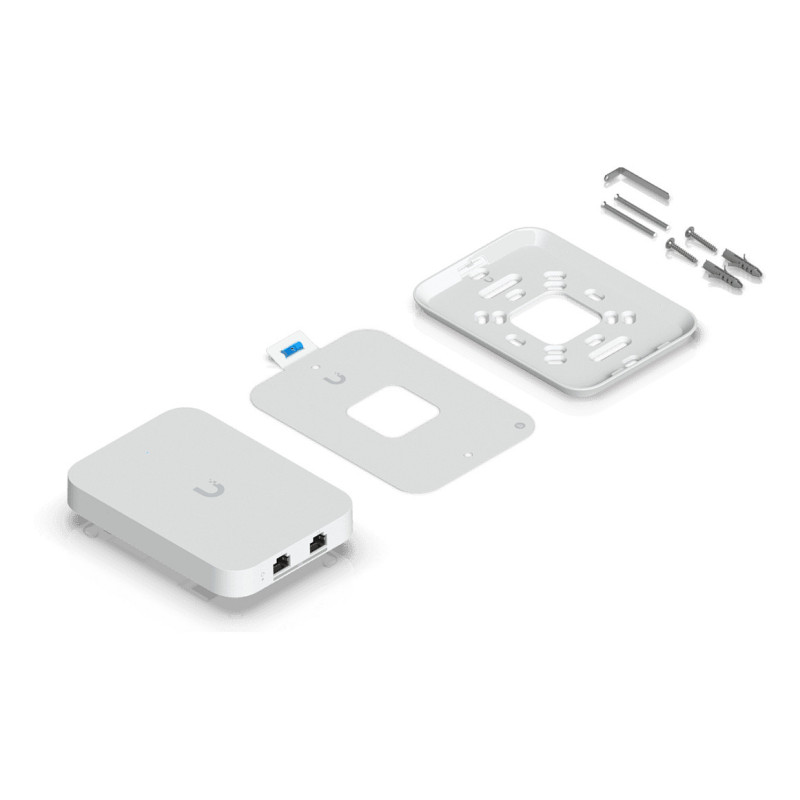

Feature: Mounting kit

Operational conditions

Operating relative humidity (H-H): 5 - 95%
Operating temperature (T-T): -30 - 40 °C
